Description

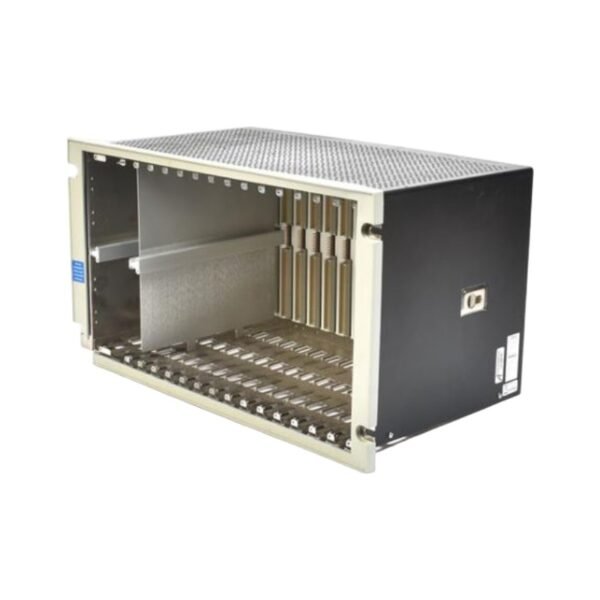

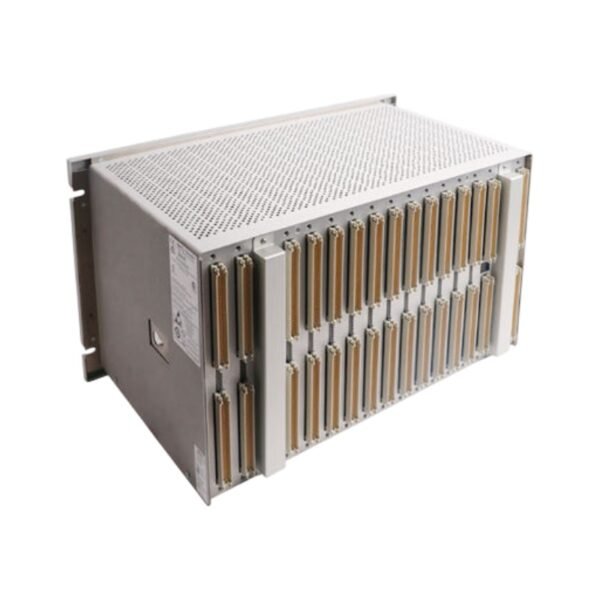

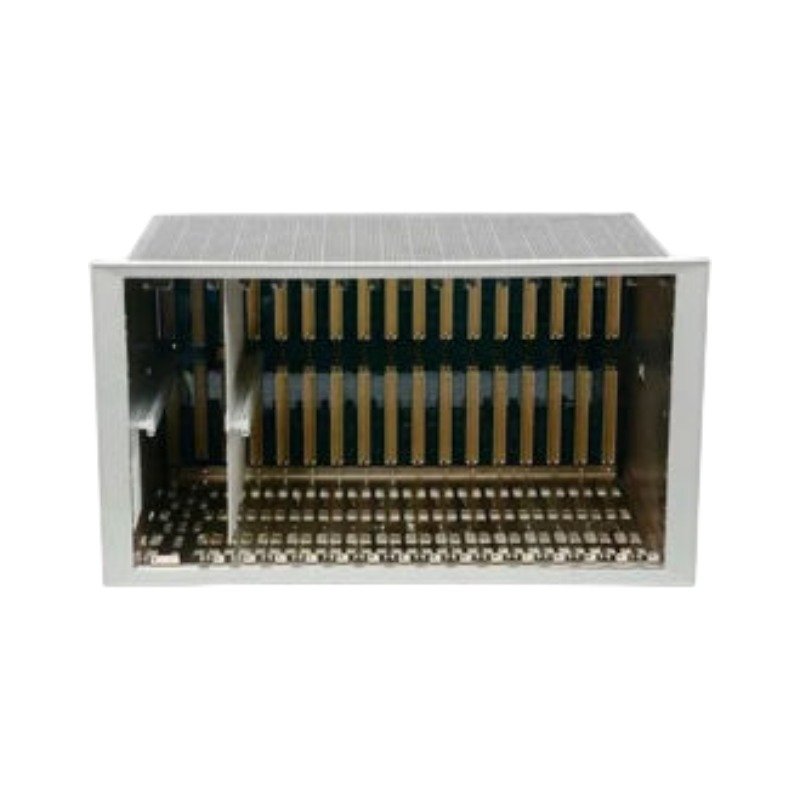

The Bently Nevada 3500/05-02-04-01-00-01 operates as a structural, 12-inch instrumentation chassis within the 3500 Series Machinery Protection System framework. The hardware provides the central backplane bus links and physical guide slots necessary to interconnect processing, power, and I/O monitoring modules. Consequently, this centralized environment establishes the deterministic power distribution layer and low-latency digital communications needed to handle real-time plant safety tracking.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The multi-slot backplane maintains specialized internal ground planes to secure linear eddy-current probe scaling configurations across all grouped channels. Thus, the integrated backplane bus traces pass continuous excitation lines directly to localized card ports, supporting uncompromised gap voltage validation (-10 VDC targets) during system calibration. Furthermore, the structural layer architecture enforces strict cross-talk suppression between adjacent processing channels. As a result, this isolation blocks electromagnetic interference from traveling across parallel slot pins, preserving data resolution for dynamic rotor dynamics tracking.

Frequently Asked Questions

Q: Where must the power supplies and primary communications interface reside within the mini-rack?

A: The internal architecture mandates that the system power supplies and the 3500/22M Rack Interface Module (RIM) occupy the far-left slot positions. Consequently, this leaves the remaining seven vertical positions fully open for customized combinations of machinery monitoring and relay output modules.

Q: Can maintenance teams execute hot-swap module actions inside this active chassis frame?

A: Yes, the 3500/05 backplane fully accommodates live insertion and removal of individual monitor cards while the rack is powered. However, because removing cards breaks active protection links, field engineers must engage localized channel bypass loops beforehand to eliminate the risk of unexpected plant trips.

Field Installation Guidelines

1. Cut the panel enclosure opening according to the exact dimensional templates required for the 12-inch panel mount mini-rack layout.
2. Slide the chassis frame straight into the panel cutout, securing the front flange screws to 0.6 N-m of torque to build a solid physical ground link with the cabinet.
3. Isolate incoming low-level instrumentation field lines from high-voltage alternating current power paths by a minimum space constraint of 300 mm.
4. Establish a single-point operational instrument earth ground connection, landing all external module shields at the dedicated backplane grounding strips.
