Description

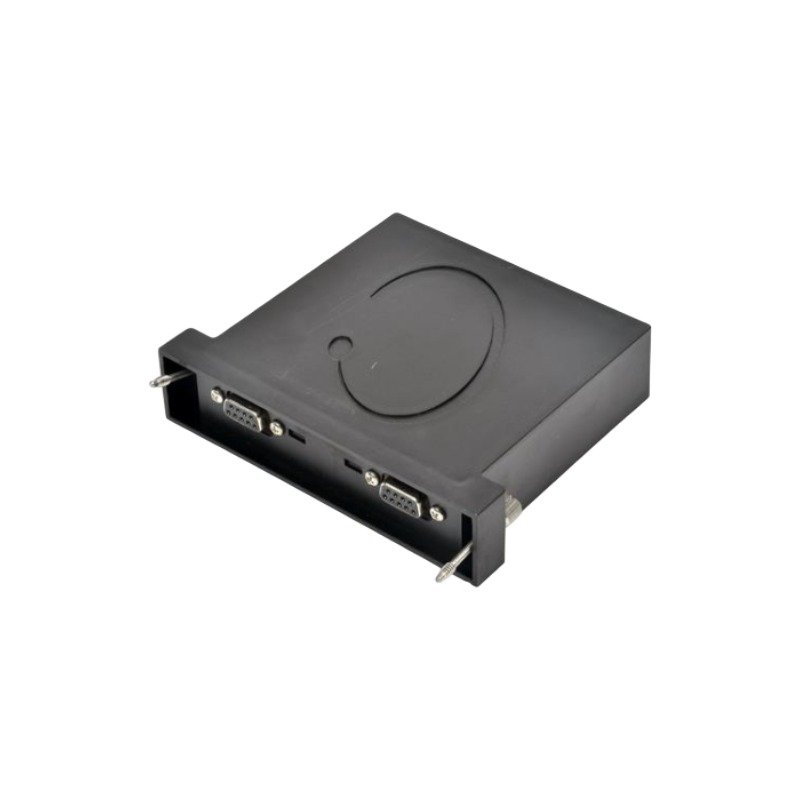

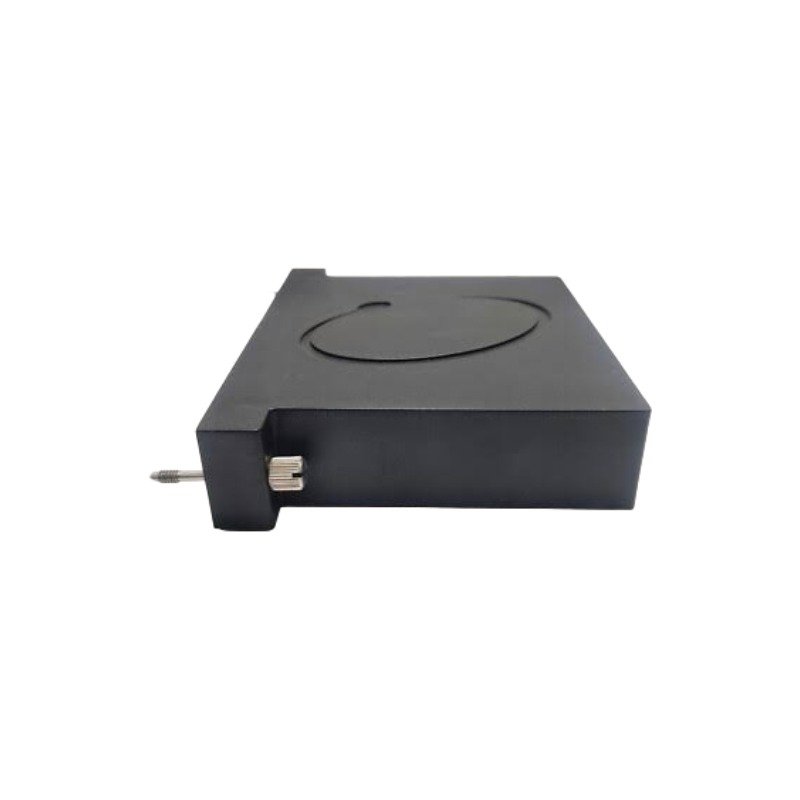

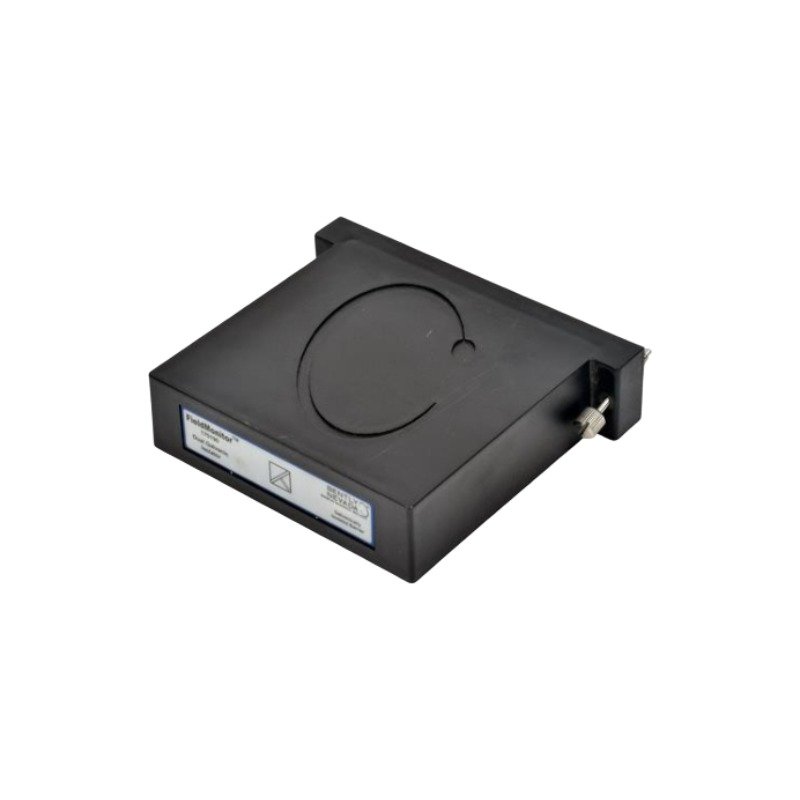

Configured for signal isolation and ground loop elimination in TSI monitoring systems, the Bently Nevada 170190-01 1034549-40 141380-01 (170190-01 Dual Galvanic Isolator Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The Bently Nevada Dual Galvanic Isolator system incorporates specific component part numbers to define hardware configurations:

• 170190-01: Serves as the primary ordering part number for the core Dual Galvanic Isolator module.
• 1034549-40: Designates the internal circuit board assembly and revision hardware.
• 141380-01: Defines the dedicated baseplate interface and field terminal connection hardware.

Hardware Specifications

Proximity Sensor Signal Scaling and Gap Voltage Validation

To maintain measurement integrity, the module processes raw transducer signals directly without signal degradation. Specifically, internal galvanic barriers block common-mode voltage spikes and actively eliminate ground loop noise. Furthermore, the internal circuitry suppresses signal cross-talk between adjacent channels during transient dynamic events. Consequently, the module preserves linear eddy-current probe scaling and holds stable -10 VDC gap voltage bias levels, delivering clean dynamic vibration data directly to downstream TSI machinery protection systems.

Frequently Asked Questions

Q: How does the module process dynamic proximity transducer signals without signal degradation?

A: The internal galvanic isolation network passes both high-frequency AC vibration waveforms and DC gap voltage offsets across isolated channels. Consequently, the unit maintains full signal fidelity and retains target -10 VDC gap voltage values.

Q: Can technicians deploy this unit within API 670 compliant machinery protection systems?

A: Yes, engineers specify this module for API 670 installations. Furthermore, the isolator actively suppresses common-mode interference and prevents ground loops from triggering false machinery shutdown sequences.

Field Installation Guidelines

• First, seat all field wiring terminals firmly and apply standard torque specifications to prevent high-resistance contacts on proximity transducer loops.
• Next, land probe shield wires at a single ground point to prevent circulating ground loop currents across the monitoring rack.
• Additionally, route high-voltage AC power lines away from low-level proximity probe signal wiring within field junction boxes.
• Finally, measure probe gap voltages (targeting -10 VDC at rest) before and after passing signals through the isolator module to verify linear signal pass-through.
