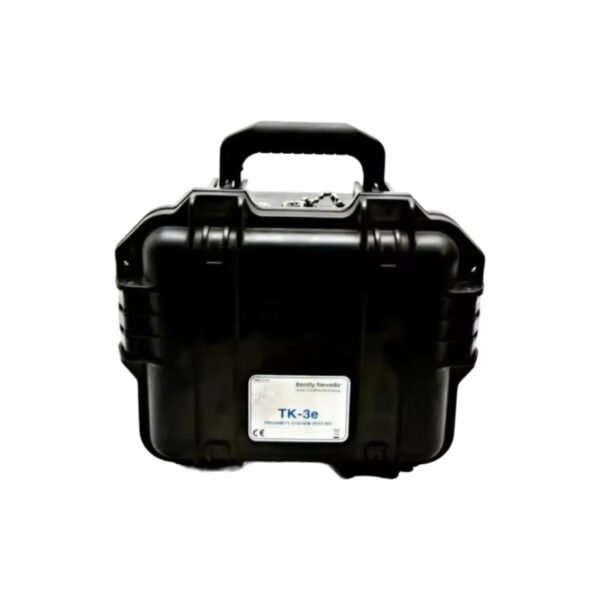

Bently Nevada TK-3e 177313-02-01 TK3 Proximity System Test Kit
Purchase authentic Bently Nevada TK-3e 177313-02-01 TK3 Proximity System Test Kits. Brand New in original factory packaging with Original Stock and Global Shipping.
Description
The Bently Nevada TK-3e 177313-02-01, also cataloged as the 177313-02-01 Test Kits, operates as a dedicated hardware component for field calibration and dynamic signal verification within TSI monitoring systems.
Suffix Breakdown & Model Matrix
| Option | Specification |
|---|---|
| TK-3e | Base model designation for electric-driven proximity system test kit |
| 177313-02-01 | Complete assembly spare part number |
| -02 | Metric scale spindle micrometer calibration system |
| -01 | American electrical power cord configuration |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TK-3e 177313-02-01 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 5.5 kg |
| Dimensions | 30 x 25 x 20 cm |
| Operating Temp | 0 deg C to 50 deg C |
| Power Consumption | 95-125 VAC, 50/60 Hz, 1 A minimum / 190-250 VAC, 50/60 Hz, 1 A minimum |
| Product Type | Test Kits |
| Micrometer Range | 0 to 25.4 mm (0 to 1000 mils) |
| Target / Wobble Plate | AISI 4140 alloy steel |
| Vibration Amplitude | 50 um to 254 um peak-to-peak |
| Storage Temperature | -18 deg C to 65 deg C |
| Relative Humidity | 95% non-condensing humidity |
Eddy-Current Probe Scaling and Gap Voltage Validation

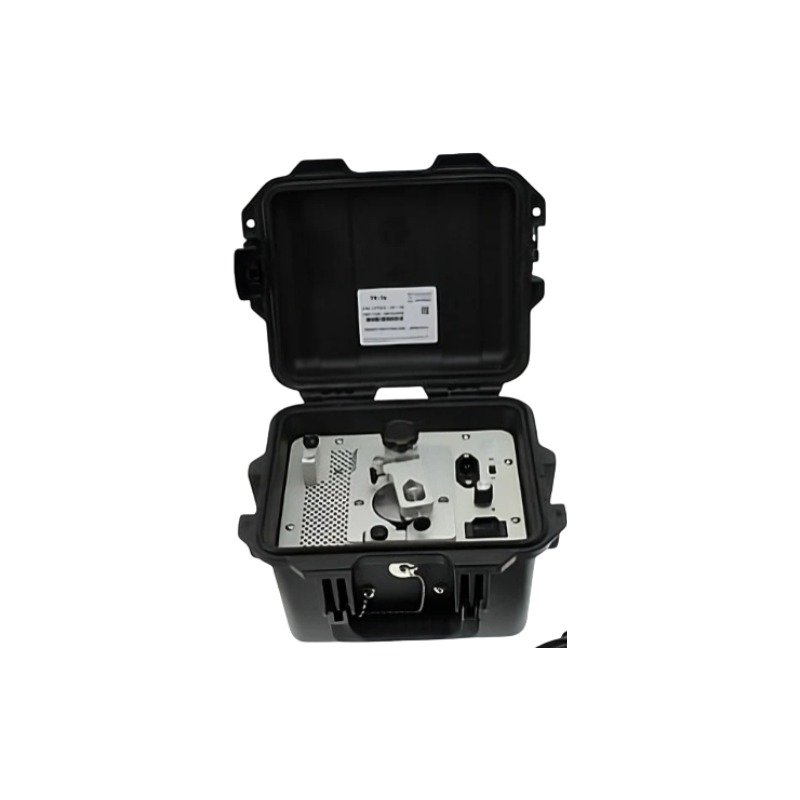

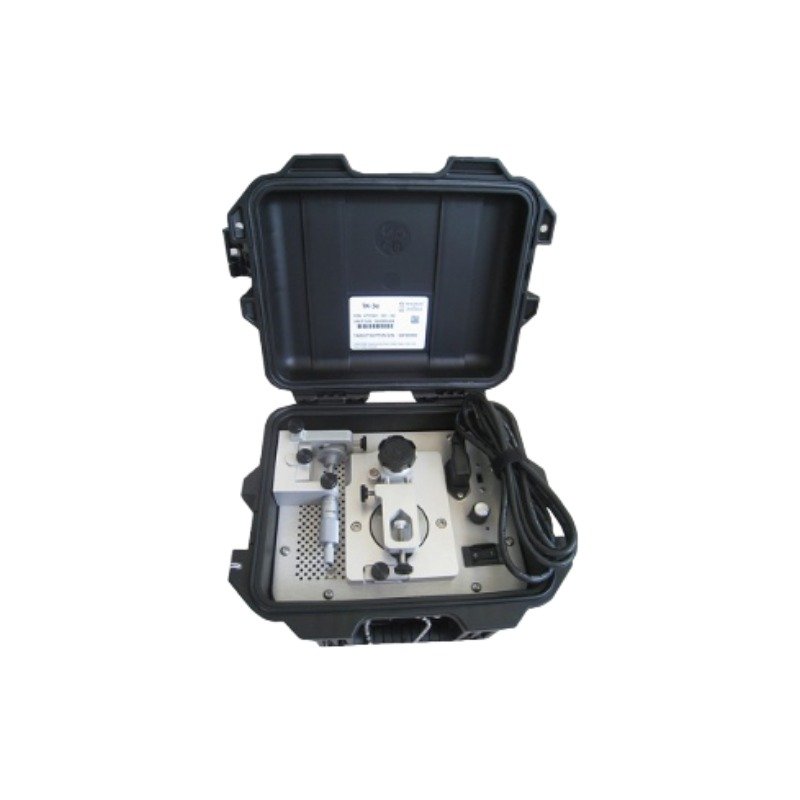

The Bently Nevada TK-3e 177313-02-01 provides precision mechanical motion to validate eddy-current probe scaling and system sensitivity in the field. Using an AISI 4140 alloy steel target button, the spindle micrometer drives linear position changes to confirm probe voltage output across its linear range. Furthermore, technicians verify target -10 VDC gap voltage bias levels and calibrate Proximitor sensor response before deploying transducer systems into active rotor dynamics monitoring loops.
Frequently Asked Questions
Q: How does the spindle micrometer calibrate eddy-current proximity transducers?
A: The spindle micrometer mechanically adjusts the distance between the probe tip and the AISI 4140 steel target in precise increments. Consequently, technicians record the DC voltage output at each step to plot and verify probe scaling linearity.
Q: Can field engineers perform dynamic vibration testing using this kit?
A: Yes, the motorized wobble plate generates controlled physical motion, allowing technicians to verify dynamic vibration amplitude responses from 50 um to 254 um peak-to-peak on machinery monitoring channels.
Field Installation Guidelines
- First, place the test kit on a stable, level surface near the proximity transducer monitoring system.
- Next, select the appropriate voltage supply setting (95-125 VAC or 190-250 VAC) before connecting the electrical power cable.
- Additionally, mount the eddy-current probe securely into the micrometer fixture clamp, ensuring the probe tip faces the AISI 4140 alloy steel target without physical contact.
- Finally, connect the probe output cable to the Proximitor sensor and adjust the micrometer to verify voltage steps across the linear range, targeting -10 VDC near the mid-point.
Additional information
| Weight | 5.5 kg |
|---|---|
| Dimensions | 300 × 250 × 200 mm |
