Description

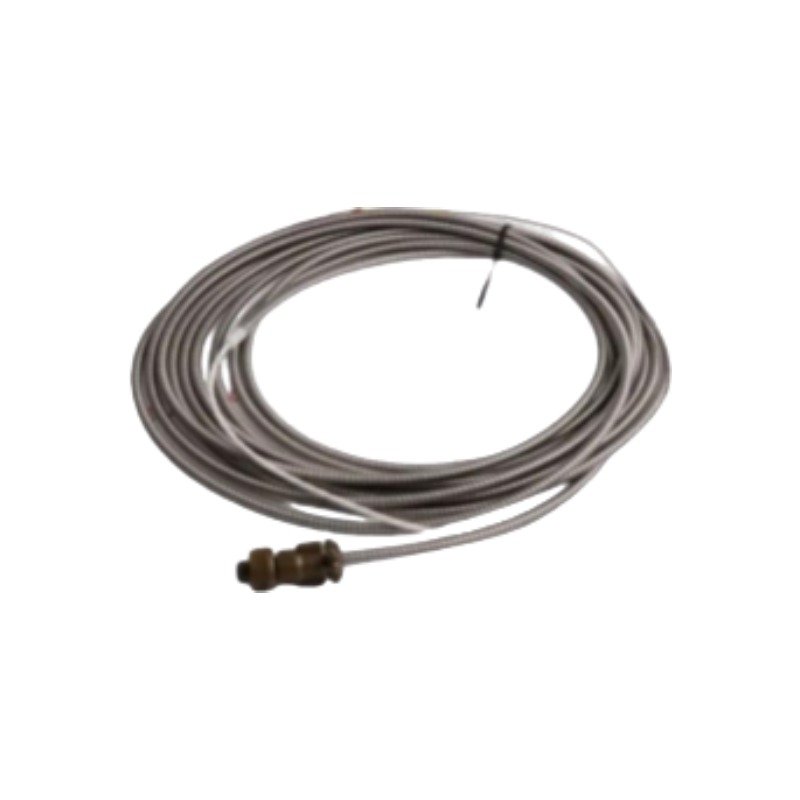

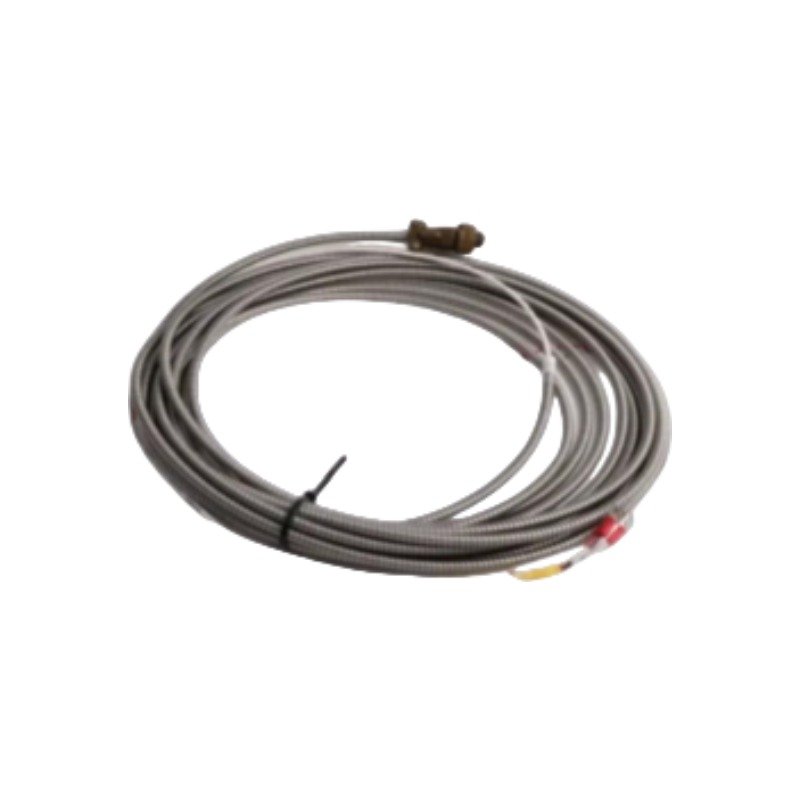

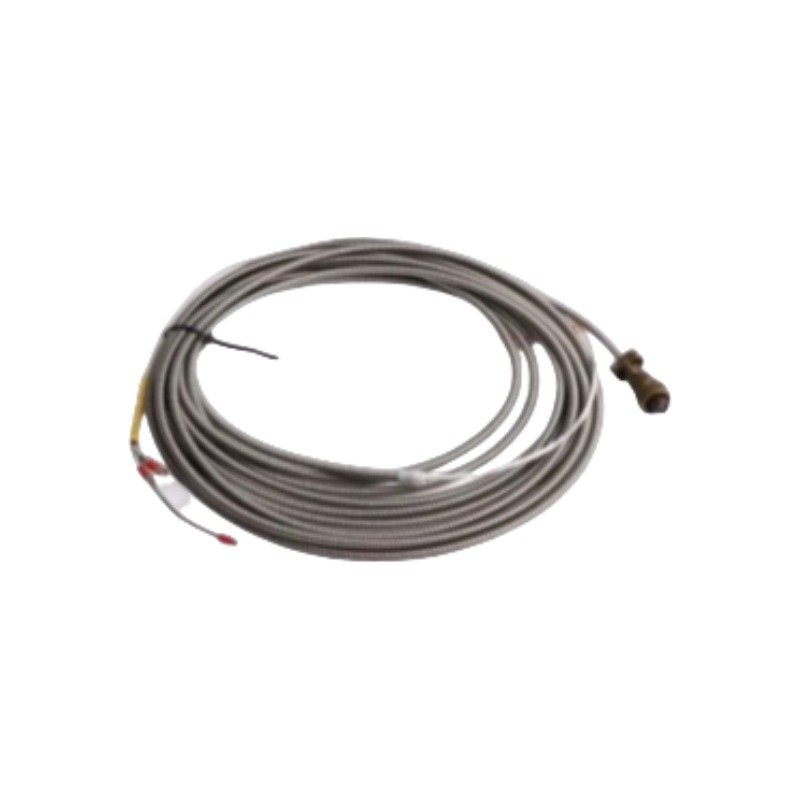

Configured for dynamic acceleration signal transmission in machinery monitoring systems, the Bently Nevada 16710-99 (16710 Interconnect Cable) provides direct physical and electrical execution. The cable assembly interfaces high-frequency seismic transducers with centralized rack processing modules, routing differential voltage pairs while shielding raw wave inputs from severe industrial plant floor noise.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and Transducer Interface Dynamics

The internal twisted 3-conductor matrix optimizes real-time eddy-current probe scaling and accelerometer signal linearity across extended runs. Consequently, gap voltage validation targets remain perfectly stable because the low-resistance core limits voltage drops over the 99-foot physical span. This internal balance maintains clear rotor dynamics observations, while the high-density shield layer delivers cross-talk suppression under -60 dB to prevent adjacent phase reference signals from corrupting raw high-frequency waveforms.

Frequently Asked Questions

Q: How does the 99-foot physical length impact high-frequency acceleration signal attenuation?

A: The cable parameters perfectly match the low-impedance constant-current output of compatible accelerometers. This design prevents high-frequency signal roll-off across the 99-foot run, keeping transmission latency minimal and keeping data accurate across the entire sensor frequency range.

Q: What specific action occurs if the internal shielding breaks or shorts to the armor?

A: A shield fault introduces electromagnetic noise into the signal path and shifts the transducer bias voltage. The connected monitoring rack instantly detects this change, flags a channel “NOT OK” hardware error, and prevents false machinery protection trips.

Field Installation Guidelines

1. Connector Sealing and Seating: Thread the 3-socket plug onto the accelerometer base firmly. For outdoor installations or washdown areas, apply an approved silicone lubricant to the threads to prevent moisture ingress from degrading the internal contact points.
2. Shield and Drain Wire Isolation: Terminate the bare drain shield wire only at the system rack ground bar. Leave the shield floating and isolated at the machine junction box to prevent parasitic ground loop currents from introducing noise into the vibration readings.
3. Bend Radius Restrictions: Route the armored conduit along structural steel supports using dedicated pipe clamps. Always maintain a minimum static bend radius of 4 inches (102 mm) to prevent structural damage to the stainless steel interlocked armor and the underlying tinned copper conductors.
