Description

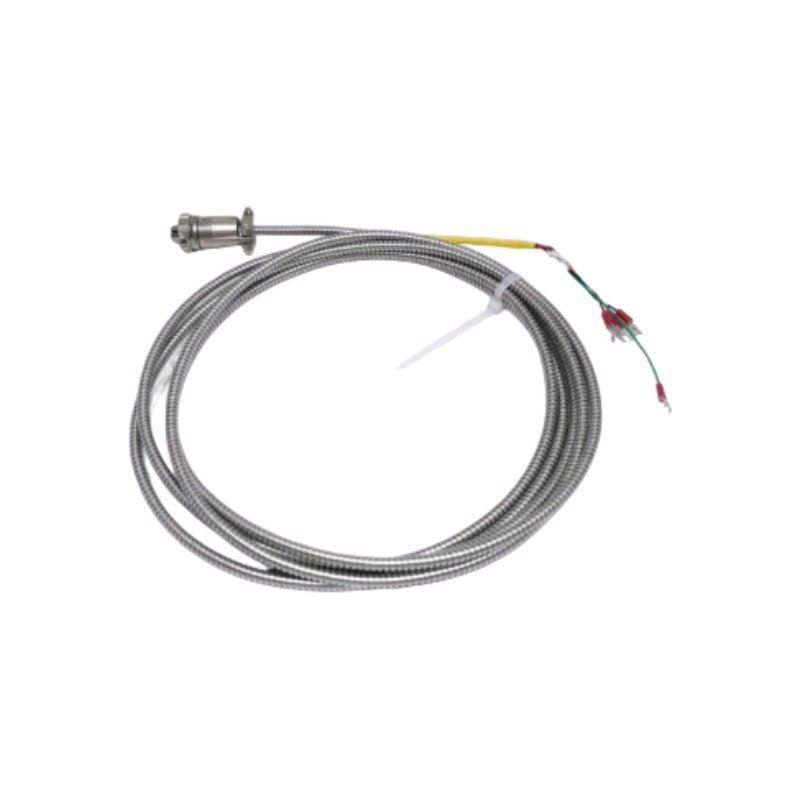

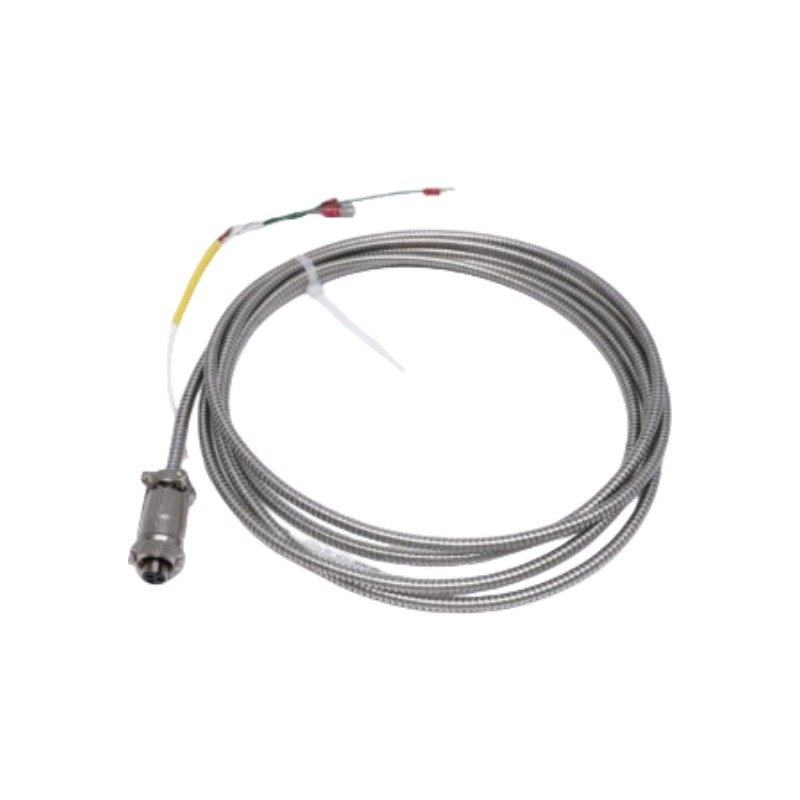

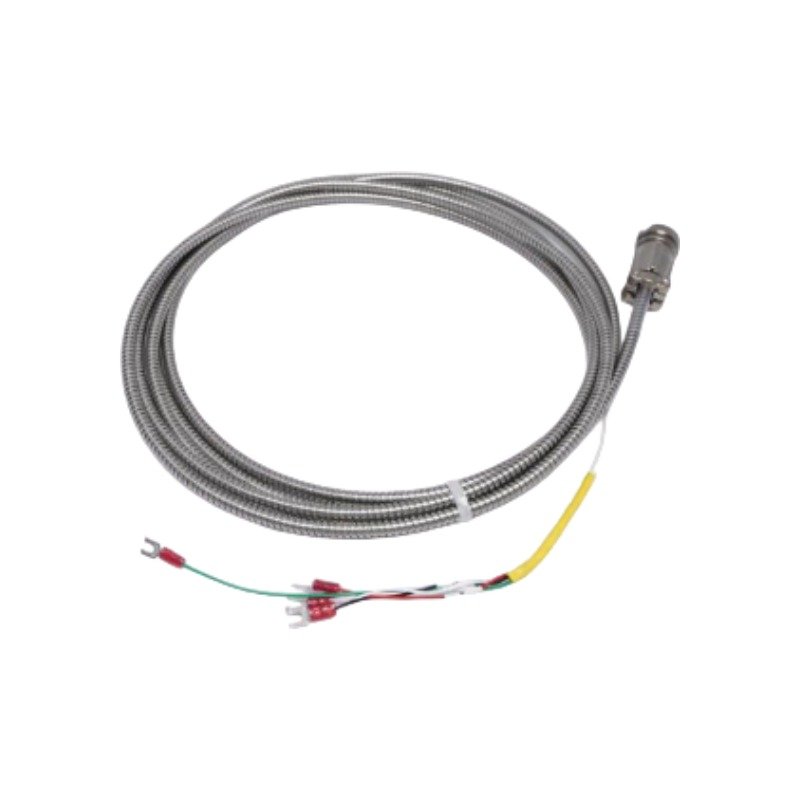

The Bently Nevada 16710-30 is a heavy-duty, 3-conductor shielded armored interconnect cable specifically engineered to interface 330400 and 330425 Accelerometer Acceleration Transducers with primary industrial vibration monitoring platforms (such as the Bently Nevada 3300 or 3500 series). This rugged cable assembly protects high-frequency dynamic acceleration signals from harsh mechanical environments and severe electromagnetic interference (EMI) on the machinery skid.

Suffix Breakdown & Model Matrix

The 16710 series defines the specific engineering layout, physical conductor configuration, and termination footprint, while the trailing suffix designates the exact dimensional run:

Hardware Specifications

Machinery Monitoring and Interface Dynamics

The processing hardware handles dynamic acceleration waveforms directly over this cable link, preserving high-frequency signal integrity. Consequently, the internal twisted 3-conductor matrix minimizes capacitive cross-talk and phase shifts over its 30-foot run, ensuring that seismic vibration tracking remains accurate up to the sensor’s maximum frequency bounds. Furthermore, the robust outer armor serves as an active barrier against crushing, cutting, and environmental breakdown on the machine skid, preventing signal attenuation or grounding faults caused by physical cable degradation.

Frequently Asked Questions

Q: What distinguishes the 16710-30 cable from standard proximity probe extension cables?

A: Proximity probes utilize coaxial or triaxial cables designed for radio-frequency (RF) modulated signals. In contrast, the 16710-30 is a balanced 3-conductor twisted cable designed specifically to deliver constant-current power to an accelerometer while transmitting low-impedance, dynamic voltage waveforms back to the monitor card.

Q: Can the 30-foot cable length be shortened manually in the field if there is excess slack?

A: While it is physically possible to cut through the stainless steel armor and strip back the conductors, it is highly discouraged. Modifying the factory-calibrated length introduces potential shielding gaps and impedance variations. Instead, wrap excess cable into a loose service loop and secure it within a protective junction box.

Field Installation Guidelines

1. Connector Sealing and Seating: Thread the 3-socket plug onto the accelerometer base firmly. To prevent fluid ingress in humid or outdoor locations, apply silicone lubricant to the connector threads or wrap the mated junction with self-amalgamating waterproofing tape.
2. Shielding and Ground Loop Prevention: Connect the terminal lugs to the designated input pins on the rear monitor backplane block. Terminate the bare drain shield wire only at the system rack ground bar; leave the shield floating and completely isolated at the machine/sensor end to prevent parasitic ground loop noise from corrupting vibration metrics.
3. Bend Radius Restrictions: Route the armored cable along structural steel beams using supportive conduit clips. Maintain a minimum bend radius of at least 4 inches (102 mm) across all corners to avoid kinking the inner stainless steel armor weave or pinching the underlying 22 AWG conductor wires.
