Description

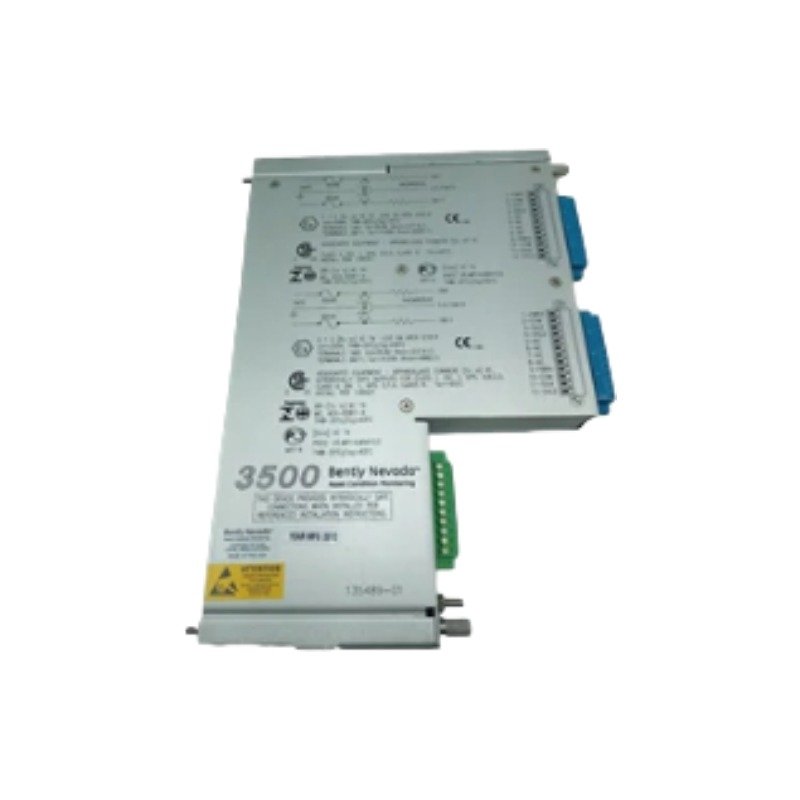

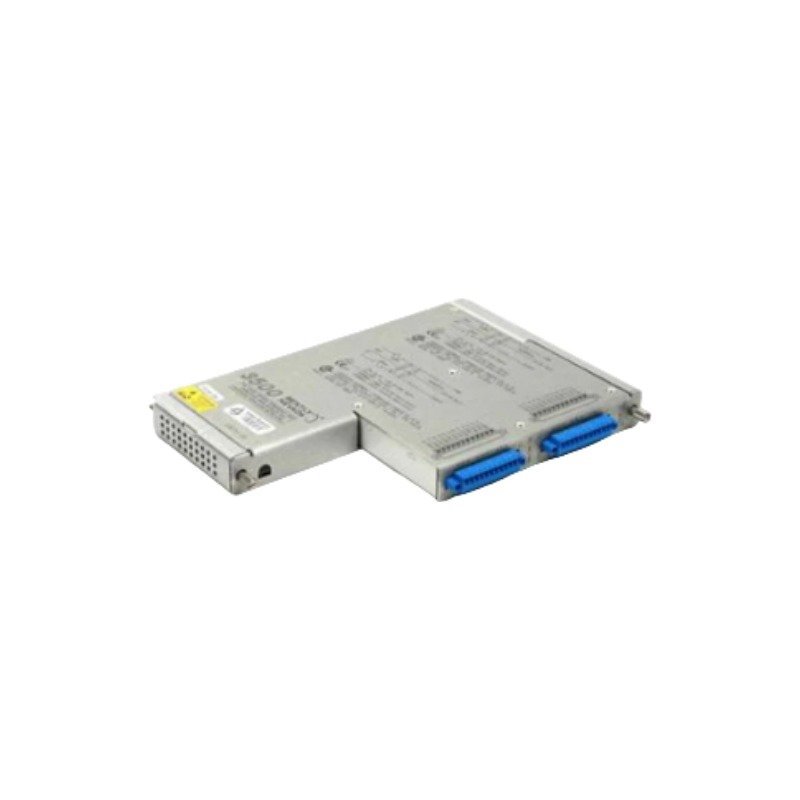

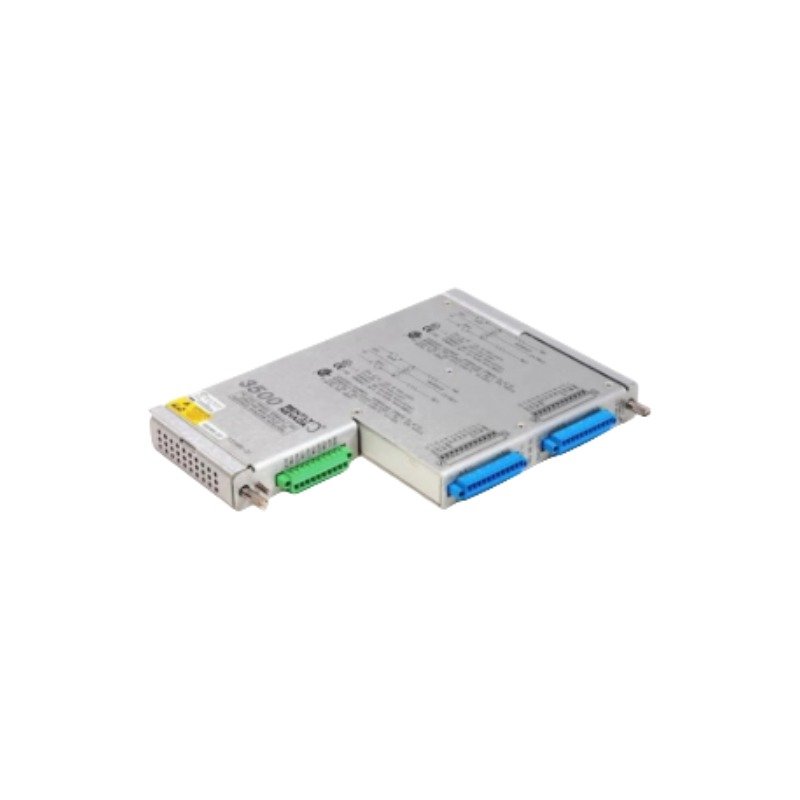

Configured for discrete alarm control in Bently Nevada 3500 monitoring systems, the Bently Nevada 136751-02 (136751-02 Relay I/O Module) provides direct physical/electrical execution. The hardware interface houses four independent relay output channels that receive processed machinery trip logic directly from the system backplane to actuate interlock circuits, emergency shutdown loops, or annunciator systems based on dynamic machinery states.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The relay module maps voting logic parameters derived from continuous proximity and casing vibration data to assess complex rotor dynamics. The control paths respond directly to violations of predefined eddy-current probe scaling baselines and gap voltage validation (-10 VDC targets) boundaries processed by the front-facing monitor modules. Internal component layout rules optimize high-voltage line physical separation, maintaining cross-talk suppression benchmarks to isolate switching inductive transients from adjacent low-voltage sensor processing backplane matrices.

Frequently Asked Questions

Q: Does the 136751-02 module permit hot-swap insertion or removal while the 3500 system rack remains energized?

A: Yes, the 136751-02 module supports hot-swapping within a live 3500 rack. However, removing the active relay I/O module breaks the physical contact circuitry, which can cause downstream control or interlock loops to open or enter an unexpected fail-safe state.

Q: How can technicians verify the contact state of the 136751-02 relays during system troubleshooting loops?

A: The operational status and configuration matrix of the four independent contact channels are monitored through the 3500 System Configuration Software, which reports real-time coil status and indicates open or short circuit errors detected by the internal monitoring bus.

Field Installation Guidelines

• Slide the 136751-02 module into the designated slot from the rear of the 3500 chassis, ensuring the multi-pin connector aligns precisely with the backplane board before tightening the assembly screws.
• Route external contact wire bundles through isolated cable ways away from proximity sensor leads to prevent EMI generation and protect cross-talk suppression characteristics.
• Verify that external loads do not exceed the standard voltage and current contact limitations defined for the 3500 series terminal blocks to protect the internal circuitry from thermal overload.
