Description

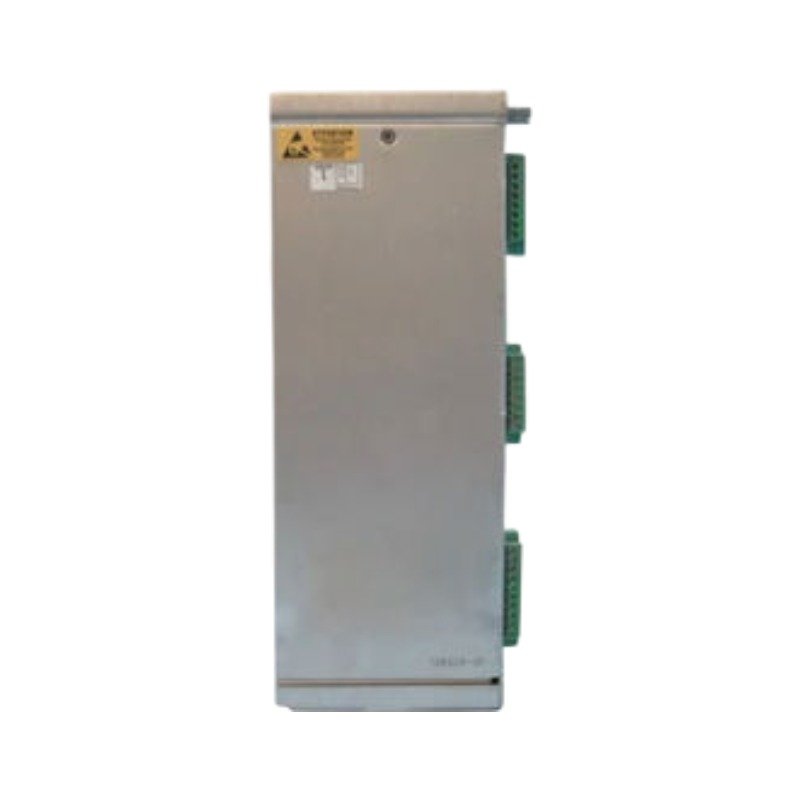

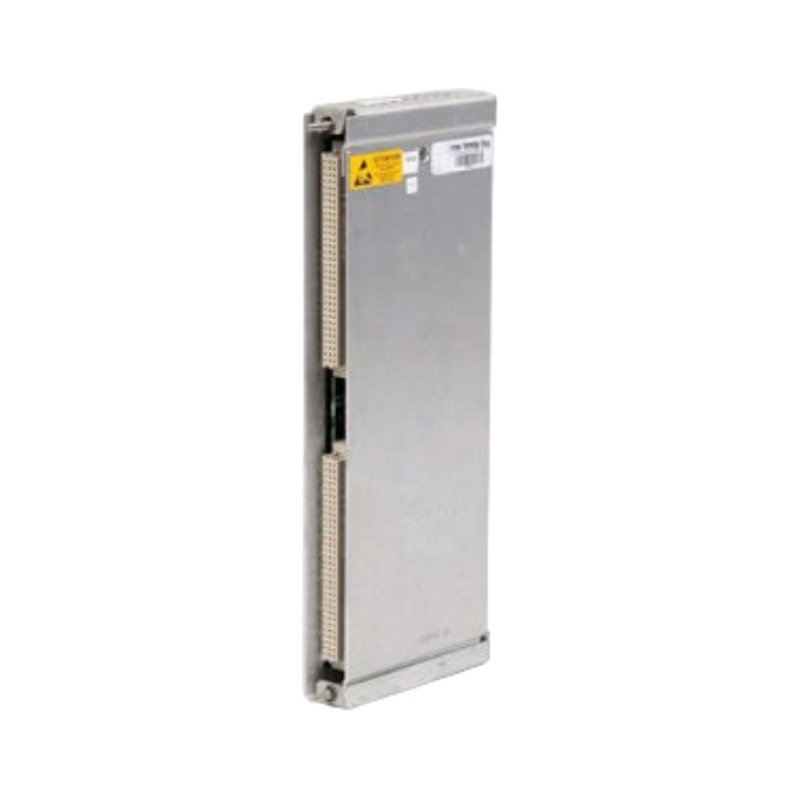

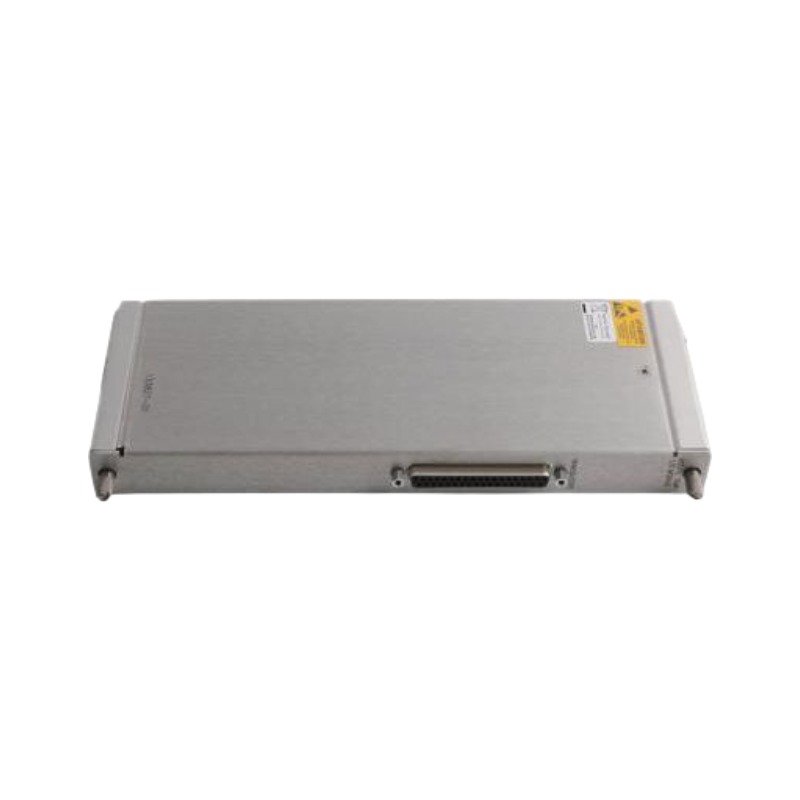

Configured for multi-channel thermal tracking and automated machinery protection in Bently Nevada 3500 platforms, the Bently Nevada 133827-01 (3500/60 RTD/TC Non-Isolated I/O Module with External Terminations) provides direct physical/electrical execution. Specifically, the hardware accepts direct input configurations from multiple physical thermal sensors, and it subsequently feeds linearized data streams to the parent processing card to execute instantaneous safety voting logic.

Hardware Specifications

Rotor Dynamics and Transducer Conditioning

To support complete rotor dynamics and thermodynamic tracking, this backplane-mounted I/O card incorporates optimized conditioning circuitry that actively handles transducer scaling and signal filtration. Because this specific variant utilizes a non-isolated architecture, the hardware relies on strict external grounding boundaries to safeguard the baseline tracking profile against common-mode noise. This tight validation path matches adjacent vibration monitoring nodes, which traditionally target standard -10 VDC gap indicators to align machine data streams. Furthermore, the multi-layered layout provides integrated cross-talk suppression that continuously eliminates stray high-frequency electromagnetic interference (EMI) across all six termination circuits. As a result, the input channels maintain precise signal isolation and clear amplitude conversion even when installers bundle field sensor lines inside high-density structural enclosures.

Frequently Asked Questions

Q: Can this specific module accept a combination of RTD and Thermocouple sensors at the same time?

A: Yes. The non-isolated circuit design allows users to configure individual channels independently, meaning a single card can interface with a mixture of RTD and Thermocouple devices.

Q: What is the main structural advantage of using external terminations instead of internal terminal blocks?

A: The external termination architecture utilizes interface cables to connect the rack directly to remote terminal blocks. Consequently, this layout reduces the physical wiring footprint behind the 3500 chassis and streamlines field maintenance paths.

Q: How does this I/O card react if a field wire breaks during high-vibration machinery operations?

A: The parent monitor continuously polls the circuit resistance. If a field line open or short fault occurs, the module automatically trips an internal OK register, triggers the bypass LED, and blocks false machinery protection actions.

Field Installation Guidelines

• Chassis Insertion: Always isolate and power down the 3500 system rack before seating or removing the I/O module. Once inserted into the rear slot, fully tighten the integrated captive screws to lock the interface card onto the internal backplane power lines.
• Shield Termination: Connect the input transducer cable shields exclusively to the designated external terminal block grounding bus. Conversely, leave the shield floating and safely insulated with heat-shrink tubing at the sensor head or machine junction box to eliminate ground loops.
• Conduit Routing: Isolate and separate all low-voltage thermal sensor lines from high-current AC power lines. In addition, route the multi-conductor external interface cables through dedicated, grounded metallic conduits to actively minimize environmental signal induction.
