Description

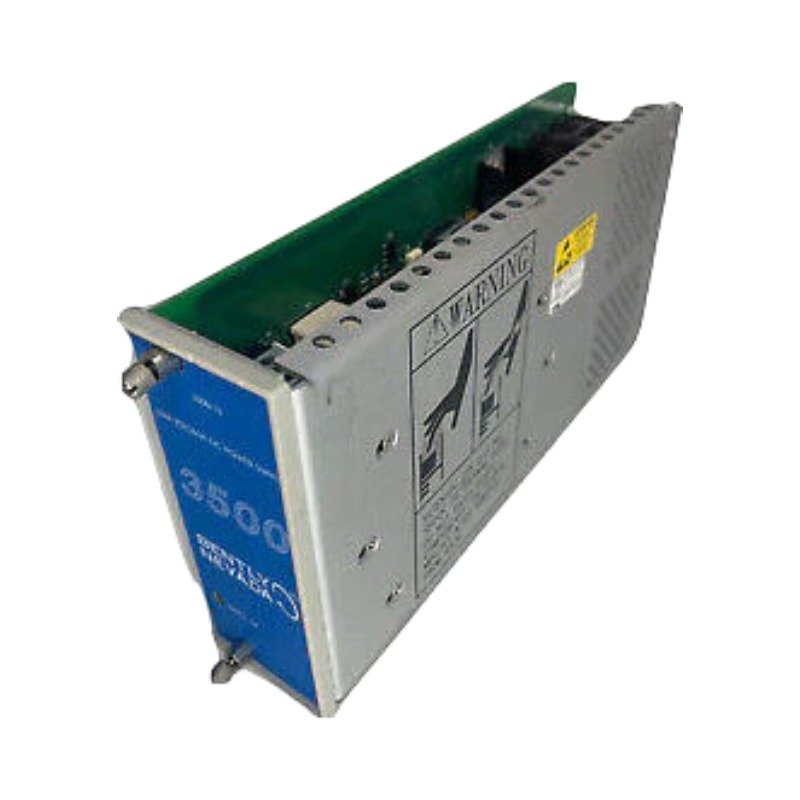

The Bently Nevada 133292-01, also cataloged as the 33292-01 Legacy Low Voltage DC Power Supply Module, operates as a dedicated hardware component for direct physical/electrical execution within 3500 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal hardware components execute continuous diagnostic monitoring to stabilize voltage outputs fed directly to modules managing eddy-current probe scaling matrices. To maintain safety across adjacent instrumentation, the circuit design performs real-time gap voltage validation (-10 VDC targets) data monitoring across the backplane line architecture, which eliminates power-induced measurement variations. Consequently, this regulated distribution profile prevents tracking drift during transient machine acceleration phases. Furthermore, structural internal cross-talk suppression filters shield the power conversion loop from high-frequency industrial noise, preserving clean power rails for precise rotor dynamics monitoring.

Frequently Asked Questions

Q: Can the 3500 backplane accept a mixture of AC and DC power supplies simultaneously?

A: Yes. The 3500/15 rack design permits the installation of any combination of AC and DC power modules in the top and bottom slots to achieve full system power redundancy.

Q: What operational changes occur when replacing a backup 133292-01 power supply module?

A: The system maintains full live hot-swap capabilities. You can extract or insert a single module without disrupting the continuous operation of the monitor rack, provided a secondary functioning supply module remains active in the opposite slot.

Field Installation Guidelines

• Ground the primary 3500 rack frame to the main plant earth bar using a dedicated low-impedance conductor before applying line voltage to the input terminal blocks.
• Install the power supply exclusively into the designated half-height slots situated on the left side of the main rack assembly.
• Secure all input terminal block screws to standard industrial tight torque specifications to ensure reliable power paths under conditions of continuous machinery vibration.
