Description

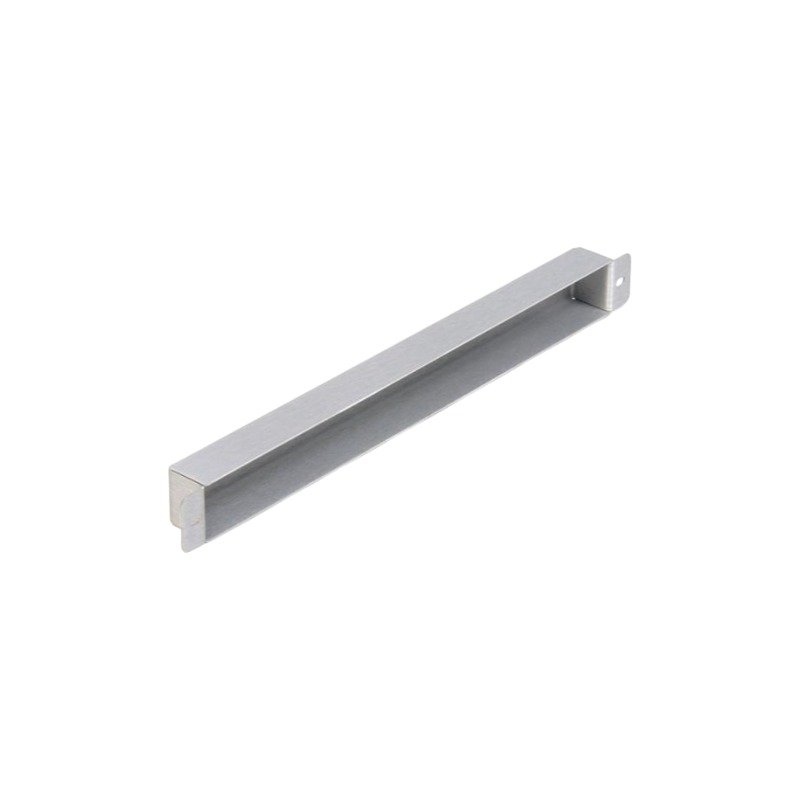

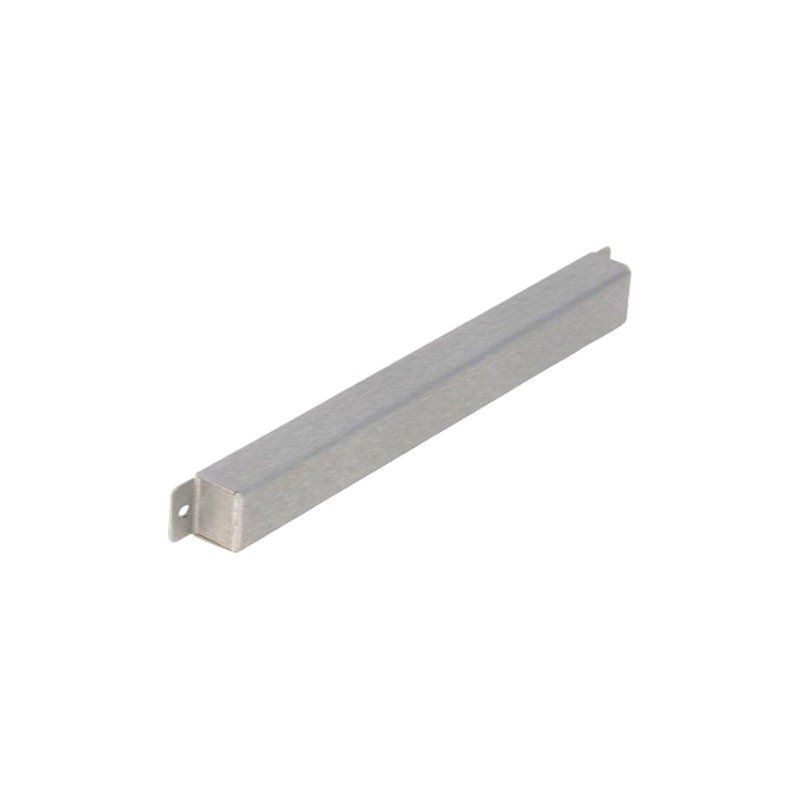

Configured for slot protection in the 3500 Machinery Protection System, the Bently Nevada 128085-01 (128085-01 Input Connector Cover) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Integration

Although the 128085-01 is a passive mechanical shielding component, it directly supports the overall electrical integrity of the active monitor slots. Specifically, in systems containing high-sensitivity cards configured for eddy-current probe scaling, open chassis slots can introduce electromagnetic interference and physical debris. Additionally, keeping unused slots sealed maintains consistent internal airflow, ensuring that adjacent modules calculating complex rotor dynamics remain within their nominal operating temperature profiles. Consequently, sealing empty slots protects the sensitive instrumentation executing gap voltage validation (-10 VDC targets) on nearby channels. Furthermore, this isolation facilitates optimal cross-talk suppression by mechanically separating active card backplane pins from external noise vectors.

Frequently Asked Questions

Q: Does the 128085-01 require any software configuration or address allocation in the 3500 rack?

A: No. The 128085-01 is a passive physical cover. Consequently, it draws no backplane power and requires no slot configuration or address assignment in the Bently Nevada 3500 system software.

Q: Can this cover be installed or removed while the 3500 rack is powered and active?

A: Yes. Because this cover contains no electrical circuits, operators can install or remove it at any time. Therefore, hot-swapping adjacent active monitors is unaffected during the mounting of this panel accessory.

Field Installation Guidelines

• First, align the 128085-01 blank plate cover with the unused slot opening on either the front or rear of the 3500 chassis.
• Second, push the plate forward until it sits flush against the adjacent modules or the rack frame.
• Third, tighten the integrated upper and lower mounting screws to secure the cover in place. Consequently, this completes the environmental seal and ensures the physical grounding of the plate to the rack chassis.
