Description

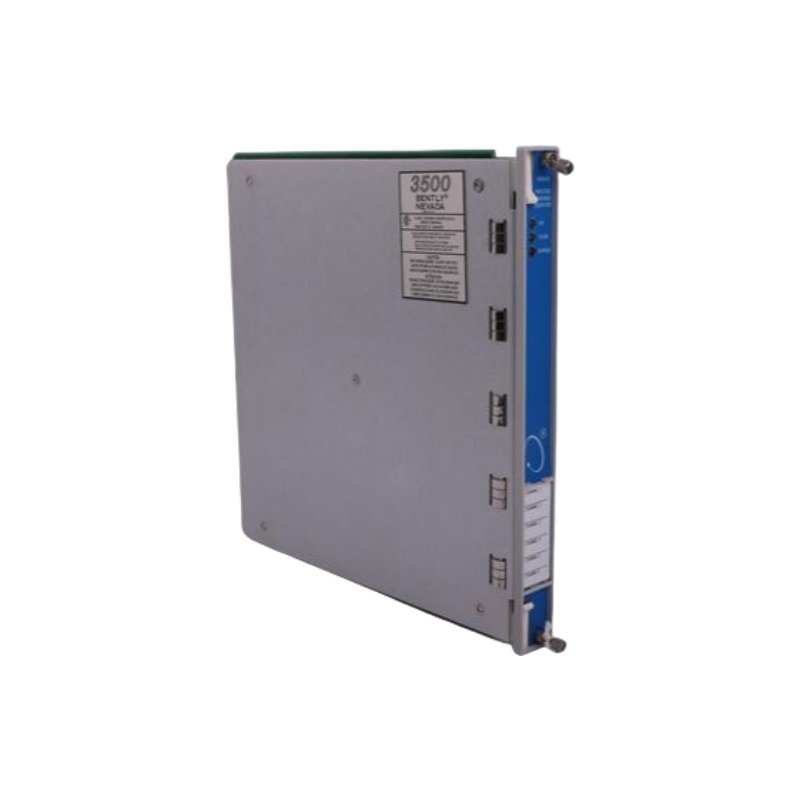

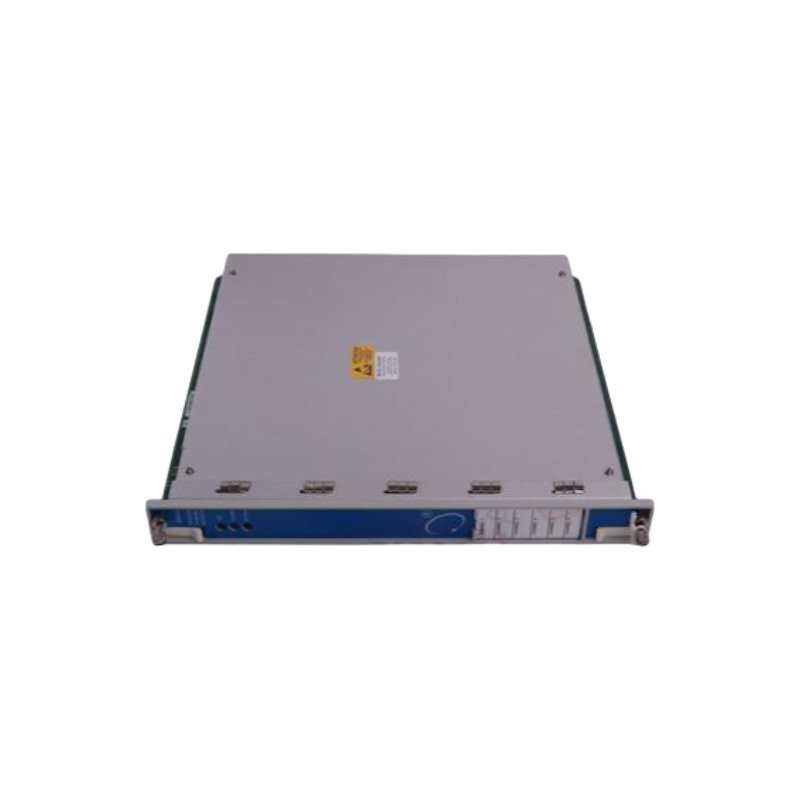

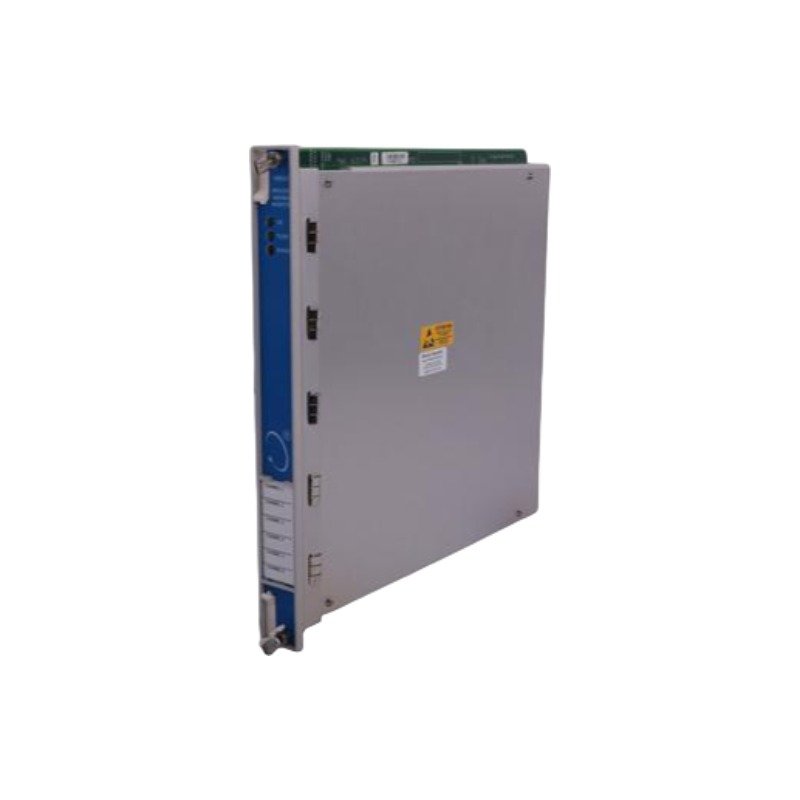

The Bently Nevada 133811-03 serves as the primary 133811-03 Process Variable Monitor Module utilized to execute continuous monitoring and signal conditioning of pressure, flow, temperature, and vibration parameters across 3500 Machinery Protection System platforms.

Hardware Specifications

Gap Voltage Validation and Rotor Dynamics Integration

The 133811-03 module processes standard static and dynamic process variables to evaluate machinery state anomalies. Specifically, when integrating thermodynamic parameters with direct rotor dynamics diagnostics, this six-channel monitor conditions incoming analog signals to verify operating thresholds. Additionally, while monitoring shaft proximity in associated loops, verifying proper gap voltage validation (-10 VDC targets) on adjacent proximity sensors prevents instrumentation errors. Consequently, this comprehensive integration of process metrics alongside vibration variables provides a structured dataset for protective interlocking loops.

Frequently Asked Questions

Q: Can the 133811-03 module be hot-swapped within an active 3500 rack?

A: Yes. The module is designed for hot-swap operations. However, before physical extraction or insertion, operators must bypass the associated alarm loops to prevent accidental machinery shutdown commands.

Q: How does the module handle signal conditioning for different process variables?

A: The 133811-03 accepts multiple analog input ranges. Subsequently, the internal processor scales these signals into user-defined engineering units and compares them in real time to configured alarm setpoints.

Field Installation Guidelines

• First, slide the 133811-03 module into its designated backplane slot within the 3500 chassis and torque the mounting screws to secure the chassis ground path.
• Second, route all analog signal wiring through shielded twisted pairs to isolate inputs from electromagnetic interference.
• Third, terminate the cable shields at a single point, typically the instrument ground bar in the rack, to prevent ground loop noise from corrupting measurement integrity.
