Description

Product Overview

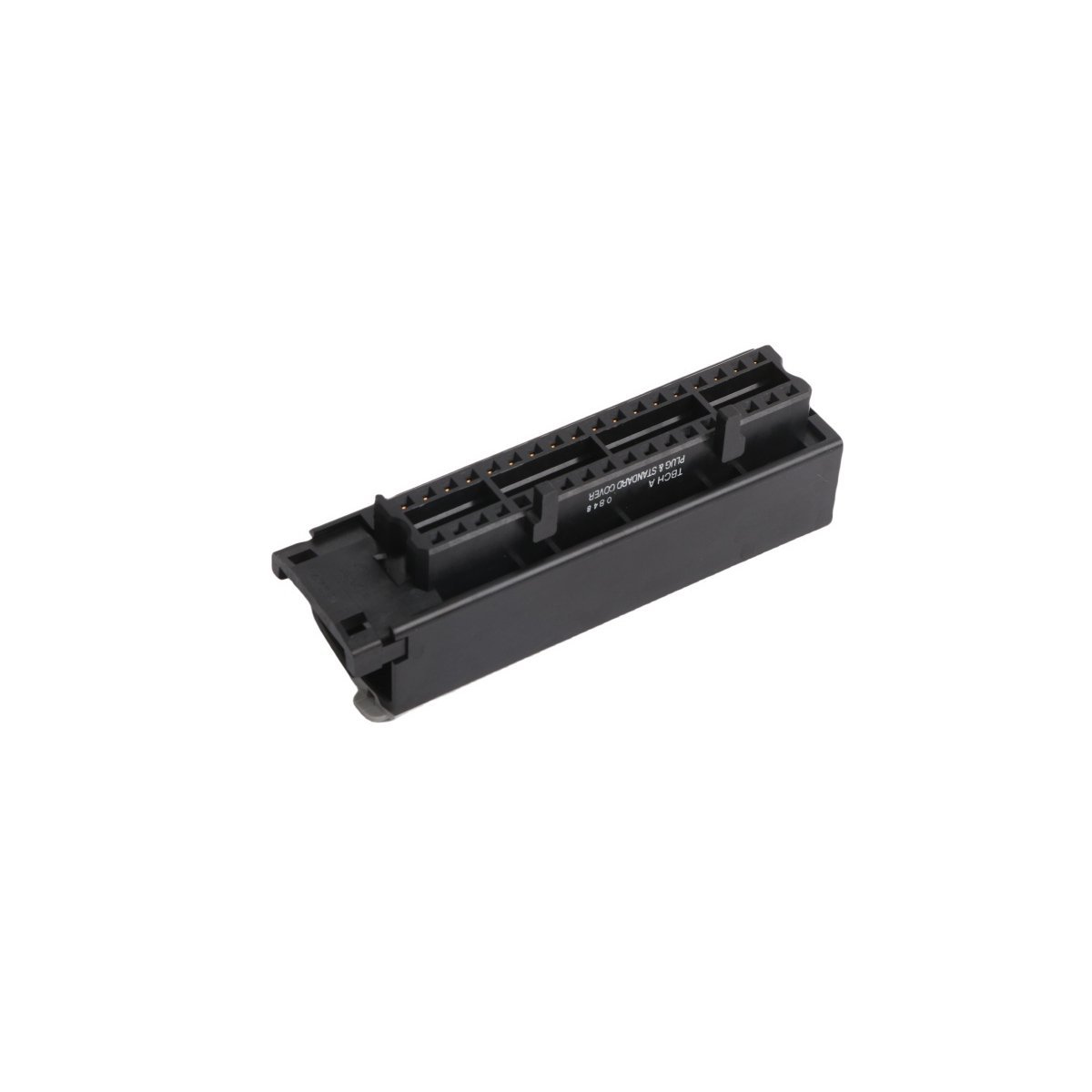

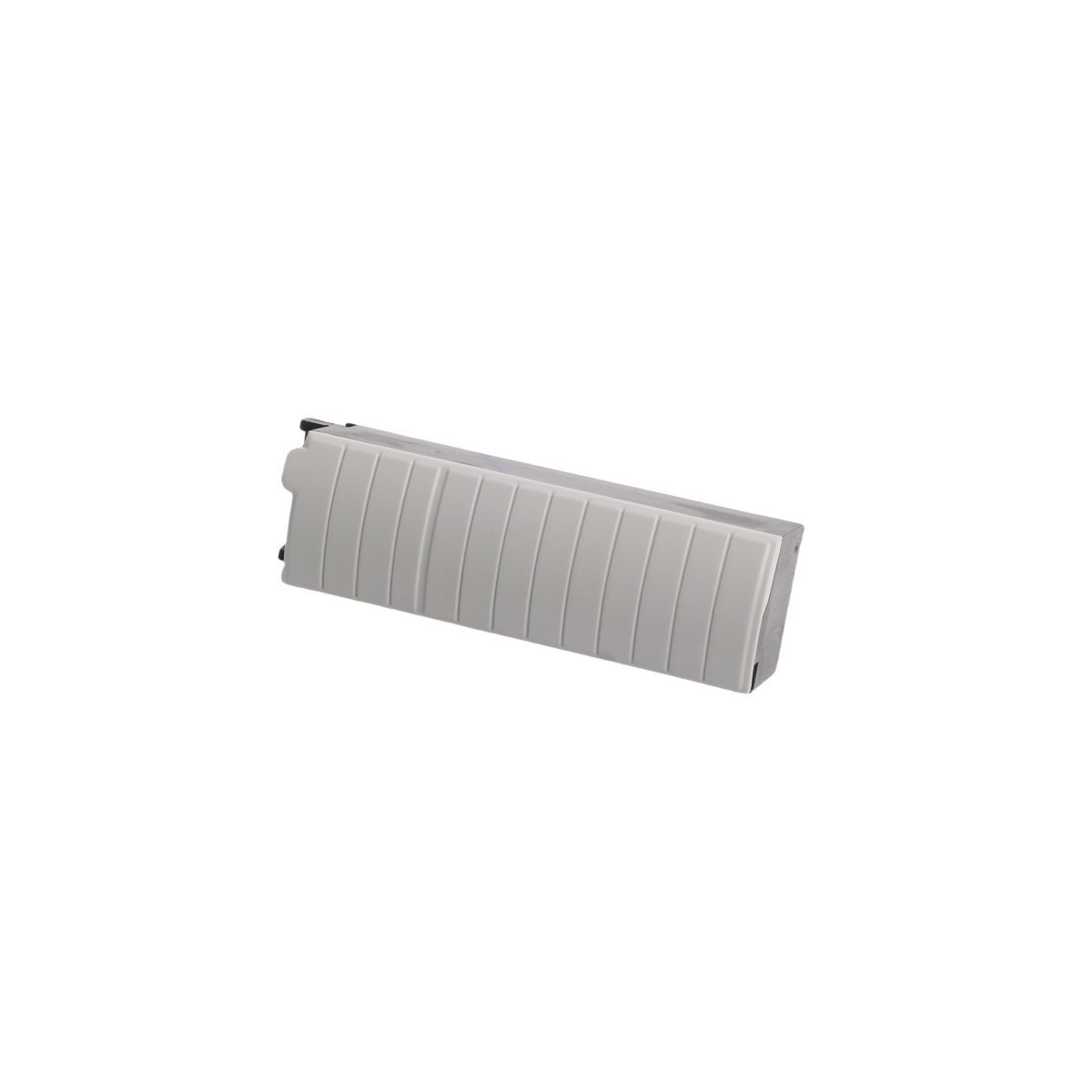

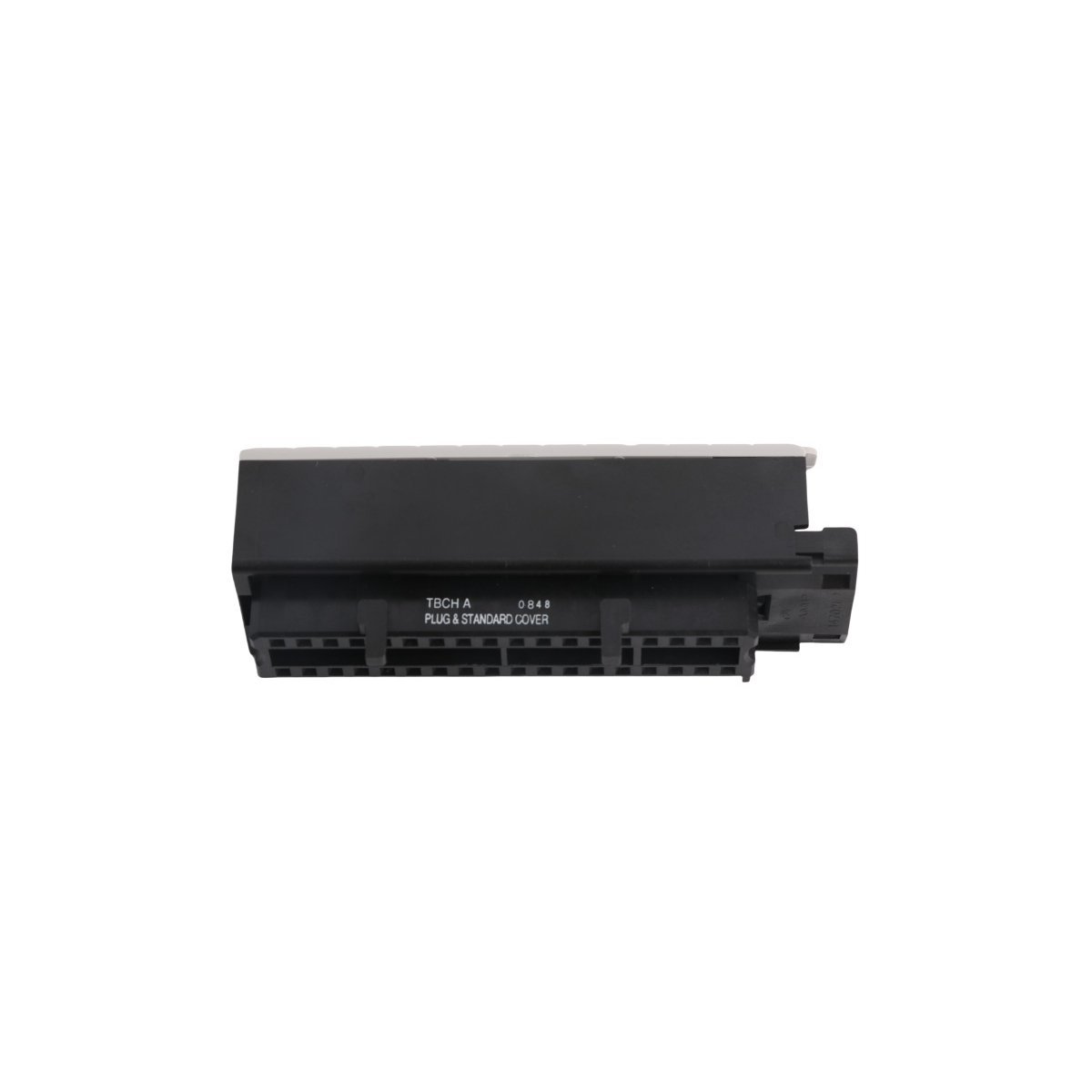

The Allen-Bradley 1756-TBCH serves as a critical interface component within the ControlLogix platform. This Removable Terminal Block (RTB) provides the physical connection points between field-side wiring and the 1756 I/O modules. By utilizing a cage-clamp mechanism, the unit ensures secure electrical contact while allowing technicians to replace I/O modules without disconnecting individual field wires. This modular design significantly reduces downtime during maintenance and system upgrades.

Technical Specifications and Connectivity

• Terminal Type: 36-pin Cage Clamp
• Module Compatibility: Works with 1756 ControlLogix I/O modules (e.g., 1756-IA16I, 1756-IB16D, 1756-OB16IEF)
• Wire Size (Single Wire): 0.33 to 2.1 $mm^2$ (22 to 14 AWG)
• Wire Size (Double Wire): 0.33 to 1.3 $mm^2$ (22 to 16 AWG)
• Wire Material: Solid or stranded copper rated for 90°C (194°F) or higher
• Termination Torque: 0.5 Nm (4.4 lb-in)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Dimensions: 11.6 x 3.3 x 4.7 cm
• Weight: 0.14 kg

Operational Applications

Engineers integrate the 1756-TBCH into PLC systems to streamline the wiring of digital and analog signals. Furthermore, the housing accommodates various conductor types, supporting both high-density and standard wiring architectures. Because the RTB snaps directly onto the front of the module, it maintains a small footprint within the chassis. Additionally, the rugged construction withstands industrial vibrations and operating shocks up to 30g, ensuring long-term reliability in demanding environments.

Maintenance and Installation

To install the terminal block, users must align the RTB with the module’s grooves and press firmly until it seats. Consequently, the mechanical connection remains stable even under thermal cycling. When maintenance is required, the terminal block can be pivoted away from the module, keeping the field wiring intact. This feature effectively eliminates the risk of wiring errors during hardware swaps. Moreover, the 36-pin configuration supports complex I/O modules that require multiple common and signal connections.
