Description

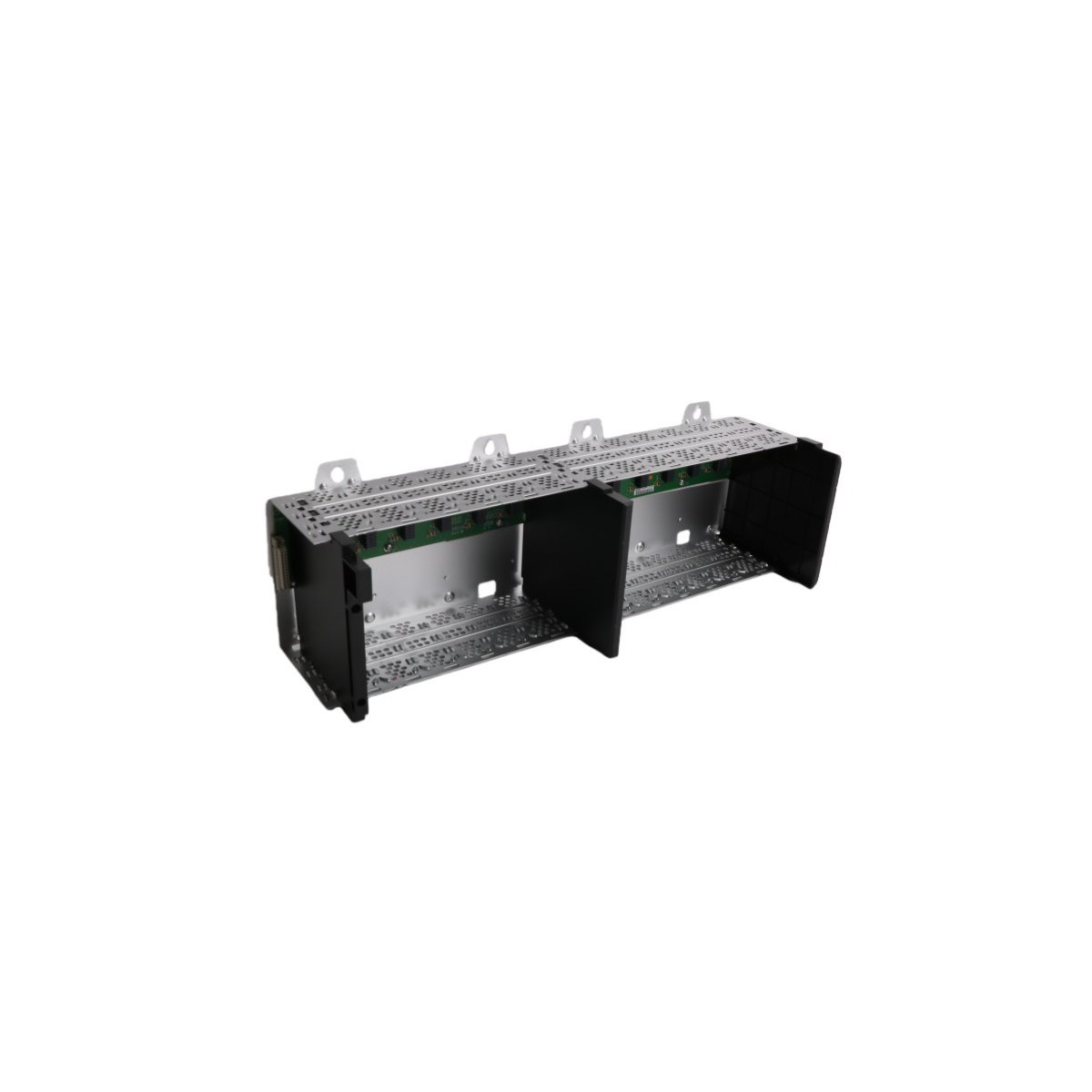

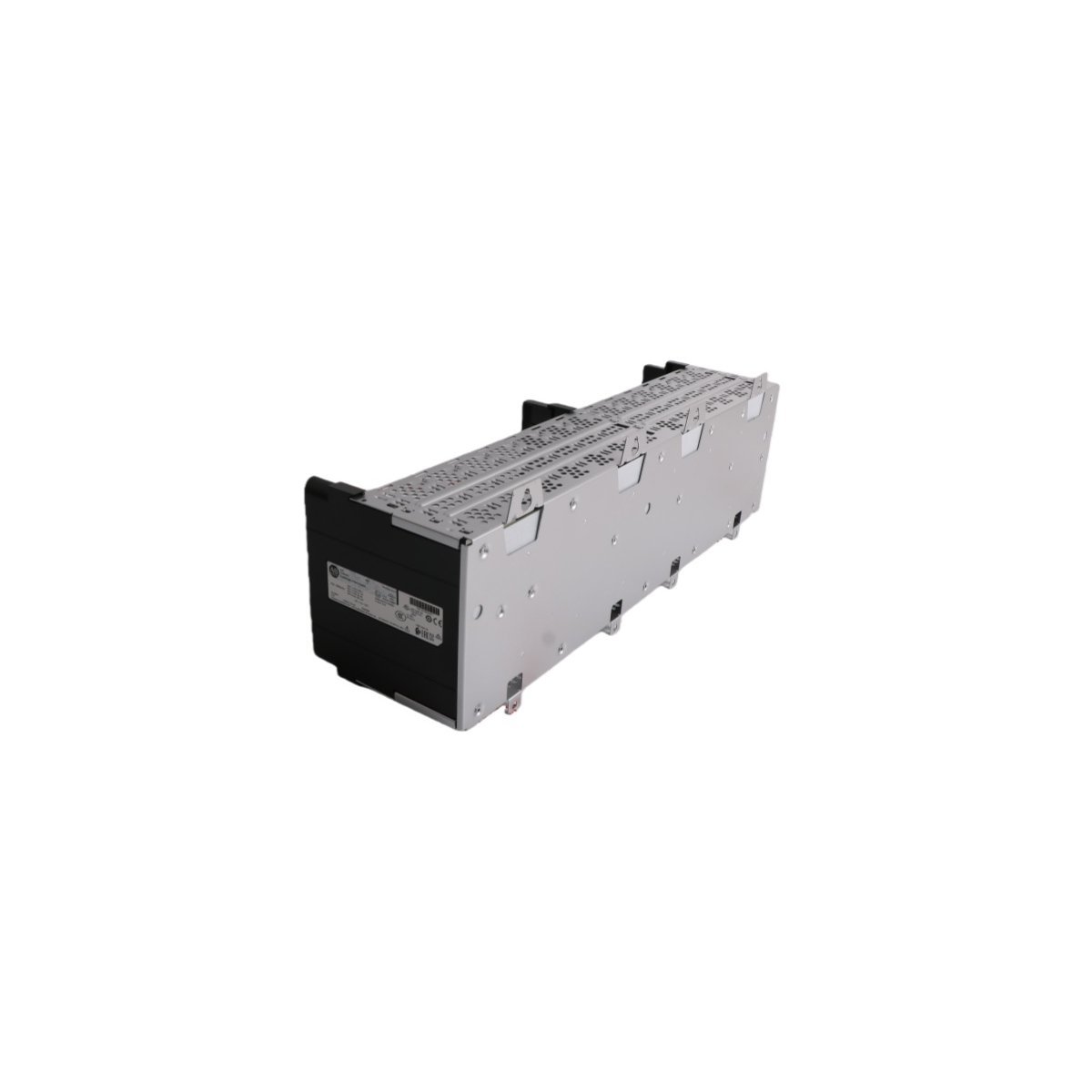

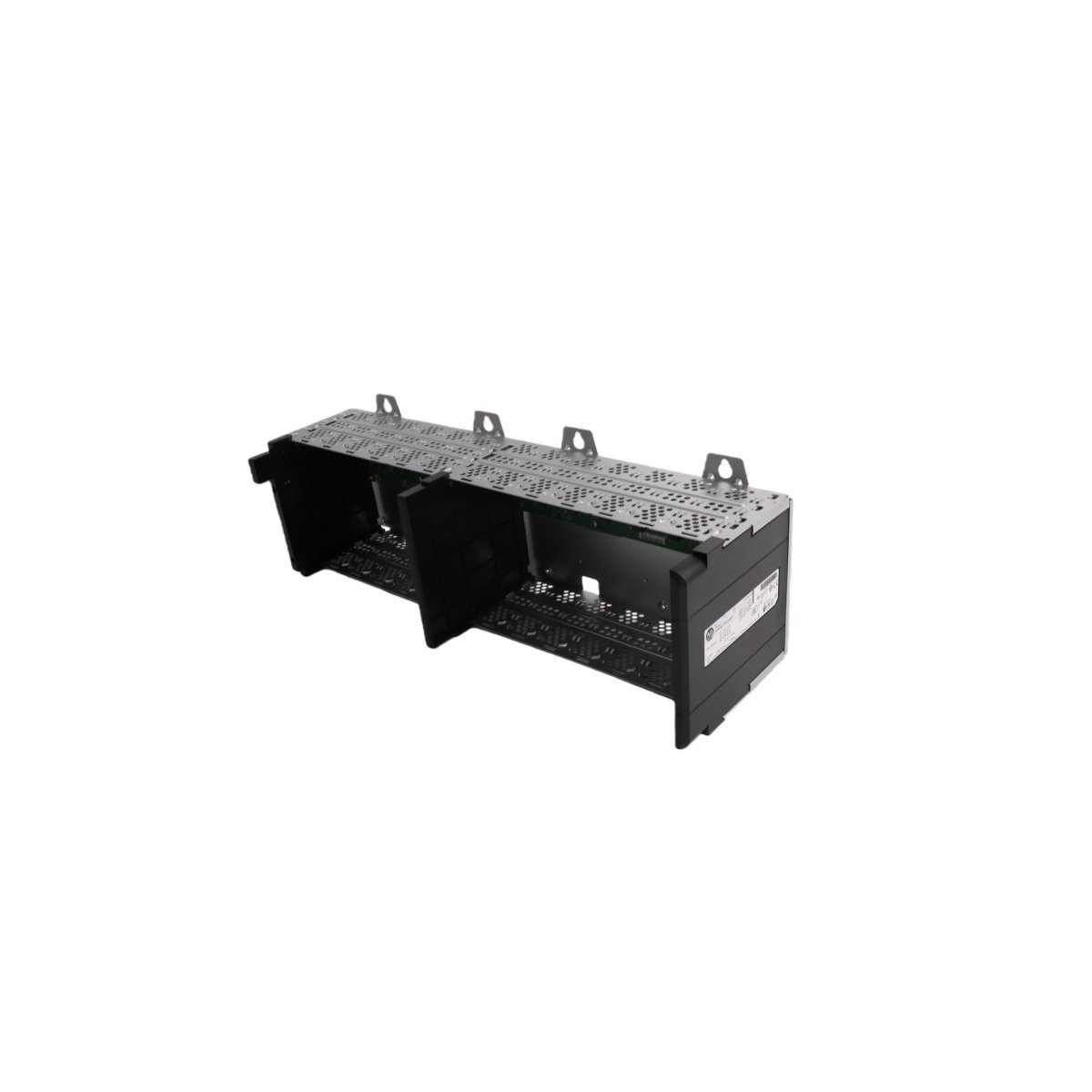

The Allen-Bradley 1756-A13 provides the physical and electrical framework for ControlLogix automation systems. This 13-slot chassis houses various controllers, I/O modules, and communication cards. Its high-speed backplane facilitates rapid data synchronization between all installed components. Consequently, engineers can build complex control architectures within a single hardware assembly. The design supports horizontal mounting inside standard industrial enclosures for maximum stability.

Power Distribution and Performance

The internal backplane delivers essential voltage levels including 1.2V, 3.3V, 5.1V, and 24V DC. These multiple rails accommodate the diverse power requirements of the 1756 module family. Furthermore, the unit features a low power dissipation rating of 5.4 Watts. This efficiency helps maintain cooler operating temperatures during heavy processing tasks. Series C models also offer an extended temperature range for specialized industrial applications.

Maintenance and System Security

This chassis supports Removal and Insertion Under Power (RIUP) for all compatible modules. Maintenance teams can replace failed hardware without interrupting the entire production process. Additionally, electronic keying prevents the installation of incorrect module types into specific slots. This safeguard protects the system from configuration errors and electrical damage. The open-style frame allows for natural convection cooling and easy access to wiring.

Technical Specifications

Broad Compatibility

The 1756-A13 integrates seamlessly with Logix 5560, 5570, and 5580 controller series. It also supports standard ControlLogix power supplies for reliable energy management. The spacious 13-slot layout suits medium to large automation projects requiring high I/O density. Therefore, it remains a standard choice for demanding factory floor environments.
