Description

Brief Product Description

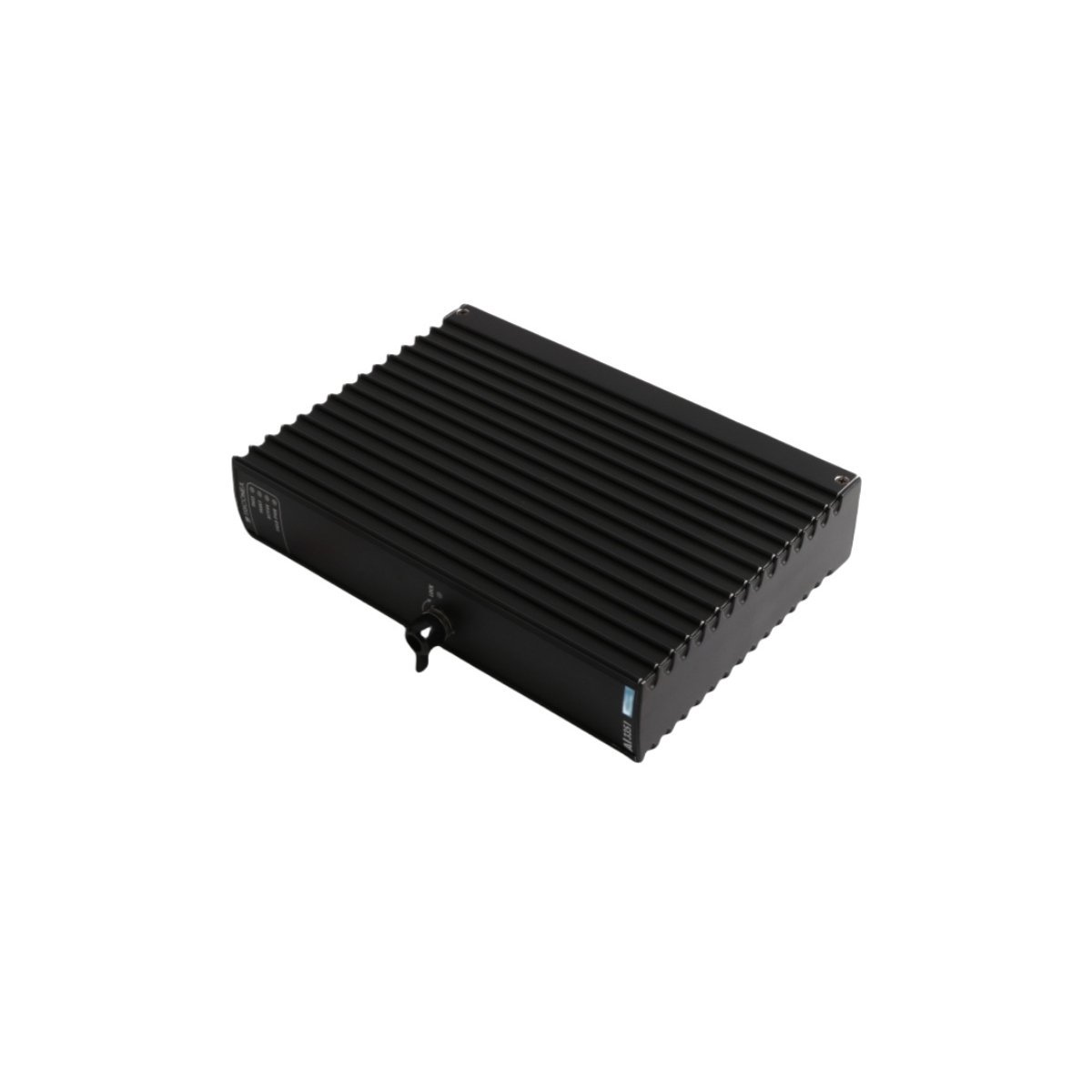

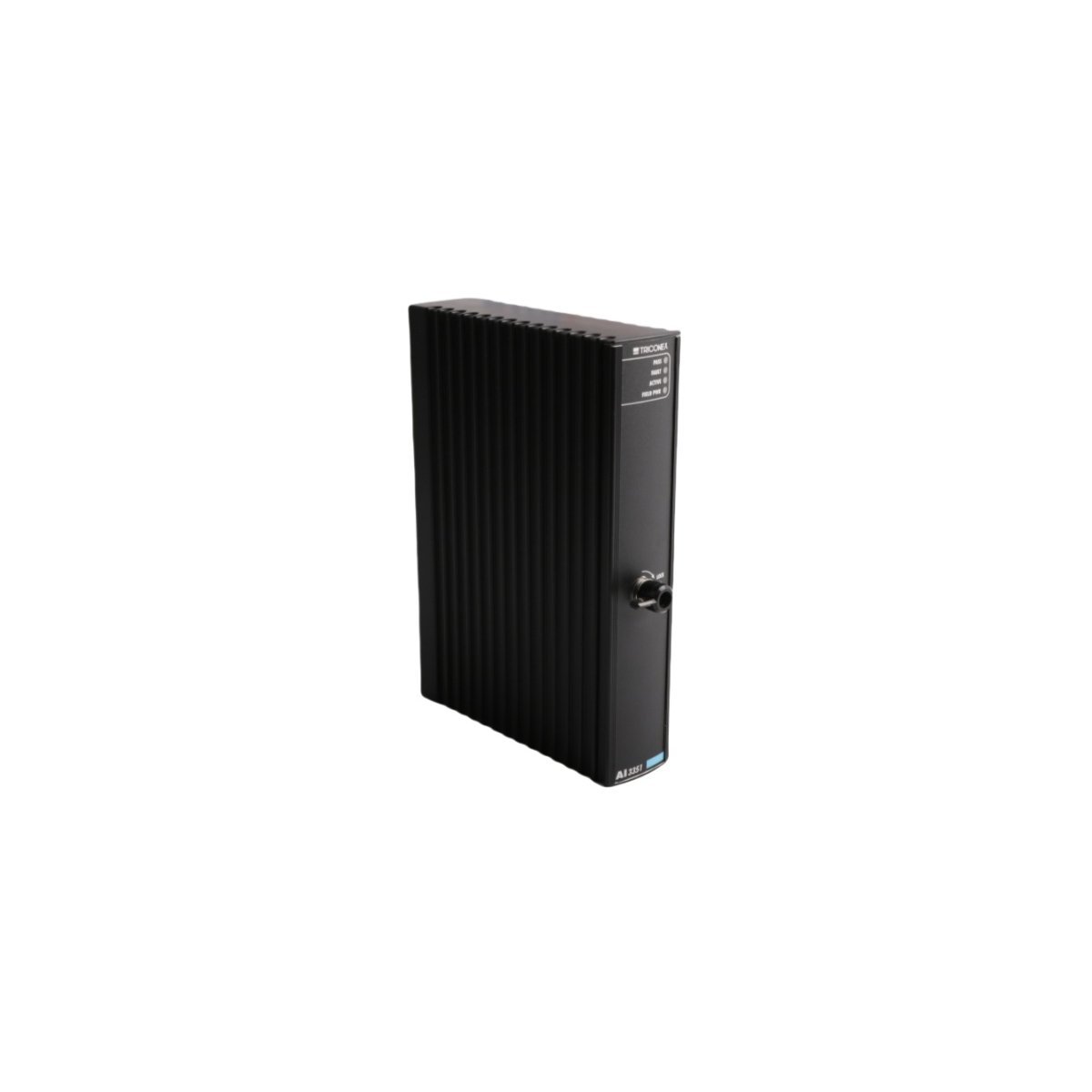

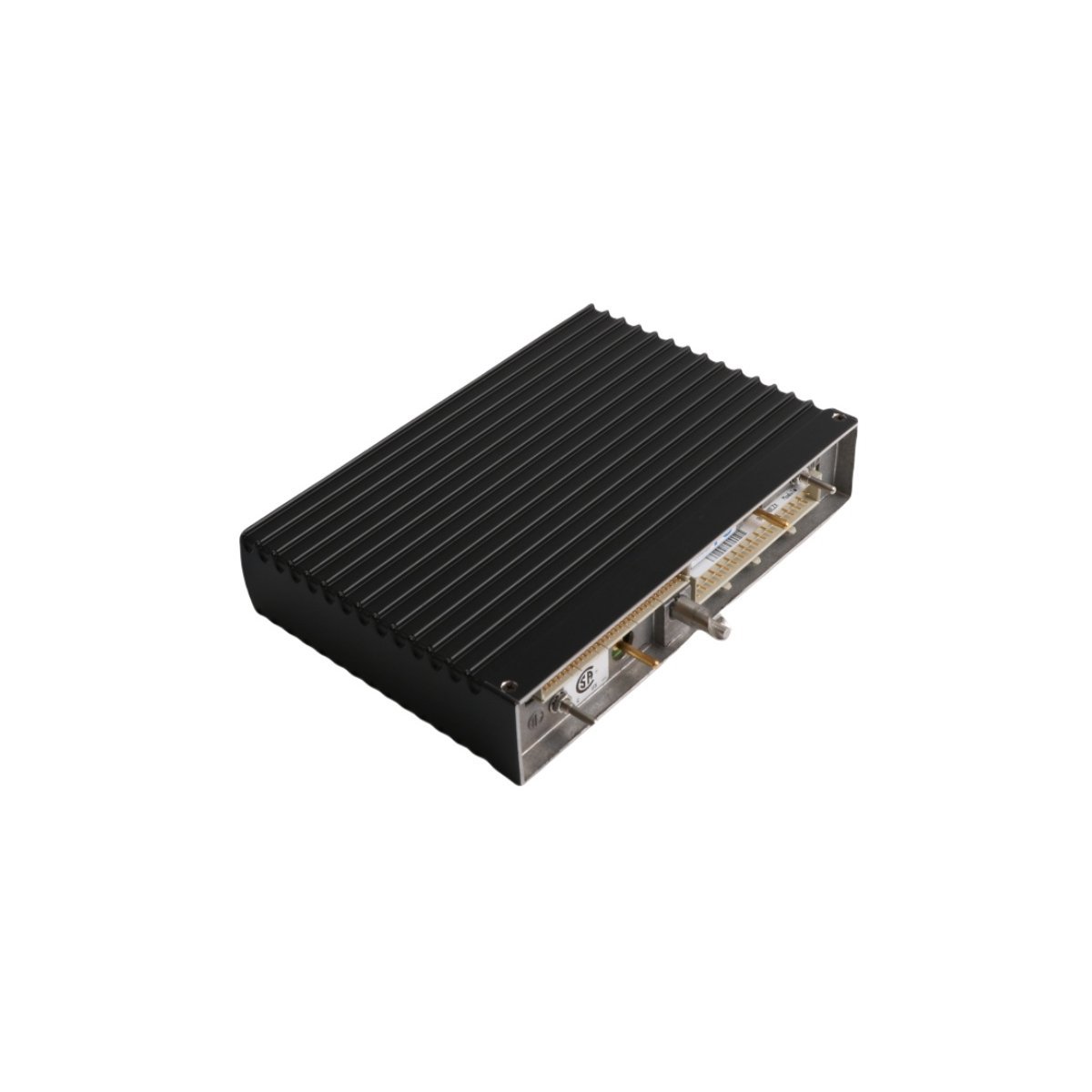

The Triconex AI 3351S2 is a Triple Modular Redundant (TMR) analog input module designed for high-precision measurement in safety-critical DCS environments. It independently processes field signals across three isolated channels to ensure maximum fault tolerance and SIL 3 compliance.

Advanced TMR Signal Processing

The Triconex AI 3351S2 provides the high-availability interface required for mission-critical analog measurements, such as pressure, temperature, and flow. Operating within a Triple Modular Redundant (TMR) framework, the module utilizes three independent sensing branches to capture field data simultaneously. Each branch processes the input signal asynchronously and stores the resulting data in dedicated internal tables. These values then travel across separate I/O buses to the system’s Main Processors. By employing this triplicated architecture, the AI 3351S2 eliminates common-mode failures and maintains process integrity even if a specific hardware component or bus experiences a fault.

Sophisticated Validation and Mid-Value Selection

To ensure the highest data veracity, the AI 3351S2 coordinates with the Main Processors to perform mid-value selection via the proprietary TriBus network. During this process, the system compares the digitized inputs from all three channels and selects the median value for use in the safety logic. This method effectively filters out transient noise or hardware deviations from any single channel. In addition to high-speed processing, the module features a self-calibration mechanism that compensates for component drift over time. This internal reference technology removes the requirement for traditional, labor-intensive manual calibrations, significantly lowering long-term maintenance overhead for plant operators.

Rapid Fault Diagnostics and Safety Integrity

Safety remains the core objective of the AI 3351S2 design, which incorporates a high-speed diagnostic engine capable of detecting internal malfunctions within 500 milliseconds. The module continuously executes background self-tests to identify “stuck-at” faults or accuracy degradation before they can impact plant safety. Because the module can pinpoint and isolate faults while remaining online, it supports “Hot-Swap” replacement procedures, ensuring that the safety loop stays active during repairs. This combination of autonomous monitoring and robust hardware allows the AI 3351S2 to exceed the rigorous availability standards required for Safety Integrity Level 3 (SIL 3) applications in global energy and process industries.

Key Technical Characteristics

• Triple Modular Redundancy (TMR): Features three isolated channels for superior fault tolerance and reliability.
• Automated Calibration: Integrated circuitry maintains lifelong measurement accuracy without manual tuning.
• Mid-Value Selection Logic: Employs hardware-level voting to provide a single, verified input to the control logic.
• High-Speed Fault Detection: Identifies and reports hardware failures in under 0.5 seconds.
• Hot-Replaceable Hardware: Facilitates module swaps during active operations without process interruption.
• Industrial Resilience: Engineered to function in harsh electromagnetic and thermal environments typical of refineries and power plants.
