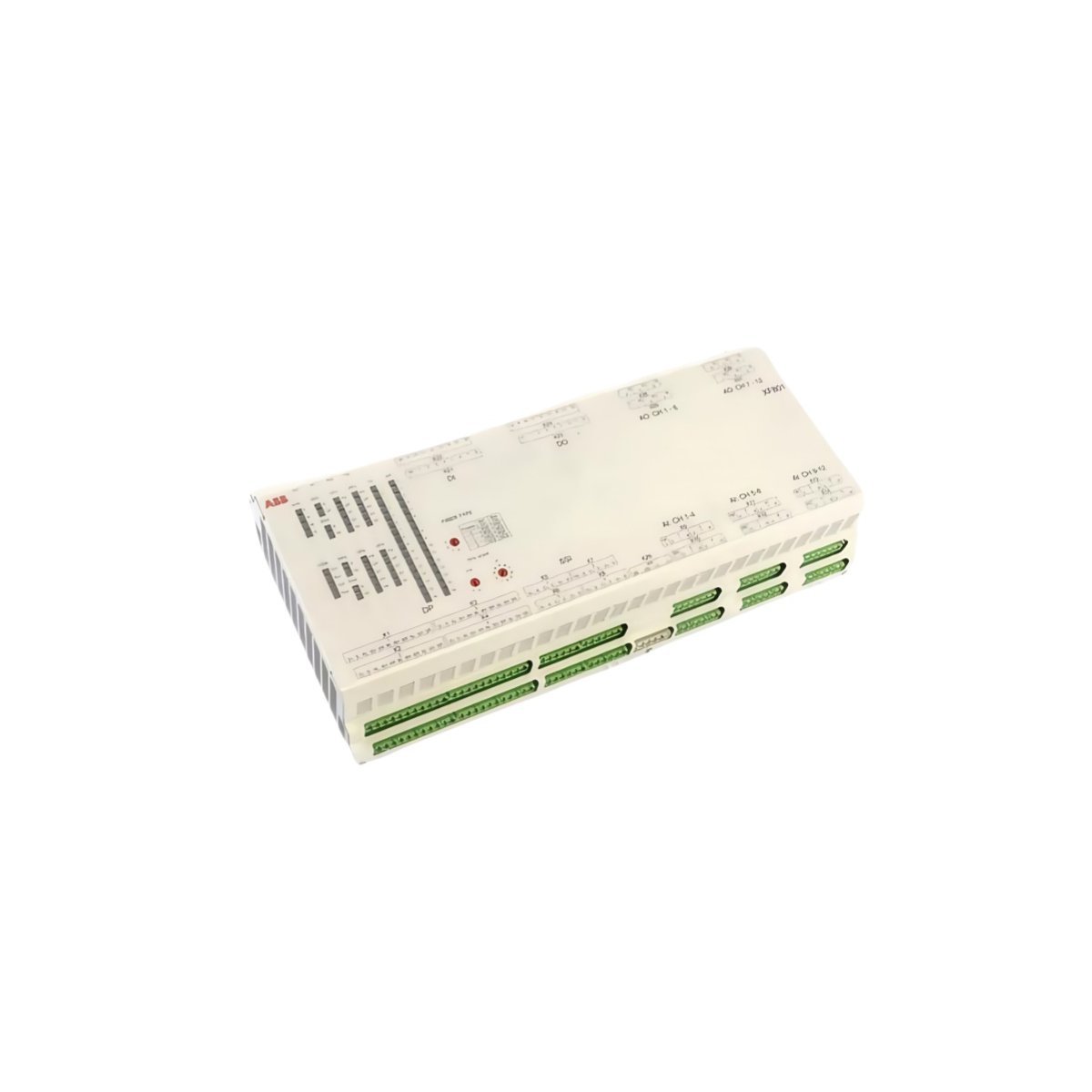

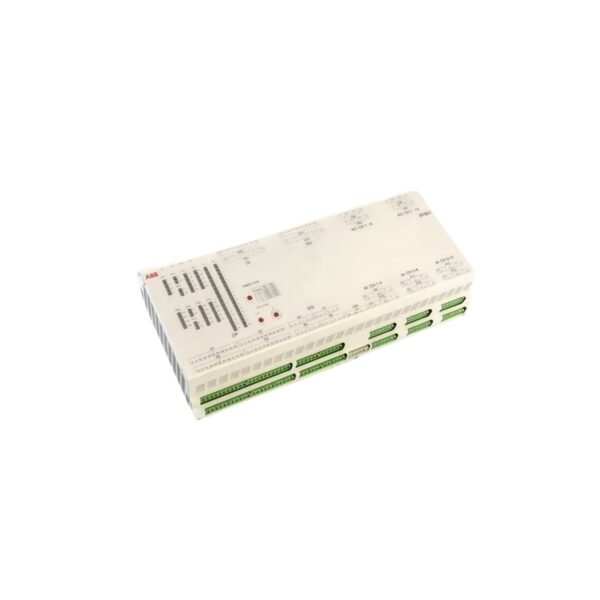

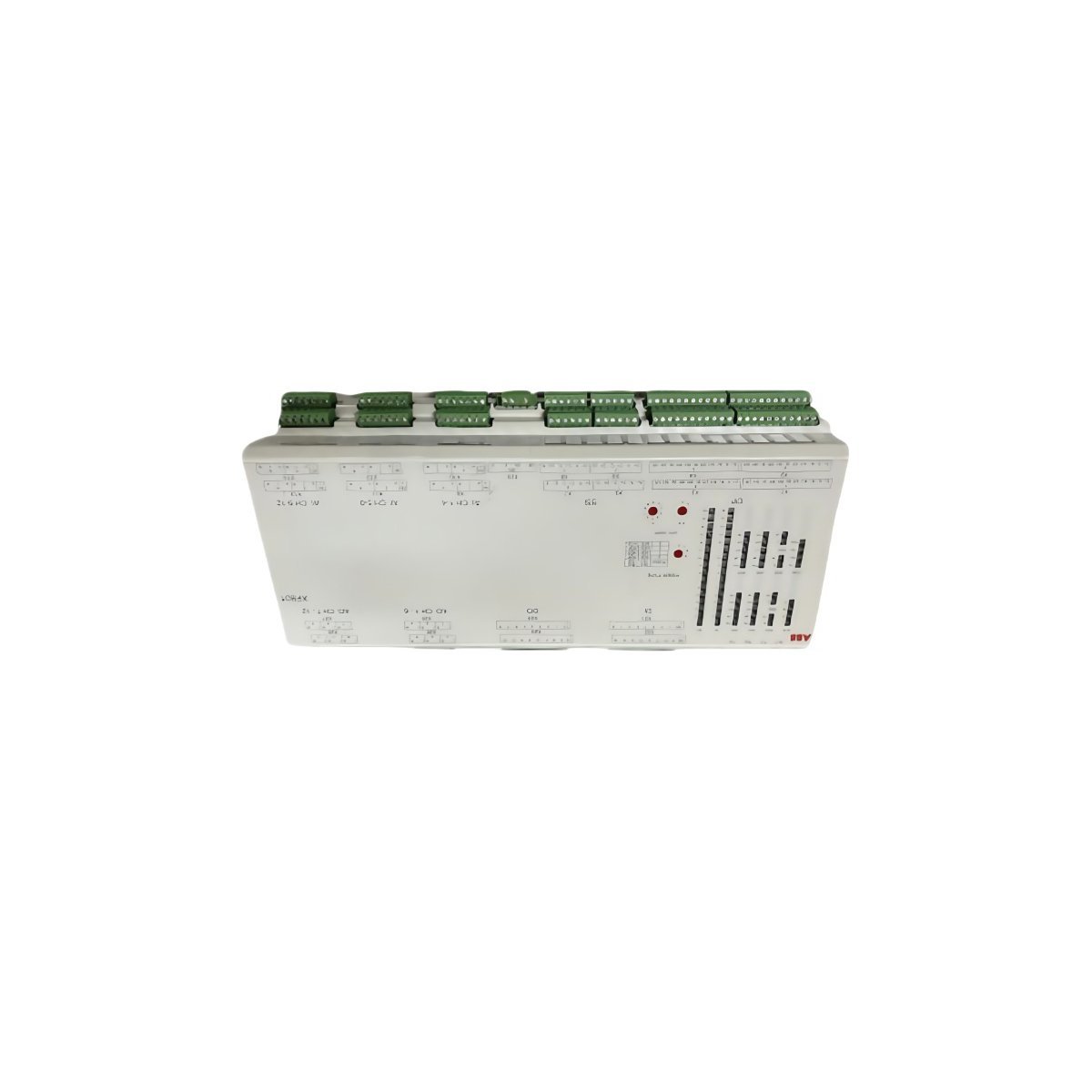

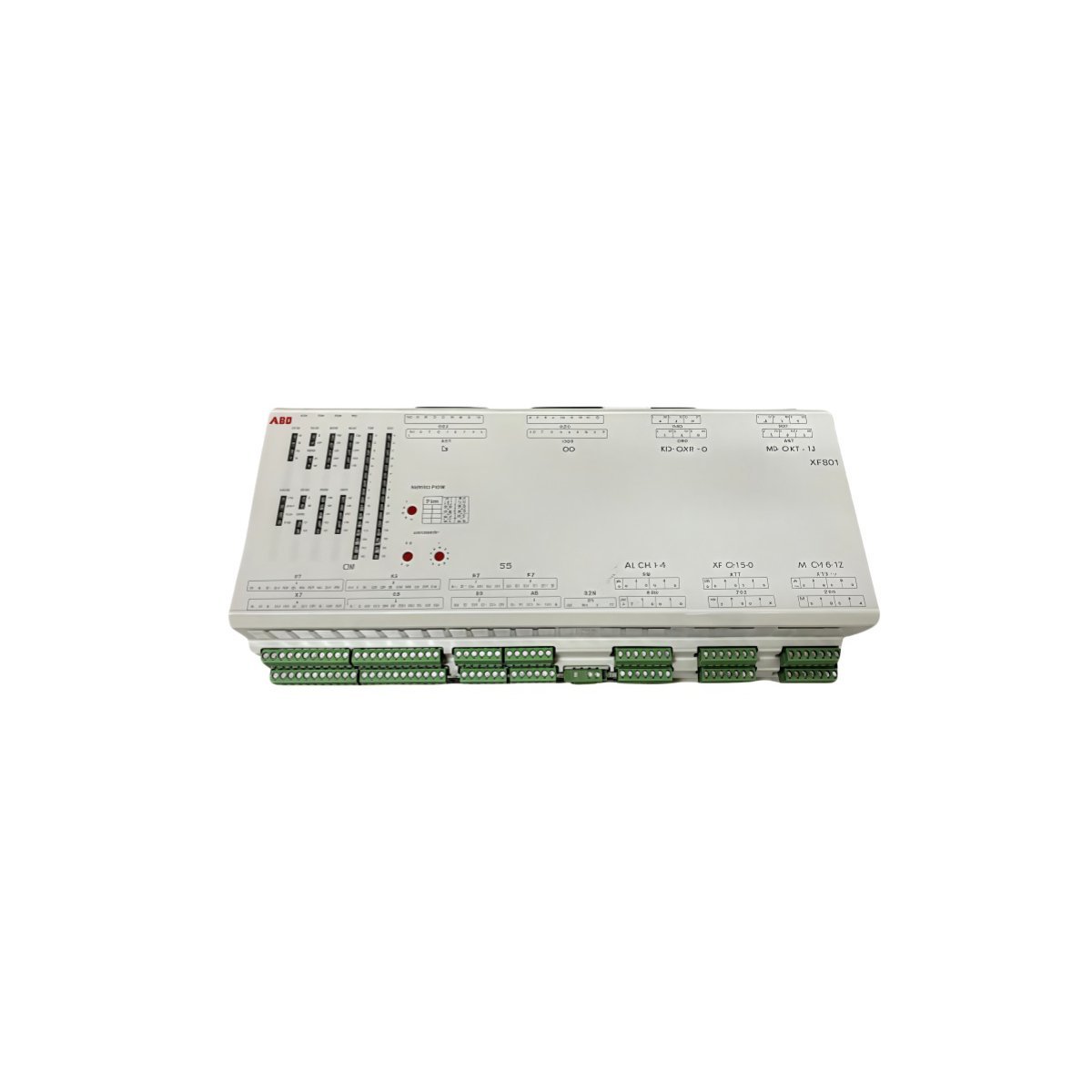

The ABB XF801 (3BSE061579R1) is a high-speed PROFIBUS DP interface module engineered for the Advant OCS and System 800xA control platforms. This module provides rapid data acquisition and reliable field device connectivity, ensuring precise execution of time-critical industrial processes.

High-Speed Communication and Control

The XF801 Fast I/O module facilitates ultra-efficient data exchange between field instrumentation and the central controller, supporting PROFIBUS DP transmission speeds of up to 12 Mbps. By utilizing this high-bandwidth interface, the module allows the DCS to manage complex control loops with minimal latency. It operates on a standard 24V DC power supply provided via the system backplane, maintaining consistent performance even during minor voltage fluctuations. Furthermore, the inclusion of integrated LED status indicators enables maintenance teams to perform real-time diagnostics and quickly identify communication health.

Advanced Electrical Protection and Isolation

To maintain system integrity in harsh industrial environments, the 3BSE061579R1 incorporates superior electrical isolation barriers. Specifically, it provides 500V AC channel-to-channel isolation and a robust 1500V AC isolation between the channels and the backplane. These safeguards effectively eliminate ground loop interference and protect sensitive control logic from external electrical surges. Consequently, the XF801 excels in electrically noisy settings, such as power generation facilities and heavy manufacturing plants, where signal purity is essential for safety and efficiency.

Environmental Resilience and Integration

Engineered for longevity, the XF801 features a compact, DIN-rail mountable design that optimizes space within automation cabinets. The module withstands extreme temperatures ranging from -25°C to +60°C and operates reliably in high-humidity conditions. Because it consumes less than 5W of power, it minimizes the thermal load on the enclosure, extending the lifespan of surrounding electronic components. This combination of energy efficiency and rugged construction makes the XF801 a cornerstone for modernization projects in the oil, gas, and chemical processing industries.
