Description

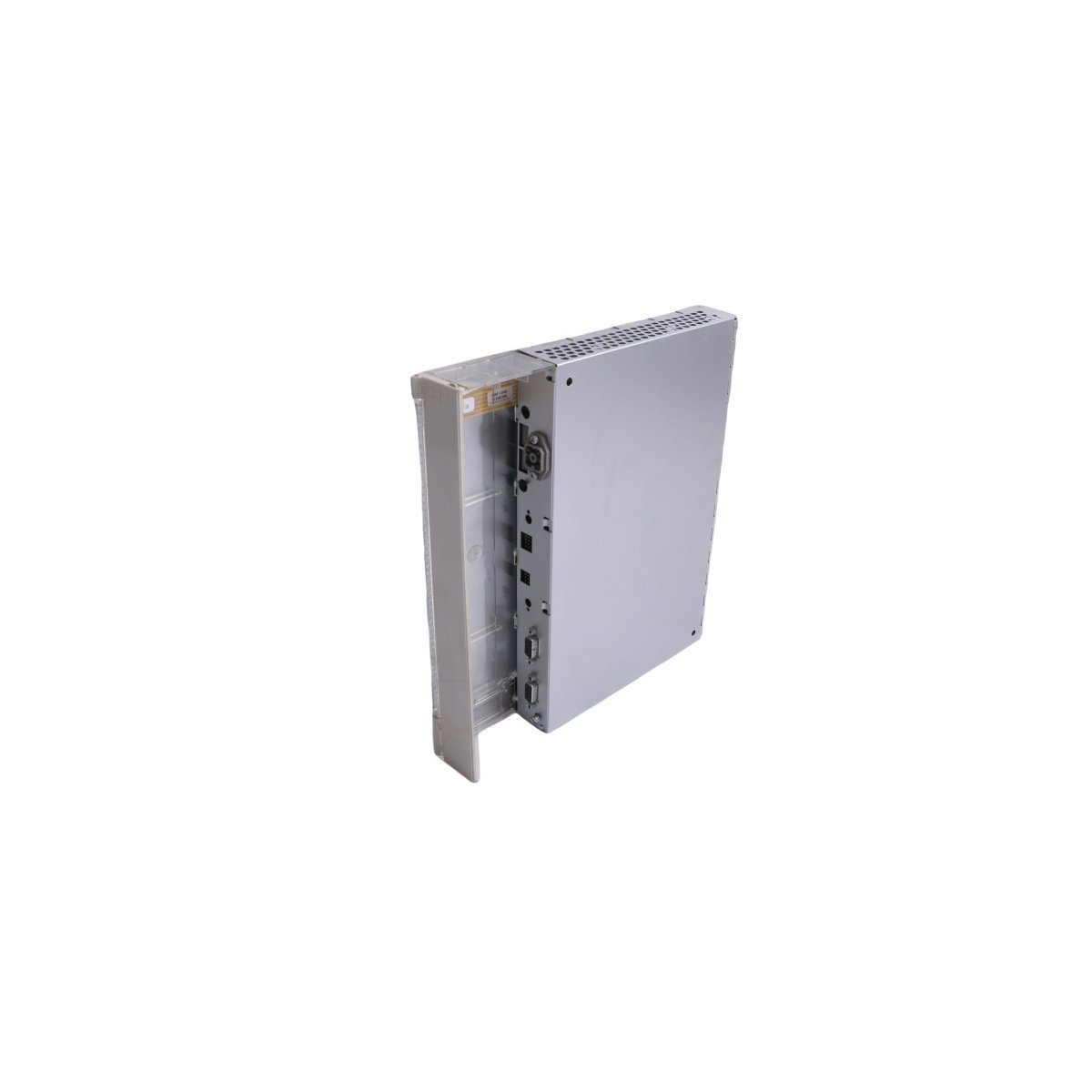

The ABB PM632 (3BSE005831R1) acts as the primary computational core for the Advant Controller 110 system. This high-performance processor unit manages complex control loops and data analysis tasks. It executes application programs to regulate industrial processes with high precision.

The module coordinates communication between local I/O clusters and the wider plant network. Specifically, it works alongside CI626 or CI627 communication interfaces to access the AF100 bus. This integration ensures rapid data exchange across the distributed control system.

Principal Technical Specifications

Power Quality and Performance Monitoring

Beyond standard logic execution, the PM632 provides detailed insights into electrical system parameters. The processor analyzes voltage, frequency, and harmonic distortion in real time. Consequently, operators can identify potential grid instabilities before equipment damage occurs.

The unit maintains high reliability in demanding utility and manufacturing environments. Advanced diagnostic routines continuously check internal hardware integrity. Furthermore, these features help maintenance teams perform rapid fault isolation.

Deployment and Maintenance Workflow

Successful implementation requires correct physical installation within the Advant station rack. Technicians must configure the AF100 network settings to enable seamless data synchronization. Following setup, the processor gathers performance metrics for system optimization.

Regular performance audits ensure the CPU operates within nominal parameters. Because the hardware supports modular expansion, users can scale their control capacity easily. This flexibility makes the PM632 a vital component for maintaining existing AC 110 installations.
