Description

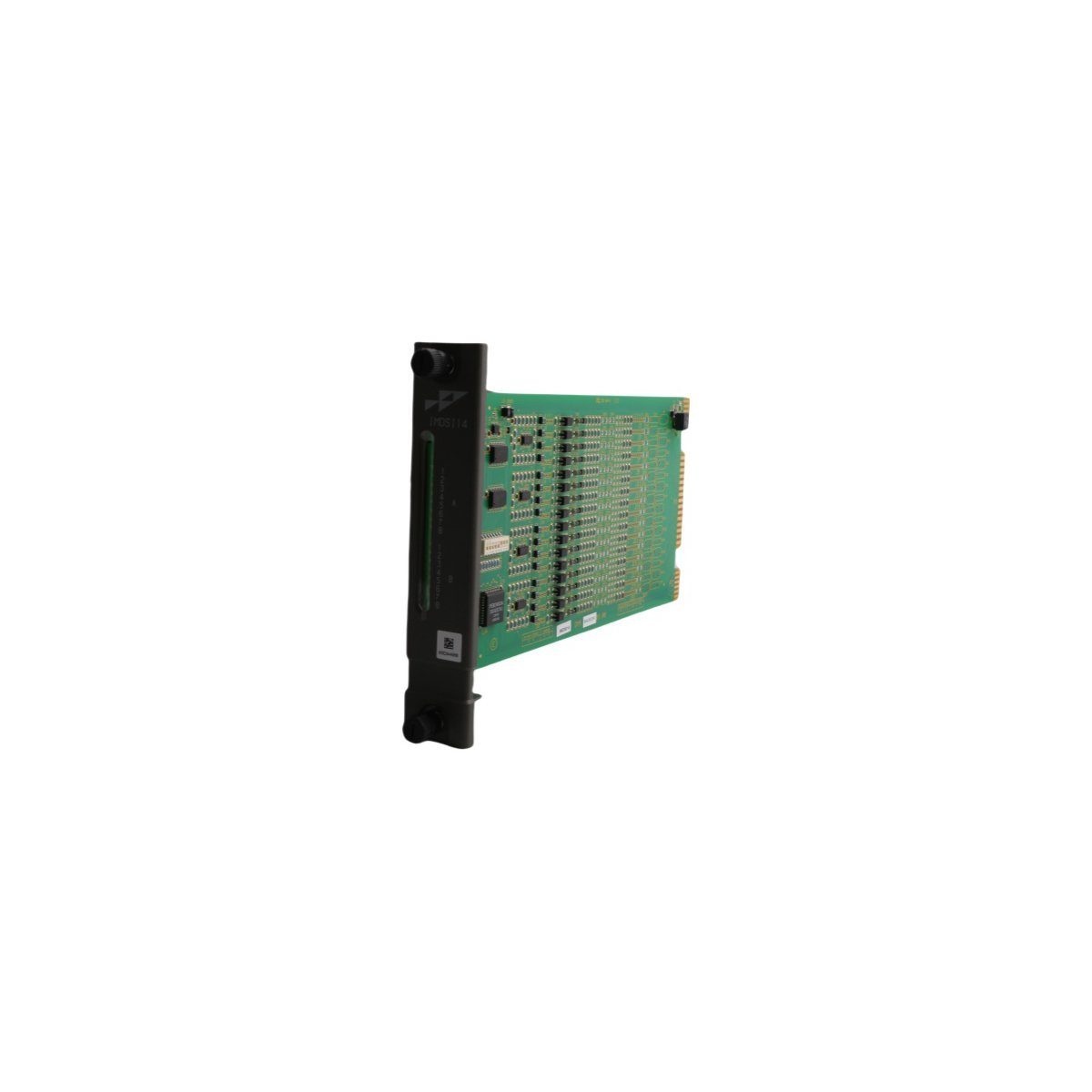

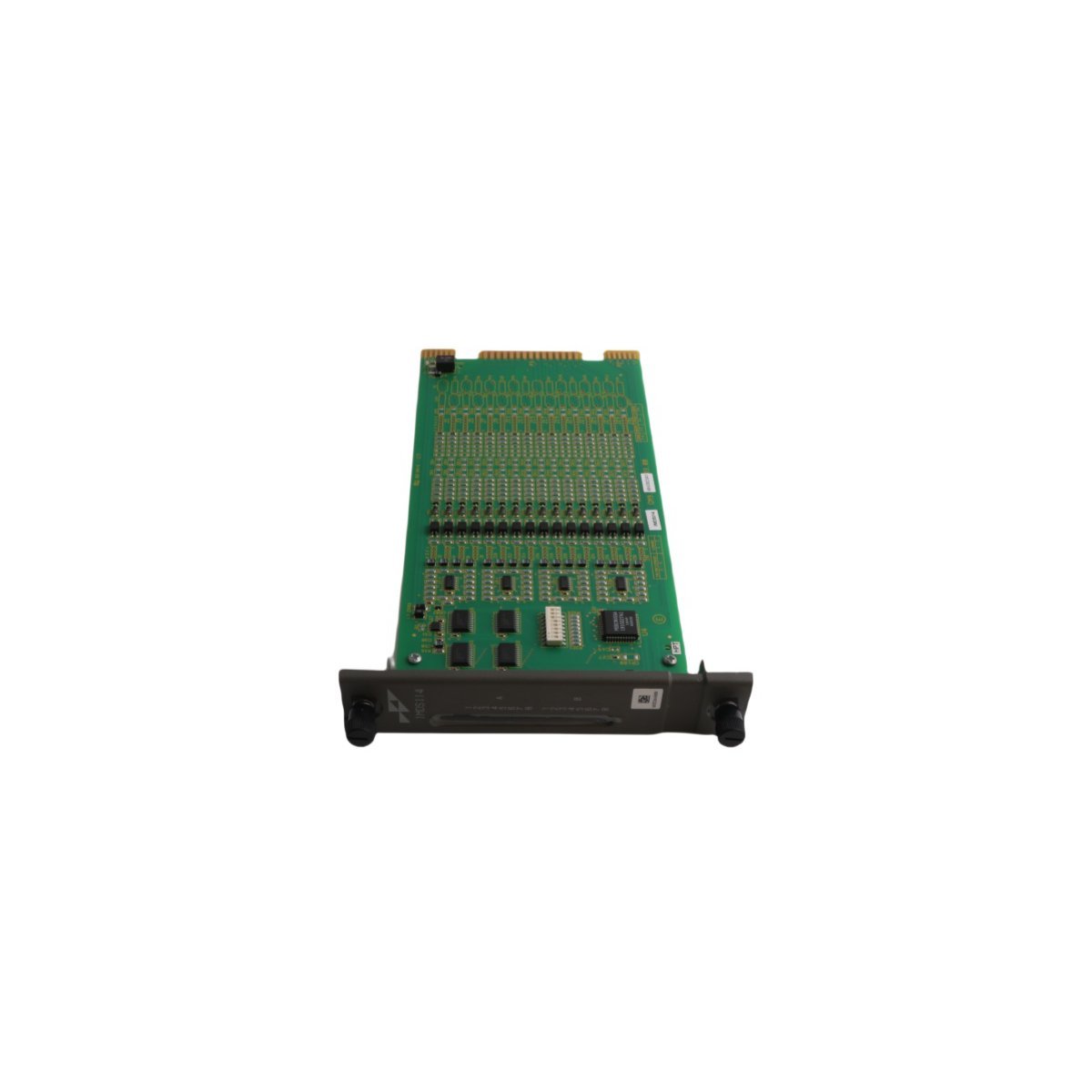

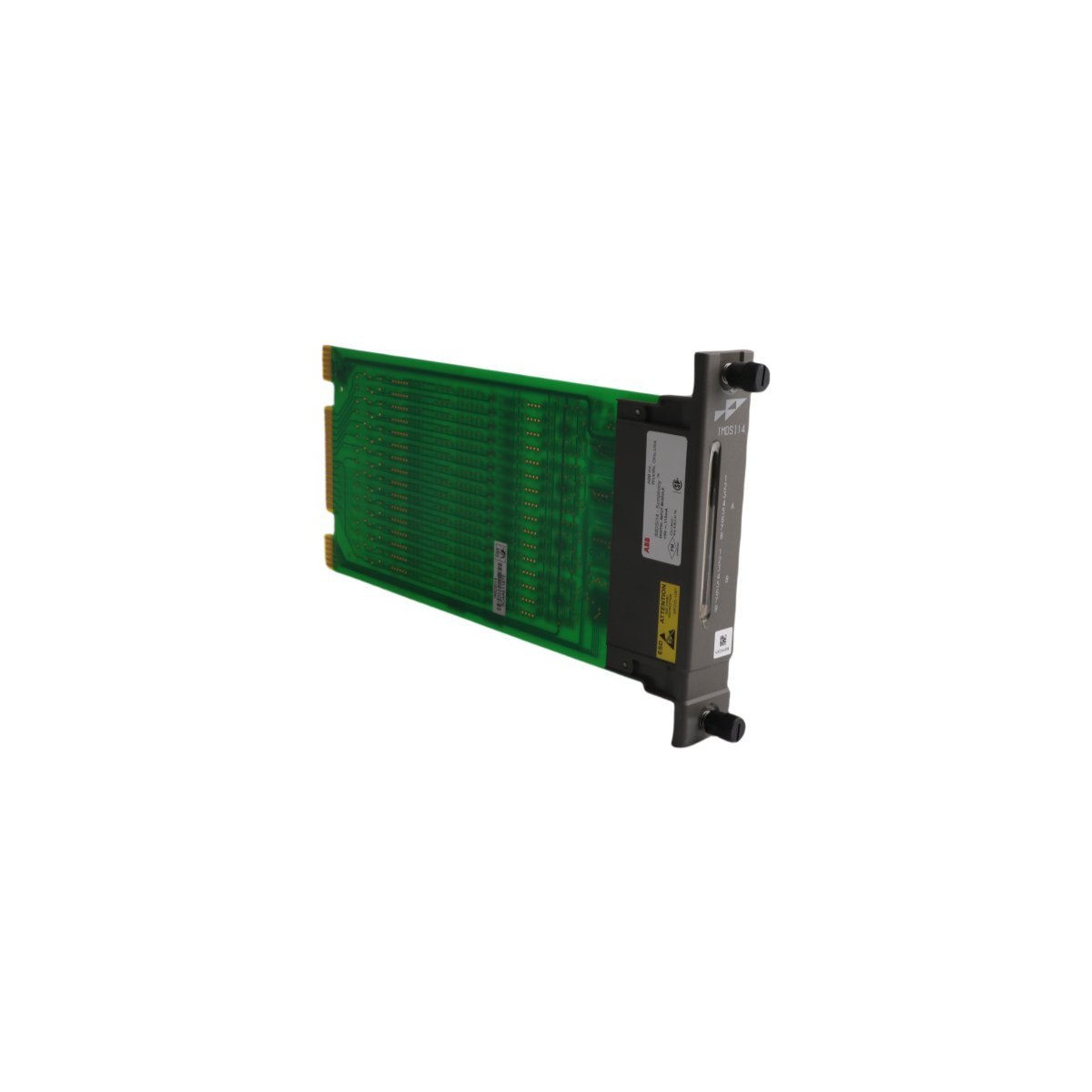

The ABB IMDSI14 is a high-density digital input slave module designed for the Harmony Rack (HR) I/O series. This component interfaces directly with field-side discrete devices to capture real-time operational states. It converts external 48 VDC signals into logic-level data for the primary controller. Because it utilizes a slave architecture, the module efficiently expands the I/O capacity of Bailey Infi 90 systems. This hardware ensures precise monitoring of switch positions, alarms, and pulse sequences in a Distributed Control System.

Primary Technical Specifications

Reliable Signal Acquisition and Logic

The IMDSI14 module features 16 independent input points for comprehensive field data collection. Each channel incorporates optical isolation to protect the system backplane from voltage spikes. Furthermore, internal filtering circuits effectively eliminate contact bounce and electrical noise. This ensures that the DCS receives only clean, valid digital transitions. Because the module operates at 48 VDC, it supports long-distance wiring with minimal signal degradation. This makes it ideal for large-scale industrial sites with remote sensor arrays.

Compact Hardware Design and Efficiency

The slim mechanical profile of the IMDSI14 allows for high-density mounting within standard Harmony Rack cabinets. This design optimizes cabinet real estate and reduces the overall system footprint. Moreover, the lightweight construction simplifies the installation and replacement process for field technicians. The module consumes very little power, which minimizes heat buildup inside the enclosure. Consequently, the hardware maintains a long service life even in continuous-duty applications. It meets all global standards for electromagnetic compatibility in industrial settings.

Common industrial applications include:

• Monitoring breaker and isolator statuses in power plants.
• Detecting alarm states in petrochemical processing units.
• Synchronizing discrete sensor data for manufacturing lines.
• Providing feedback from remote motor control centers.

System Integration and Maintenance

Integrating the IMDSI14 into an existing Infi 90 or Harmony system is straightforward. It communicates with the master controller via the system bus to provide rapid data updates. Maintenance teams can perform diagnostics through the central control interface to identify channel failures. Additionally, the module supports hot-swapping under specific rack configurations. This feature allows for hardware repairs without shutting down the entire control loop. This flexibility ensures maximum availability for critical infrastructure.
