Description

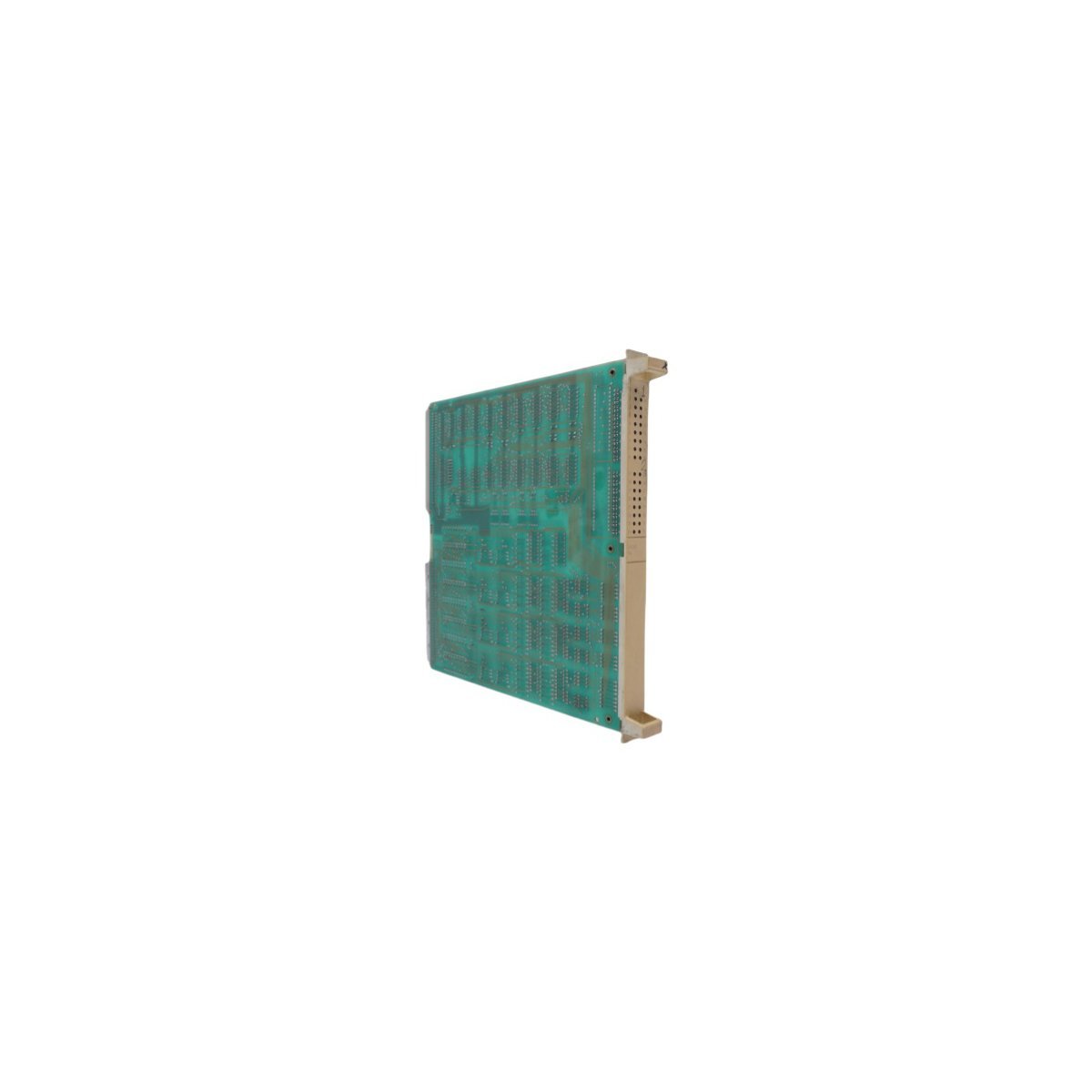

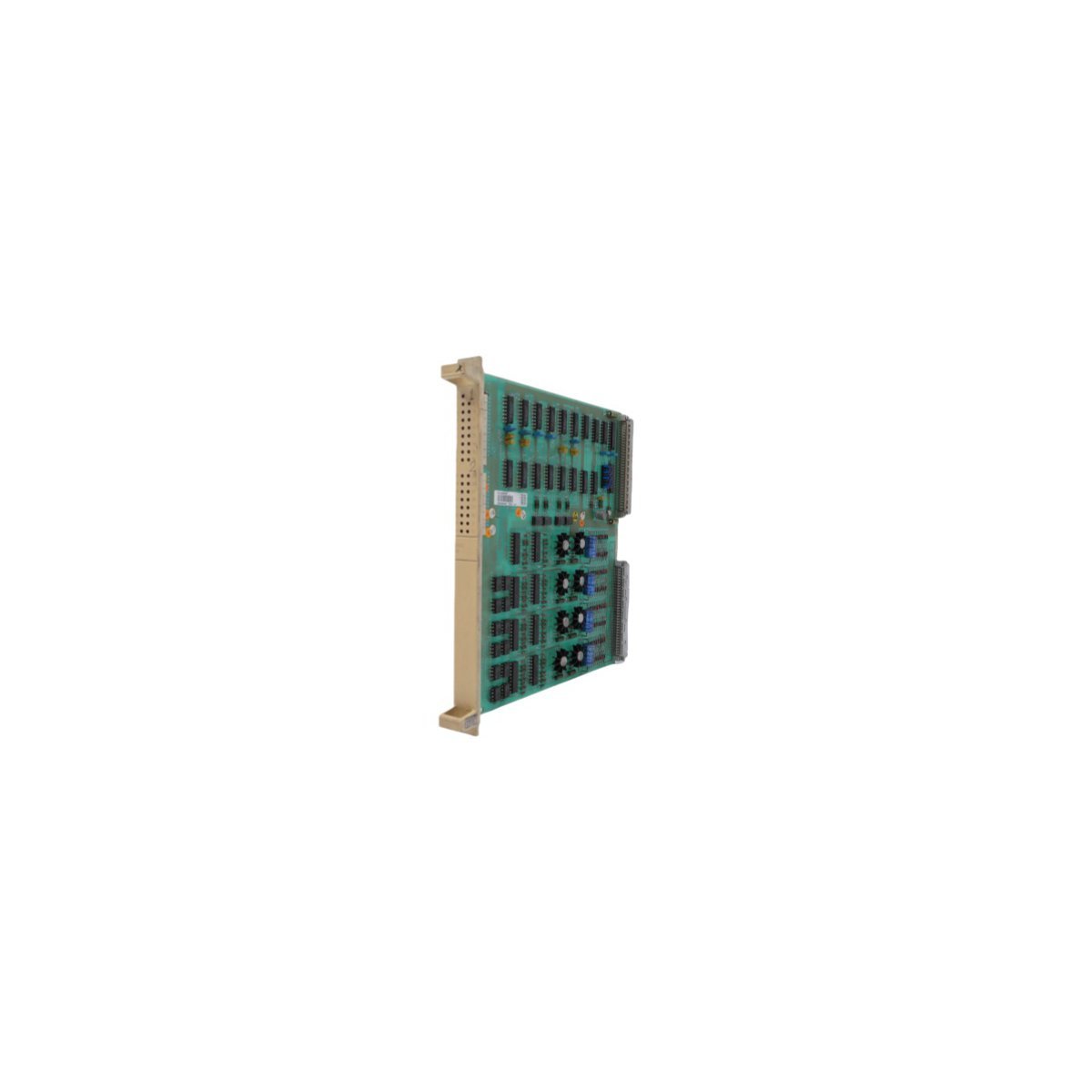

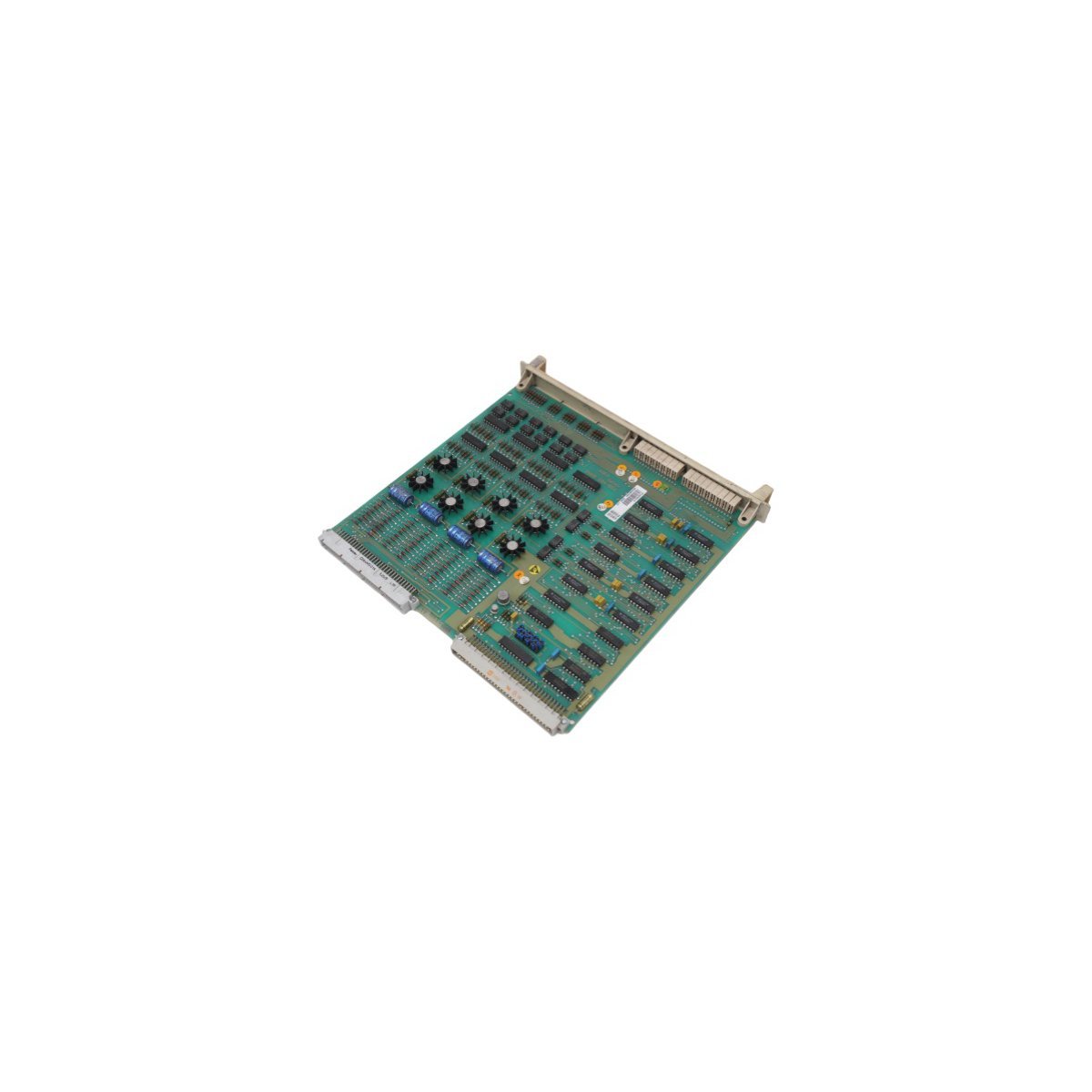

The ABB DSDO110, part number 57160001-K, serves as a high-density digital output interface for the S100 I/O system. This board functions within Advant Controller 410 and 450 environments to drive discrete field devices. It converts internal bus commands into binary signals for external control of relays and indicators.

The hardware architecture ensures rapid signal execution for time-critical industrial processes. Consequently, the module maintains strict synchronization between the controller logic and field-level actuators. Its design prioritizes operational uptime in demanding power generation and chemical processing facilities.

Core Technical Characteristics

Operational Reliability and Maintenance

The DSDO110 utilizes premium components to withstand the electrical stress of continuous switching cycles. Furthermore, the board includes onboard diagnostics to monitor the health of individual output channels. This feature allows technicians to identify circuit faults without dismantling the entire rack.

The compact form factor supports high-density cabinet layouts for space-constrained control rooms. LED status indicators on the front panel provide immediate visual feedback regarding channel activity. This simplified interface reduces the time required for routine hardware inspections and troubleshooting.

Environmental Resilience and Support

ABB engineered the 57160001-K to function reliably within varied industrial temperature ranges. The robust PCB coating protects sensitive traces from humidity and airborne contaminants common in factory settings. Therefore, the board delivers consistent performance over a long service lifecycle.

Users benefit from a global support network and extensive technical documentation for the S100 series. This module remains a vital component for maintaining legacy Advant OCS installations. Choosing an authentic DSDO110 ensures seamless firmware compatibility and protects the integrity of the automation system.
