Description

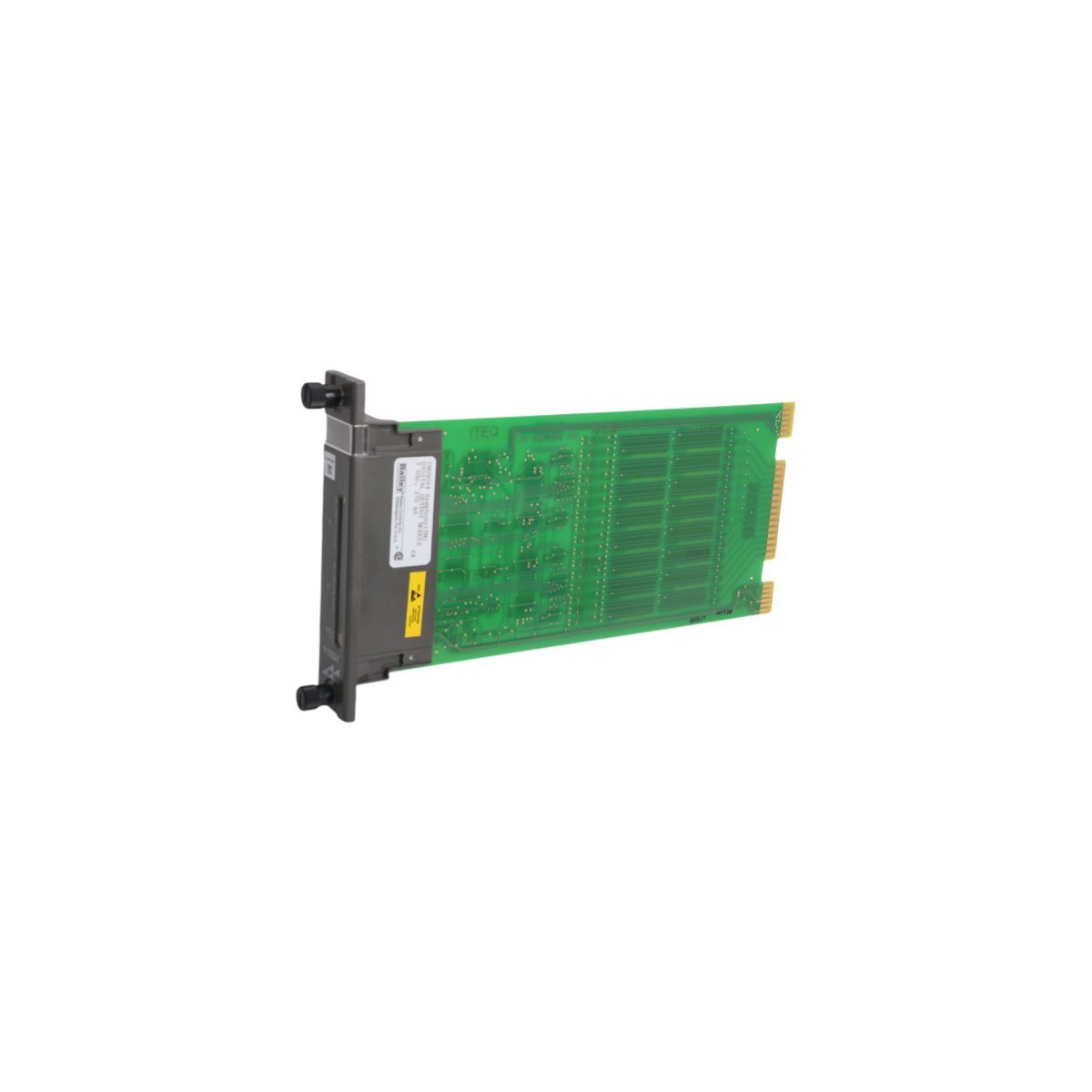

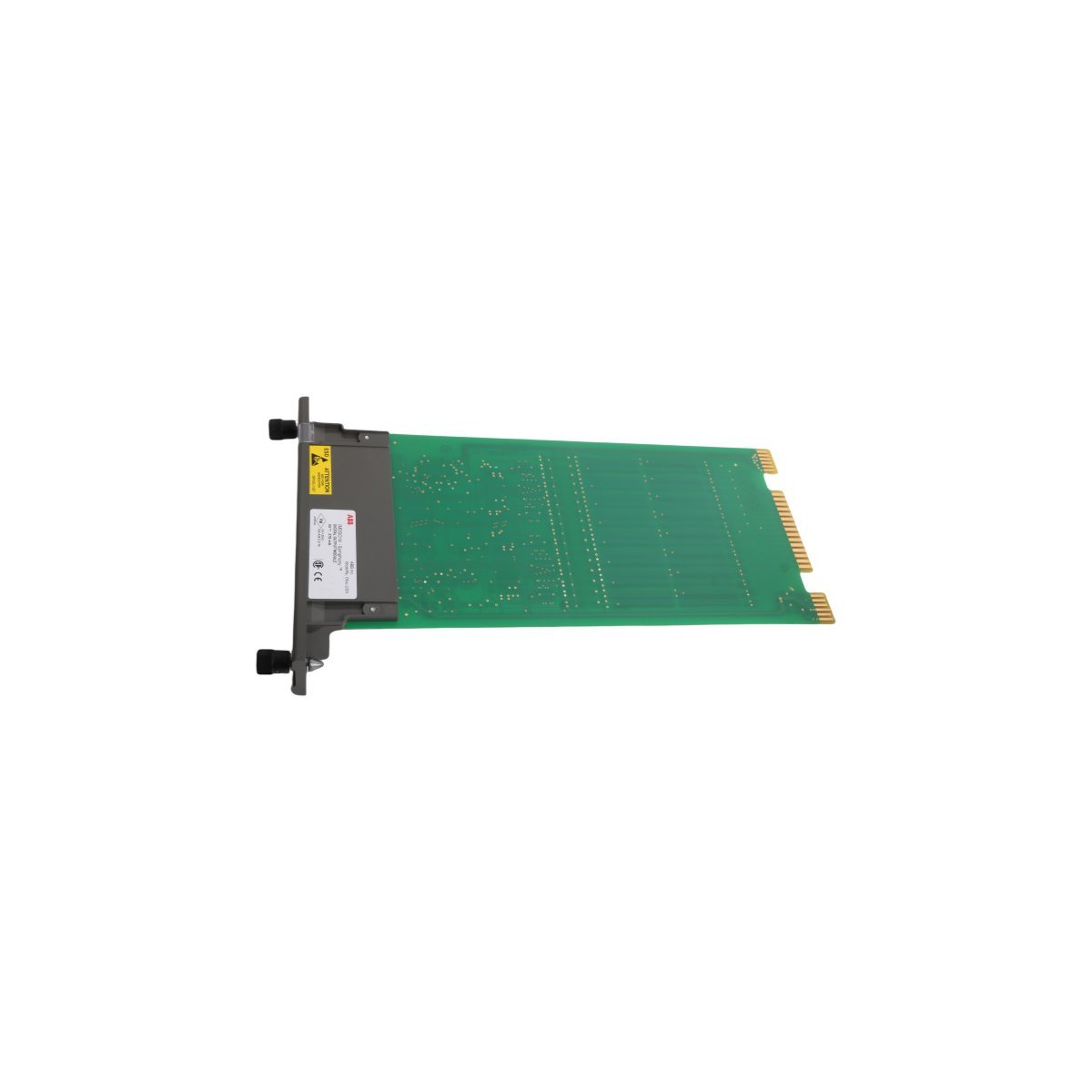

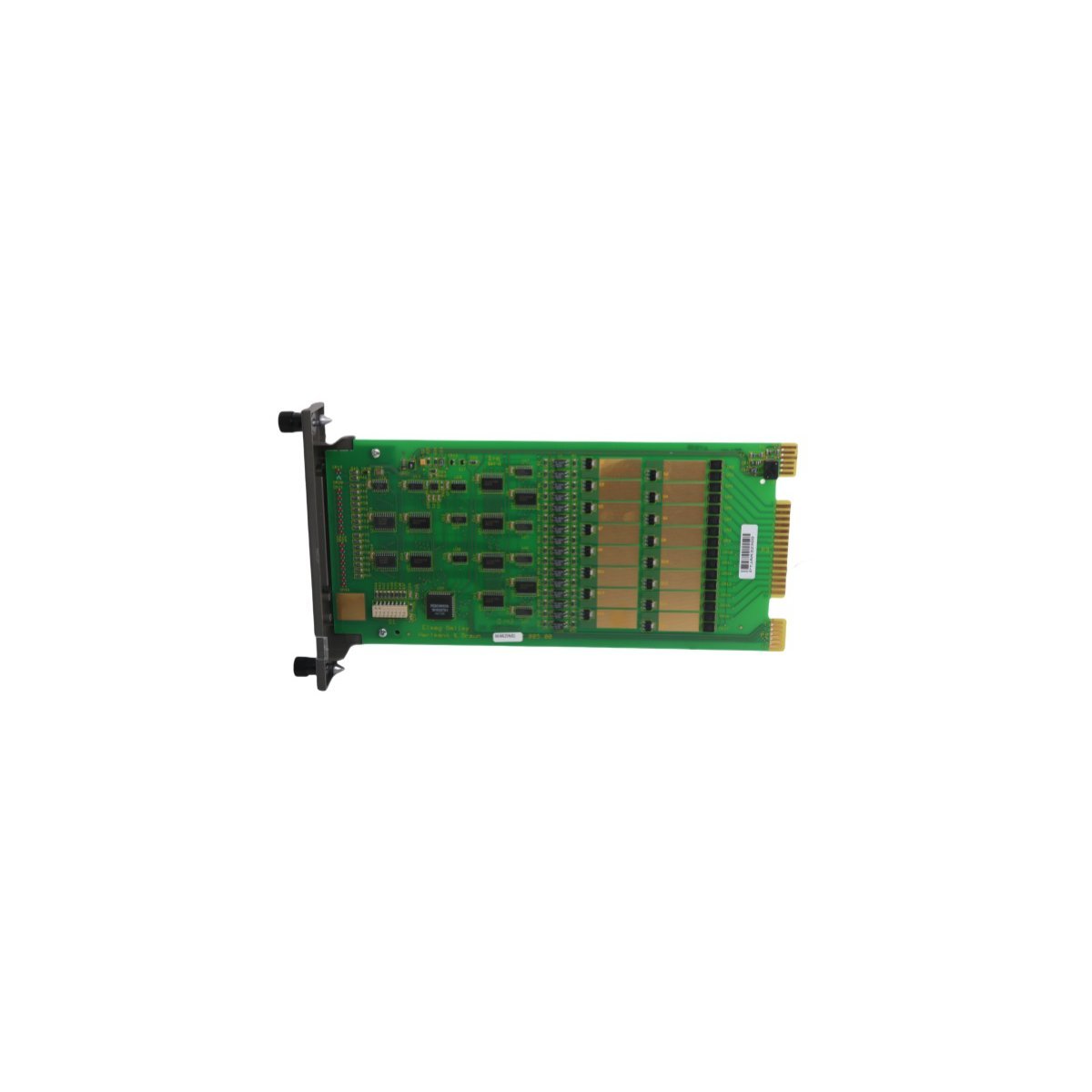

The ABB IMDSO14 acts as a high-precision digital slave output component within the Harmony Rack (HR) series. This module executes discrete command signals from the master controller to drive field-level equipment. It primarily manages the switching states of relays, motor starters, and solenoid valves in a DCS environment.

Engineers integrate this module to ensure synchronized output behavior across large-scale industrial networks. The internal circuitry utilizes Frequency Shift Keying (FSK) for robust communication with the controller bus. Consequently, the hardware maintains high signal integrity even in areas with significant electrical noise.

Technical Performance Specifications

Adaptability and Hardware Resilience

The IMDSO14 features a flexible voltage architecture to support diverse industrial load requirements. Its design accommodates various current levels to improve the reliability of complex hydraulic and servo systems. Furthermore, the module operates consistently across a wide temperature spectrum for year-round stability.

Advanced diagnostic features allow the system to monitor output health in real time. This capability helps operators detect circuit faults before they impact the production process. Therefore, the module serves as a critical safety layer for automated heavy machinery.

Installation and Maintenance Efficiency

The lightweight and slim form factor allows for high-density mounting in standard rack enclosures. Technicians can perform rapid module swaps to minimize downtime during scheduled maintenance intervals. This efficient mechanical design simplifies the overall cabinet thermal management strategy.

Because the module belongs to the active ABB lifecycle, it supports long-term plant modernization efforts. It provides a bridge for legacy systems moving toward modern digital control standards. Choosing this authentic component ensures seamless compatibility with existing Bailey Infi 90 infrastructure.
