Description

Brief Product Description

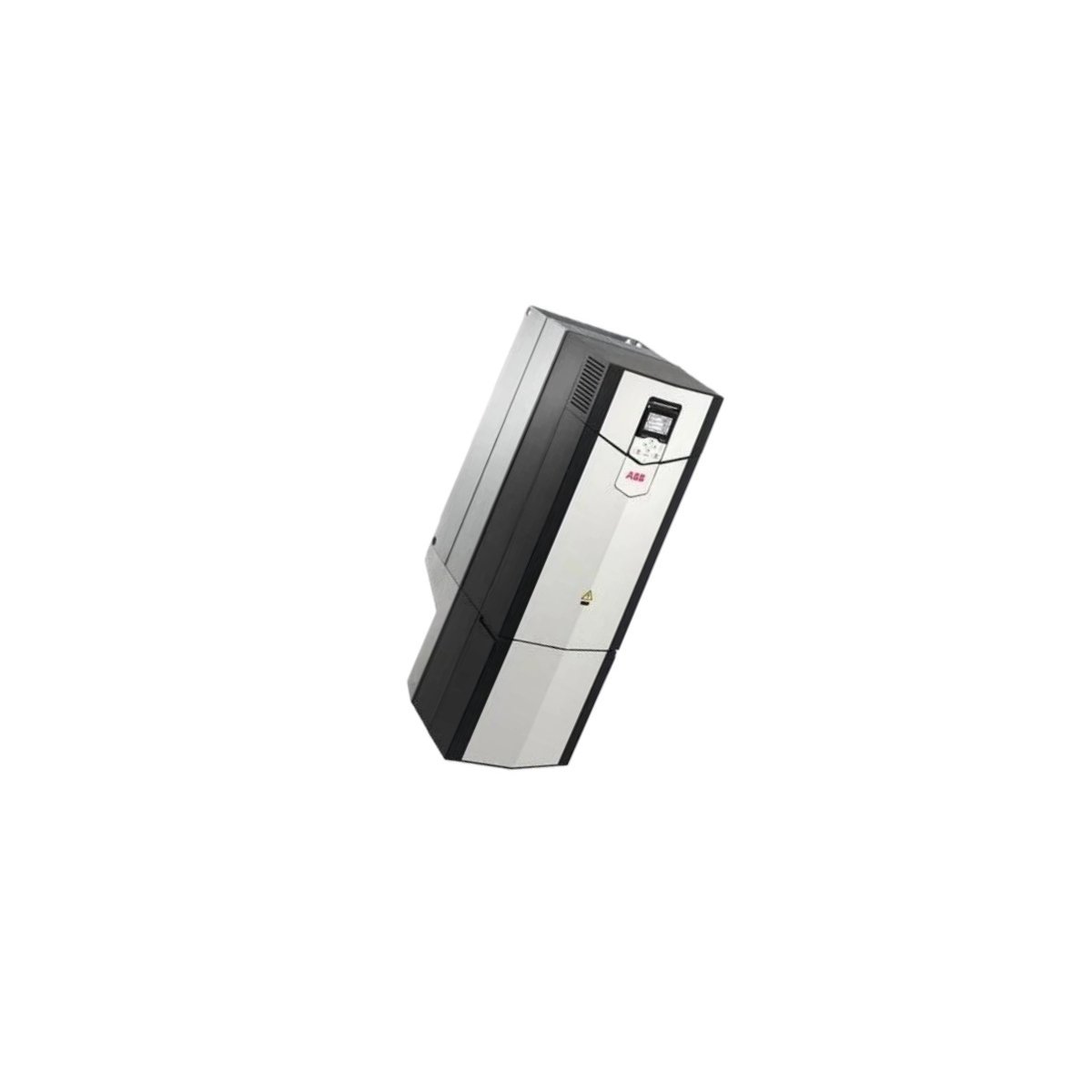

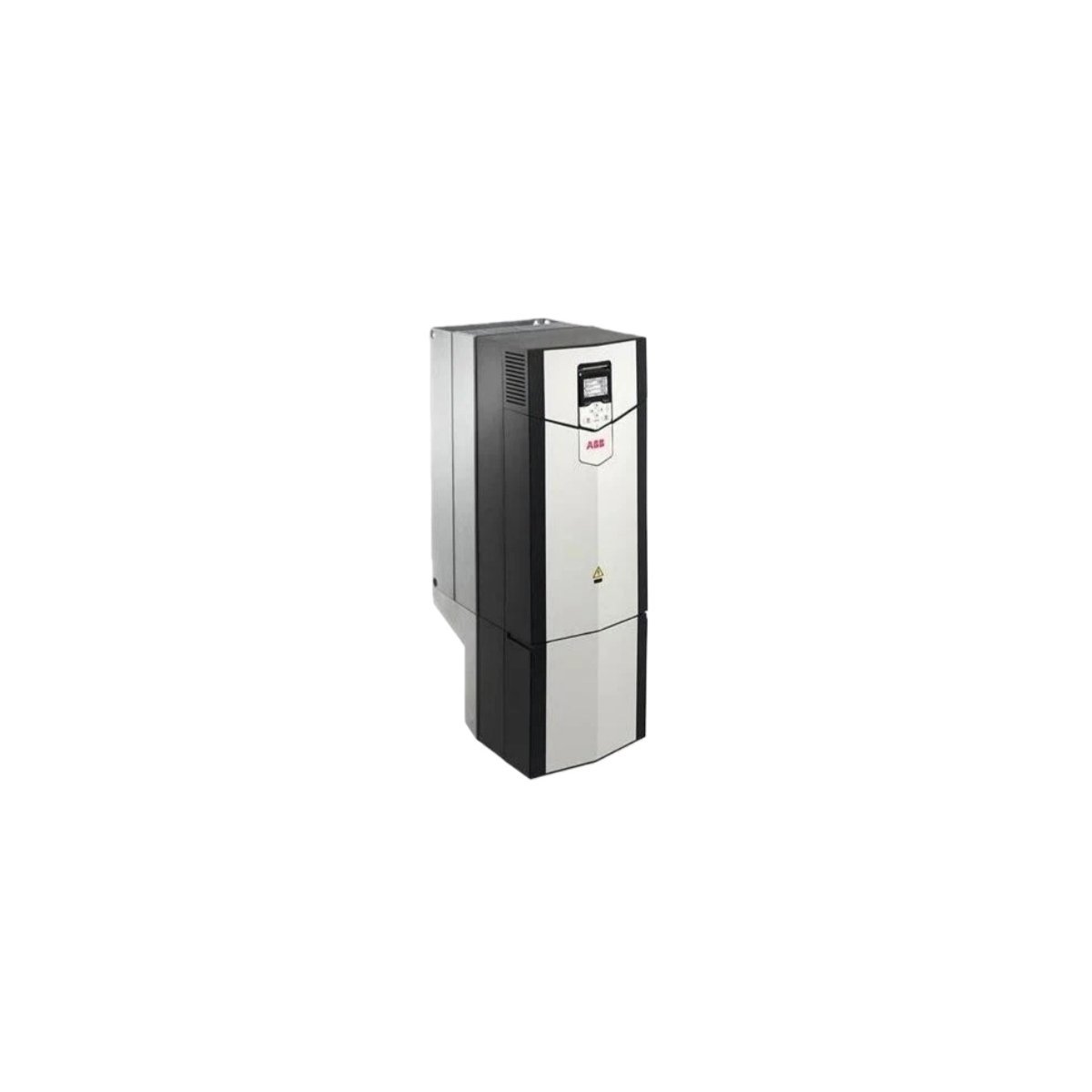

The ABB ACS880-01-156A-5 is a high-performance, wall-mounted industrial drive designed to provide precise motor control for heavy-duty applications up to 90kW. This versatile 156A unit features built-in harmonic filtering and an IP55-rated enclosure to ensure reliable operation in harsh environmental conditions.

​Product Description

The ABB ACS880-01-156A-5 functions as a premium all-compatible industrial drive, specifically engineered to simplify process control while maximizing energy efficiency. This wall-mounted single drive supports a broad range of motors and power requirements, delivering a robust 156A output current. Because it utilizes Direct Torque Control (DTC) technology, the unit provides exceptional motor control accuracy in both open and closed-loop configurations. Consequently, it excels in high-torque industrial scenarios such as operating large-scale compressors, heavy conveyors, and centrifugal pumps.

Integrated Hardware and Safety Architecture

To streamline installation and save cabinet space, the ACS880-01-156A-5 incorporates several essential components within its compact frame. The hardware includes a DC choke for harmonic mitigation and a built-in braking chopper to manage regenerative energy effectively. Furthermore, the drive features an IP55-rated enclosure, which protects sensitive electronics from moisture and dust ingress. This makes the drive an ideal solution for wastewater treatment, textile manufacturing, and other demanding process industries where environmental protection is mandatory.

Global Compatibility and Flexibility

This drive model supports multiple voltage standards, including 500V IEC and 460V UL ratings, ensuring it meets international compliance for global deployment. Transitioning between different motor types is effortless, as the drive handles induction motors, permanent magnet motors, and synchronous reluctance motors (SynRM) with equal proficiency. Additionally, the modular interface allows users to expand the system’s capabilities through various fieldbus adapters and I/O extension modules, tailoring the drive to specific site requirements.

Operational Efficiency and Cooling

An intelligent cooling system manages thermal loads within the ACS880-01-156A-5, extending the lifespan of internal capacitors and power semiconductors. Integrated safety functions, such as Safe Torque Off (STO), come as standard features to protect machinery and personnel during maintenance or emergency stops. By optimizing motor speed according to the actual load, the drive significantly reduces energy consumption and mechanical wear on the connected equipment, leading to lower total cost of ownership.

Technical Specification Table
