Description

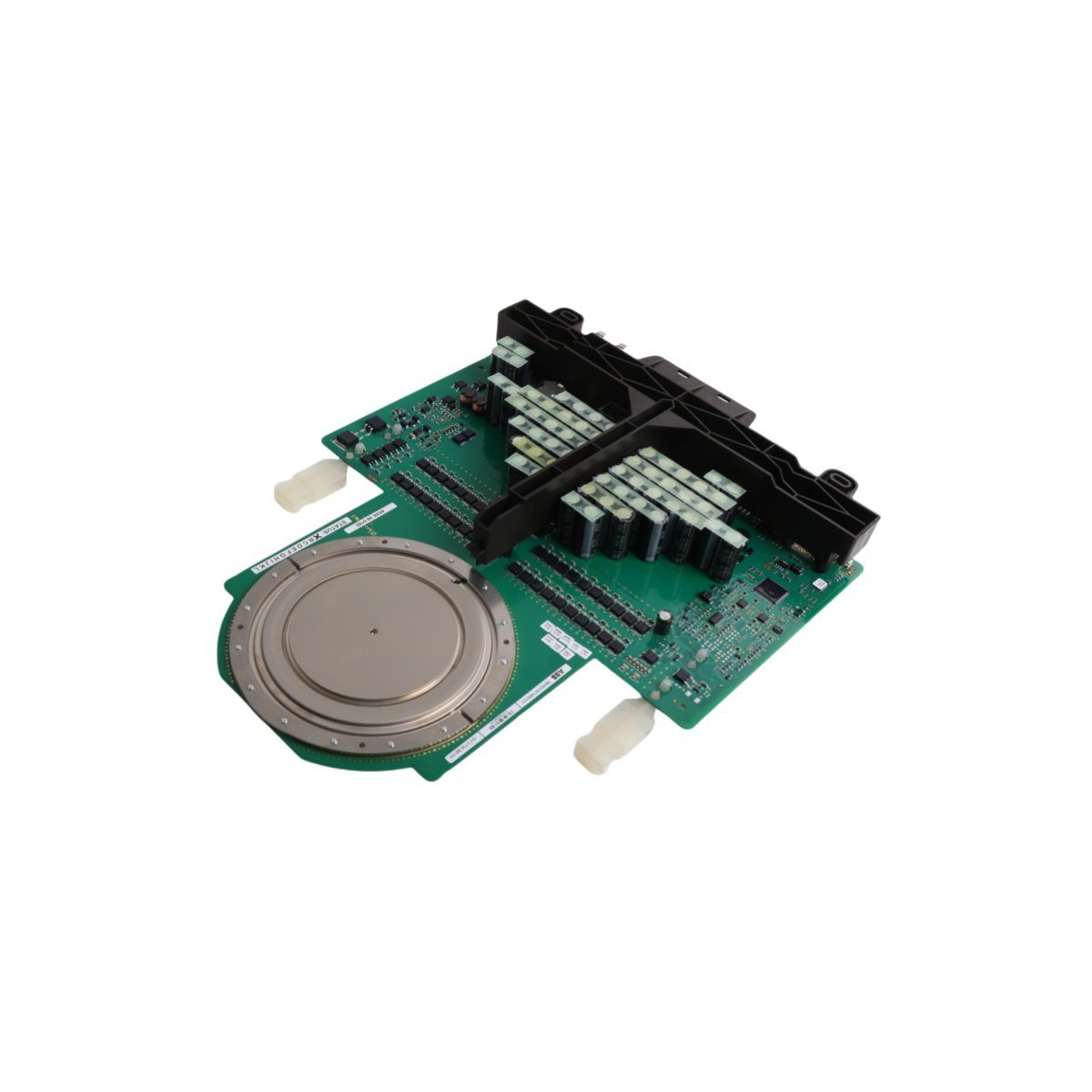

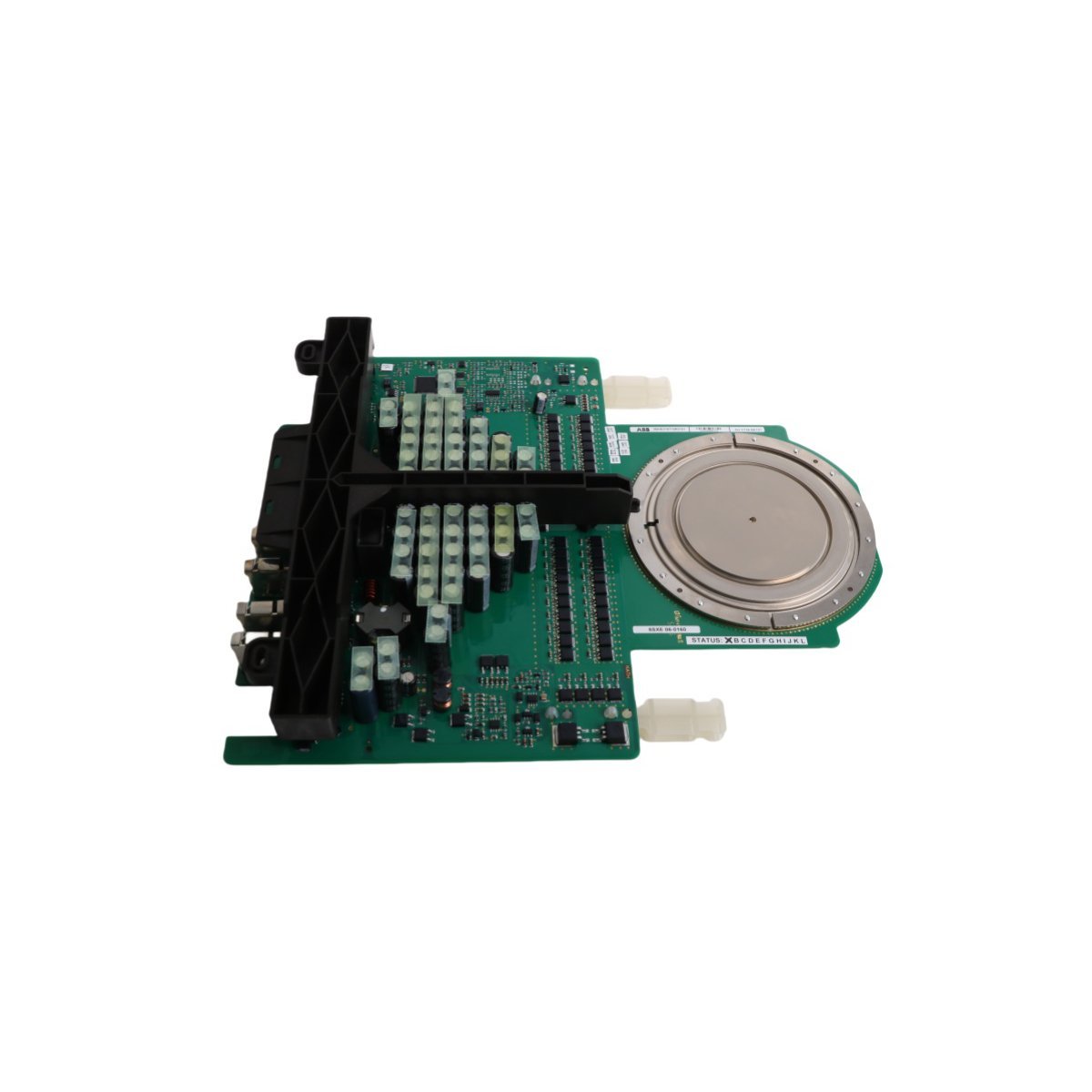

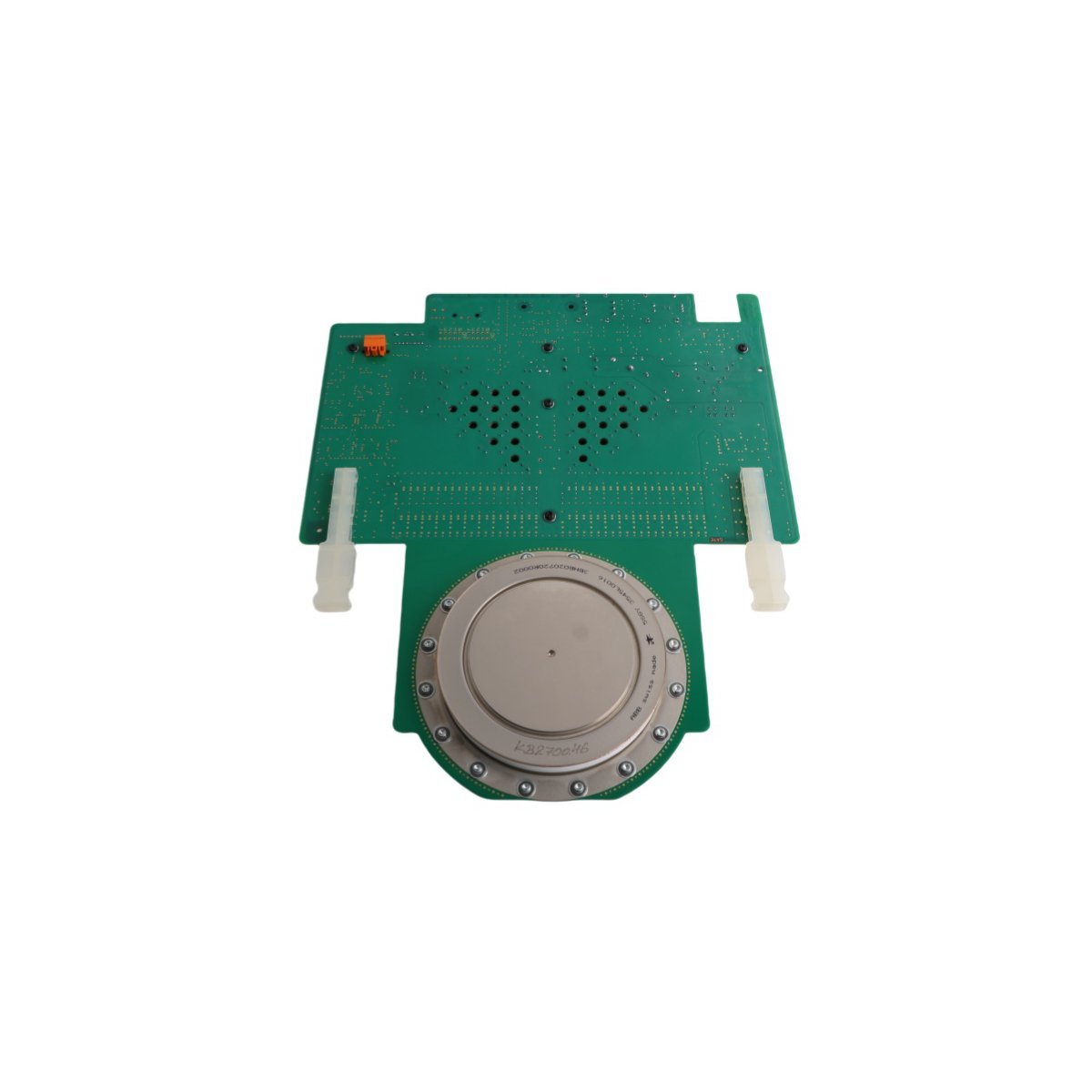

The ABB 3BHB030310R0001 5SHY4045L0006 utilizes Integrated Gate-Commutated Thyristor (IGCT) technology for superior power management. This module handles high-voltage switching tasks within medium-voltage drive systems and industrial converters. It effectively supports a blocking voltage of 4500V to ensure safe operation in heavy-duty electrical grids. Furthermore, the semiconductor manages peak surge currents up to 30kA during demanding transient events. This makes the unit essential for controlling large-scale motors and renewable energy inverters. The design prioritizes low conduction losses to maximize overall system energy efficiency.

Thermal Management and Mechanical Integrity

Engineered for extreme reliability, the 5SHY4045L0006 features a rugged press-pack housing for industrial durability. This construction method ensures excellent pressure contact and low thermal resistance. Consequently, the module dissipates heat efficiently across a wide junction temperature range. It operates effectively between -40°C and +125°C to suit diverse climate conditions. The 2.64kg chassis also provides high resistance to mechanical vibrations and thermal cycling. This robust build protects internal silicon wafers from physical stress in mining and steel mill environments.

Advanced Control and System Integration

This IGCT module integrates seamlessly with the Advant OCS and 800xA control platforms. It features an optimized gate drive circuit for rapid turn-on and turn-off transitions. Specifically, the unit achieves switching times under 10 microseconds for precise pulse-width modulation. This speed reduces harmonic distortion and improves the quality of the output power. Moreover, the module supports switching frequencies up to 500Hz for modern drive applications. It remains a standard component for ACS 2000 medium-voltage drives and marine propulsion systems.

Technical Specifications

Primary Industrial Applications

• Medium-voltage motor control in mining and metal processing.
• Traction power converters for high-speed rail systems.
• Wind and solar energy grid-tie inverters.
• Static VAR compensators for power quality management.
• Marine propulsion and large-scale shipping drives.
• Pump and fan control in water treatment facilities.

Reliability and Compliance

The 3BHB030310R0001 module meets rigorous international safety standards for high-voltage equipment. Its active lifecycle status ensures long-term availability for critical infrastructure projects. Furthermore, the module facilitates easy retrofitting for older ABB drive cabinets. This reduces the need for complete system overhauls during facility upgrades. Each unit undergoes strict quality testing to guarantee consistent electrical performance. This commitment to quality minimizes unplanned downtime in continuous production environments.
