Description

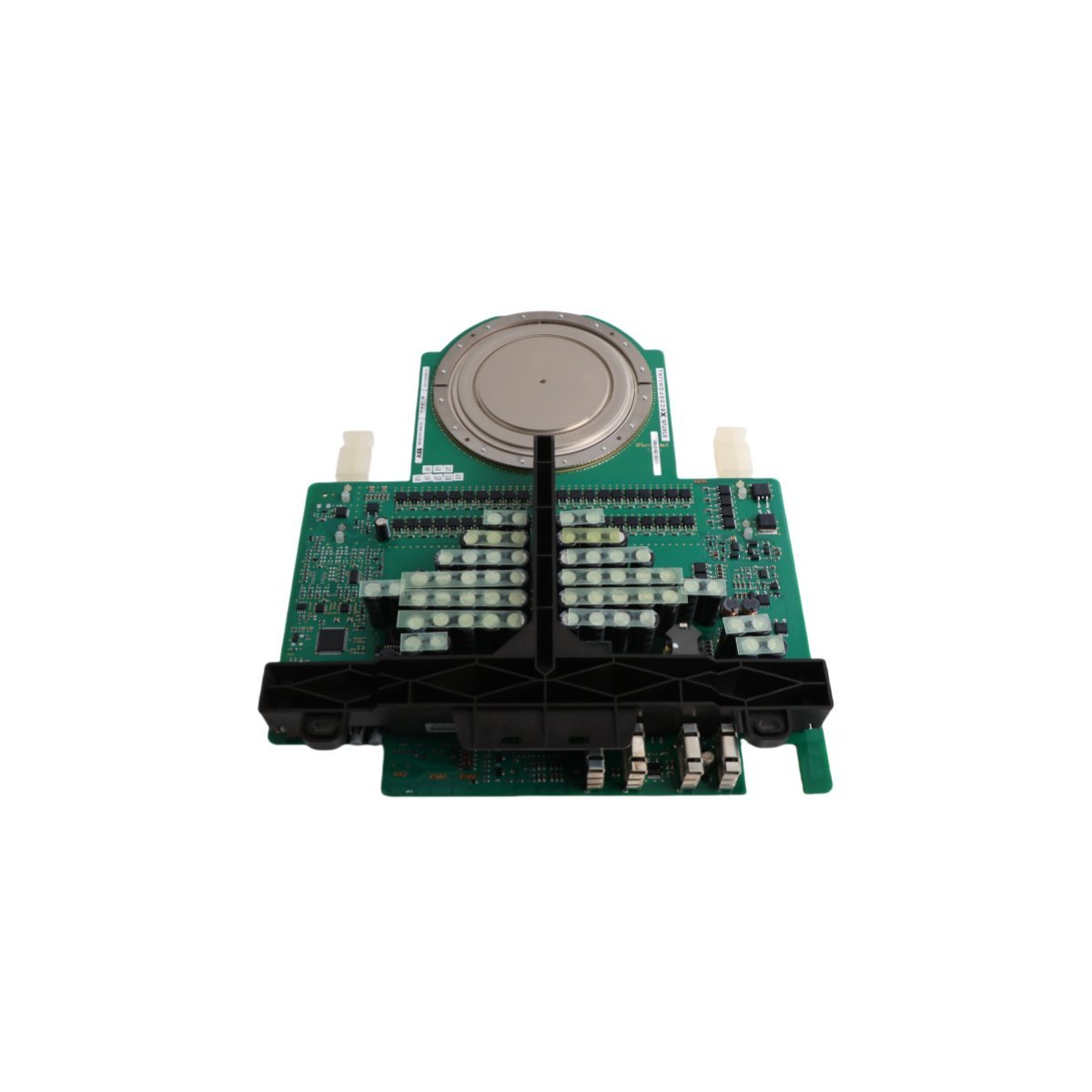

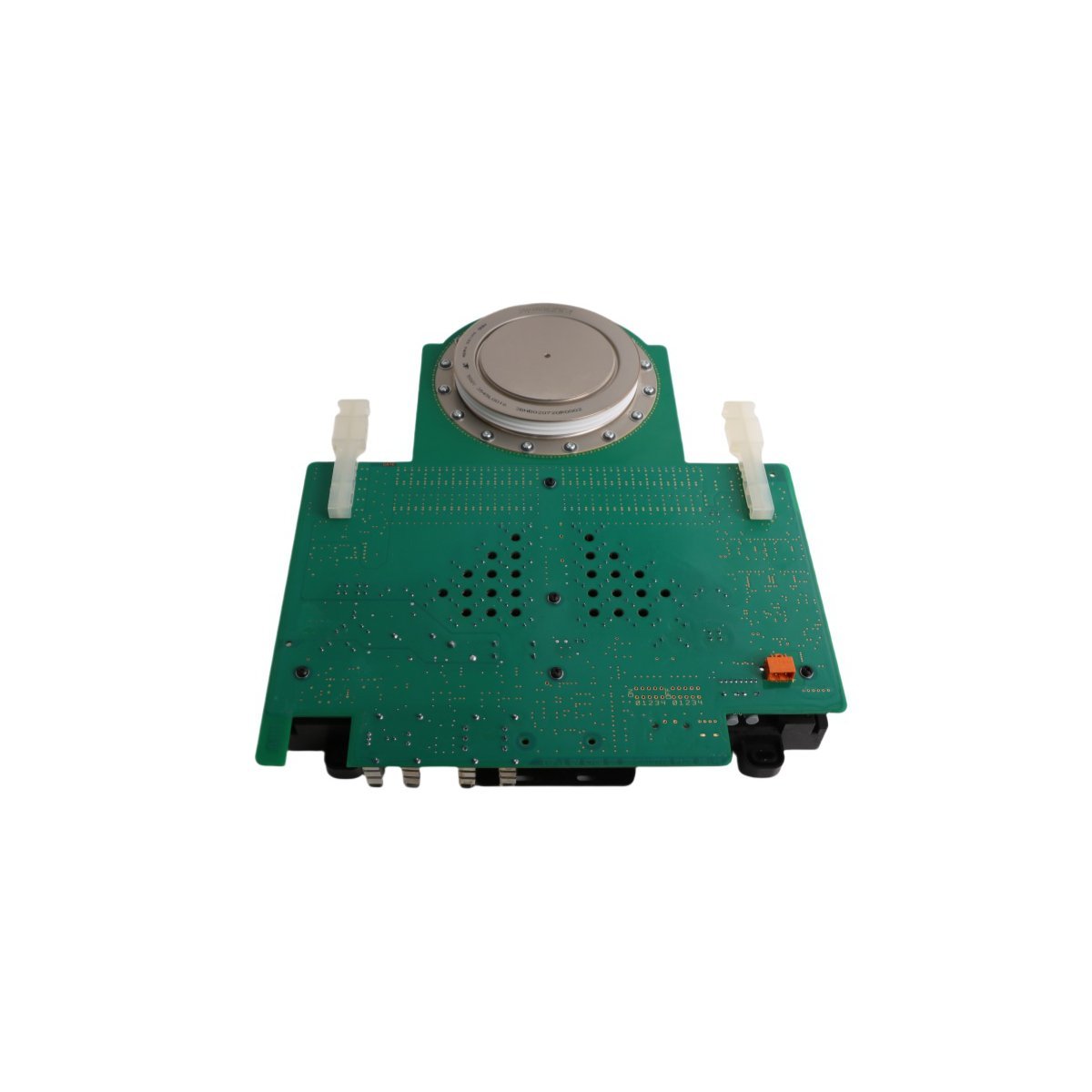

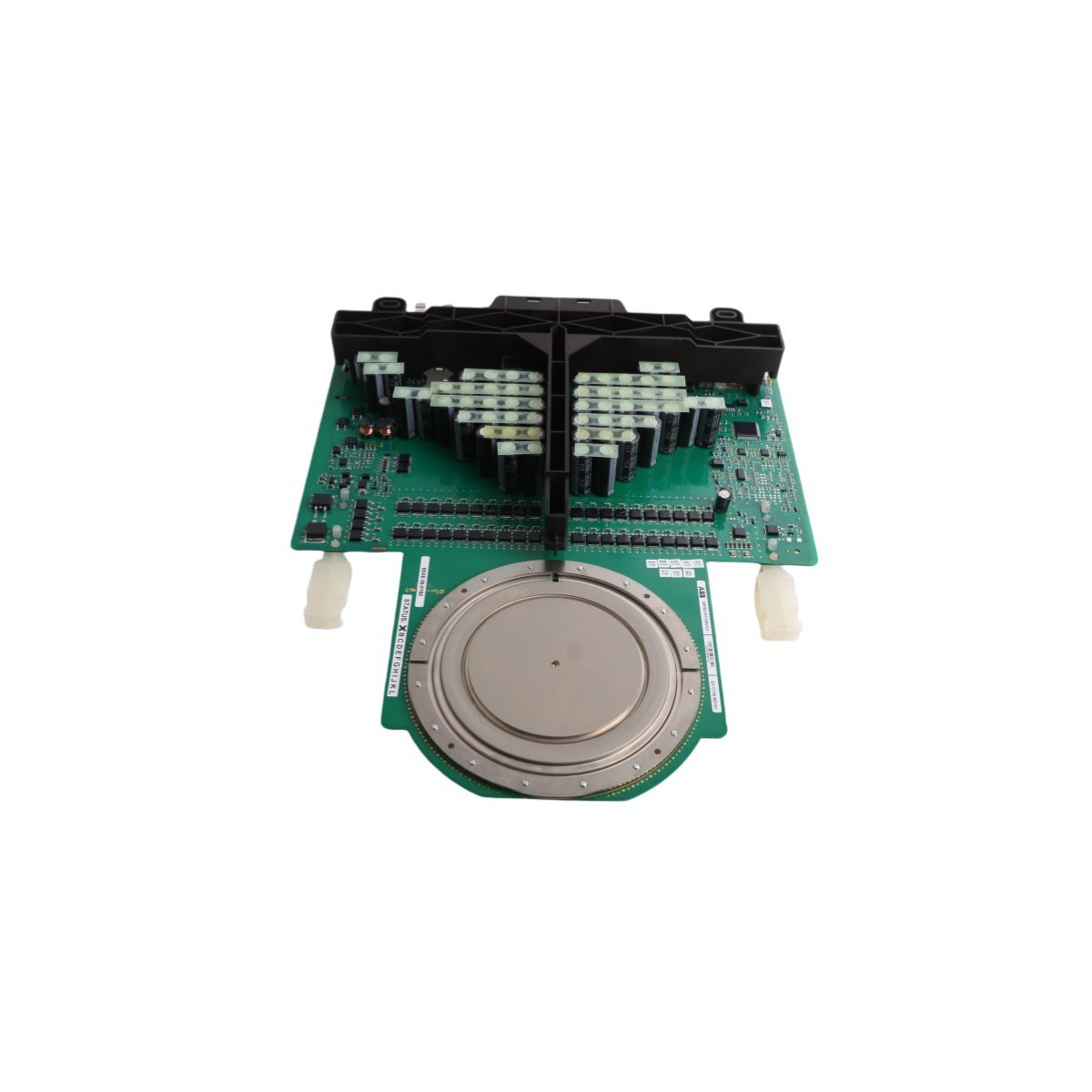

The ABB 5SHY3545L0016 functions as a high-performance Integrated Gate-Commutated Thyristor (IGCT) for medium-voltage systems. This 3BHB020720R0002 module combines the high current capacity of thyristors with fast transistor switching speeds. It handles a peak blocking voltage of 4500V and a nominal current of 1200A effectively. Furthermore, the unit features an integrated gate driver to minimize stray inductance during operation. This design ensures superior reliability for demanding HVDC transmission and industrial drive applications. Engineers prioritize this module for its ability to reduce switching losses in high-frequency environments.

Thermal Management and Mechanical Design

Robust mechanical construction allows this IGCT module to perform in extreme industrial conditions. The press-pack housing requires a mounting force between 35kN and 45kN for optimal contact. This pressure ensures efficient heat transfer from the silicon wafer to the cooling system. Additionally, the module maintains an isolation voltage of 10kV RMS for enhanced operator safety. The unit operates reliably within standard industrial temperature ranges for continuous 24/7 service. Its compact 2.64kg frame facilitates easy installation within space-constrained power electronic cabinets.

System Integration and Grid Efficiency

The 3BHB020720R0002 module integrates seamlessly with ABB ACS 6000 drives and Advant OCS platforms. It achieves a minimum dv/dt rating of 1000V/μs to ensure stability during rapid voltage shifts. Moreover, the reverse-parallel diode configuration simplifies complex circuit designs for system integrators. This efficiency helps plant operators improve power quality while reducing harmonic distortion in the grid. The module also supports smart grid applications and wind power conversion with high precision. Consequently, it remains a critical component for modern renewable energy infrastructure projects.

Technical Specifications

Primary Industrial Applications

• Medium-voltage motor control in mining and heavy manufacturing.
• High-voltage direct current (HVDC) power transmission.
• Wind turbine inverters and renewable energy grid interfaces.
• Traction power converters for heavy rail and locomotives.
• Static VAR compensators for industrial power factor correction.
• Large-scale marine propulsion and shipping drive systems.
