Description

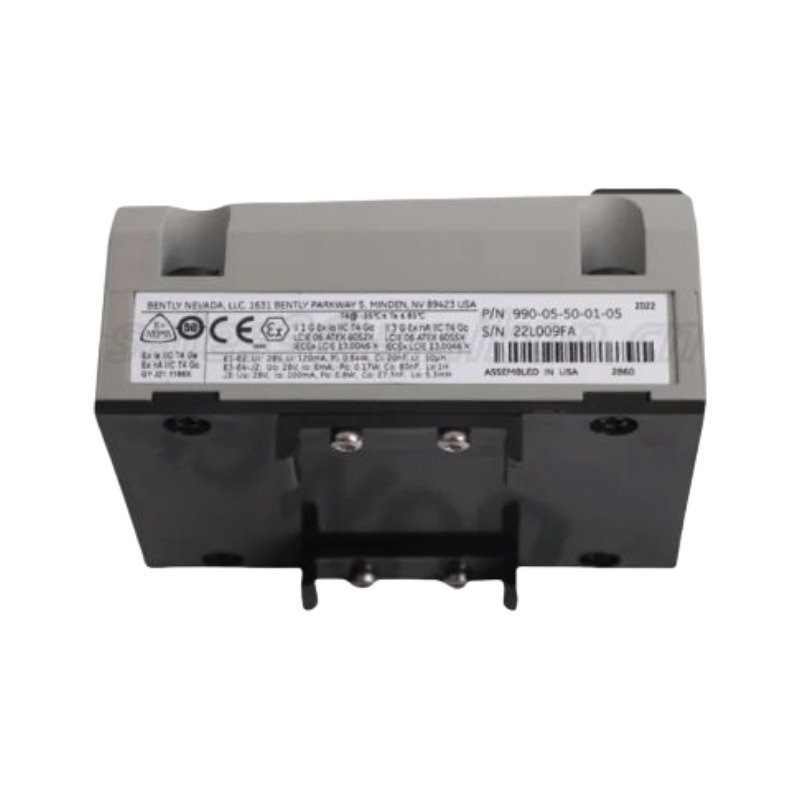

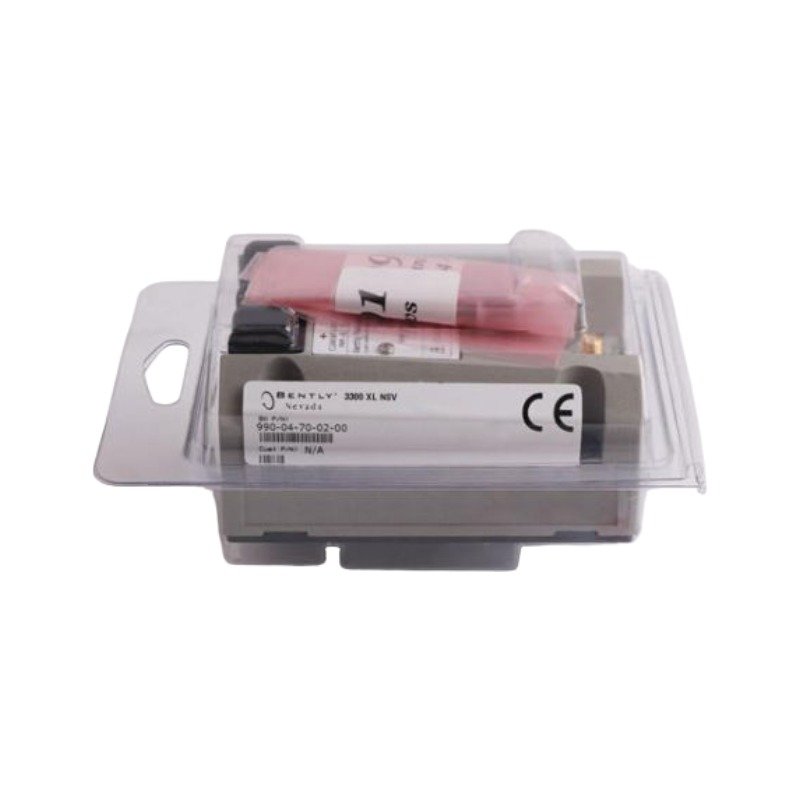

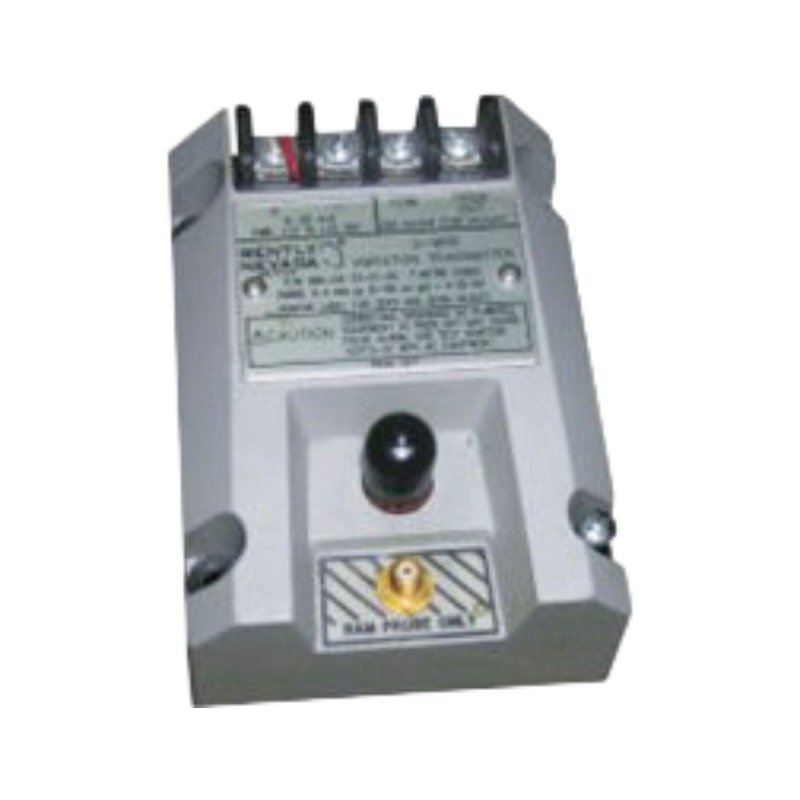

The Bently Nevada 990-04-70-02-00, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for converting proximity sensor inputs into an industry-standard loop signal within automated machinery control systems. It interfaces directly with a non-contacting 3300 NSv proximity probe assembly to track shaft displacement relative to the bearing housing. The internal circuitry conditions raw eddy-current voltage variations into a linear 4-20 mA output, which routes directly to programmable logic controllers or distributed control networks without requiring an intermediate monitoring rack.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

Because the transmitter is built to monitor high-speed rotating machinery elements like centrifugal compressors, eddy-current probe scaling governs signal accuracy. The device requires precise gap voltage validation (-10 VDC targets) during commissioning to position the probe tip within the linear measurement zone of the 3300 NSv system. Internal filtering components execute cross-talk suppression to isolate authentic rotor dynamics from structural noise or adjacent channel electrical interference. A built-in Not OK/Signal Defeat circuit monitors the input impedance continually, dropping the loop current below 3.6 mA if a probe or extension cable fault occurs, which prevents false trip execution within the safety interlock loop.

Frequently Asked Questions

Q: Can the PROX OUT coaxial terminal connect directly to AC-powered diagnostic equipment?

A: No. The PROX OUT and COM terminals provide a non-isolated dynamic vibration signal that shares a common path with the 4-20 mA current loop. Connecting this terminal directly to mains-powered oscilloscopes or analyzers introduces ground loops that corrupt the primary loop signal; a dedicated isolating test adapter must isolate the diagnostic links.

Q: What are the verification procedures for adjusting the zero and span potentiometers?

A: Technicians calibrate the output by adjusting the non-interacting zero and span potentiometers located under the front label. To verify scaling without moving the shaft, short the internal test jumper pins to enable the Test Input circuit, then apply a precise AC/DC signal from a function generator to simulate target displacement.

Field Installation Guidelines

• Bulkhead Mounting Integrity: Secure the transmitter housing to a flat, rigid panel using the integrated bulkhead mounting holes. Ensure proper physical separation from high-voltage conduit lines to minimize electromagnetic noise coupling into the low-level proximity sensor input circuit.
• Coaxial Connector Shielding: Insulate the connection point between the probe lead and the extension cable using clear heat-shrink tubing. Do not allow the miniature coaxial ClickLoc connectors to contact local machine metal or junction box walls, as this creates parasitic ground loops.
• Loop Cable Specifications: Use a twisted, shielded pair of 18 AWG to 22 AWG wire for the 4-20 mA signal loop. Connect the outer shield conductor exclusively to the control system chassis ground terminal, and leave it floating and trimmed flush at the transmitter termination block.
