Description

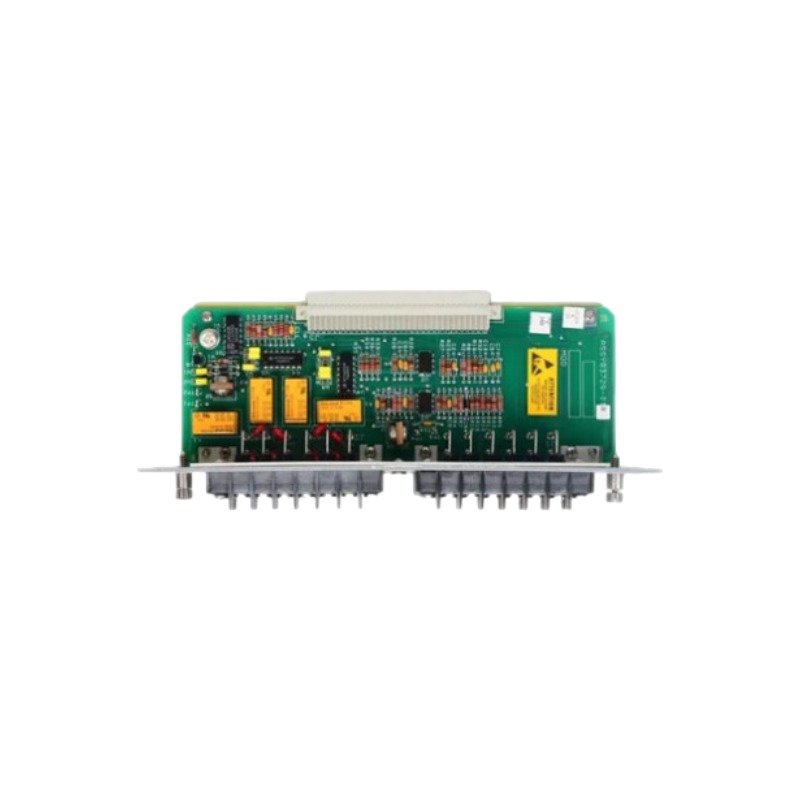

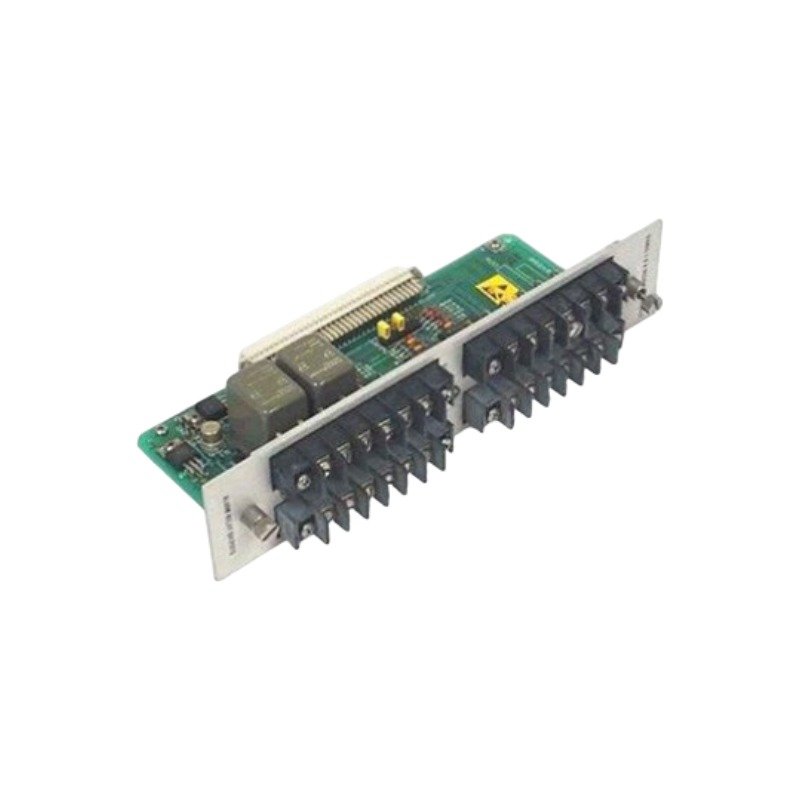

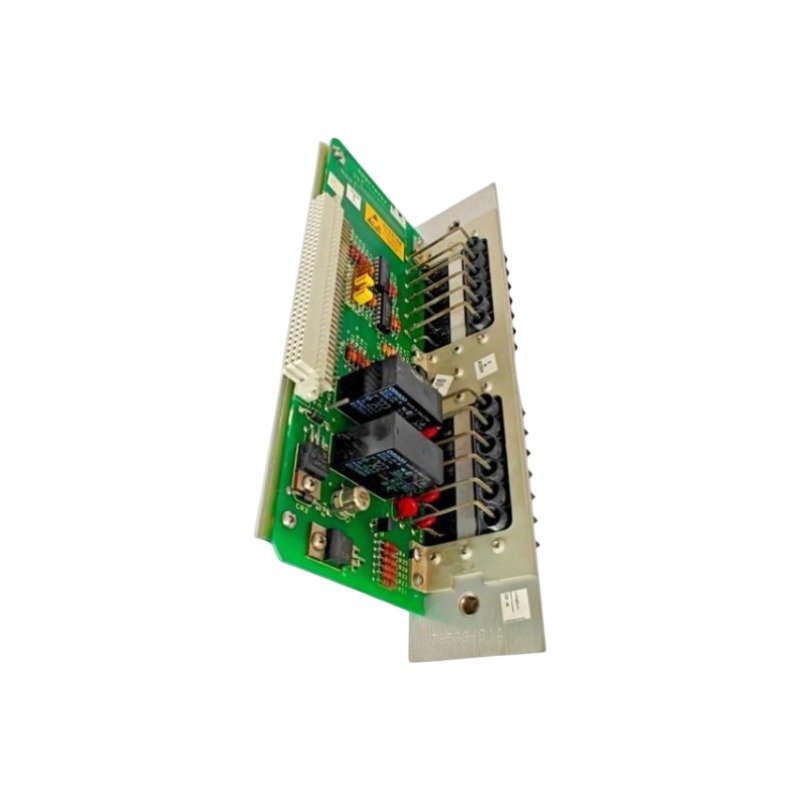

The Bently Nevada 83792-01, also cataloged as the 83792-01 Quad Relays Module, serves as the primary 83792-01 Quad Relays Module utilized to execute digital alert and danger relay contact switching across 3500 Series Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module interfaces directly with the system backplane and drives four dry contact relay outputs using pre-configured voting logic rules. Consequently, the hardware processes data received from vibration and position monitor cards to execute automated machine trip commands. The internal electronic architecture ensures electrical isolation between channels, which prevents high-voltage transient spikes from affecting baseline eddy-current probe scaling. Simultaneously, the onboard logic processors conduct real-time gap voltage validation (-10 VDC targets) monitoring to verify input loop health. Because the relay circuitry runs separate noise suppression paths, it enforces strict cross-talk suppression between adjacent circuits to stabilize critical rotor dynamics safety interlocks.

Frequently Asked Questions

Q: How does the module react if a communication fault cuts off the main processor link?

A: The module executes its programmed fail-safe state configuration. Consequently, individual relays switch immediately to their designated safe or de-energized positions depending on the hardware jumper settings.

Q: Can the engineer execute an online test of the individual relay contacts?

A: Yes. The configuration software allows manual control override of the output states. Therefore, instrument technicians verify the response of the external trip circuit without modifying active monitor alarm settings.

Field Installation Guidelines

• Tighten all rear terminal block connection screws to a torque specification of 0.6 Nm to ensure secure electrical conduction.
• Separate the low-voltage sensor field lines from the high-voltage relay contact switching circuits by routing them through distinct metal conduits.
• Ground the outer cable shields exclusively at the designated chassis bulkhead terminal plate to suppress electromagnetic noise.
• Maintain a minimum of five full thread engagements on all installation screws to protect the assembly from continuous industrial plant vibrations.
