Description

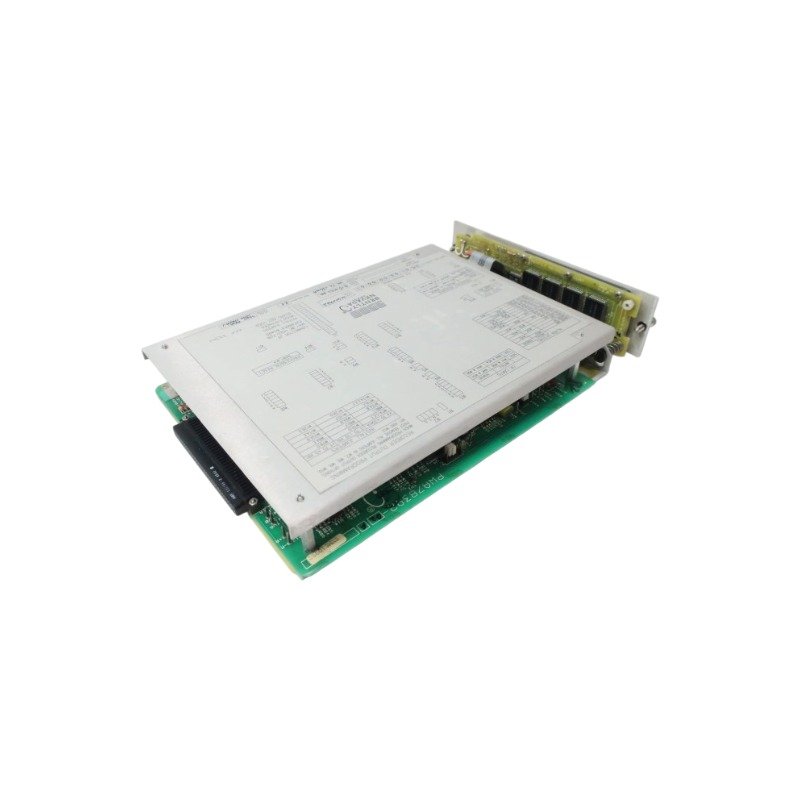

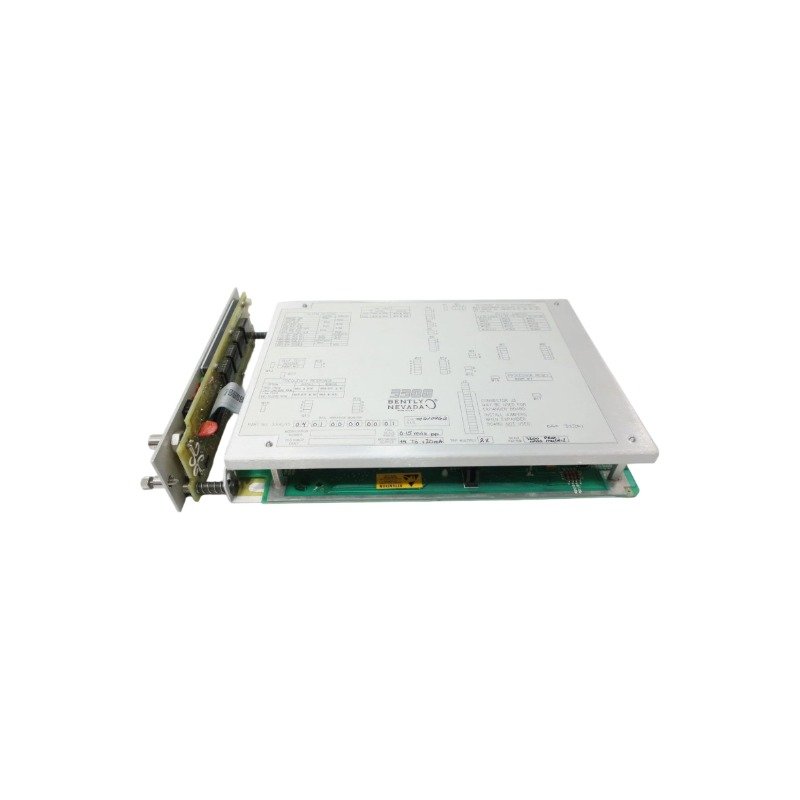

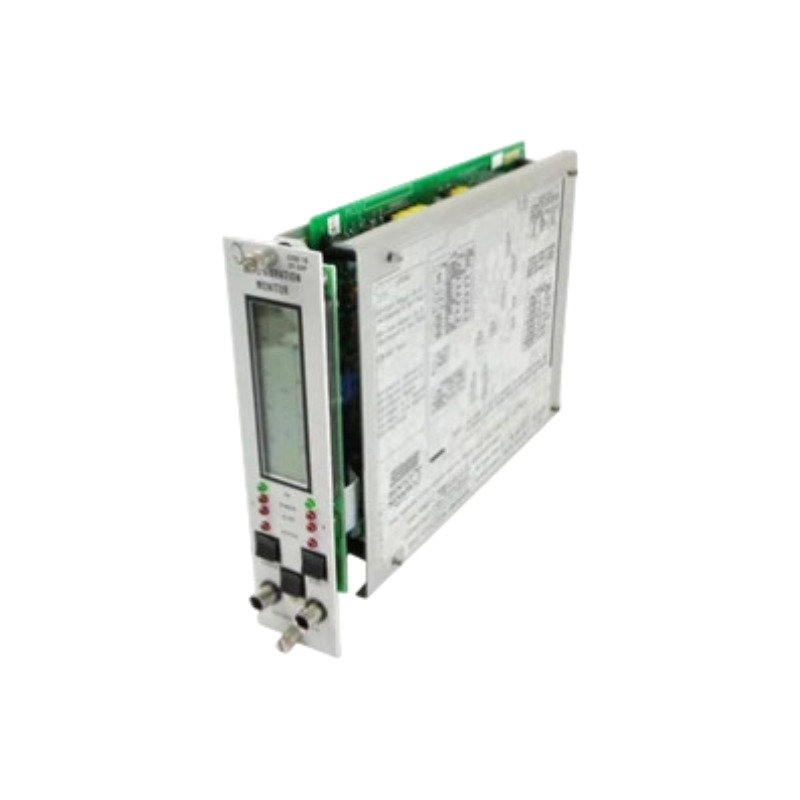

The Bently Nevada 3300/55-03-14-14-14-00-00-07-00, also cataloged as the 3300/55 Dual Velocity Monitor, serves as the primary 3300/55 Dual Velocity Monitor utilized to execute continuous casing vibration measurement across 3300 Series Monitoring System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module interfaces directly with moving-coil or piezo-velocity transducer loops and drives the internal analog processing circuit with precise scaling factors. Consequently, the monitor conducts continuous field circuit verification to track transducer health and electrical integrity. The input conditioning filters isolate machinery structural vibration data from high-frequency noise components. Simultaneously, the module tracks casing housing dynamics and translates raw electrical signals into a stabilized continuous current representing absolute peak velocity. To protect the machinery loop from false trips caused by adjacent structural impacts, integrated active filtering enforces sharp cross-talk suppression between close-paired transducer channels.

Frequently Asked Questions

Q: How does the monitor indicate an open or short circuit condition in the field wiring loop?

A: The monitor executes continuous transducer loop testing. Consequently, an open or short circuit causes the module to assert a Channel Not OK status indicator, clamp the associated recorder output to less than 2 mA, and inhibit the respective alarm relays.

Q: Can the engineer bypass individual channel alarms during machine startup periods?

A: Yes. The monitor includes dedicated bypass terminal inputs on the rear connector block. Consequently, operators apply an external contact closure to inhibit the alert and danger relay actions while the machine crosses critical resonance zones.

Field Installation Guidelines

• Terminate all field lines using twisted, shielded pairs and connect the shield wire exclusively to the designated chassis grounding lug on the rack bulkhead.
• Mount the velocity transducers rigidly to the machine casing using specified mounting studs to prevent signal attenuation from mechanical compliance.
• Maintain a minimum of five full thread engagements on the rear barrier terminal block screws to shield the connectivity matrix from industrial physical vibrations.
• Route the low-level signal lines through dedicated metallic conduits isolated from any high-voltage switching AC power lines to block electromagnetic noise coupling.
