Description

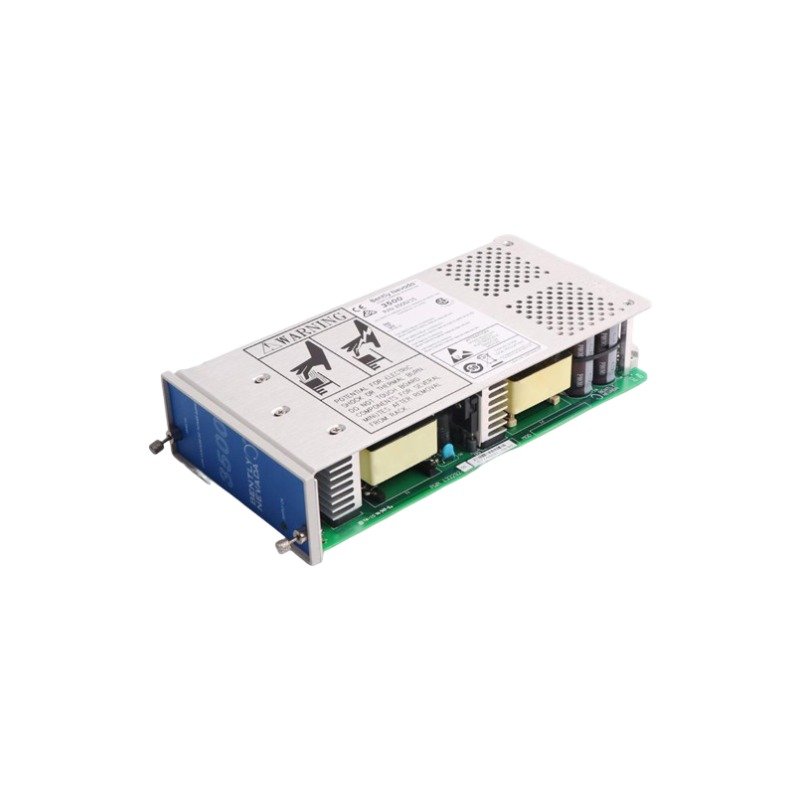

The Bently Nevada 133292-01, also cataloged as the Bently Nevada 133292-01 Keyphasor I/O Module, operates as a dedicated hardware component for processing localized pulse signals within the 3500 Transient Data Manager and Monitoring System network.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module incorporates critical signal validation routines engineered specifically for rotor dynamics analysis and turbomachinery protection (TSI). The hardware executes internal validation on the incoming gap voltage from the connected proximity probe systems, targeting a nominal -10 VDC baseline bias to guarantee the eddy-current probe scaling remains linear and stable. Advanced cross-talk suppression circuitry minimizes induction noise across adjacent channels on the 3500 backplane, preventing erroneous phase calculations during high-velocity shaft rotations and transient events.

Frequently Asked Questions

Q: Can the 133292-01 module be hot-swapped while the 3500 monitoring rack is powered and online?

A: Yes. The 133292-01 Keyphasor I/O module supports hot-swap functionality. However, removing the module while the system is live will temporarily interrupt the Keyphasor phase reference signal to all associated monitor modules in the rack, which may affect synchronous data sampling.

Q: What type of input transducers are compatible with this specific I/O module?

A: The 133292-01 interfaces directly with Bently Nevada proximity probe systems (Proximitors) and magnetic pickups. It accepts both non-isolated signals and isolated differential inputs based on internal jumper configurations.

Field Installation Guidelines

• Chassis Insertion: Ensure the corresponding 3500/25 Keyphasor Monitor module is installed in the front slot directly opposite the rear slot where the 133292-01 I/O module is being secured.
• Shield Grounding: Transducer shield wires must be terminated strictly at the designated chassis ground terminals on the I/O connector block. Do not ground the shield at both ends to prevent ground loops.
• Terminal Torque: Tighten all field wiring terminal screws to a maximum torque specification of 0.56 N-m (5 in-lb) to prevent structural damage to the terminal blocks.
• Signal Separation: Route all transducer field wiring through dedicated conduits separated from high-voltage AC power lines to avoid electromagnetic interference.
