Description

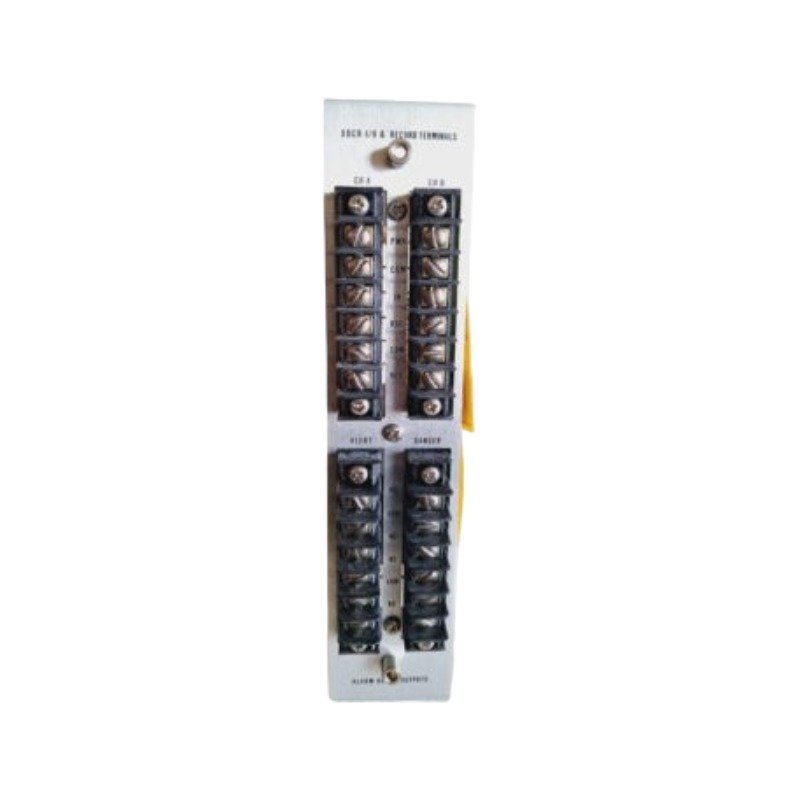

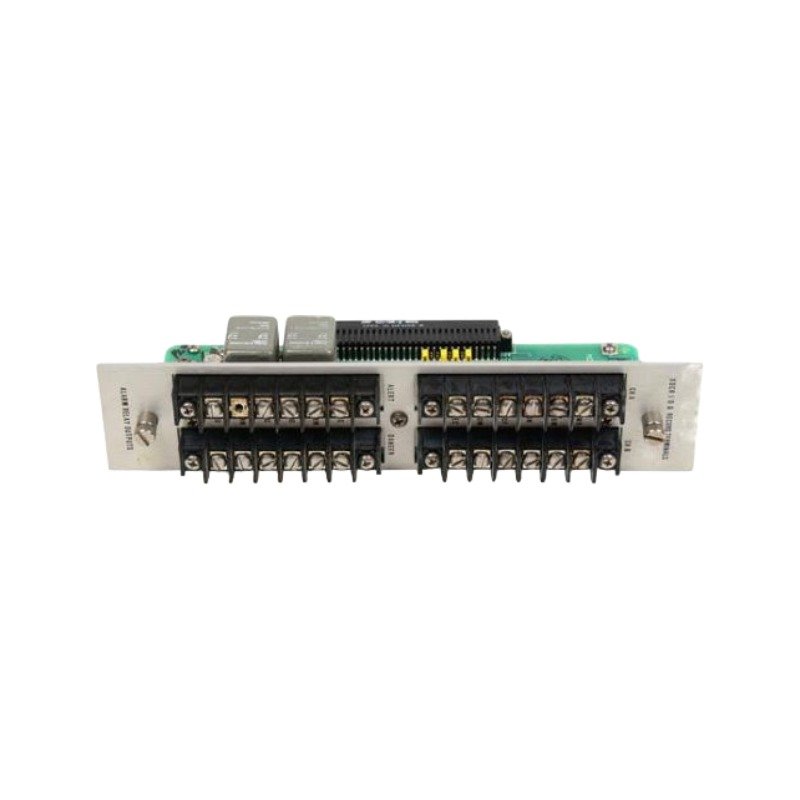

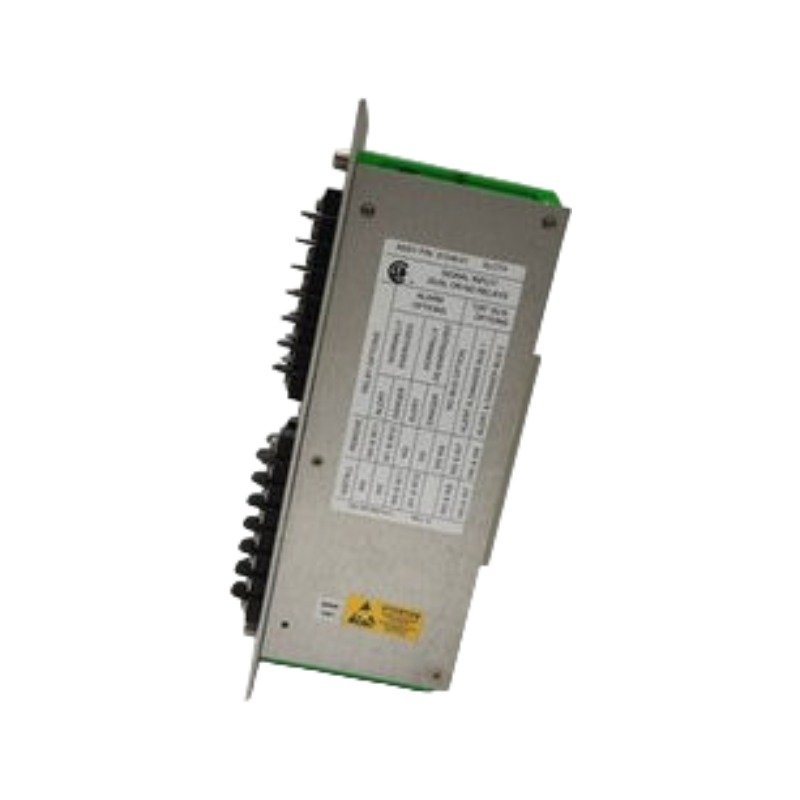

The Bently Nevada 81546-01, also cataloged as the 81546-01 Signal Input/Relay Card, operates as a dedicated hardware component for transducer physical signal termination and discrete alarm routing within 3300 Machinery Monitoring System platforms. This terminal card interfaces directly with front-mounted monitor modules (such as the 3300/25, 3300/45, and 3300/48), establishing external field connections for raw proximity, velocity, or acceleration inputs alongside continuous hardware record outputs.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The 81546-01 interface processes sensitive transducer signals that rely entirely on stable eddy-current probe scaling configurations within the local monitor loop. Consequently, field commissioning technicians execute strict gap voltage validation across the rear input terminals, matching the standard -10 VDC baseline calibration for linear displacement tracking. Because the card routes static gap and dynamic high-frequency waveforms concurrently, the board trace layers integrate ground planes for continuous cross-talk suppression. As a result, this architectural layout prevents electromagnetic noise from neighboring channels from corrupting raw vibration metrics, maintaining clean phase tracking necessary for detailed rotor dynamics evaluation on downstream diagnosis assets.

Frequently Asked Questions

Q: Does this I/O module permit hot-swap insertion while the 3300 rack is active?

A: No. The 3300 rack system architecture lacks live hot-swap sequencing pins on the rear interface bus. Therefore, technicians must shut down the main power supply module before seating or unseating this I/O card to prevent bus power surges or unintended emergency relay trips.

Q: How do the built-in hermetic relays execute trip logic if the front monitor fails?

A: The dual hermetically sealed relays switch states based on hardware drive currents from the front monitor card. Consequently, if an internal monitor fault or transducer failure occurs, the “Not OK” bus drops out, which safely forces the hardware relays into their configured fail-safe state or bypasses the channels to prevent a false machine trip.

Field Installation Guidelines

• Terminal Screw Engagement: Tighten all rear terminal block screws to a maximum specification of 0.56 N-m (5 in-lb) to prevent terminal thread damage while ensuring gas-tight electrical contact.
• Shield Grounding Isolation: Terminate the transducer outer shield wires exclusively at the marked shield ground terminals on this board. Meanwhile, ensure that these same shields remain floating and ungrounded at the machine junction box to eliminate parasitic ground loop currents.
• Conduit Routing Clearance: Route the incoming low-voltage transducer cables and record lines away from high-power AC distribution runs or high-frequency drive (VFD) switching lines.
• Chassis Alignment Verification: Ensure that the rear module tracks slide evenly along the 3300/05 chassis guide rails, and then secure the retention screws completely to prevent intermittent edge-connector separation.
