Description

Brief Product Description

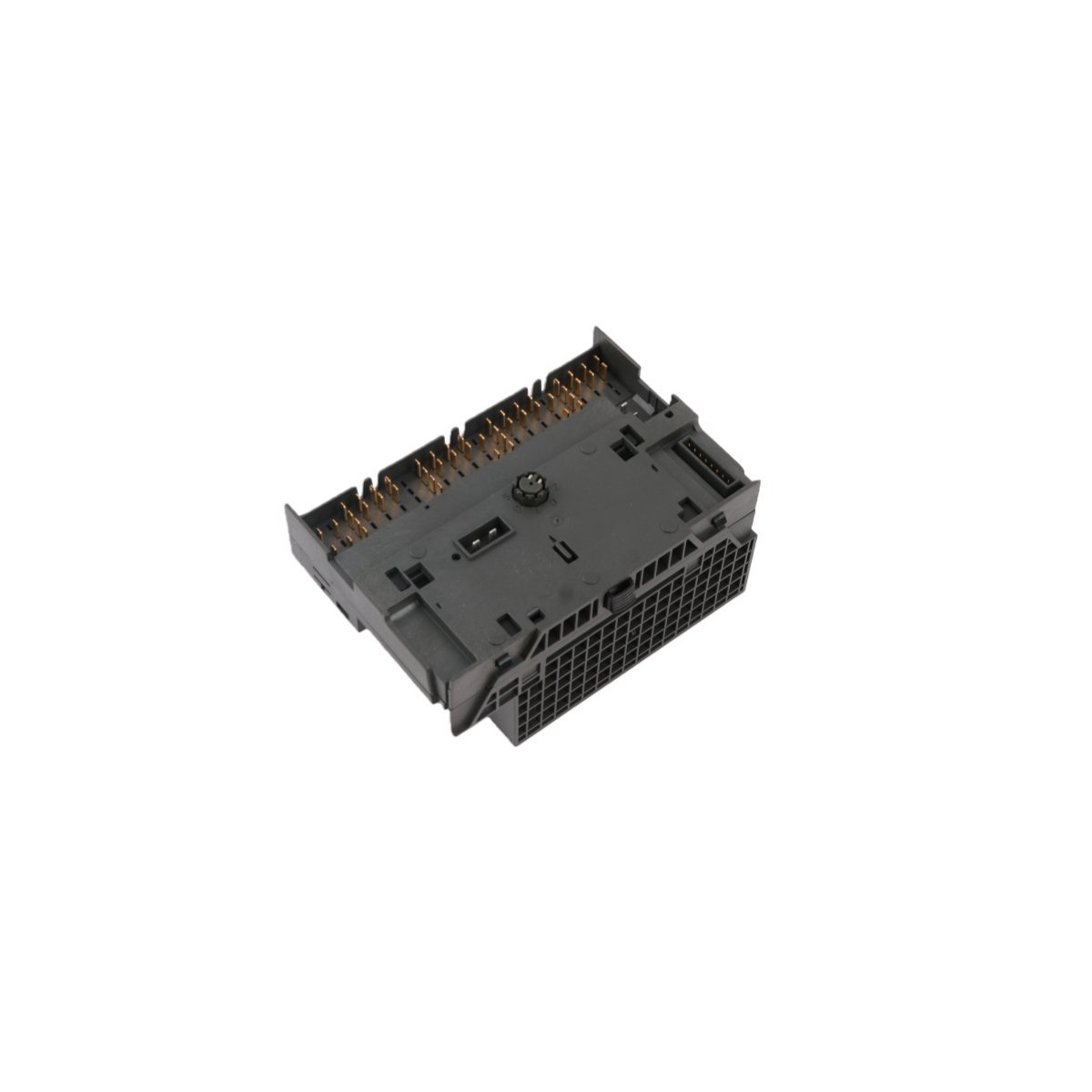

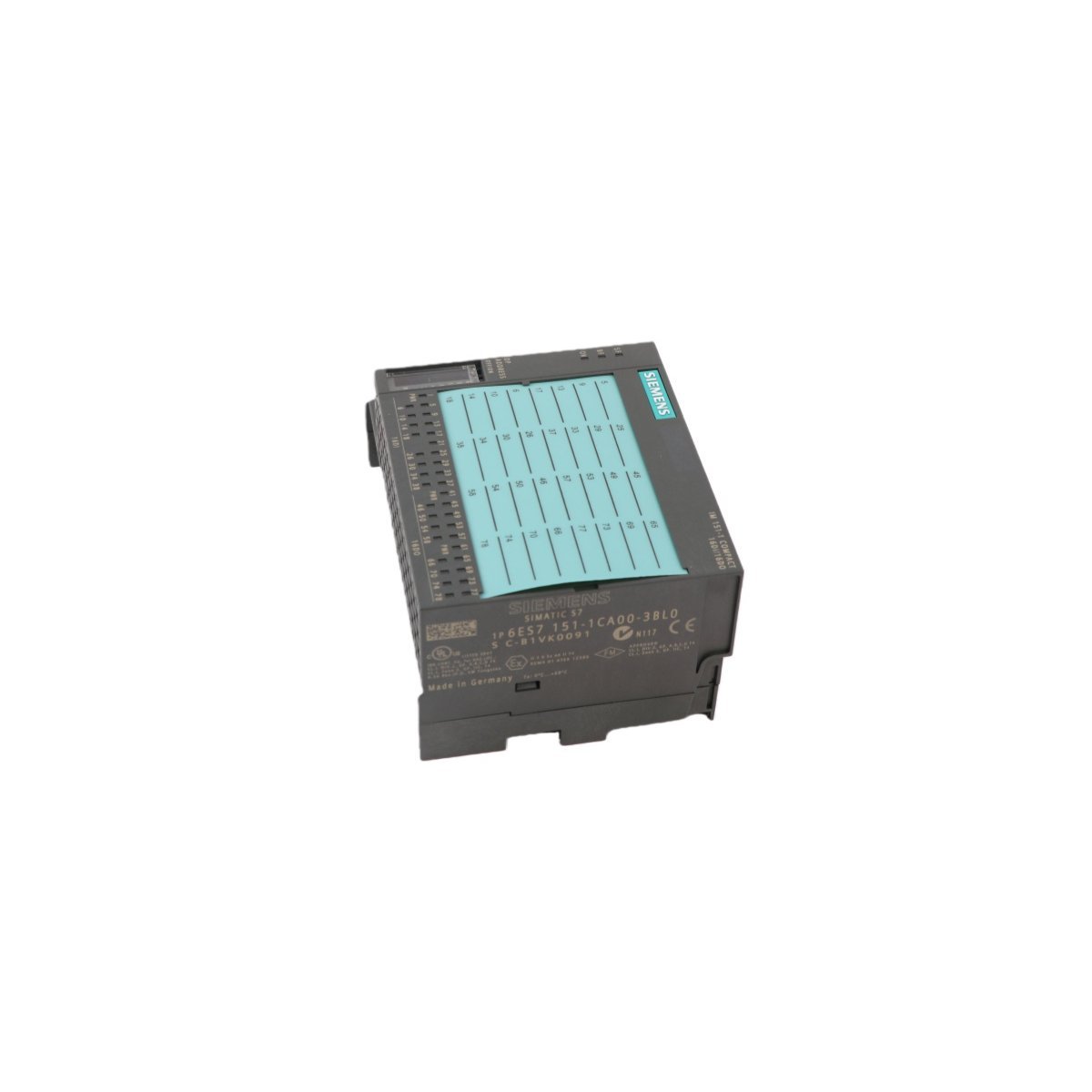

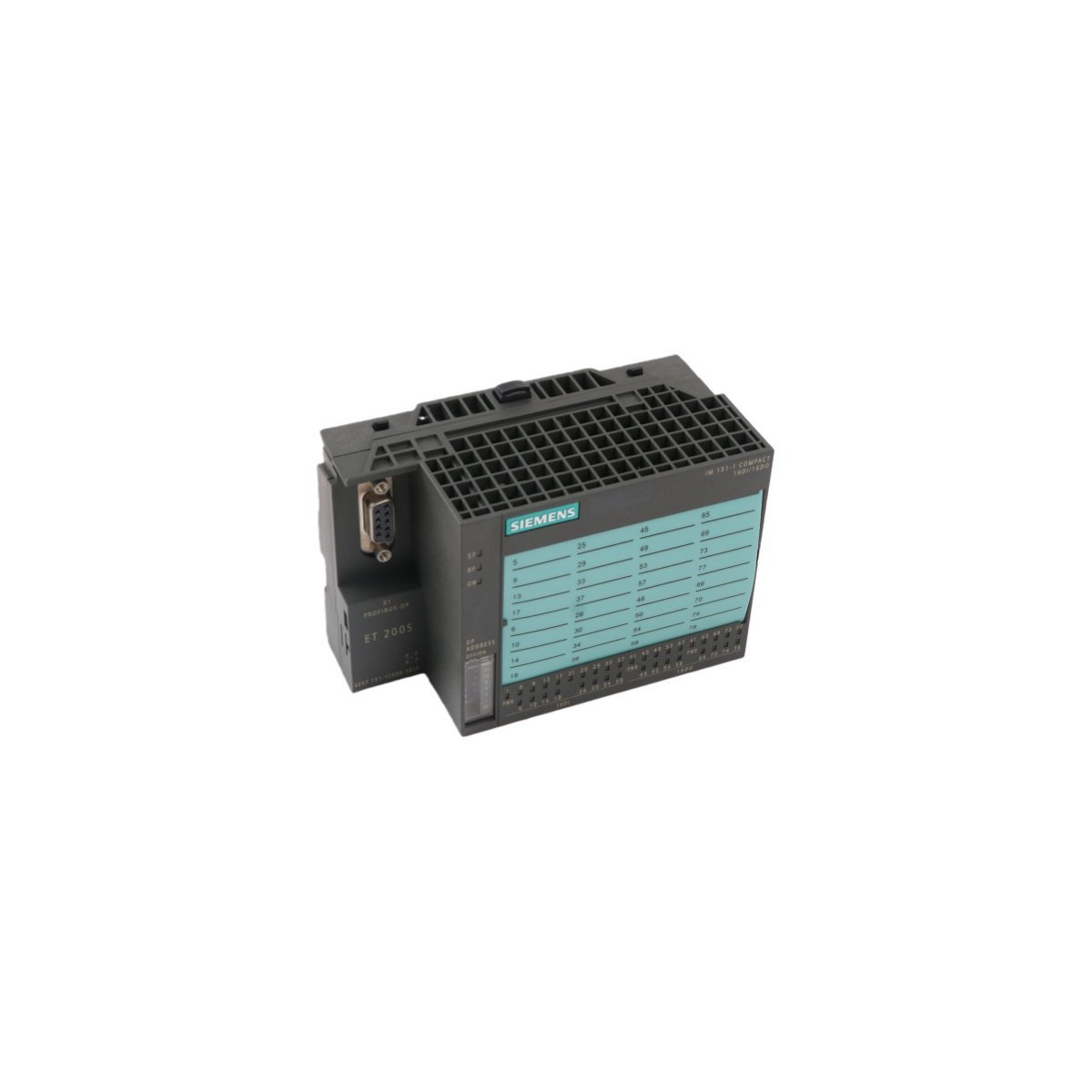

The Siemens 6ES7151-1CA00-3BL0 is a high-density SIMATIC ET 200S compact interface module designed for PROFIBUS DP networks.¹ It integrates 16 digital inputs and 16 digital outputs into a single unit, providing a space-saving solution for distributed I/O applications.²

High-Density Distributed I/O Integration

The Siemens 6ES7151-1CA00-3BL0 functions as a versatile “Compact” station within the SIMATIC ET 200S product family. This module streamlines automation architectures by combining an interface module with a fixed configuration of 16 digital inputs and 16 digital outputs.³ By integrating these 32 I/O points into one housing, the unit significantly reduces the required DIN rail space compared to modular alternatives. It operates on the PROFIBUS DP protocol, allowing for seamless communication with a central PLC while managing localized sensor and actuator signals at the machine level.

Scalable Architecture and Performance

While the 6ES7151-1CA00-3BL0 features built-in I/O, it maintains the flexibility of the modular ET 200S system. System designers can expand the station by adding up to 12 additional ET 200S modules, such as power modules, electronic modules, or motor starters.⁴ This expansion capability ensures that the system can adapt to evolving project needs without requiring a completely different interface. The module utilizes a standard 24V DC power supply and delivers a rapid 3ms input delay, which ensures precise signal processing for time-sensitive industrial processes.

Optimized Design for Control Cabinets

The ruggedized construction of the IM 151-1 Compact module supports reliable operation in demanding industrial environments. Because of its narrow profile and efficient terminal arrangement, it fits easily into shallow control boxes and compact cabinets. The module provides clear diagnostic feedback via integrated LEDs, which simplify the identification of bus errors or power faults during routine maintenance. This combination of high-density I/O, PROFIBUS connectivity, and modular expandability makes the 6ES7151-1CA00-3BL0 an essential component for modern decentralized automation strategies.

Key Technical Characteristics

• Integrated I/O Capacity: Features 16 Digital Inputs and 16 Digital Outputs (24V DC) in one unit.⁵
• Protocol Support: Connects directly to PROFIBUS DP networks for high-speed data transmission.
• Flexible Expandability: Supports the addition of up to 12 standard ET 200S modules for custom configurations.⁶
• Fast Signal Processing: Provides a standard input delay of 3ms for reliable digital signal capture.⁷
• Space-Saving Form Factor: Optimized compact design reduces the footprint in the control cabinet.⁸
• Data Handling: Manages up to 100 bytes of I/O data (32 bytes integrated + 64 bytes via expansion).
