Description

Brief Product Description

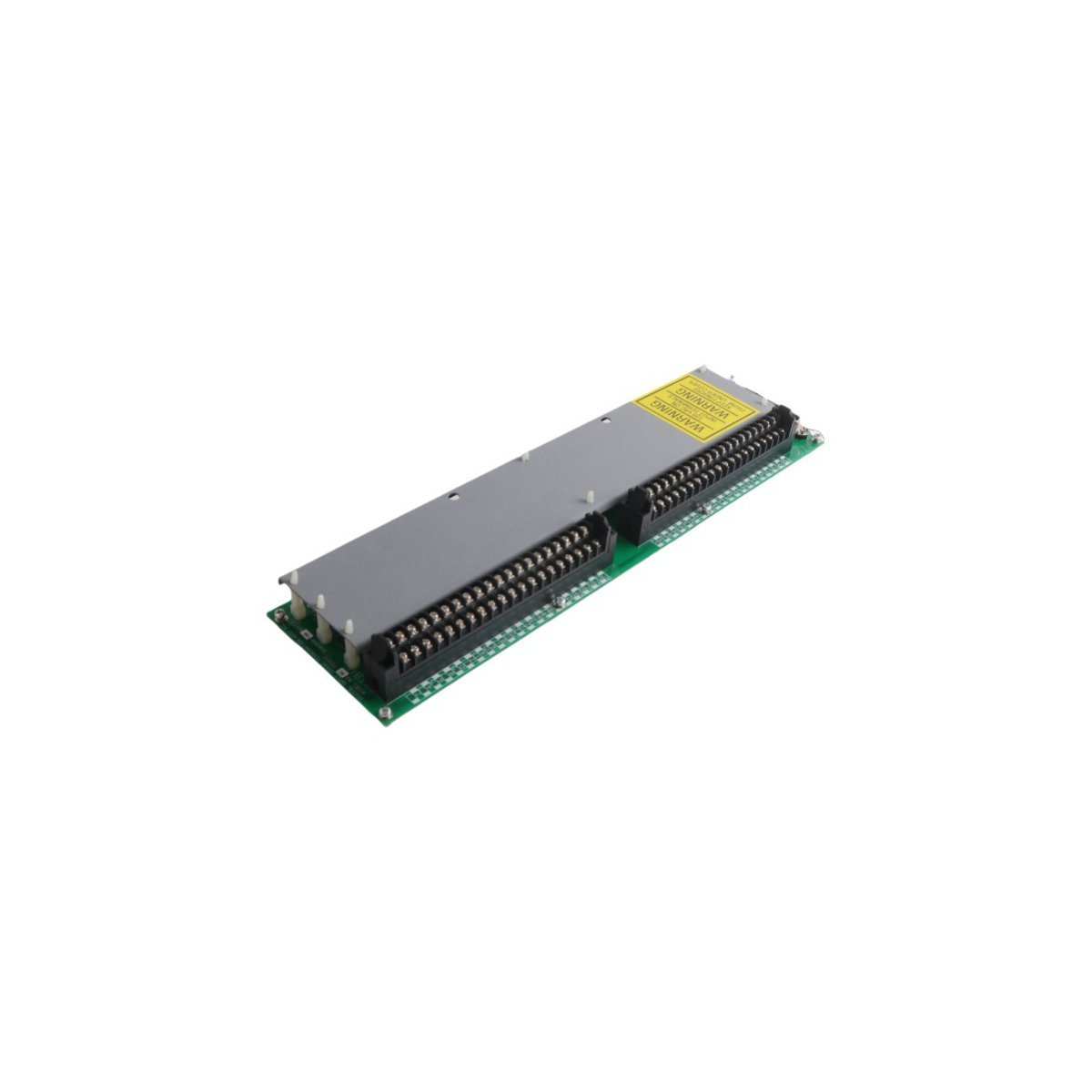

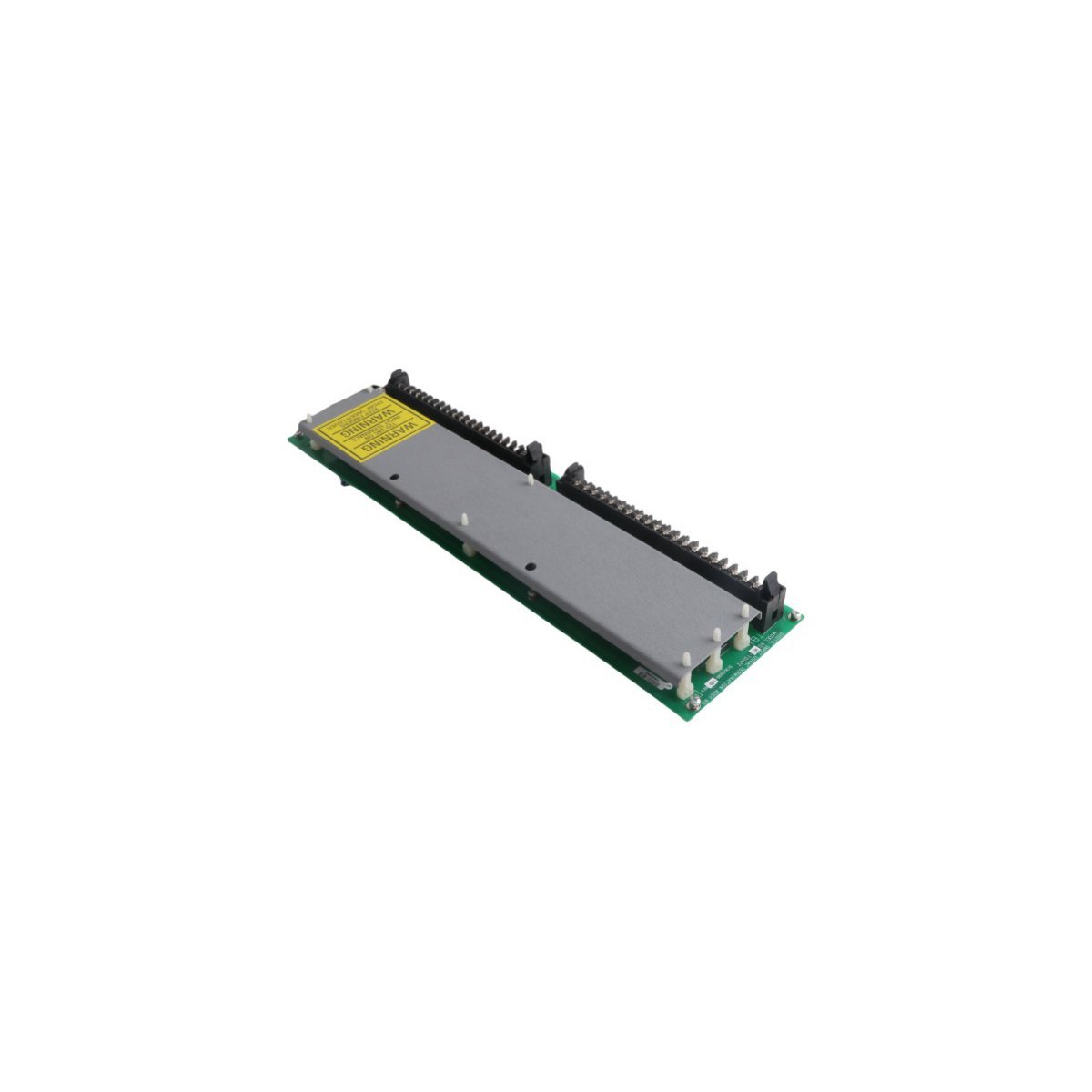

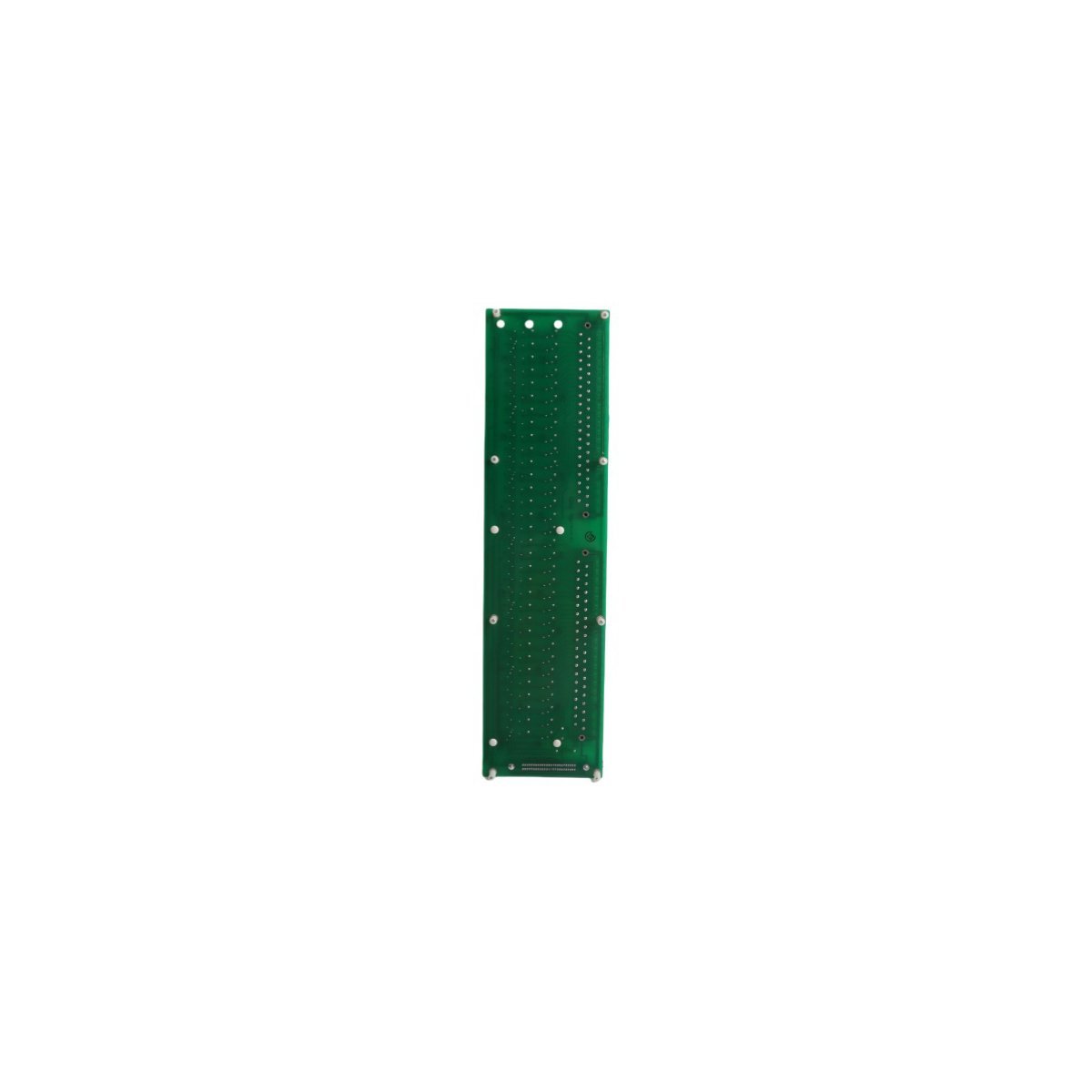

The Honeywell MC-TDIA72 (51303930-150) is a high-density digital input Field Termination Assembly (FTA) designed for the TDC 3000 and Experion PKS systems. This module provides a secure interface for up to 32 digital channels, ensuring precise signal conditioning and protection between field devices and the I/O processor.

High-Integrity Digital Signal Termination

The Honeywell MC-TDIA72 51303930-150 functions as a critical bridge between field-side discrete devices and the Distributed Control System (DCS). This Field Termination Assembly (FTA) manages digital status signals from switches, relays, and proximity sensors, converting them into filtered data for the Input/Output Processor (IOP). By utilizing high-impedance input circuitry, the board effectively eliminates signal attenuation, which ensures that the controller receives accurate binary data even from low-power field circuits. Consequently, this module supports the high-speed logic execution required for safety-critical interlocking and sequence control.

Ruggedized Architecture for Industrial Deployment

Honeywell engineered the MC-TDIA72 to excel within the harsh electromagnetic environments typical of heavy industrial facilities. The board features robust signal isolation and surge protection, which shields the sensitive DCS backplane from field-generated transients and electrical noise. Furthermore, the physical design emphasizes space efficiency; its slim profile allows for vertical mounting in standard marshaling cabinets, significantly increasing the I/O density of the control room hardware. Because it supports a wide voltage range and up to 10mA per channel, the module provides the versatility needed to interface with a diverse array of industrial sensors without requiring additional interposing relays.

Simplified Installation and Operational Longevity

The MC-TDIA72 51303930-150 simplifies the complex wiring tasks associated with large-scale automation projects. Transitioning to this standardized termination board allows for organized cable management and easier diagnostic access during commissioning. The module includes dedicated terminal points that facilitate rapid troubleshooting and individual loop testing. Additionally, the use of industrial-grade components ensures a long mean time between failures (MTBF), making it a reliable choice for continuous process industries such as oil and gas, chemical refining, and large-scale power generation. By maintaining consistent signal paths, the board reduces the risk of unexpected downtime and enhances overall system availability.

Key Technical Characteristics

• High-Channel Density: Supports multiple digital input channels on a single termination board to optimize cabinet space.
• Superior Signal Filtering: Integrated circuitry removes contact bounce and electrical interference from field signals.
• Versatile Current Handling: Operates effectively with input currents up to 10mA, accommodating most standard industrial sensors.
• Galvanic Protection: Safeguards the central processor by isolating field-side electrical faults.
• Streamlined Mounting: Designed for easy panel installation with a form factor optimized for industrial marshaling.
• Broad System Compatibility: Integrates seamlessly with Honeywell MU-T series hardware and TDC 3000/Experion architectures.

Technical Specifications
