Description

Brief Product Description

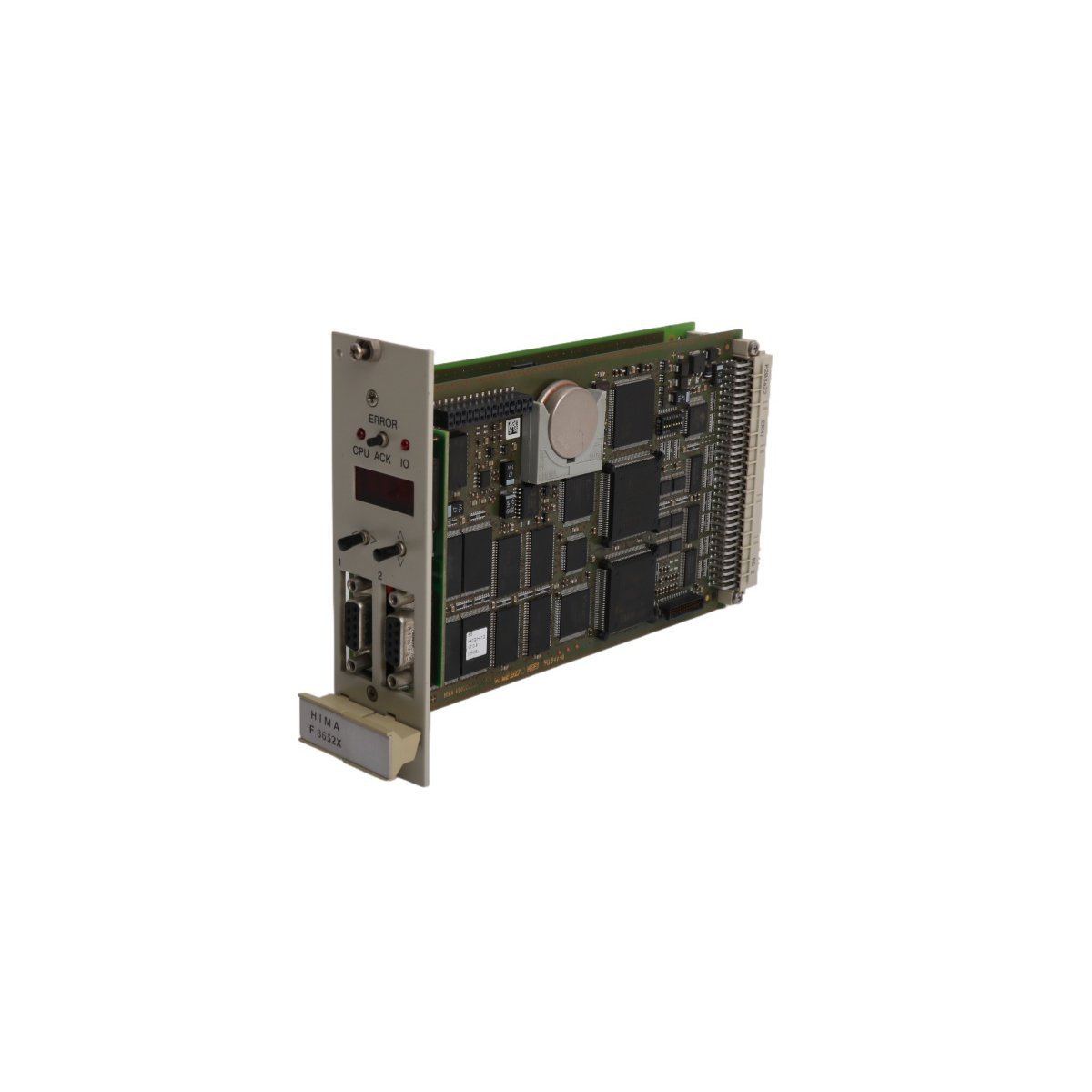

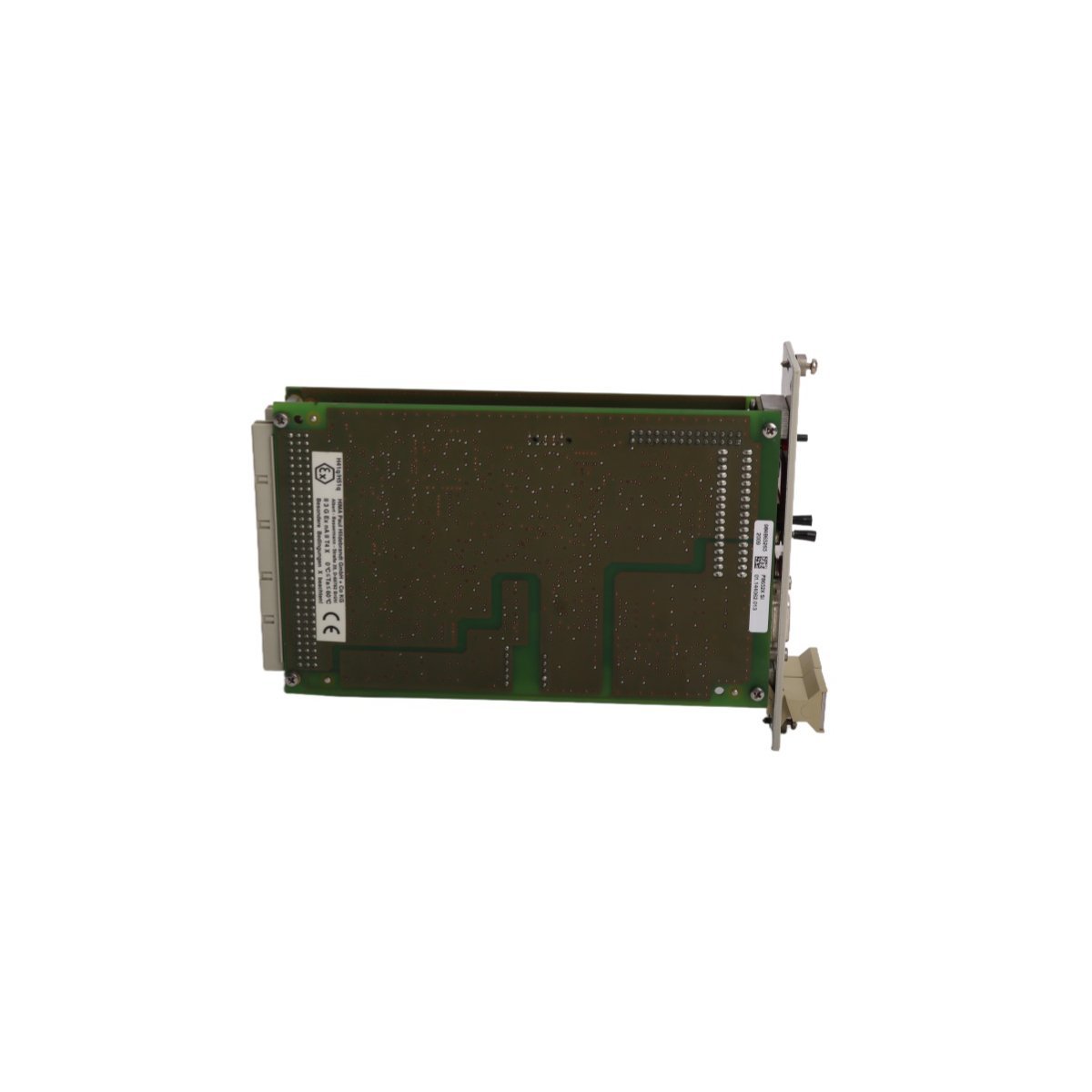

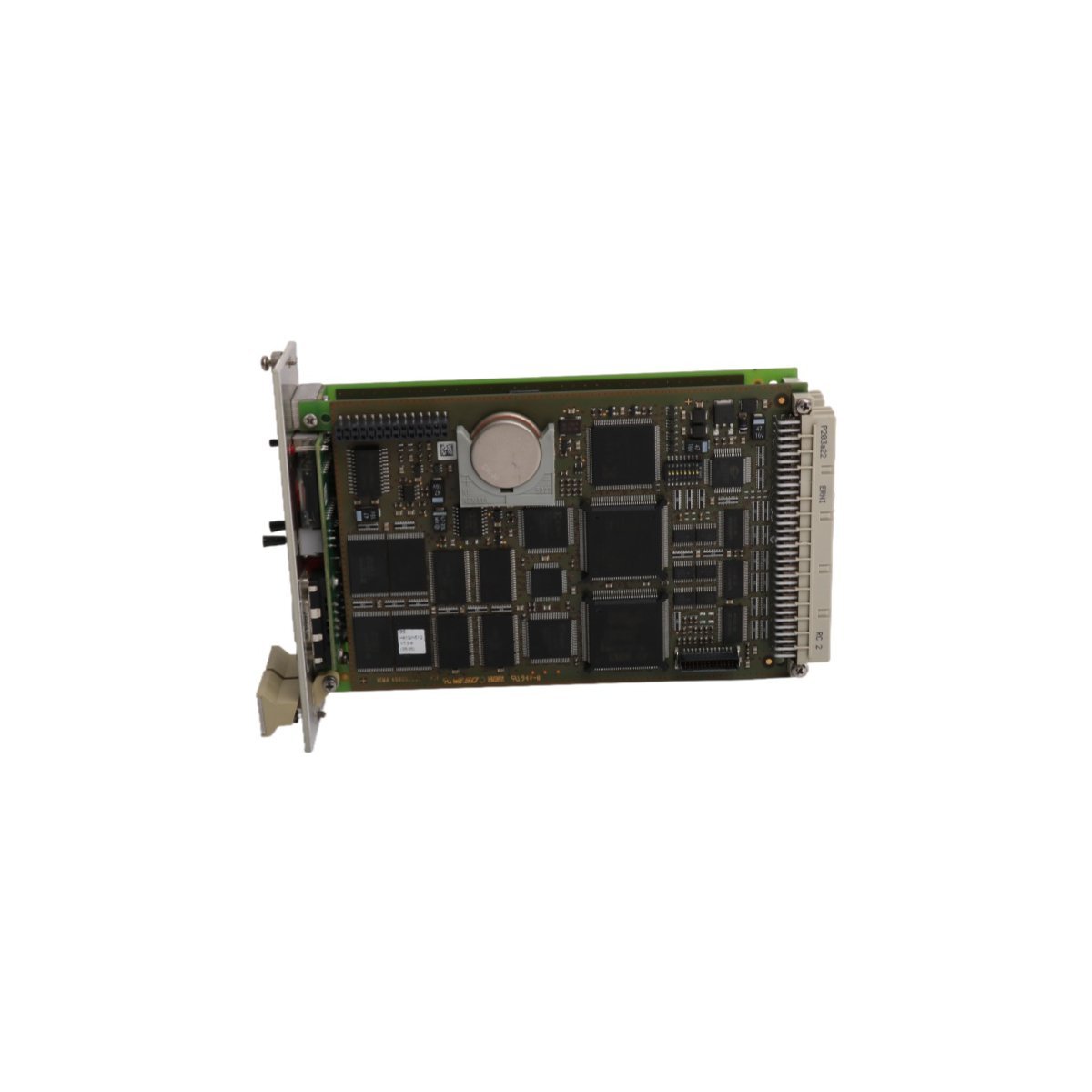

The HIMA F8652X is a high-performance central processor module engineered for the HIMax safety system, providing SIL 3 certified logic execution for mission-critical industrial applications. This robust controller manages complex safety tasks through a dual-processor architecture, ensuring maximum plant availability and comprehensive protection of personnel and assets.

High-Integrity Safety Logic Execution

The HIMA F8652X serves as the primary intelligence hub for the HIMax safety platform, delivering high-speed processing for Safety Instrumented Systems (SIS). By utilizing a sophisticated dual-channel hardware architecture, the module achieves SIL 3 certification in accordance with IEC 61508. This central processor manages all system coordination, executing safety-critical logic with extreme precision to protect against process excursions. Its design prioritizes “non-stop” operation, allowing the system to remain online during hardware updates or maintenance, which effectively eliminates costly process interruptions.

Advanced Computational Power and Storage

To support data-intensive safety applications, the F8652X incorporates a powerful 1.2 GHz dual-core processor paired with 4 GB of high-speed DDR4 memory. This hardware combination enables the module to handle extensive safety loops and complex function blocks with minimal cycle times. Furthermore, the 64 GB internal SSD storage facilitates comprehensive event logging and sequence-of-events (SOE) recording. These diagnostic capabilities allow plant operators to reconstruct process upsets with millisecond accuracy, significantly improving root-cause analysis and regulatory compliance reporting.

Seamless Network Integration and Resilience

HIMA designed the F8652X to integrate effortlessly into modern Industrial IoT and DCS environments. The module features a versatile suite of communication interfaces, including multiple Ethernet ports and serial connections (RS-232/485), supporting diverse industrial protocols. This connectivity allows for real-time data exchange between the safety system and the plant’s supervisory layers. Additionally, the module’s ruggedized construction ensures stable performance in harsh environments, featuring high vibration resistance and a broad operating temperature range tailored for the oil, gas, and chemical sectors.

Key Technical Characteristics

• SIL 3 Certified Performance: Meets the highest international standards for functional safety and risk reduction.
• Dual-Core Processing: Features a 1.2 GHz CPU architecture for rapid execution of complex safety logic.
• High Availability Design: Supports hot-swapping and redundant configurations to ensure zero downtime.
• Massive Memory Capacity: Includes 4 GB DDR4 RAM and 64 GB SSD for advanced data management.
• Comprehensive Connectivity: Provides integrated Ethernet, Serial, and USB interfaces for flexible networking.
• Precision Diagnostics: Captures system states and fault data to streamline maintenance and troubleshooting.

Technical Specifications
