Description

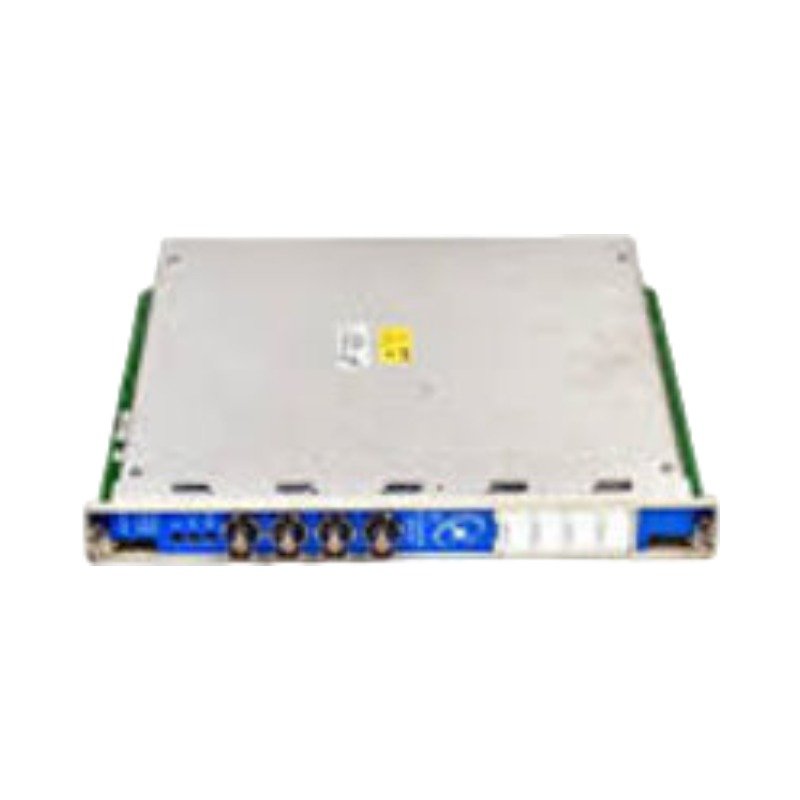

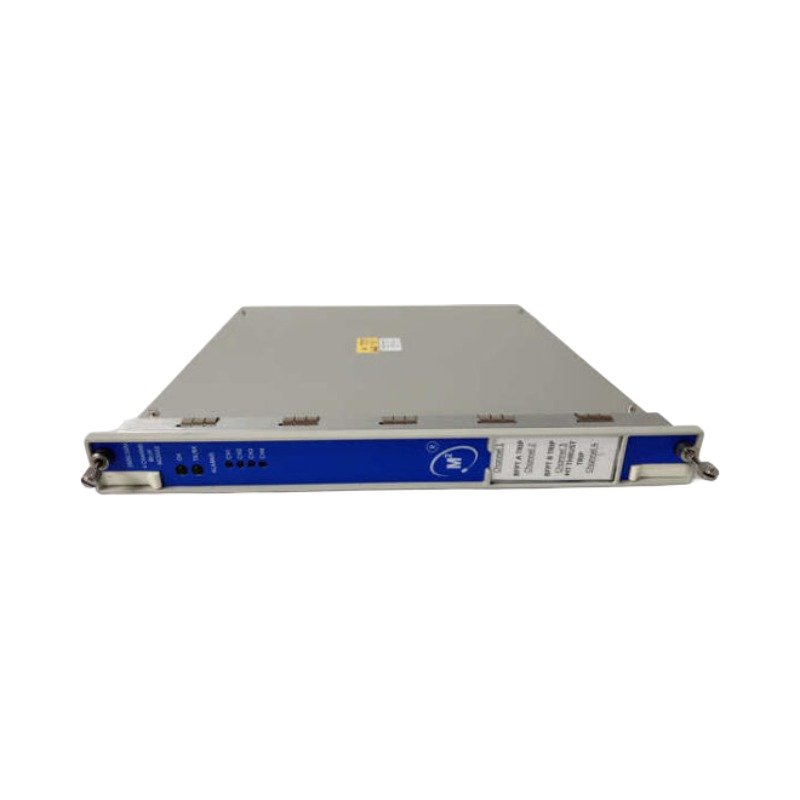

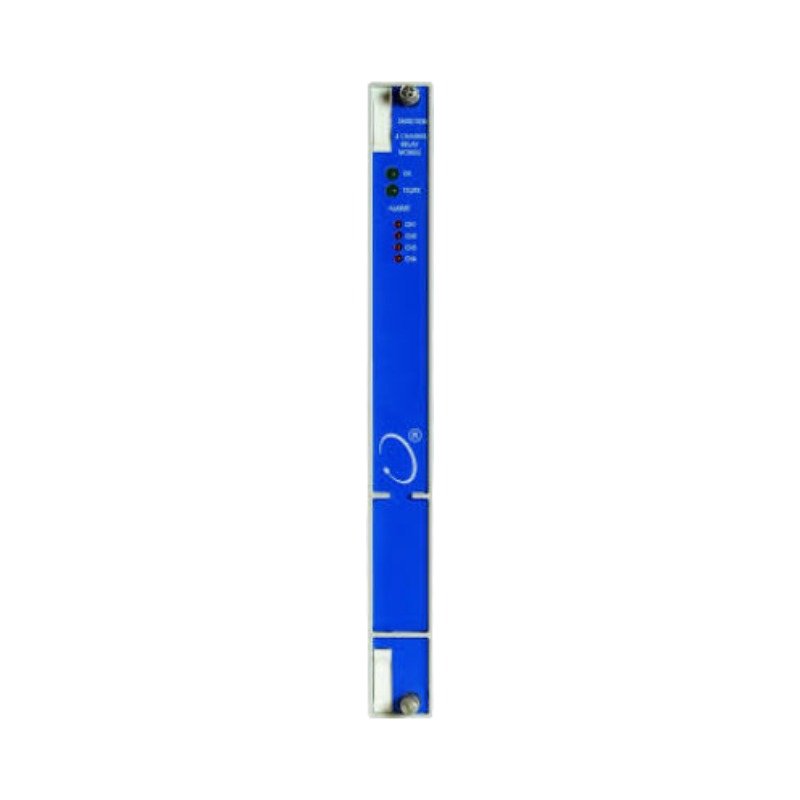

The Bently Nevada 3500/32M, also cataloged as the 3500/32M 4-Channel Relay Module, operates as a dedicated hardware component for safety shutdown and alarm actuation within 3500 Machinery Monitoring System networks. The unit continuously samples drive signals from the rack backplane to control four independent relay outputs. Consequently, the module delivers direct physical circuit interruption to machinery control loops when monitored parameters exceed programmed threshold limits.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module runs dedicated internal hardware pipelines to optimize turbomachinery protection system (TSI) deployments and voting logic. Specifically, the onboard processor automates gap voltage validation (-10 VDC targets) references by cross-referencing valid transducer status signals prior to tripping. If sensor failure or calibration drift occurs, the module flags a Not OK condition and blocks false trips. Furthermore, the internal components execute cross-talk suppression algorithms on adjacent internal logic paths, which mitigates electromotive interference from backplane switching noise. As a result, the module safeguards critical rotor dynamics control loops by executing precise AND/OR alarm combinations without propagation delays.

Frequently Asked Questions

Q: Does the 3500/32M module allow operators to perform a hot-swap while the rack has power?

A: Yes. Technicians can execute live insertion and removal (hot-swap) without disrupting the protective logic of adjacent monitor modules. However, the system bypasses the relay drive logic for this specific slot during the swap.

Q: How does the relay module prevent false trips during transient machinery events?

A: The module executes user-configured alarm delays and voting configurations, such as 2oo2 or 2oo3 logic. Consequently, the processor verifies that active alarm states persist past the delay window before energizing or de-energizing the physical contacts.

Field Installation Guidelines

• Chassis Grounding: Bond the 3500 rack chassis directly to the local instrument clean earth. In addition, terminate external relay contact shield lines exclusively at the designated system ground terminals to prevent stray noise coupling.
• Backplane Alignment: Insert the main module into the front slot and seat the corresponding Relay I/O module into the rear slot of the rack chassis. Always align all connector pins vertically before applying seating pressure to avoid pin damage.
• Power Cable Routing: Route heavy-duty AC/DC relay contact wiring away from low-voltage transducer signal cables. Therefore, maintain a minimum separation of 30 cm and utilize separate conduits to suppress electromagnetic induction.
