Description

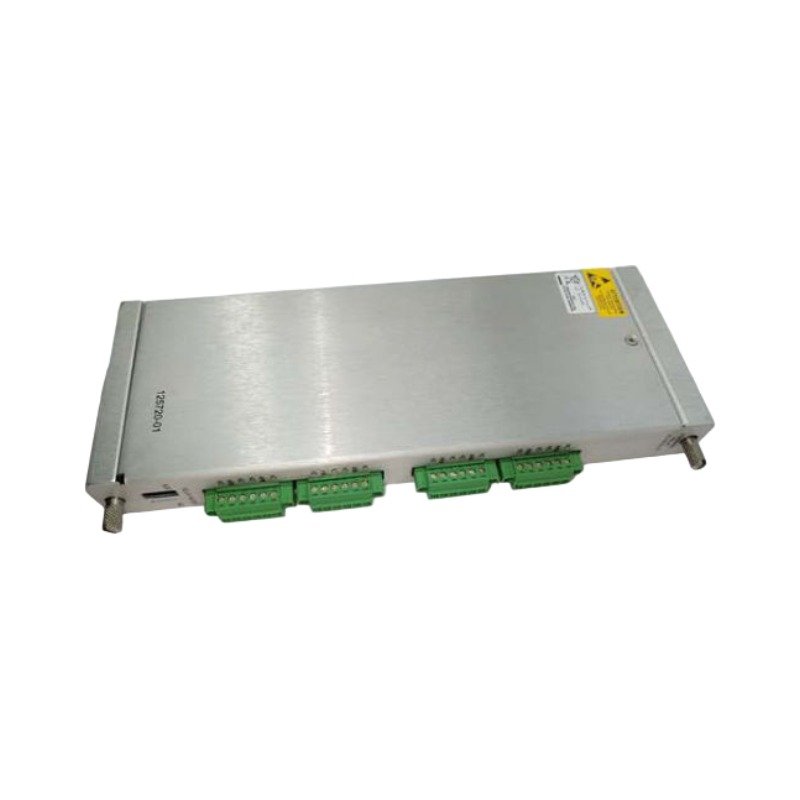

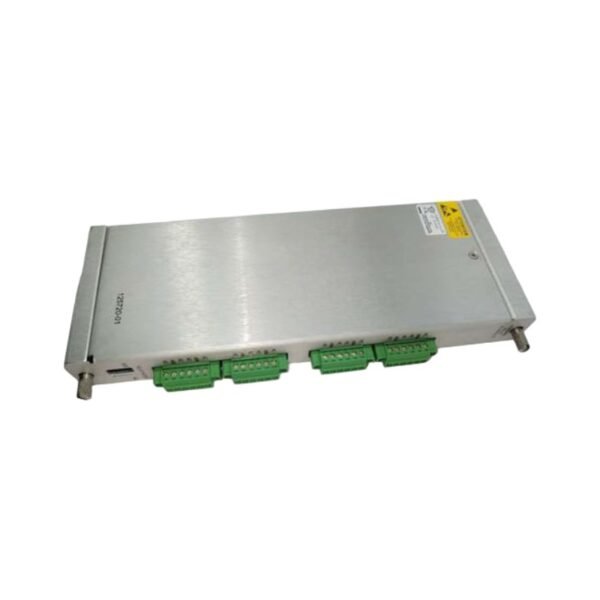

The Bently Nevada 3500/22 125768-01, also cataloged as the 3500/22 Transient Data Interface Module, operates as a dedicated hardware component for high-speed static and dynamic data collection within 3500 Machinery Monitoring System networks. The unit continuously collects raw waveform data across multiple backplane channels simultaneously. Consequently, the module delivers precise digital signal processing frames directly to connected configuration and diagnostic software networks.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module runs dedicated internal hardware pipelines to optimize machinery diagnostics and Turbomachinery Protection System (TSI) deployments. Specifically, the onboard processor automates gap voltage validation (-10 VDC targets) across connected proximity transducer circuits. If calibration drift occurs, the system immediately flags non-linear sensor operation. Furthermore, the internal components execute cross-talk suppression algorithms on adjacent dynamic channels, which mitigates electromotive interference from parallel cabling runs. As a result, the module captures complex rotor dynamics during machine startup, coast-down, and steady-state events without losing high-frequency phase information.

Frequently Asked Questions

Q: Does the 3500/22 125768-01 module allow operators to perform a hot-swap while the rack has power?

A: Yes. Technicians can execute live insertion and removal (hot-swap) without disrupting the protective logic of adjacent monitor modules. However, transient data collection through this specific node will pause during the swap.

Q: How does the interface module verify the -10 VDC gap voltage validation?

A: The module samples the DC bias voltage from the proximity probe driver through the backplane. Subsequently, the internal analog-to-digital converters scale this signal to verify that the physical probe operates within its linear range.

Field Installation Guidelines

• Chassis Grounding: Bond the 3500 rack chassis directly to the local instrument clean earth. In addition, terminate transducer shield lines exclusively at the designated system ground terminals on the I/O module to prevent ground loops.
• Backplane Alignment: Insert the main module into the front slot and seat the corresponding I/O module into the rear slot of the rack chassis. Always align all connector pins vertically before applying seating pressure.
• Communication Cable Routing: Route RS485 and Ethernet communication lines away from high-voltage AC power distribution paths. Therefore, maintain a minimum separation of 30 cm and use shielded twisted-pair (STP) cabling for all serial connections.
