Description

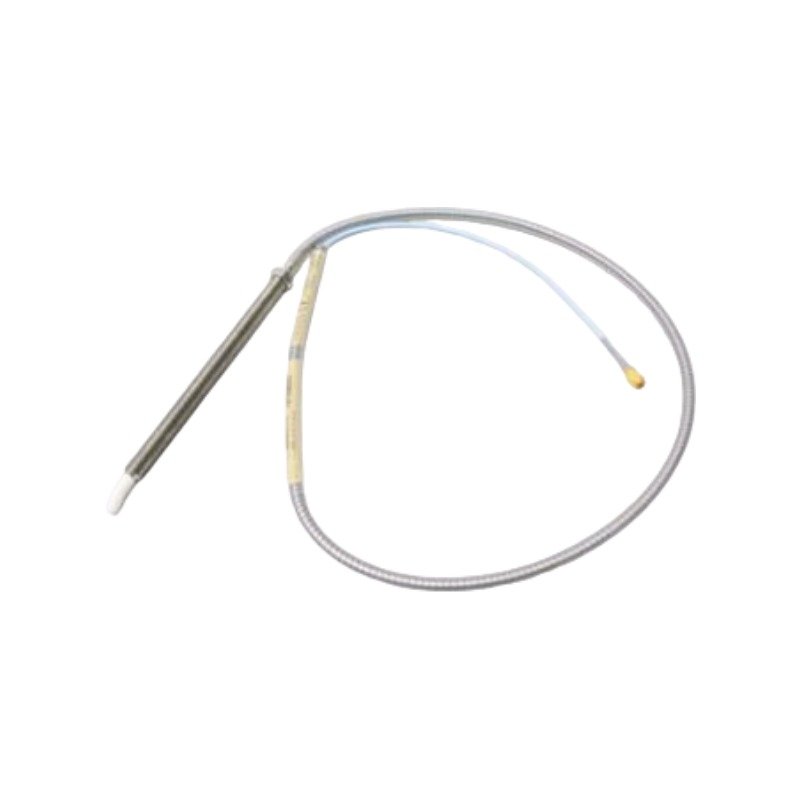

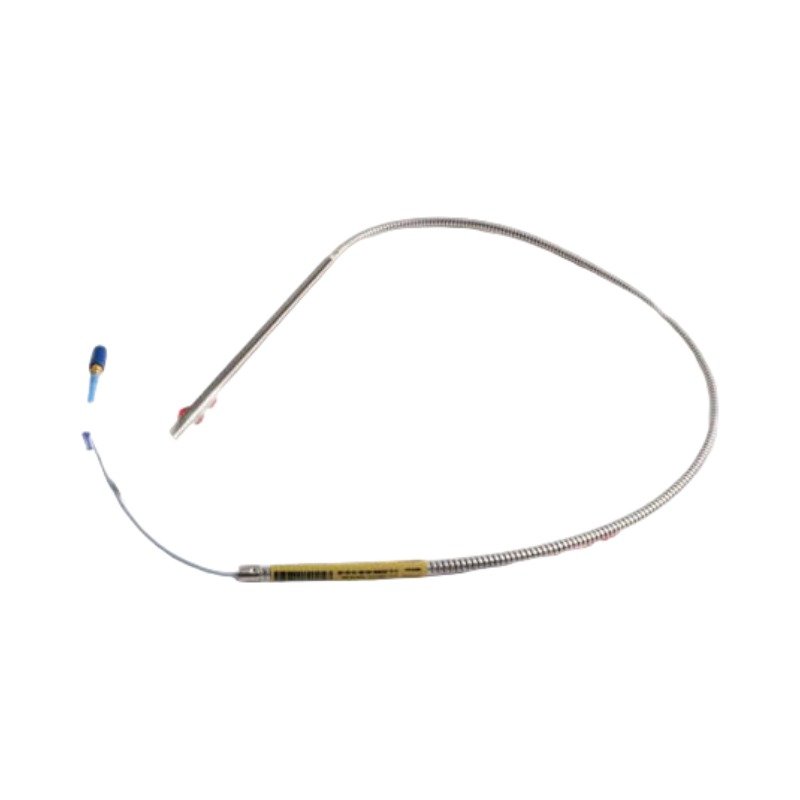

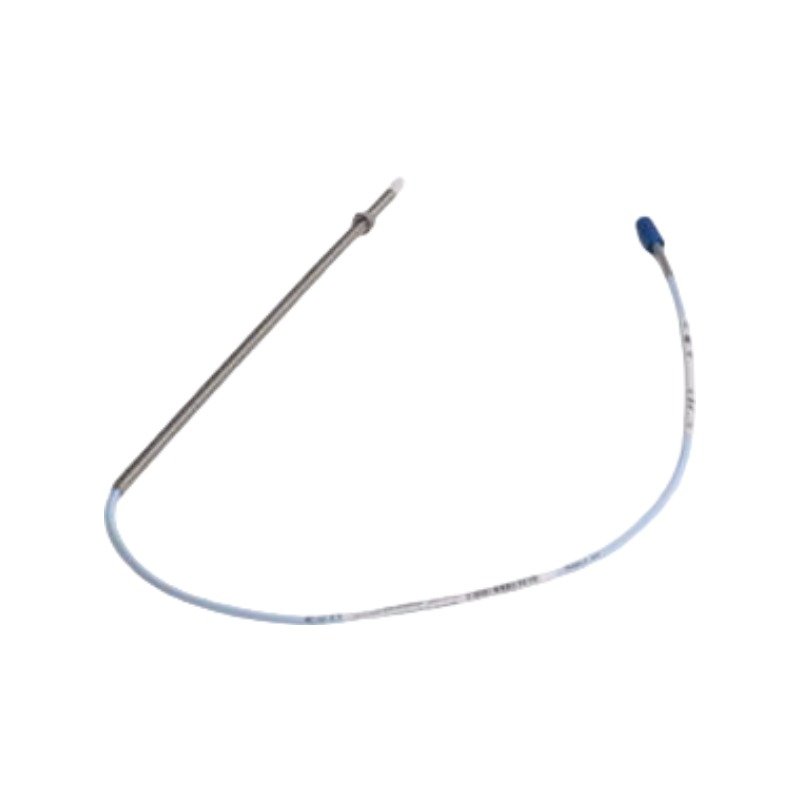

Configured for shaft vibration and axial position measurement in restricted machinery housings, the Bently Nevada 330905-12-22-05-02-05 (330905 Proximity Probe) provides direct physical/electrical execution. This eddy-current sensor operates within small-bore target areas where narrow physical clearances restrict the deployment of standard-diameter proximity probes, utilizing a reverse-mount configuration to facilitate external mechanical adjustment.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The Bently Nevada 330905-12-22-05-02-05 generates a high-frequency electromagnetic field that interacts directly with conductive metal targets. Consequently, changes in the gap distance modulate the eddy-current amplitude, which the connected 3300 NSv Proximitor sensor converts into a linear voltage. Because this probe utilizes a smaller 5 mm tip diameter, it maintains an accurate scale factor of 7.87 V/mm (200 mV/mil) even when targeting narrow shaft surfaces down to 9.5 mm (0.375 inches) in diameter. Furthermore, the specialized design provides robust cross-talk suppression when field technicians route adjacent probe cables inside compact bearing housings. Ultimately, this tight electrical calibration yields stable gap voltage validation, targeting a nominal -10 VDC center-point within the linear range.

Frequently Asked Questions

Q: How does the reverse-mount housing configuration alter the external gapping procedure?

A: The reverse-mount configuration enables technicians to thread the probe assembly into a mounting sleeve from the outside of the machine casing. Consequently, personnel can adjust the physical gap distance and monitor the active DC voltage without dismantling the bearing housing covers.

Q: What specific field benefit does the 0.5 m length with coaxial armor provide?

A: The short 0.5 m length positions the critical miniature coaxial connection immediately outside the fluid boundary, while the integrated stainless steel armor prevents mechanical abrasion and oil ingress. This setup shields the inner dielectric layers from chemical degradation caused by synthetic lubrication oils.

Field Installation Guidelines

• Verify Side Clearance: Maintain a minimum of 9.5 mm (0.375 inches) of clear space around the probe tip to prevent counterbore interference from altering the calibration.
• Observe Thread Torque Limits: Tighten the 3/8-24 UNF threaded probe body into the sleeve using a calibrated torque wrench. Do not exceed 11.3 N-m (100 in-lb) to avoid stripping or structural deformation.
• Isolate Armored Shields: Ensure that the outer coaxial armor does not touch internal machine surfaces or metal conduit walls. This precaution prevents external ground loops from degrading the proximity signal.
• Secure Miniature Connectors: Inspect and clean the miniature coaxial connections before assembly. Afterward, tighten the connectors finger-tight and apply self-fusing silicone tape to seal out moisture.
