Description

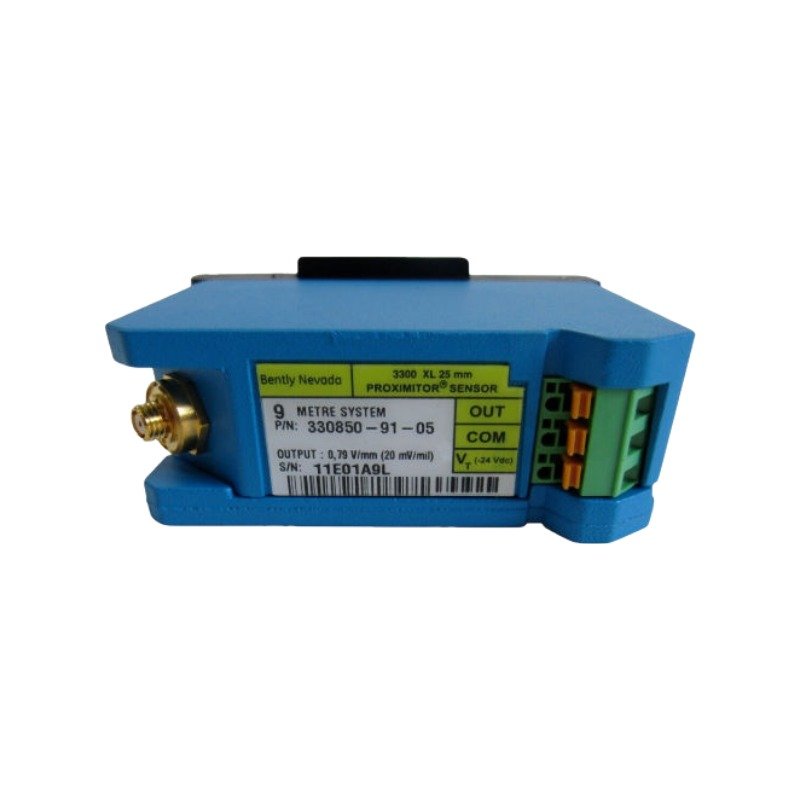

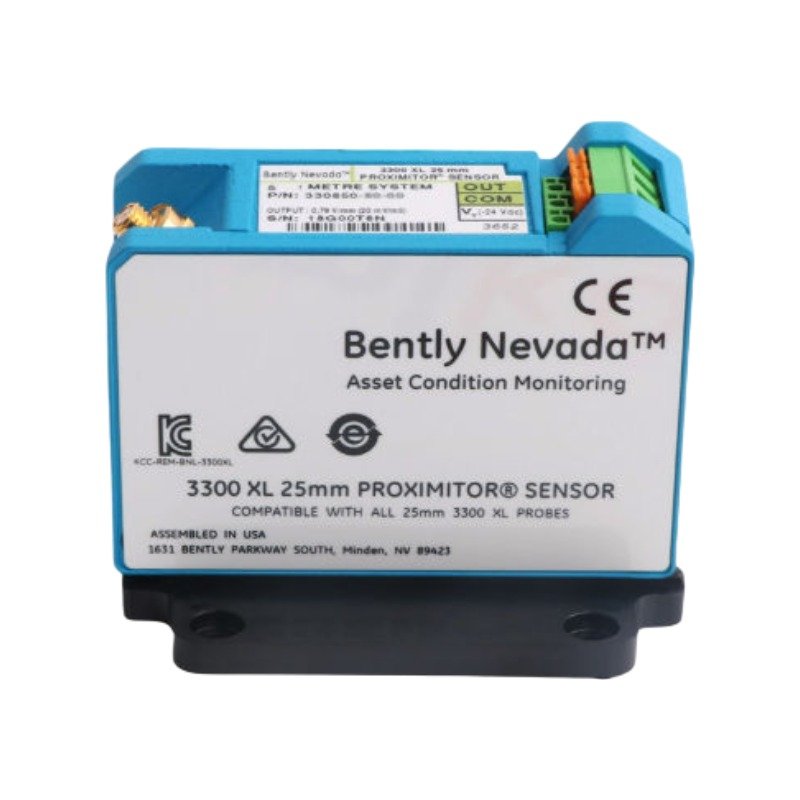

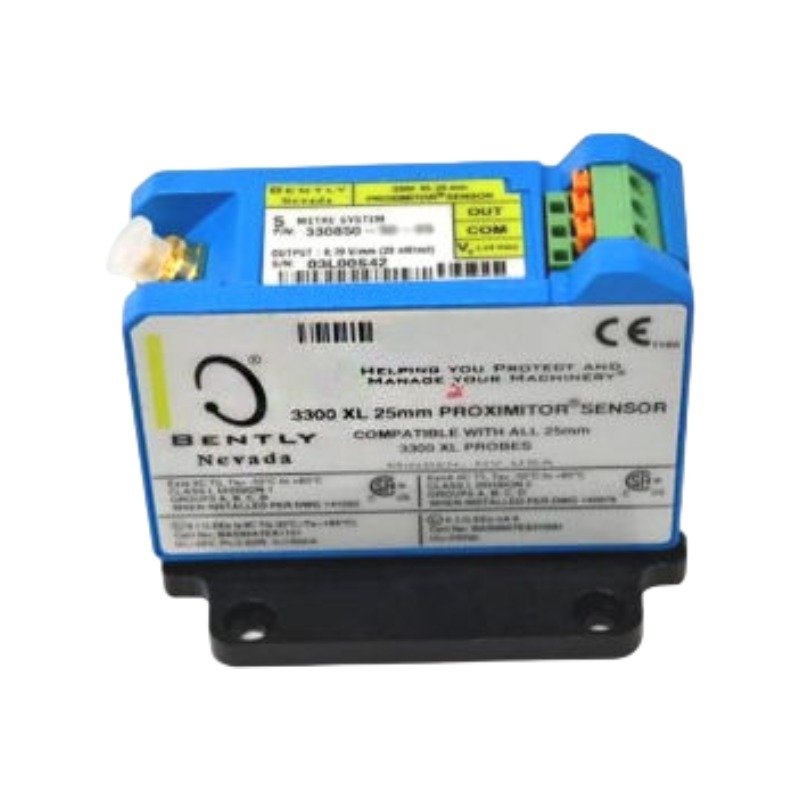

The Bently Nevada 330850-91-05, also cataloged as the 330850 Proximitor Sensor, operates as a dedicated hardware component for non-contact differential expansion and displacement monitoring within 3300 XL 25 mm Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and Rotor Dynamics Integration

The sensor processes real-time digital signal conditioning for long-stroke rotor dynamics analysis. Simultaneously, it enforces strict gap voltage validation, tracking target thresholds near -10 VDC to maintain the calibration midpoint across extended displacement spans. Consequently, the specialized internal radio frequency (RF) demodulator executes precise eddy-current probe scaling, converting physical target changes over the 12.7 mm linear range into a stable DC voltage output. Furthermore, built-in structural shielding features promote high-frequency cross-talk suppression and enhanced RFI/EMI immunity, which blocks external wireless noise when technicians cluster multiple components side-by-side on a shared DIN rail.

Frequently Asked Questions

Q: How does the 330850-91-05 achieve proper eddy-current probe scaling over a wide measurement gap? A: The sensor generates a high-frequency RF signal that feeds the 25 mm probe tip coil. As the target moves, the circuit linearizes the modulation changes to provide an accurate scale factor of 20 mV/mil across the entire 500 mil span.

Q: Can installation personnel reuse an existing 5.0 m cable with this -91 model? A: No, the sensor internal tuning requires precise matches for electrical length. Technicians must pair the -91 suffix sensor with a combined probe and extension cable length that totals exactly 9.1 m to ensure proper calibration.

Field Installation Guidelines

• Snap the integrated mounting foot onto 35 mm standard DIN rails, ensuring the mechanical clip latches completely to achieve electrical base isolation.
• Insert field wires into the integrated SpringLoc terminal strips by compressing the spring retention blocks with a flat tool, which guarantees a high-vibration resistant connection.
• Route the extension cable away from local high-voltage motor supply lines to mitigate capacitive noise injection into the dynamic measurement loop.
• Verify the target material match before final commissioning, because variations from standard AISI 4140 steel alter the factory-calibrated scale factor output.
