Description

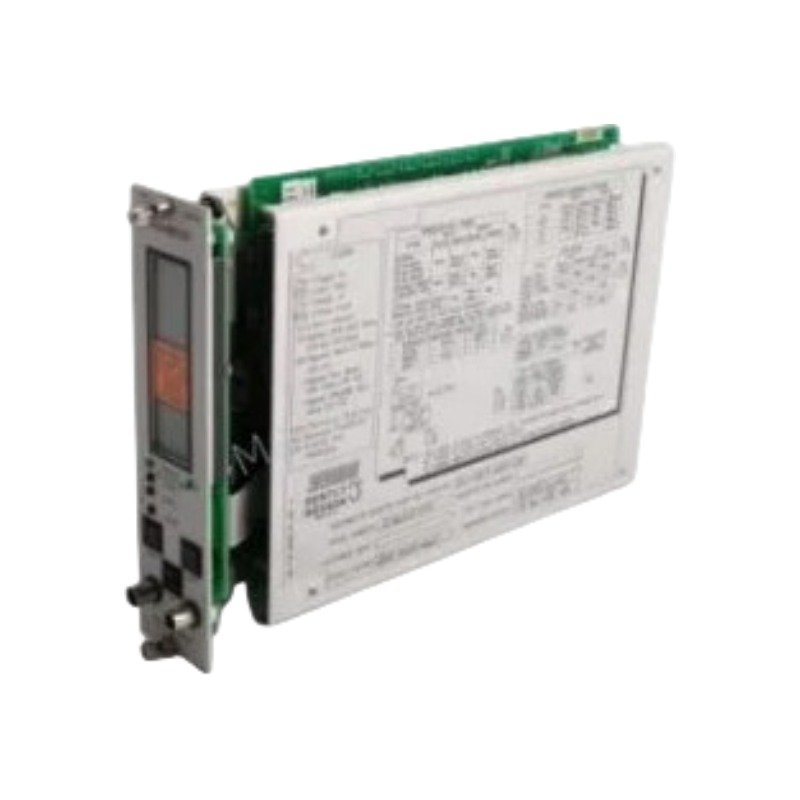

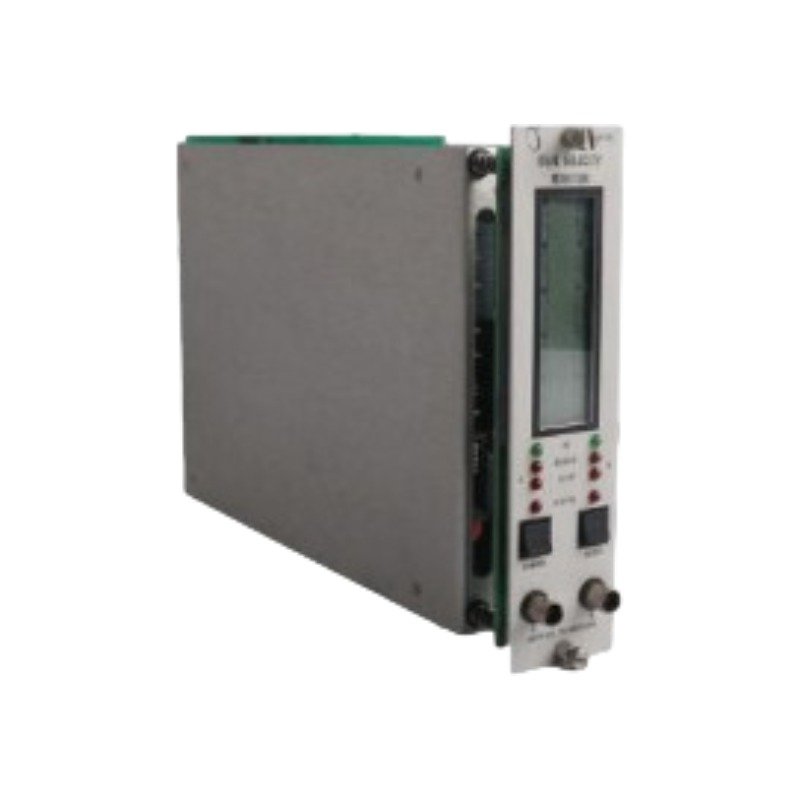

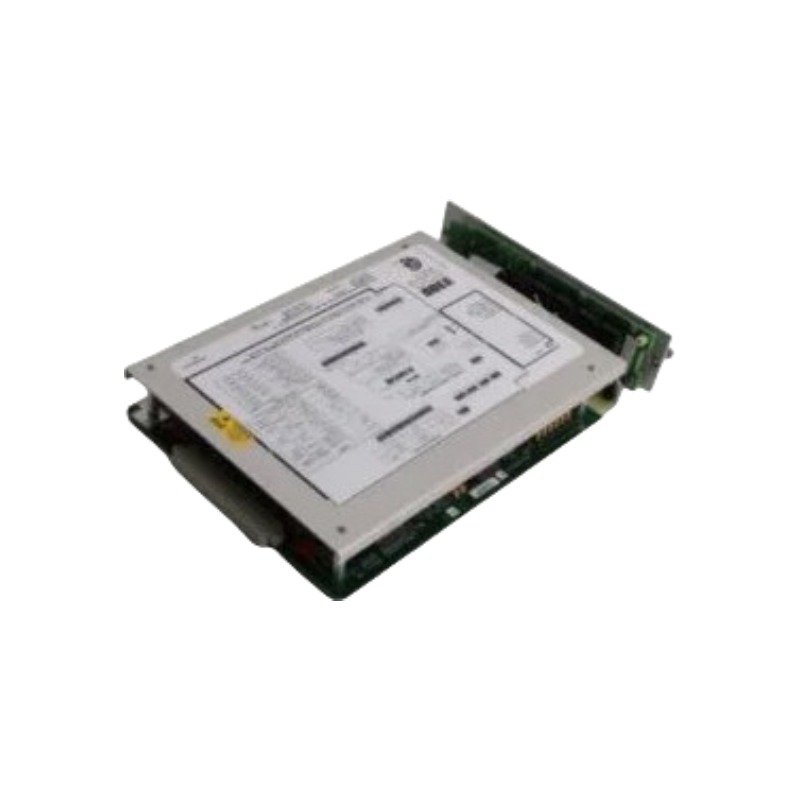

The Bently Nevada 3300/65-14-01-00-00-01-00, also cataloged as the 3300/65 Dual Probe Monitor, operates as a dedicated hardware component for continuous shaft absolute vibration measurement within Bently Nevada 3300 Monitoring System platforms.

Hardware Specifications

Rotor Dynamics and Transducer Validation

The 3300/65 monitor mathematically vector-sums the shaft relative displacement signal from an eddy-current proximity probe and the casing vibration data from a velocity transducer mounted on the identical machine axis. Consequently, this precise combination yields a true shaft absolute vibration measurement that isolates complex rotor dynamics events. During system configuration, the commissioning engineer must calibrate the specific eddy-current probe scaling to guarantee linear accuracy. Simultaneously, the internal logic carries out continuous gap voltage validation against the standard -10 VDC targets for negative-voltage proximity sensors. Furthermore, built-in cross-talk suppression circuitry minimizes adjacent channel interference across the backplane structure.

Frequently Asked Questions

Q: How do the coaxial outputs on the front panel function during diagnostic analysis?

A: The front panel provides independent, unisolated buffered transducer signals for both the proximity probe and the seismic transducer. As a result, operators can attach external vibration analyzers to evaluate rotor dynamics and frequency spectrums without disrupting the active protection loop.

Q: What actions occur if a technician hot-swaps the 3300/65 monitor while the chassis is live?

A: The hardware architecture fully supports hot-swapping under live rack conditions; however, removing the monitor immediately breaks the verification loops. Consequently, this action instantly forces any assigned alert or danger relays to de-energize, which dictates activating an external bypass prior to extraction.

Field Installation Guidelines

• Chassis Insertion: Slide the module cleanly along the upper and lower plastic chassis tracks to prevent structural pin misalignment at the rear backplane interface. Afterwards, tighten the front captive screws completely to lock the physical connection.
• Shield Grounding: Terminate all field transducer wiring shields exclusively at the monitor rack common ground bus bar. Otherwise, a ground loop will develop if the shield contacts another path at the sensor housing.
• Cable Separation: Route low-voltage proximity and seismic transducer lines through dedicated metallic conduit separate from high-voltage AC lines. Consequently, the installation maintains high cross-talk suppression and signal clarity.
