Description

330704-000-080-10-01-00 | Bently Nevada | 3300 XL 11 mm Proximity Probes

### Product Description

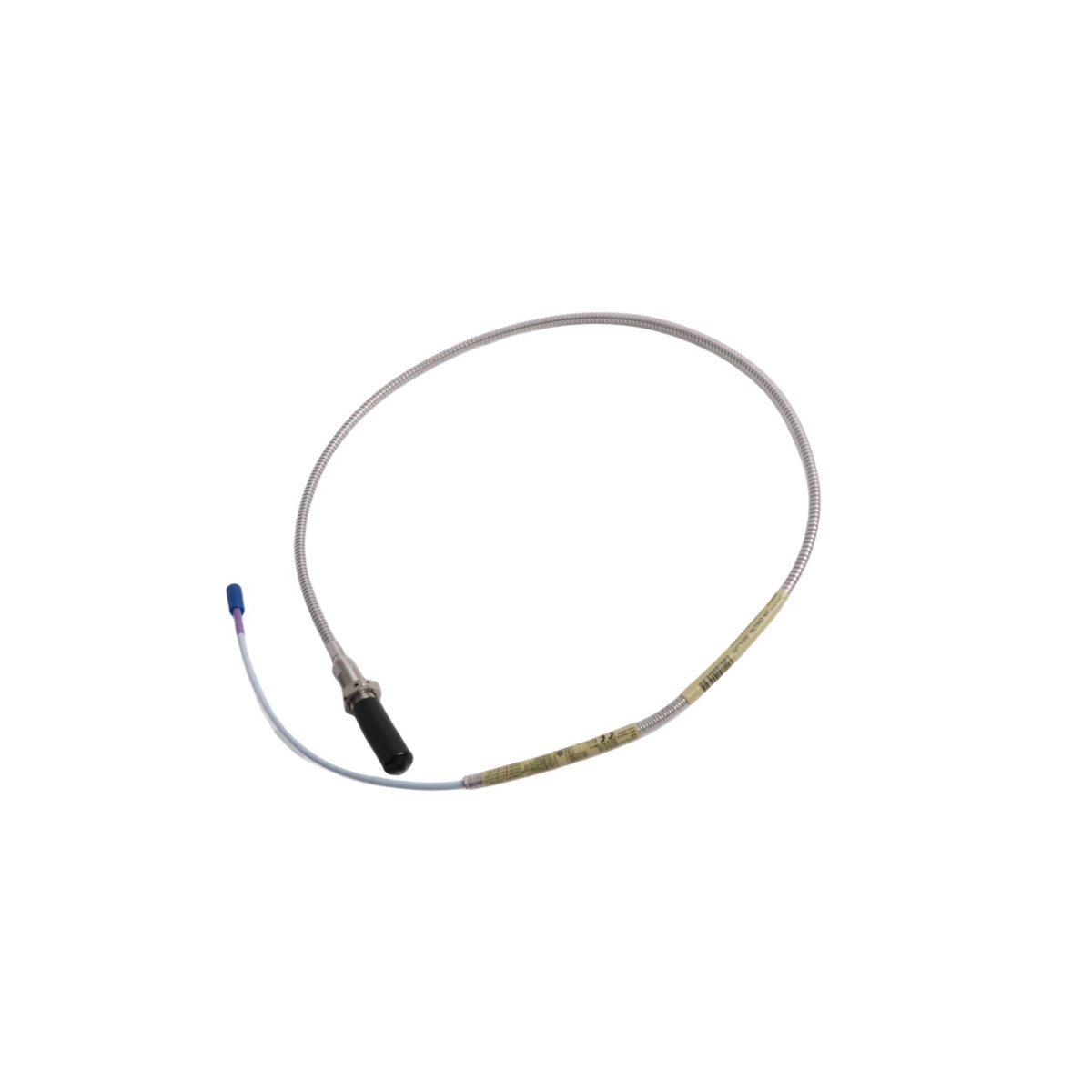

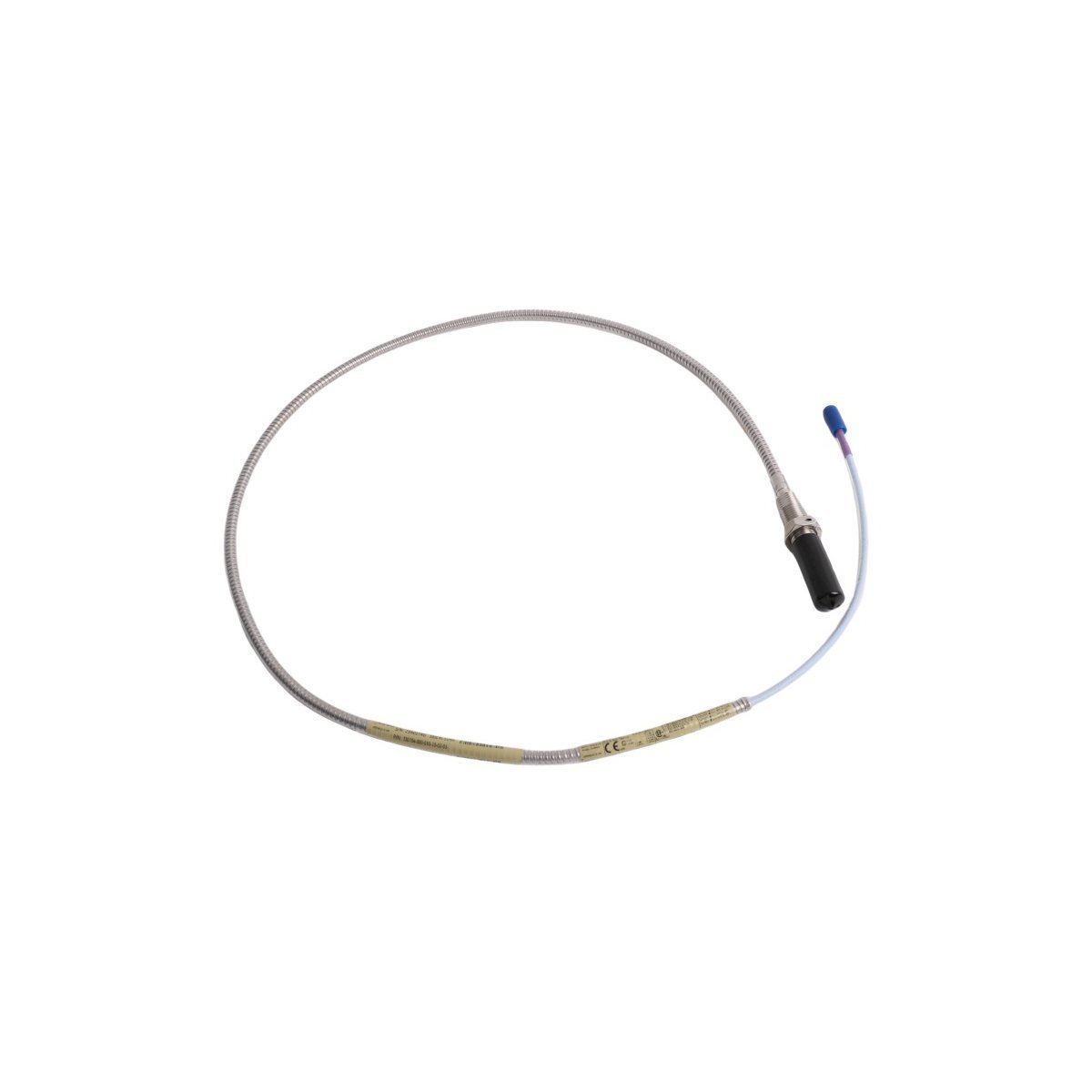

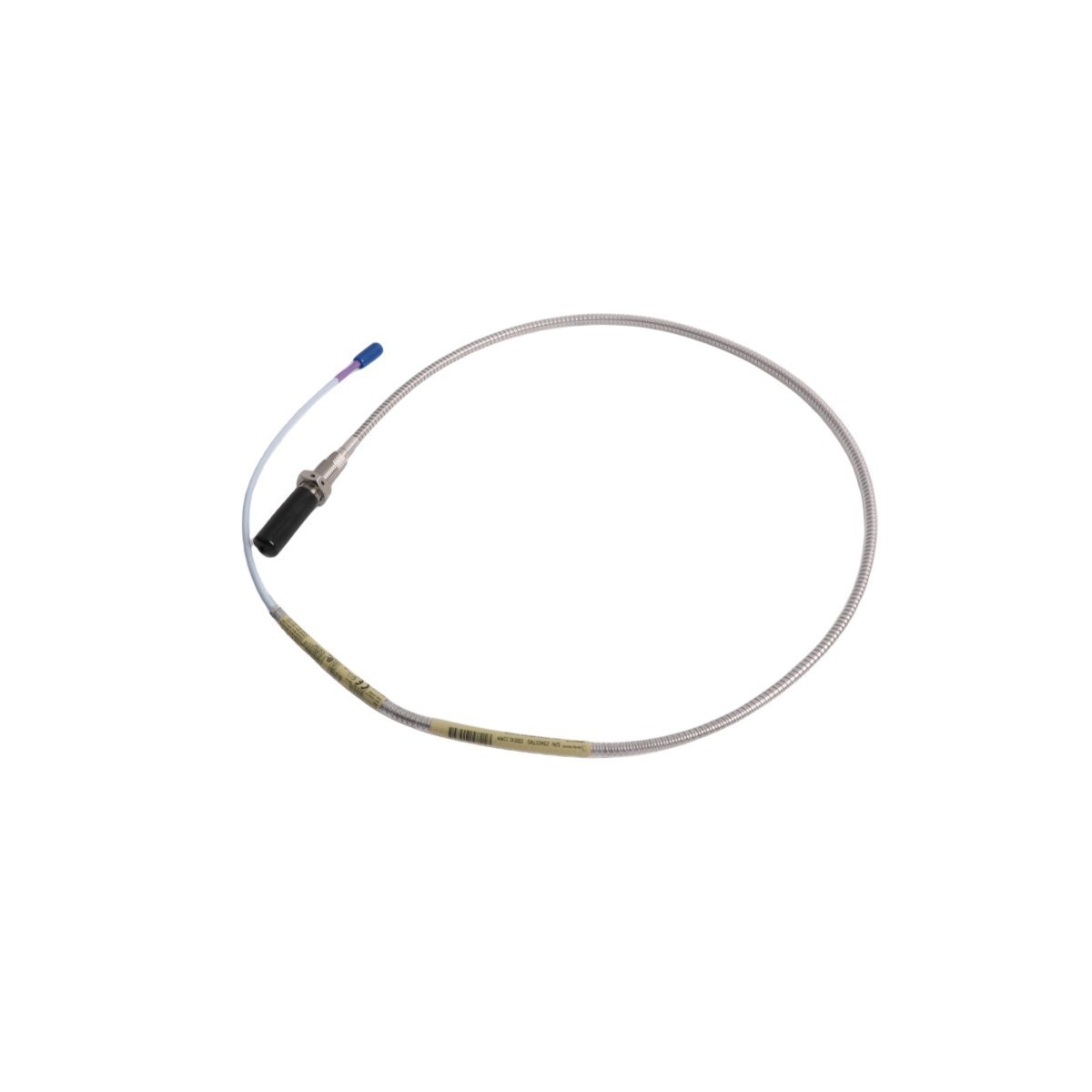

The 330704-000-080-10-01-00 is a non-contact eddy-current proximity probe designed for the Bently Nevada 3300 XL monitoring system.
Moreover, it delivers high-resolution displacement and vibration measurements for rotating machinery health assessment in continuous operation.
Therefore, it is commonly installed on steam turbines, compressors, and large motors to monitor shaft position, vibration, and thrust bearing clearance.

### Technical Specifications

### Typical Applications
– Steam and gas turbine shaft vibration and axial position monitoring
– Centrifugal compressor radial and axial vibration measurement
– Large electric motor rotor position and bearing clearance verification
– Gearbox shaft runout and misalignment detection

### FAQ
What is the standard sensing range for this probe?
The nominal linear range is 2.0 mm with a sensitivity of 4.0 V/mm.

Is this probe compatible with legacy 3300 series monitors?
Yes, it is fully compatible with all 3300 series monitors and preamps, including 3300 XL and earlier 3300 models.

Does the probe require calibration before installation?
No—each probe is factory-calibrated and supplied with a certified calibration certificate traceable to NIST.

Can it be used in hazardous areas?
Only when paired with an approved intrinsically safe barrier and installed per applicable area classification requirements.

What cable length options are available?
Standard configurations include 5 m and 10 m integrated coaxial cables; custom lengths are available upon request.
