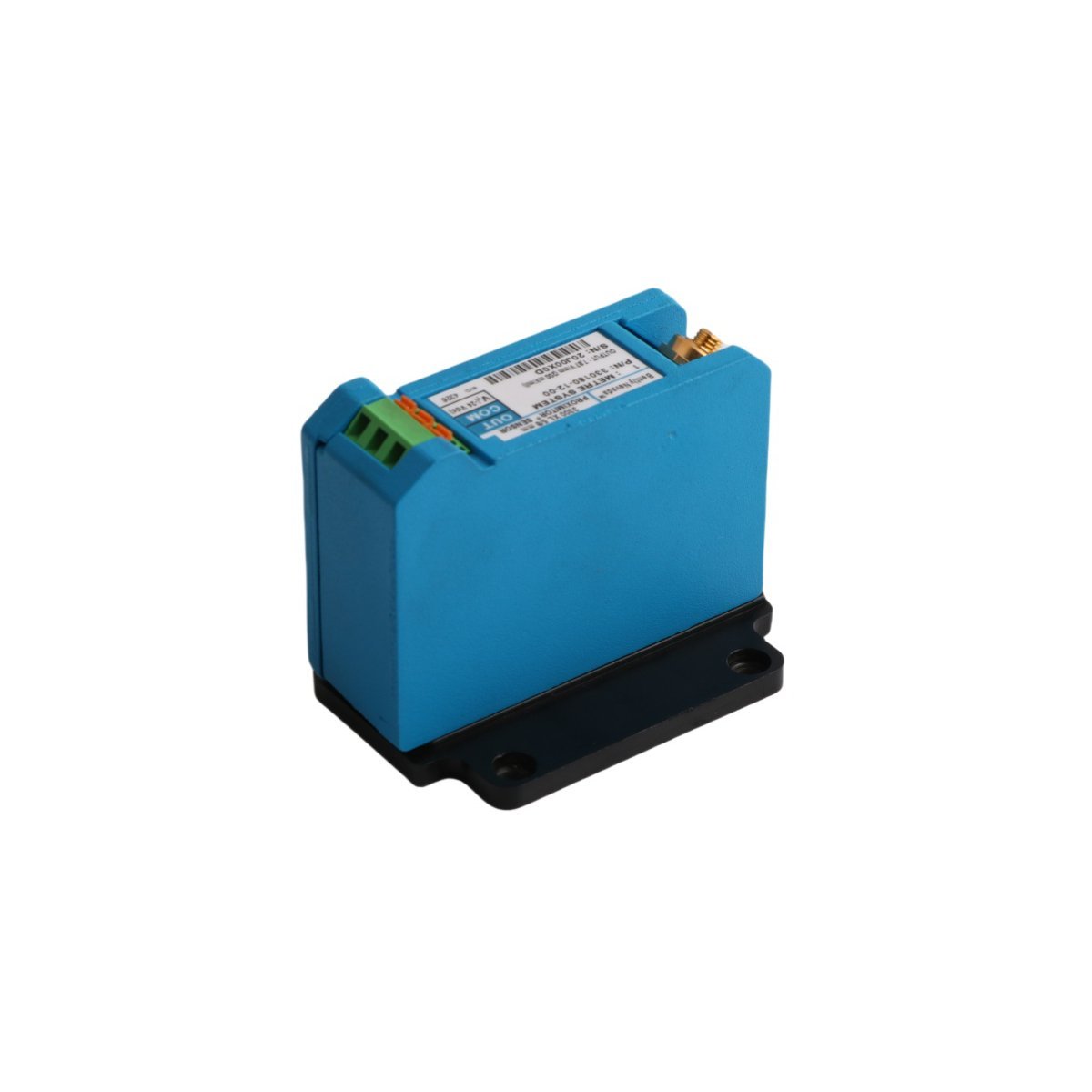

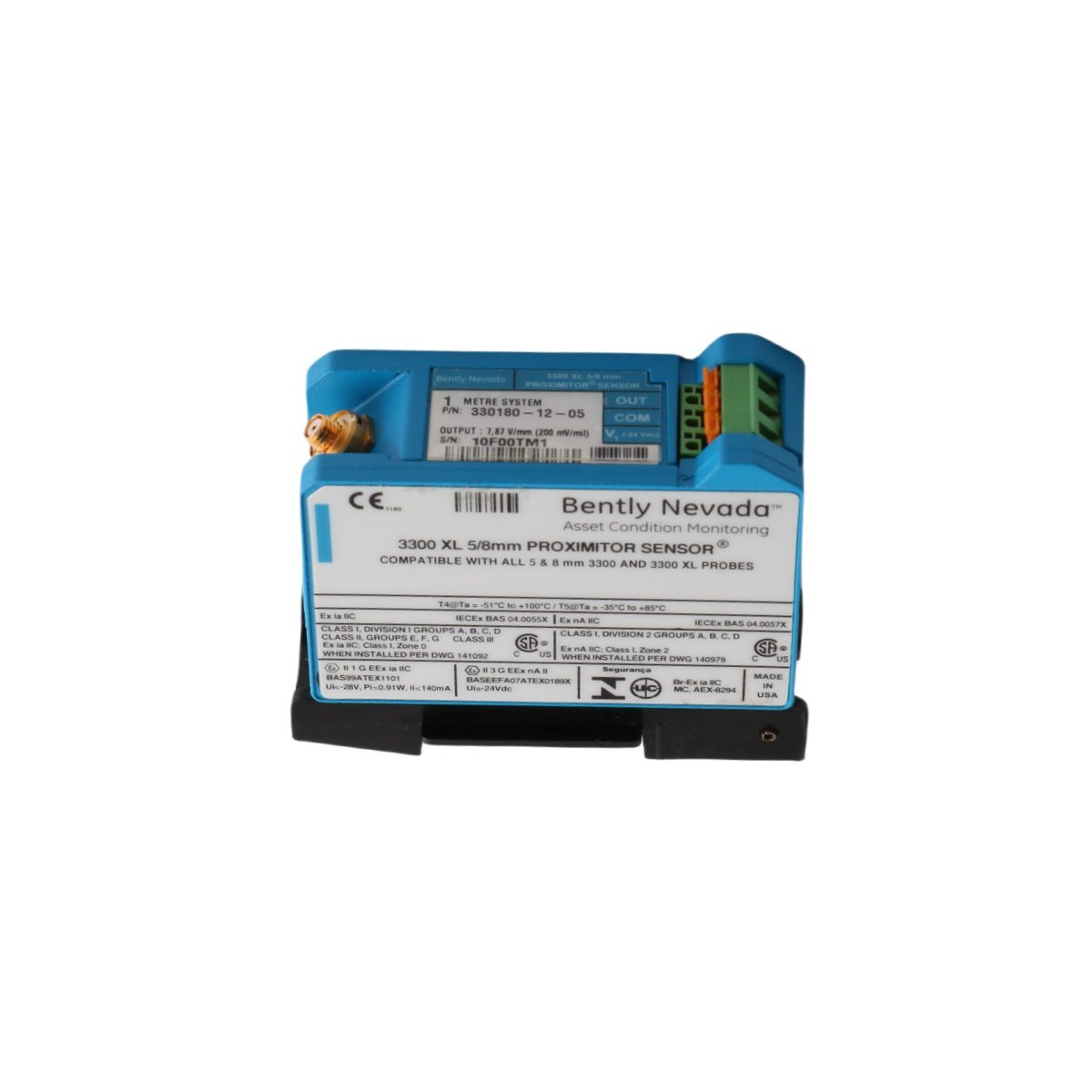

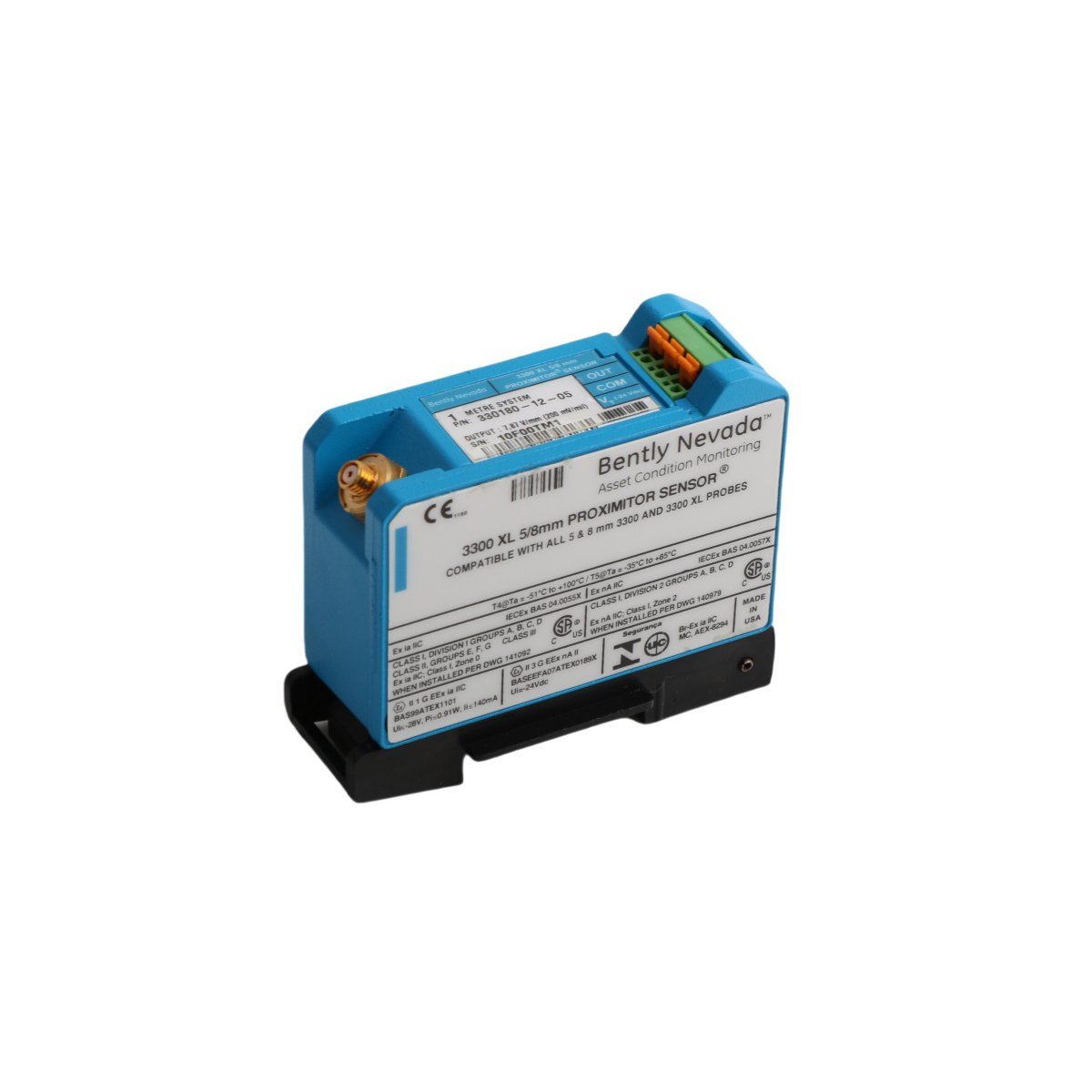

330180-10-05 | Bently Nevada | 3300 XL Proximitor Sensor

### Product Description
The 330180-10-05 is a high-precision eddy-current proximity sensor designed for continuous displacement and vibration monitoring of rotating machinery.
Moreover, it delivers analog output proportional to target gap, enabling real-time shaft position and dynamic motion analysis in critical turbomachinery systems.
Therefore, it is integrated into condition monitoring and protection systems where accuracy, stability, and long-term reliability are essential.

### Technical Specifications

### Typical Applications
– Monitoring radial shaft vibration in steam and gas turbines
– Measuring axial position and thrust bearing wear in centrifugal compressors
– Detecting shaft runout and orbit dynamics in large electric motors and generators
– Providing input signals to machinery protection systems (MPS) per API 670

### FAQ
What is the sensing range of the 330180-10-05?
The nominal linear range is 10 mm (0.4 in) with a sensitivity of 4.0 V/mm (100 mV/mil).

Is this sensor compatible with 3300 series monitors?
Yes, it is designed specifically for use with Bently Nevada 3300 XL monitoring systems and compatible 3300 rack-based interfaces.

Does it require a separate extension cable?
Yes, it must be used with a shielded, low-noise coaxial extension cable rated for 3300 XL systems, such as the 330130-01-00 series.

What is the operating temperature range?
The sensor operates from –30 °C to +120 °C (–22 °F to +248 °F) under standard conditions.

Can it be used in hazardous areas?
No, the 330180-10-05 is not intrinsically safe or explosion-proof; hazardous area use requires additional certified barriers or enclosures.
