Description

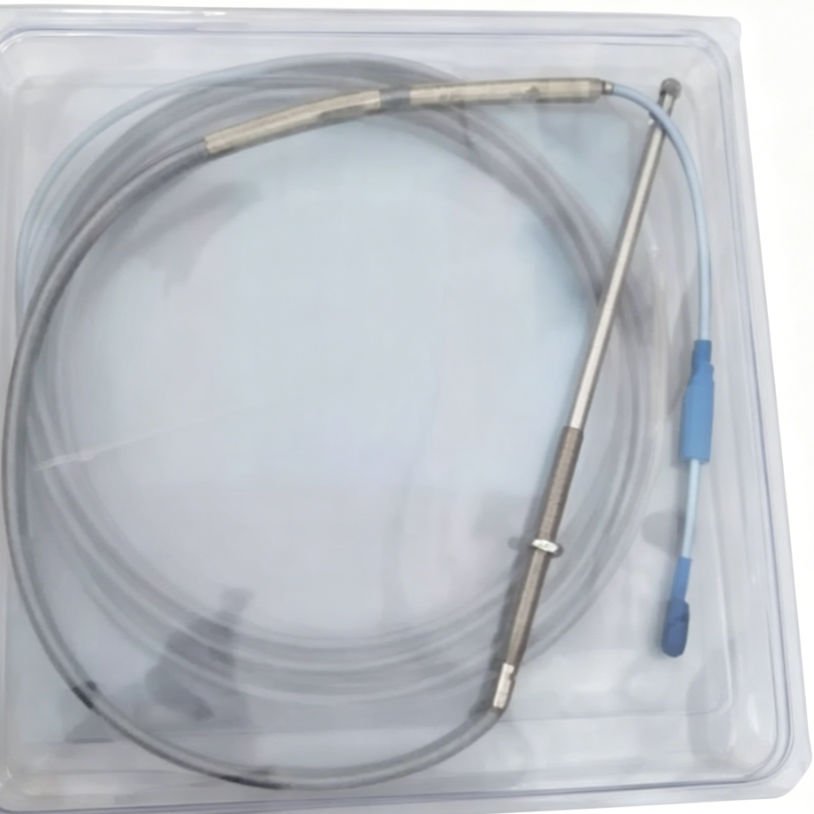

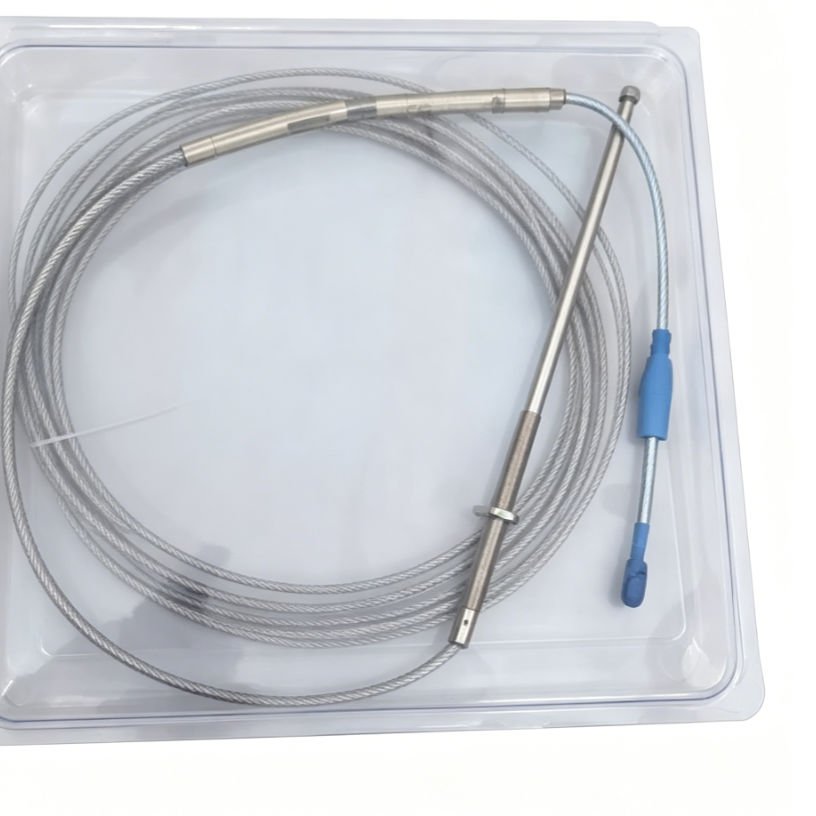

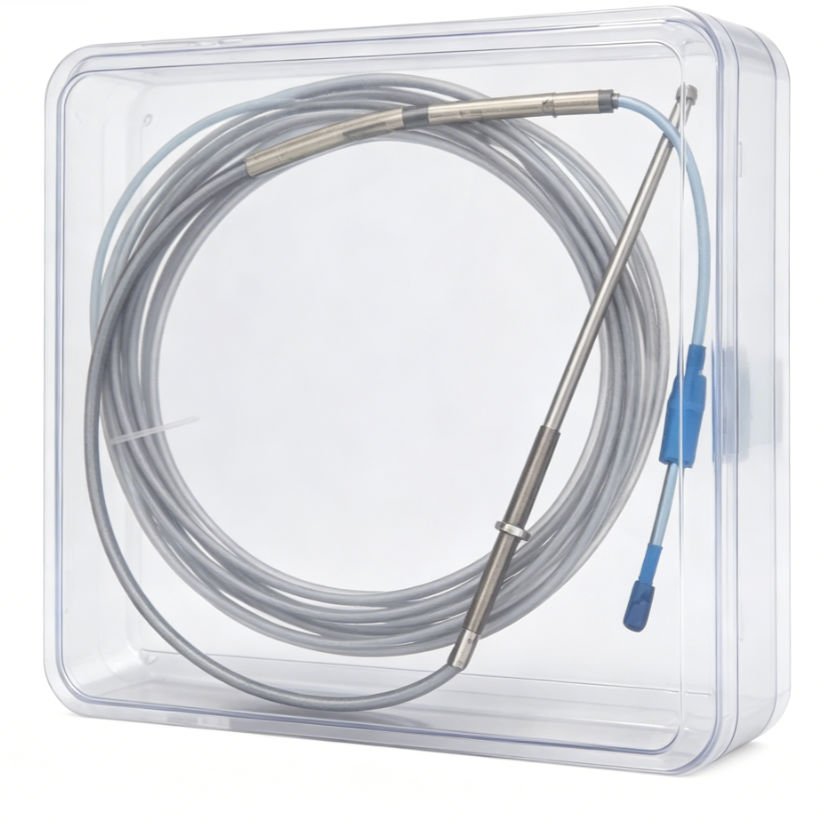

Configured for proximity probe signal conditioning in machinery monitoring systems, the Bently Nevada 330173-00-06-10-02-00 (330173 Proximity Probe) provides direct physical/electrical execution. Specifically, the miniature 5 mm sensor head generates a dense radio frequency electromagnetic field to detect micro-displacement changes on rotating conductive shafts. When the distance between the probe tip and the target target shifts, internal impedance variations modify the high-frequency carrier signal. Subsequently, the connected Proximitor sensor translates these variations into a proportional analog voltage, enabling precise tracking of fluid-film bearing vibrations and thrust position shifts.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The compact design of this sensor relies on precise eddy-current probe scaling to convert target proximity into stable electrical tracking metrics. During physical field calibration procedures, operators manipulate the probe depth inside its bracket until the gap voltage validation matches -10 VDC targets. This step locks the sensor head at the optimal geometric center of its linear range. Meanwhile, the balanced coaxial physical layer maintains high cross-talk suppression. This specialized noise isolation prevents signal mixing when technicians cluster multiple signal lines inside a shared machine junction. As a result, the probe architecture accurately transfers raw rotor dynamics to the monitor rack without data distortion.

Frequently Asked Questions

Q: Why does the 330173-00-06-10-02-00 require an M8 x 1 metric thread configuration?

A: The M8 x 1 metric thread profile matches tight spatial clearance requirements on smaller centrifugal compressors, pumps, and high-speed gearboxes where standard 8 mm probes cannot fit due to body diameter constraints.

Q: Can technicians repair a damaged ClickLoc connector on the integral 1.0-meter cable?

A: No, technicians must not solder or splice a broken miniature coaxial cable connector in the field. Instead, use an official Bently Nevada connector crimp tool kit with standard replacement ClickLoc tips to reconstruct the matching RF terminal impedance.

Field Installation Guidelines

• Mechanical Thread Torque Limits: Thread the M8 x 1 stainless steel probe case into the mounting adapter. Then, apply a maximum tightening torque of 4.5 Nm with a calibrated wrench to prevent mechanical thread shearing.
• Proximity Clearance Boundaries: Ensure a minimum unthreaded counterbore clearance diameter of 10 mm around the probe tip. This boundary stops nearby bracket steel from generating secondary eddy currents that flatten the output scale factor.
• ClickLoc Terminal Security: Wipe the coaxial mating surfaces clean before joining. Next, snap the male terminal into the female ClickLoc extension cable socket until it locks mechanically into place to eliminate signal dropouts.
• Cable Protection Sleeves: Place a flexible silicone connector protector sleeve over the final coaxial junction point. This physical jacket blocks the penetration of moisture, dirt, and hot synthetic lubricating oils.
