Description

330103-00-06-05-02-02 | Bently Nevada | | Bently Nevada | | Bently Nevada | Probe

### Product Description

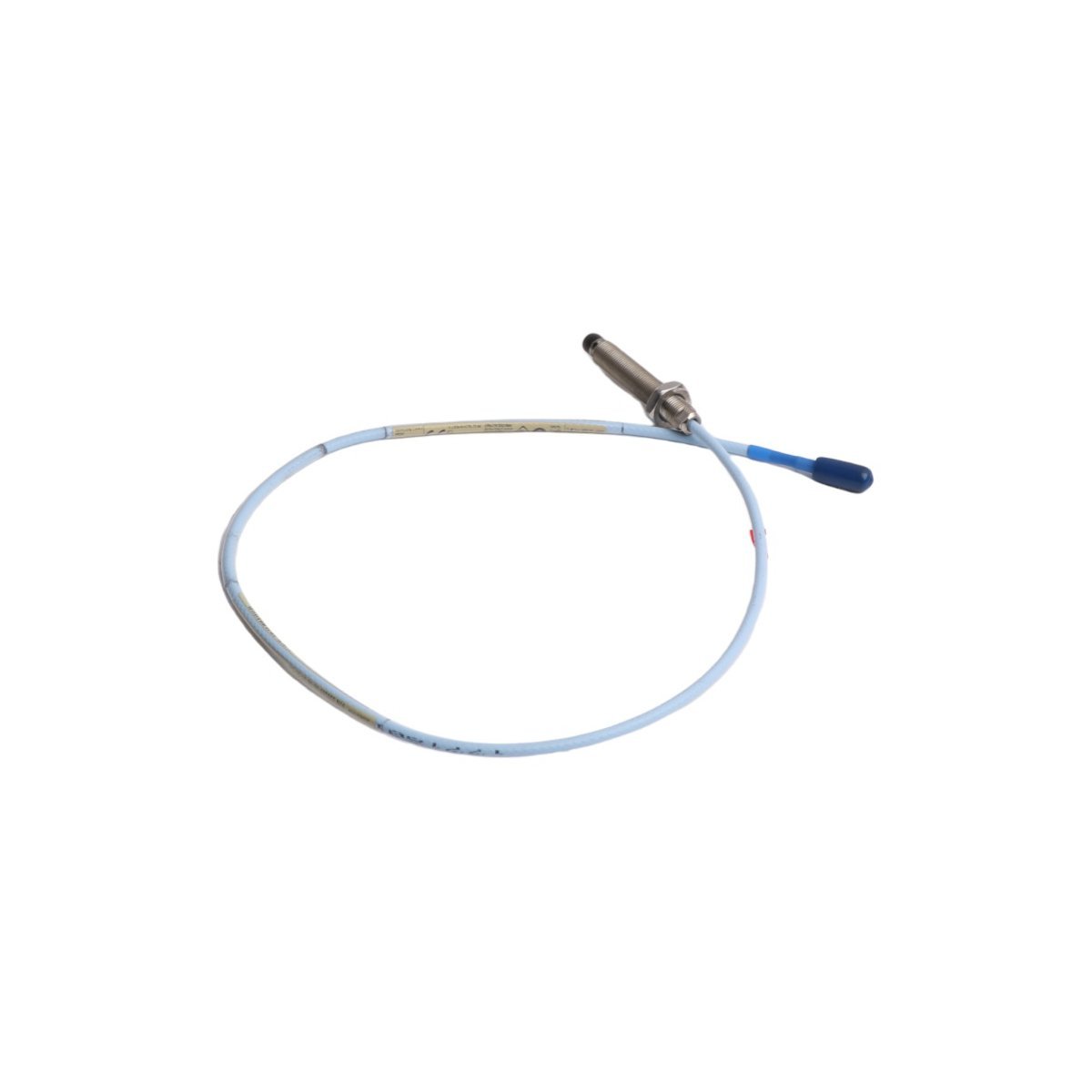

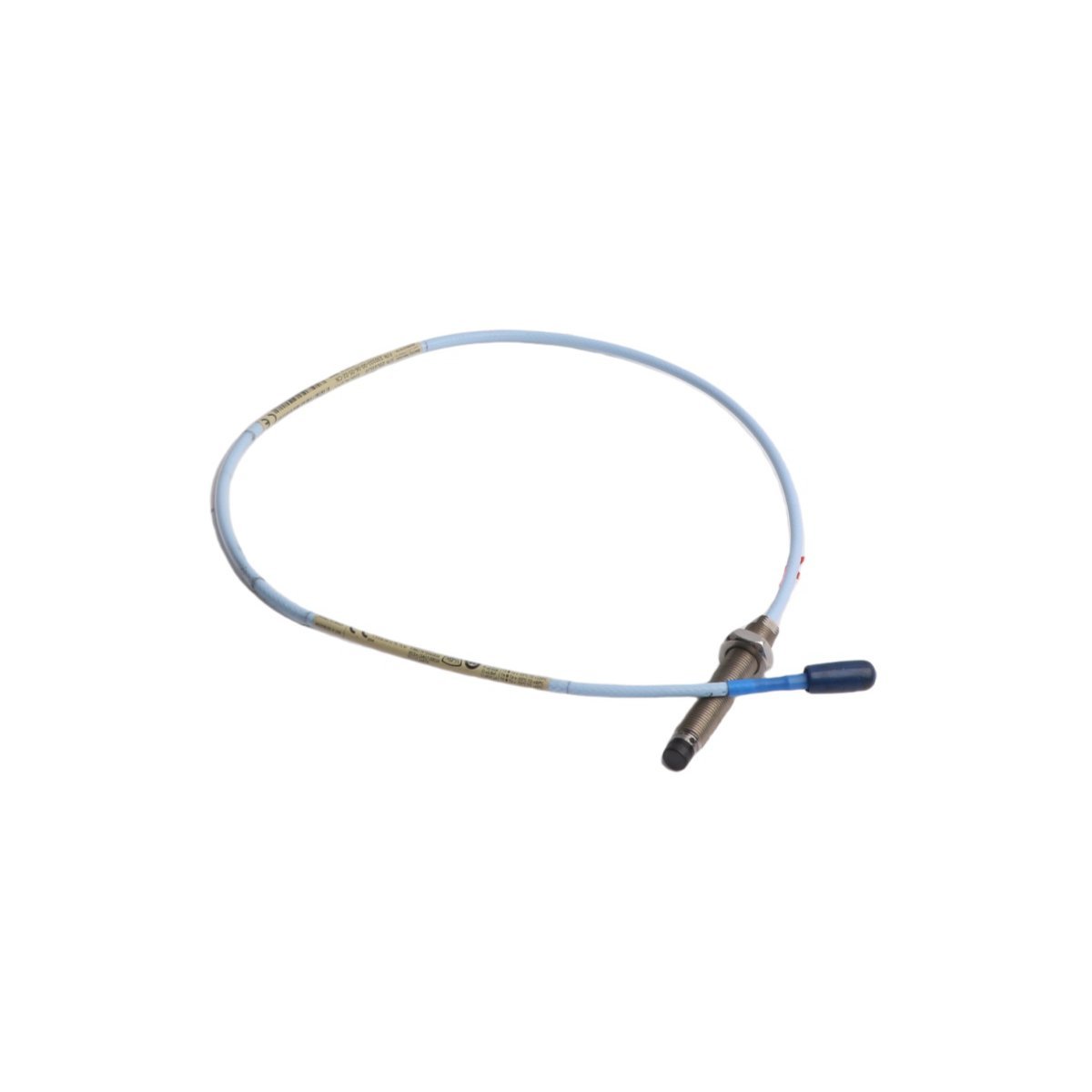

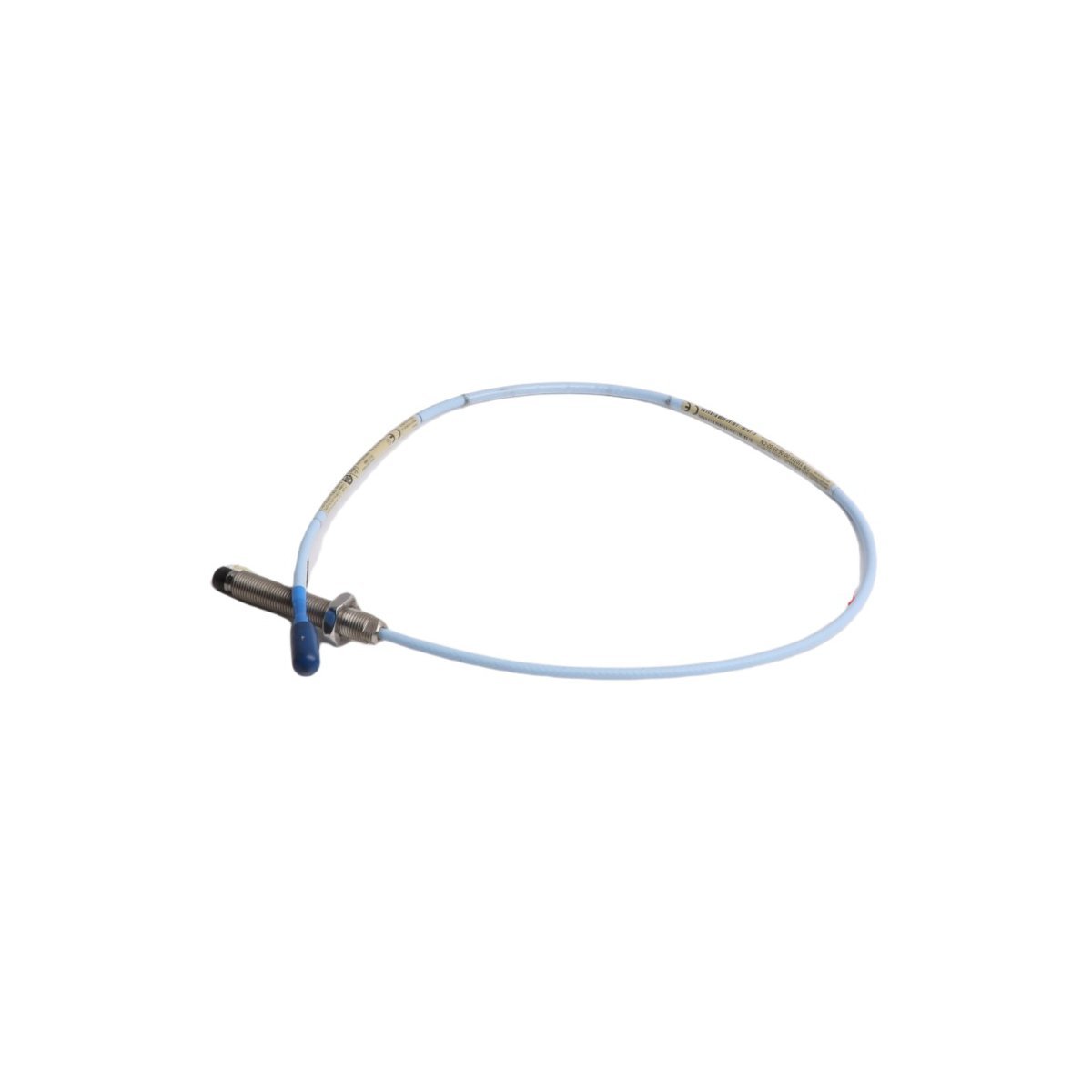

This is a non-contact eddy-current proximity probe designed for shaft vibration and position monitoring in rotating machinery. It operates as part of the Bently Nevada 3300 XL system.
Moreover, its core purpose is to deliver high-fidelity displacement measurements for condition monitoring and machine protection in critical turbomachinery applications.
Therefore, it is typically installed on steam turbines, gas turbines, compressors, and large motors where precise shaft dynamics data is required for reliability programs.

### Technical Specifications

### Typical Applications
– Steam turbine shaft vibration and axial position monitoring
– Gas turbine rotor dynamic analysis and thrust bearing wear detection
– Centrifugal compressor shaft orbit and clearance measurement
– Large motor rotor eccentricity and radial displacement tracking

### FAQ
What is the standard output signal type?
The probe produces a millivolt-per-mil (mV/mil) AC voltage output proportional to target displacement.

Is this probe compatible with the 3300/16 monitor?
Yes, it is fully compatible with all Bently Nevada 3300 series monitors, including the 3300/16.

Does the probe require a separate extension cable?
Yes, it must be used with a certified 3300-series extension cable (e.g., 330130-06-00-00-00-00) to maintain calibration integrity.

What is the nominal sensing range?
The nominal linear sensing range is 2.0 mm (80 mils) with a sensitivity of 4.0 V/mm (100 mV/mil).

Can it be used in hazardous areas?
No, this probe is not intrinsically safe or rated for hazardous locations without additional certified barriers or enclosures.
