Description

Technical Overview

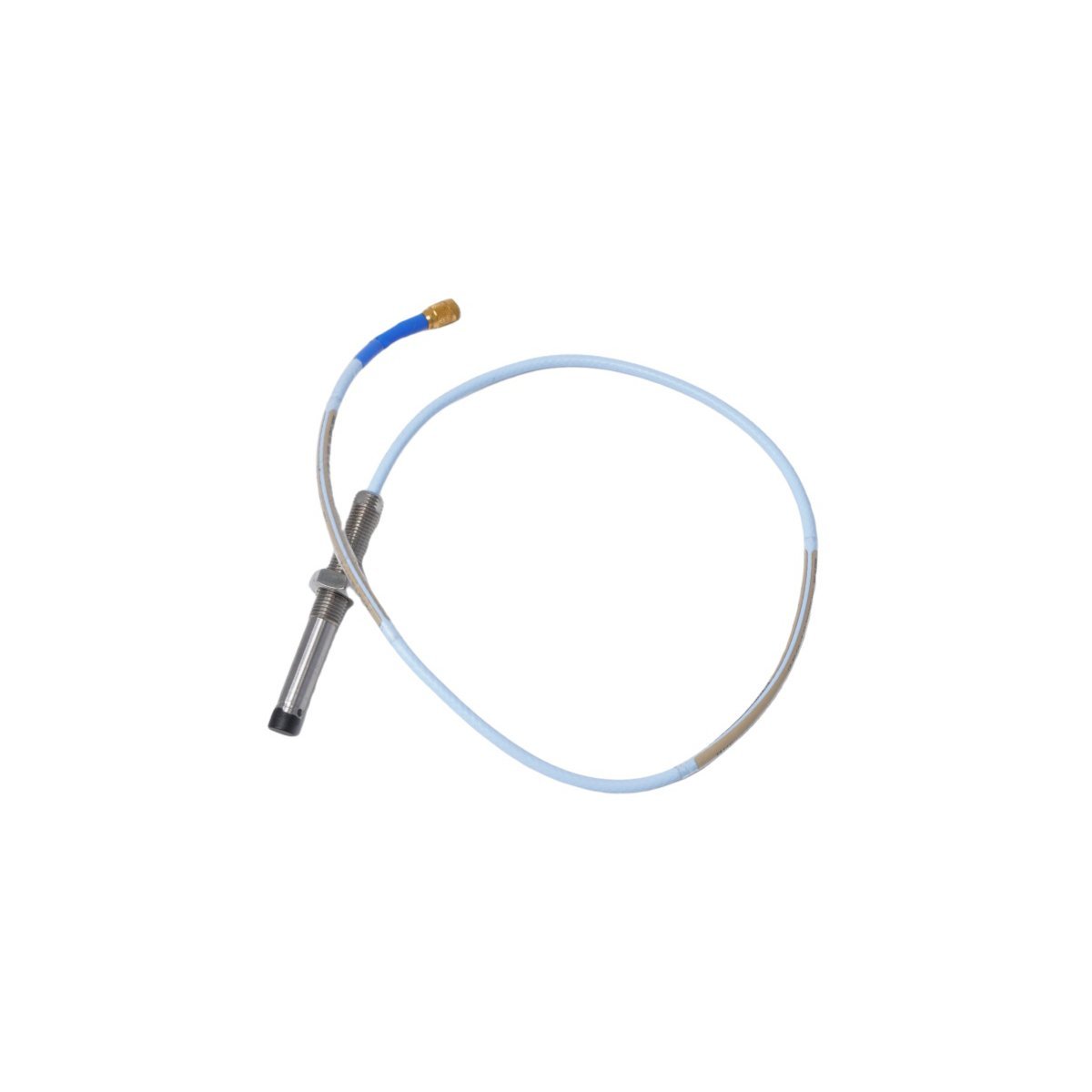

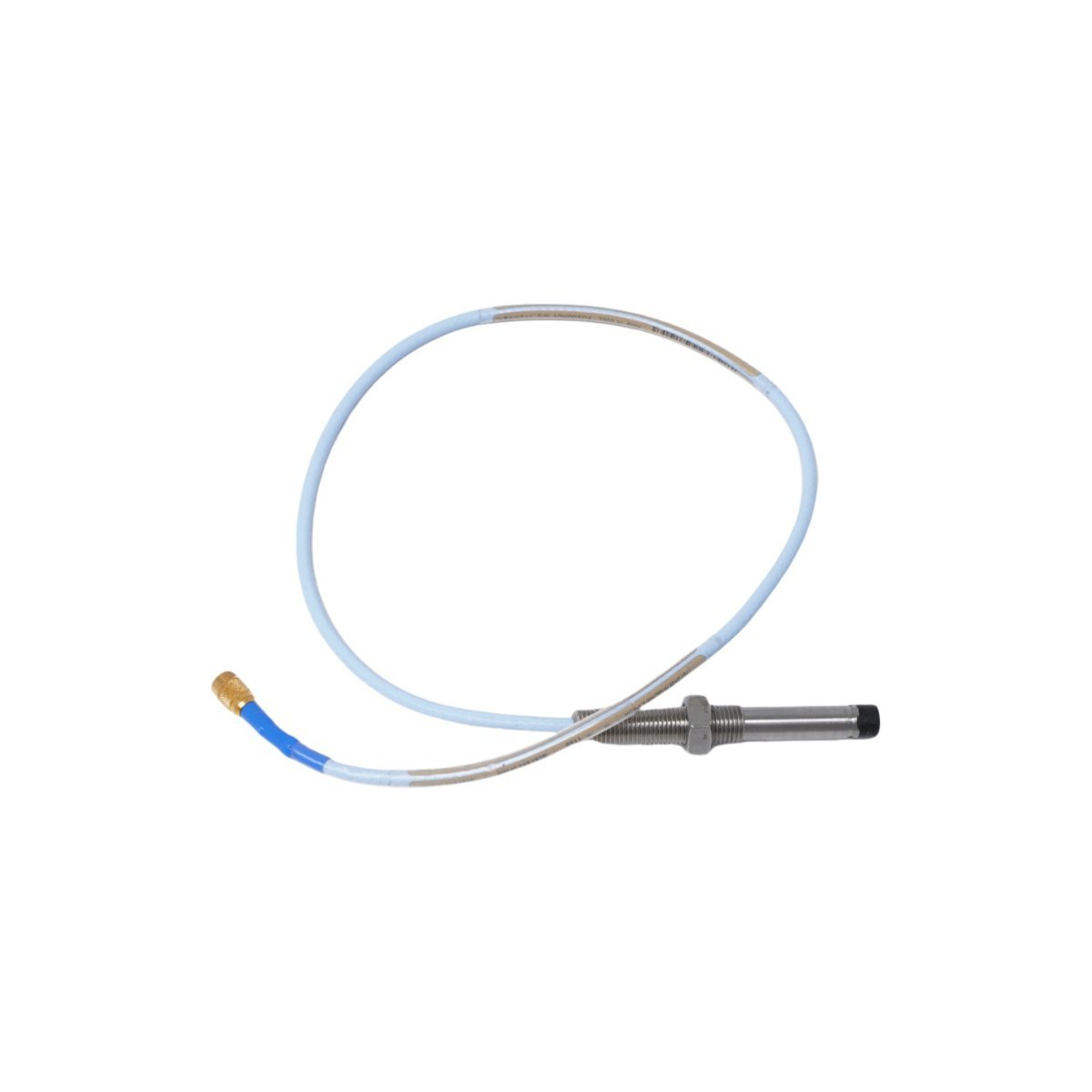

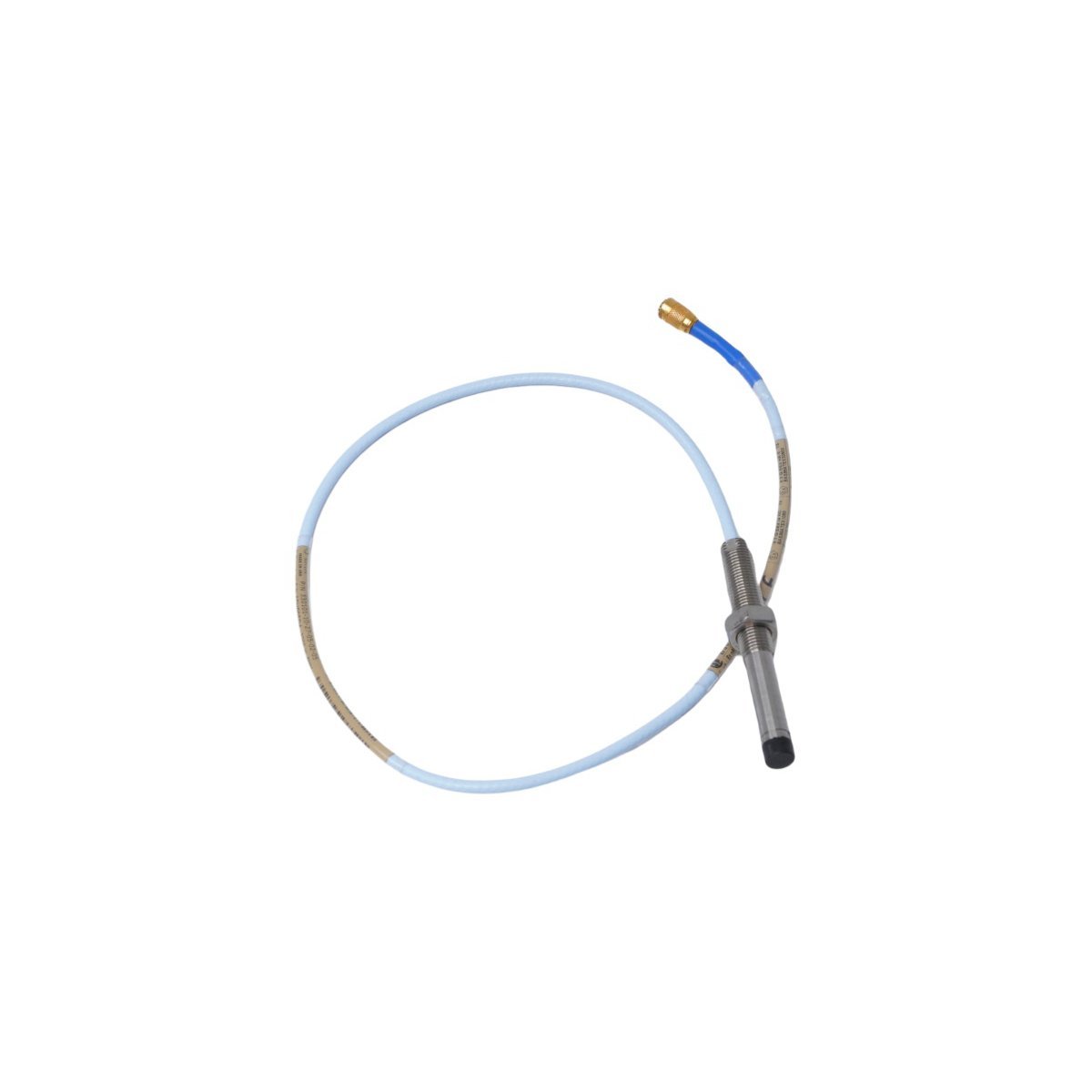

The Bently Nevada 330101-10-27-05-02-00 is a high-precision 3300 XL 8 mm proximity probe engineered for mission-critical machinery monitoring in demanding industrial environments. As part of the industry-standard 3300 XL family, this probe delivers exceptional linearity, repeatability, and thermal stability—ensuring reliable displacement, vibration, and position measurements for rotating equipment such as turbines, compressors, motors, and generators. Its robust design meets stringent API 670 (4th Edition) requirements for machinery protection systems, making it ideal for integration into asset condition monitoring and predictive maintenance strategies across oil & gas, power generation, chemical processing, and marine applications.

Manufactured with aerospace-grade materials and precision-machined stainless steel housings, the 330101-10-27-05-02-00 features an 8 mm diameter active sensing element optimized for a standard 2.0 mm linear range (0–2.0 mm), with a sensitivity of 4.0 V/mm and integrated temperature compensation to minimize drift across operating temperatures from –30°C to +120°C. It is designed exclusively for use with compatible 3300 XL series前置器 (proximity transducers), ensuring seamless signal conditioning, noise immunity, and compliance with IEC 61000-4 electromagnetic compatibility standards. The probe’s hermetically sealed construction provides superior resistance to moisture, oil, and corrosive contaminants—maximizing uptime and reducing long-term TCO (Total Cost of Ownership).

Key Features

• API 670 Compliance: Fully certified for use in machinery protection systems per API RP 670 (4th Edition) requirements.
• High Stability & Repeatability: Maintains ±0.5% full-scale linearity and <±0.1% zero shift over temperature and time—critical for trend analysis and early fault detection.
• Ruggedized Construction: Stainless steel housing with PTFE-insulated coaxial cable (27 ft / 8.2 m standard length) rated for continuous operation in harsh, high-vibration environments.
• Plug-and-Play Integration: Compatible with all 3300 XL 8 mm前置器 (e.g., 3300 XL 11 mm or 3300 XL 50 mm transducers), enabling rapid deployment and system scalability.
• Traceable Calibration: Supplied with NIST-traceable calibration certificate and individual serial-numbered documentation for regulatory and QA compliance.

Specifications

• Part Number: 330101-10-27-05-02-00
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL 8 mm Proximity Probe
• Warranty: 24-month limited manufacturer warranty covering material and workmanship defects

Contact us for bulk pricing and availability
