Description

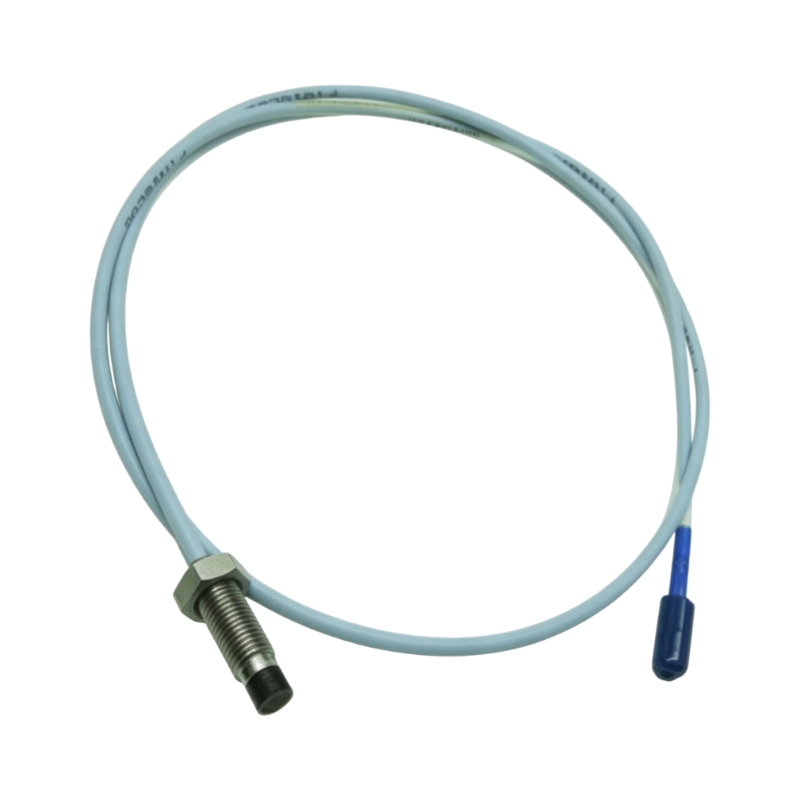

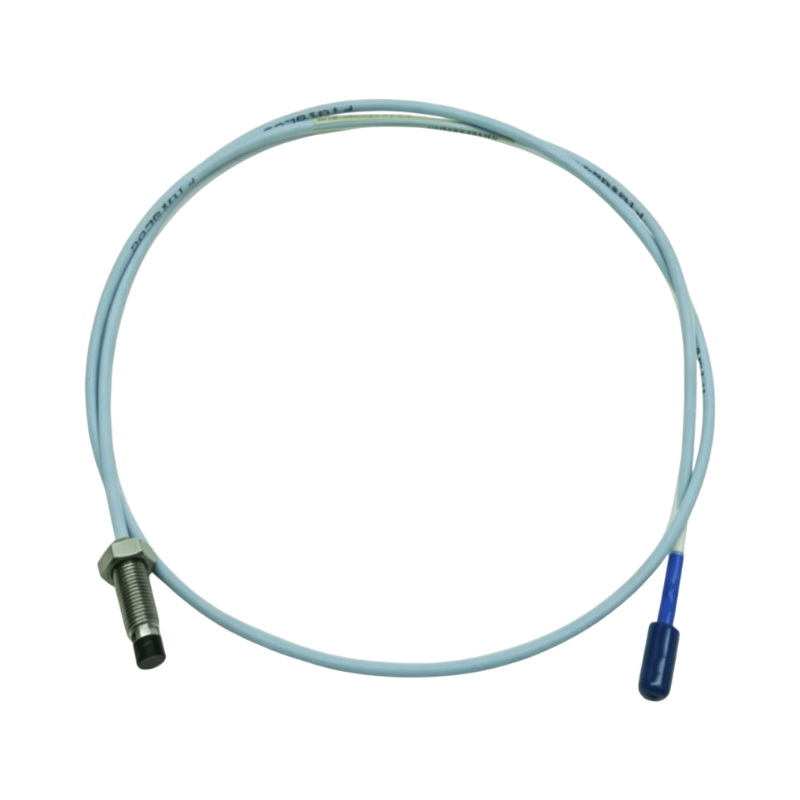

The Bently Nevada 330101-00-55-10-02-05, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement and vibration monitoring within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and Rotor Dynamics Integration

The probe facilitates real-time digital signal conditioning for critical rotor dynamics analysis. Simultaneously, the coupled Proximitor sensor enforces strict gap voltage validation, tracking the output against target thresholds near -10 VDC to verify standard linear operation. Consequently, the specialized transducer tip layout optimizes eddy-current probe scaling, which transforms physical gap variation into a precise millivolt-per-mil electrical signal. Furthermore, internal insulation design principles promote effective cross-talk suppression, preventing high-frequency carrier interference when technicians mount multiple proximity probes in close physical proximity on a single machine bearing housing.

Frequently Asked Questions

Q: How does the system architecture achieve proper eddy-current probe scaling?

A: The probe tip coil generates a high-frequency RF field. As the conductive target moves within this field, the Proximitor sensor conditions the eddy-current losses, thereby transforming the physical distance changes into a linear output voltage proportional to the gap.

Q: What action should a technician take if the ClickLoc connector becomes dirty during field routing?

A: Personnel must clean the miniature coaxial connection surfaces with an approved residue-free electronic contact cleaner before joining the threads. This step ensures clean metal-to-metal contact, preserving the calibrated electrical length of the 1.0 m system.

Field Installation Guidelines

• Thread the probe body into the bracket by hand, then lock the position using the specified jam nut to maintain a stable, calibrated physical gap.
• Connect the miniature coaxial ClickLoc fittings together until they audibly click, ensuring a positive lock without using special mechanical wrenches.
• Run the standard extension cable through dedicated, rigid metal conduit to shield the low-voltage sensor lines from surrounding high-power electrical noise.
• Verify the initial mechanical standoff installation by measuring the physical gap or evaluating the DC bias voltage output using the asset monitoring software.
