Description

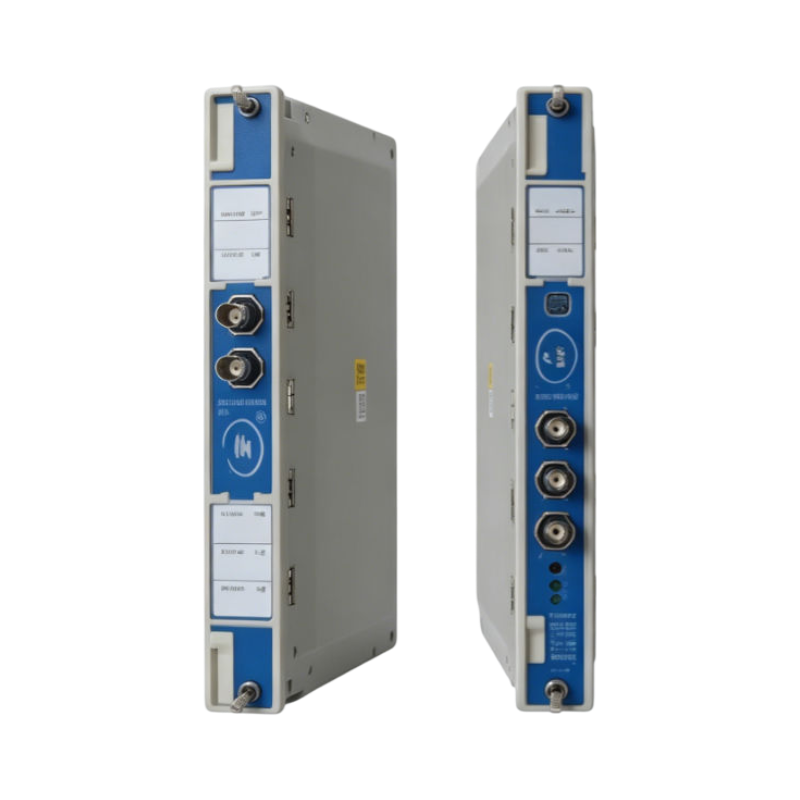

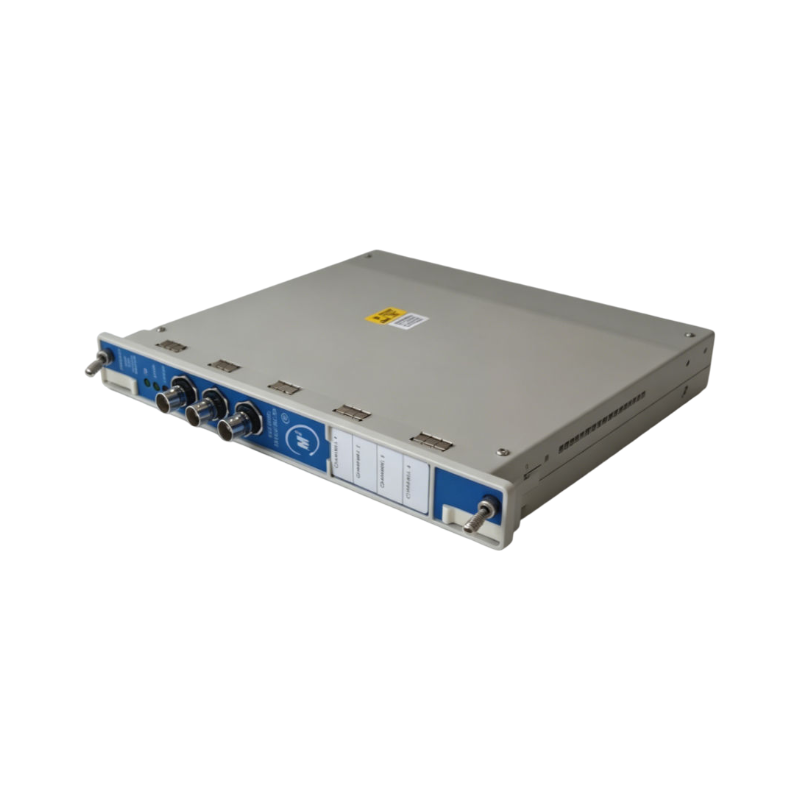

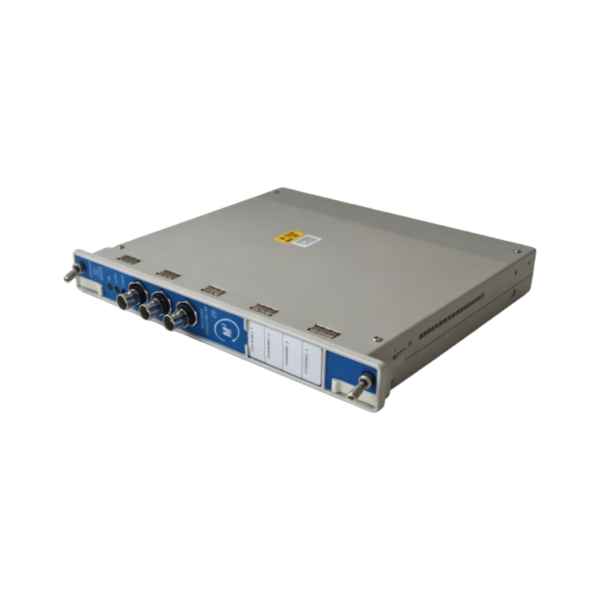

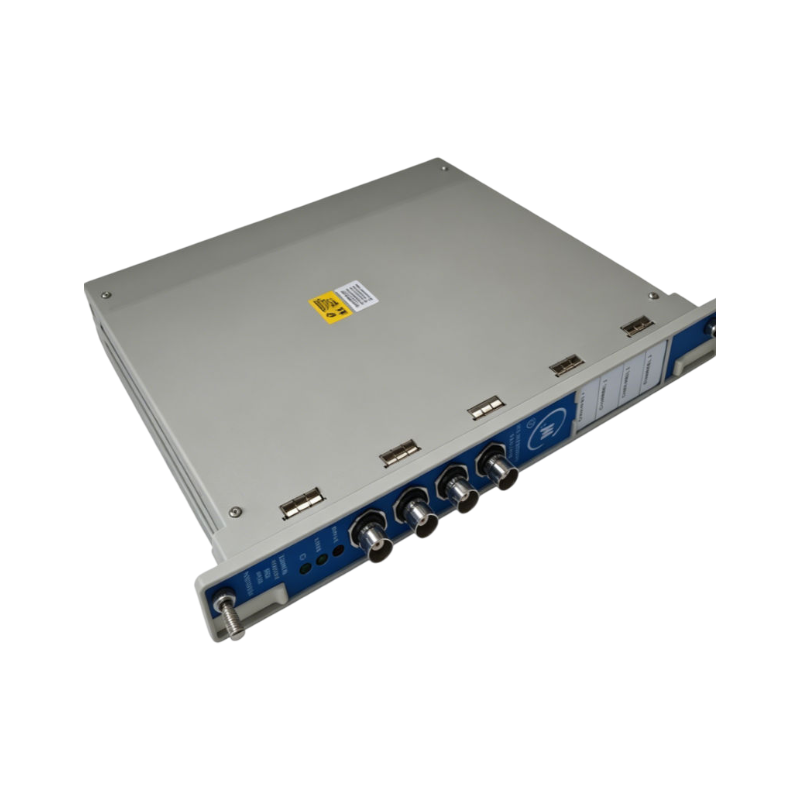

The Bently Nevada 140734-08, also cataloged as the 140734-08 Proximitor Monitor Module, operates as a dedicated hardware component for continuous machinery protection and vibration monitoring within 3500 Series Monitoring System platforms.

Hardware Specifications

Machinery Monitoring and Rotor Dynamics Integration

The module processes real-time digital signal conditioning for rotor dynamics analysis. Simultaneously, it enforces strict gap voltage validation, which checks transducer bias voltages against target thresholds near -10 VDC to verify linear operation. Consequently, specialized internal circuitry manages eddy-current probe scaling to ensure precise millivolt-per-mil conversion across standard calibration ranges. Furthermore, dynamic cross-talk suppression algorithms isolate high-frequency carrier interference between closely spaced proximity probes, thereby protecting signal integrity for precise orbit, timebase, and shaft centerline measurements.

Frequently Asked Questions

Q: How does the 140734-08 module validate the -10 VDC gap voltage?

A: The module continuously monitors the DC bias voltage of the connected eddy-current probe system. If the voltage drifts outside the configured linear range of the transducer, the module immediately triggers a Transducer OK limit fault.

Q: Can maintenance crews hot-swap this module while the 3500 rack has power?

A: Yes, technicians can perform live insertion and removal under power. This capability allows module replacement without interrupting the operation of adjacent monitor modules within the 3500 rack chassis.

Field Installation Guidelines

• Clear all debris from the 3500 rack chassis slot before inserting the module guide rails.
• Terminate all proximity probe coaxial cables using specified internal or external termination blocks, then ground the outer shield at the chassis bulkhead to prevent ground loops.
• Verify transducer scaling configurations via the 3500 Rack Configuration Software before putting the machinery protection system online.
• Maintain strict physical separation between high-voltage field wiring and the low-voltage 4-20 mA analog output instrument loops.
