Description

Brief Product Description

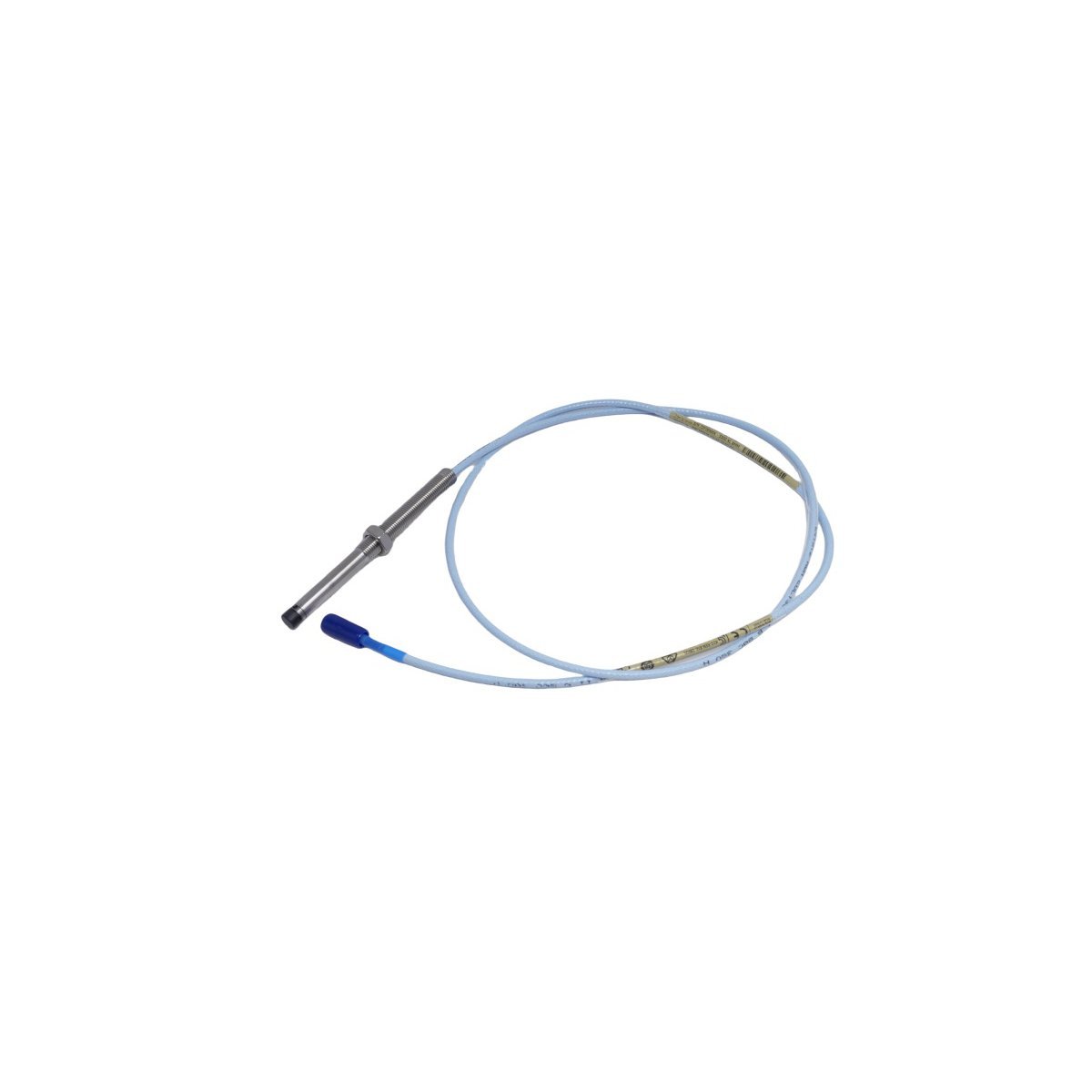

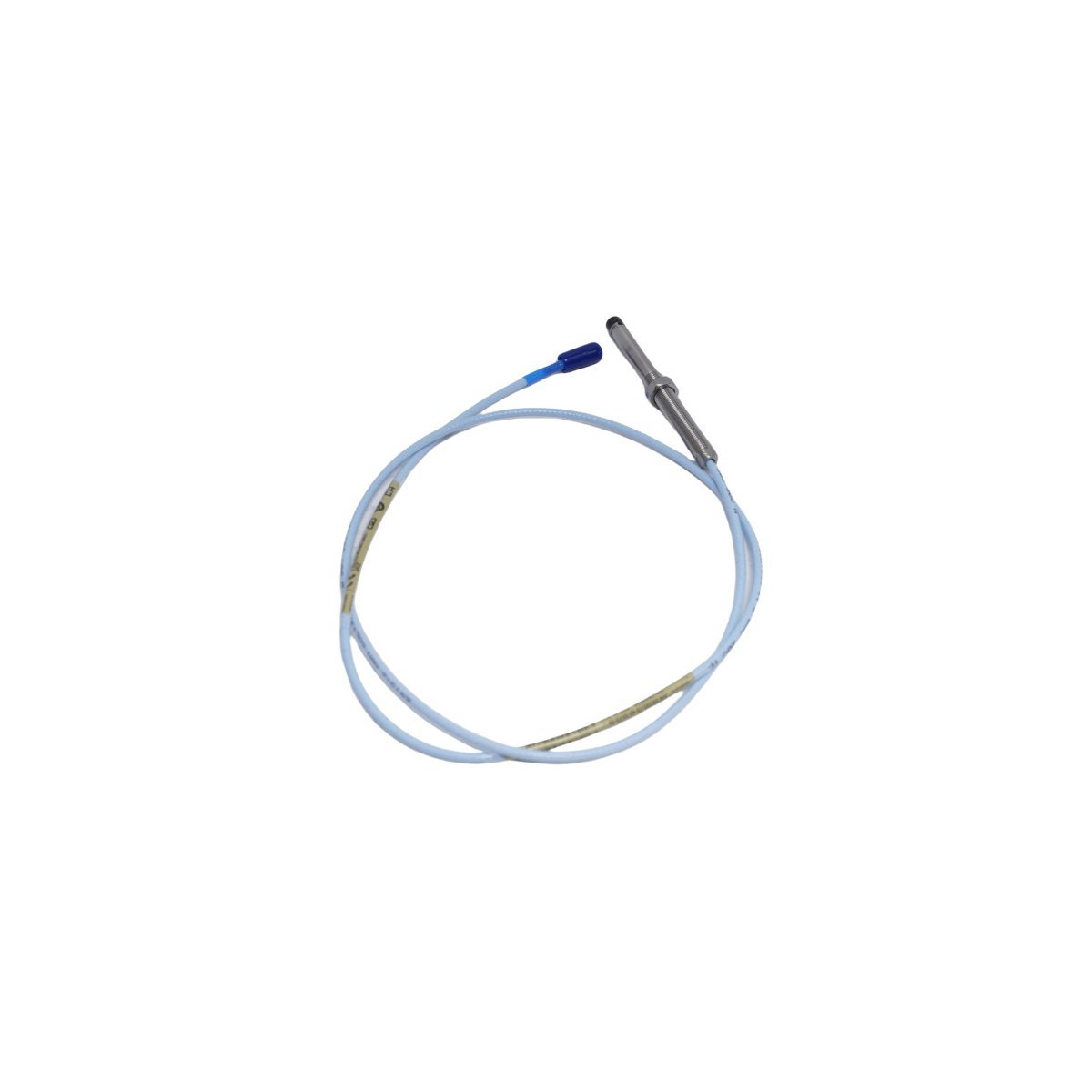

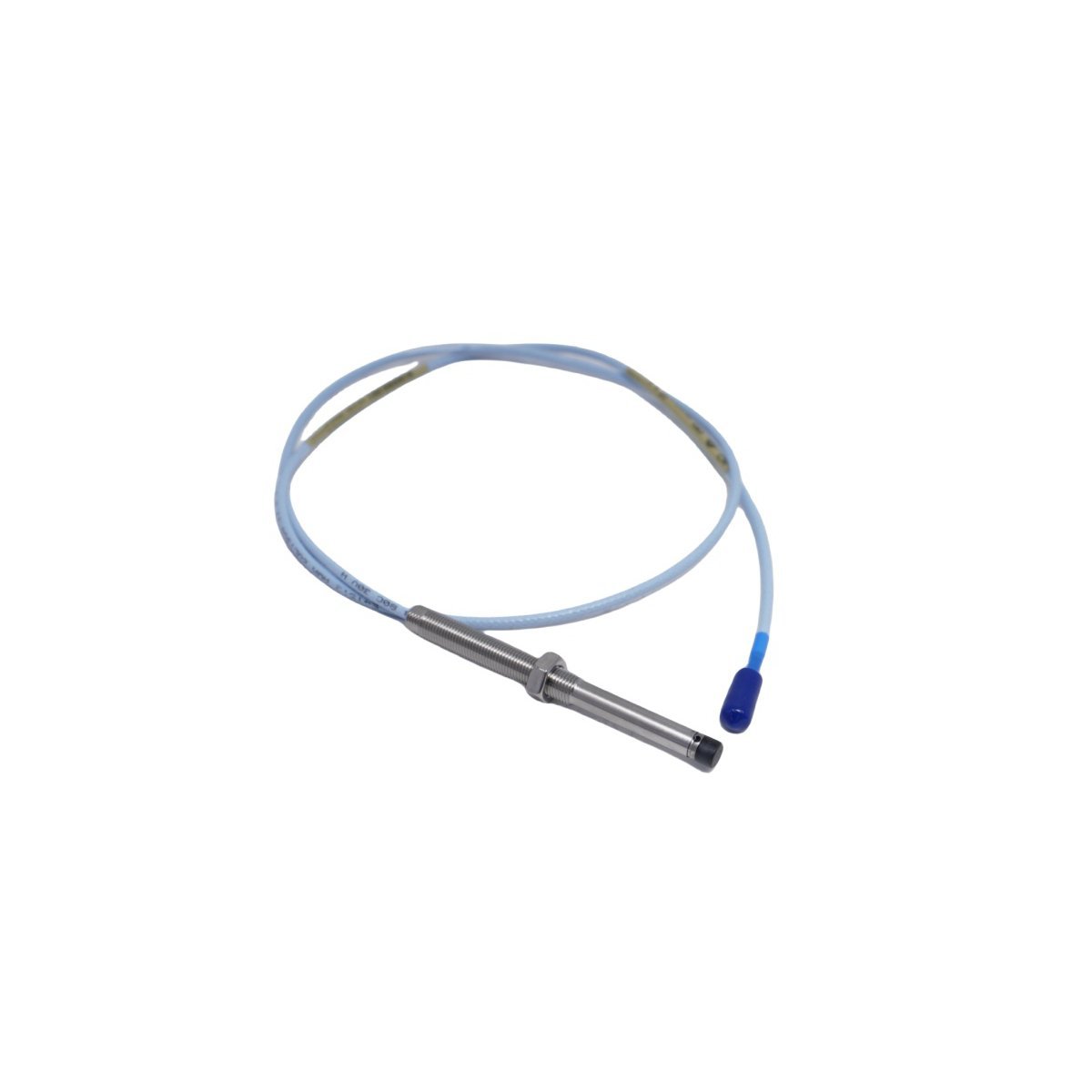

The Bently Nevada 330101-00-15-10-02-00 is a high-performance 3300 XL 8mm proximity probe designed for non-contacting vibration and displacement measurements on critical rotating machinery. This eddy current sensor provides essential telemetry for radial vibration, shaft position, and speed detection in industrial turbines and compressors.

Advanced Machinery Diagnostics and Eddy Current Sensing

The 330101-00-15-10-02-00 acts as a fundamental sensing element for Bently Nevada’s Turbine Supervisory Instrumentation (TSI) systems. By generating a high-frequency electromagnetic field, the probe tip monitors the precise gap between itself and the target rotor surface. This allows the system to capture real-time dynamic motion, such as radial vibration and axial thrust position. Consequently, plant operators can identify early indicators of mechanical stress, including shaft unbalance and bearing misalignment. These insights prevent catastrophic failures and allow for data-driven maintenance scheduling that extends the lifecycle of heavy-duty rotating assets.

Rugged Industrial Design and Signal Integrity

Bently Nevada engineered the 3300 XL 8mm probe series to maintain exceptional accuracy under the most grueling industrial conditions. The probe utilizes a specialized polyphenylene sulfide (PPS) tip and a stainless steel body to resist corrosion from oil, water, and industrial chemicals. Furthermore, the 330101-00-15-10-02-00 offers superior thermal stability, ensuring that measurement drift remains minimal even when temperatures fluctuate significantly near the bearing housing. This hardware resilience ensures that the critical vibration signals remain clean and repeatable, providing a solid foundation for automated safety shutdown systems and high-level diagnostic software.

Seamless Integration and Maintenance Efficiency

The 330101-00-15-10-02-00 integrates effortlessly with 3300 XL Proximitor Sensors and extension cables. This model specifically features a standard mounting configuration that simplifies installation in both new machinery builds and legacy system retrofits. Transitioning to Bently Nevada’s standardized probe architecture allows maintenance teams to benefit from interchangeable components, which reduces the necessity for large on-site spare part inventories. By providing a dependable and easy-to-install sensing solution, this proximity probe enhances the overall reliability of mission-critical equipment in power plants, refineries, and manufacturing facilities worldwide.

Key Technical Characteristics

• 8mm Sensor Tip: Optimized for standard range radial vibration and axial position measurements.
• Non-Contact Technology: Employs eddy current principles to monitor shafts without physical wear.
• Chemical and Oil Resistance: Built with materials that withstand harsh lubricants and corrosive environments.
• Enhanced Linearity: Delivers a consistent scale factor across its entire linear range for precise monitoring.
• Flexible Mounting: Compatible with various bracketry and housing configurations for versatile machine fitment.
• Interchangeable Design: Fully compatible with the broader 3300 XL series ecosystem for simplified maintenance.

Technical Specifications
