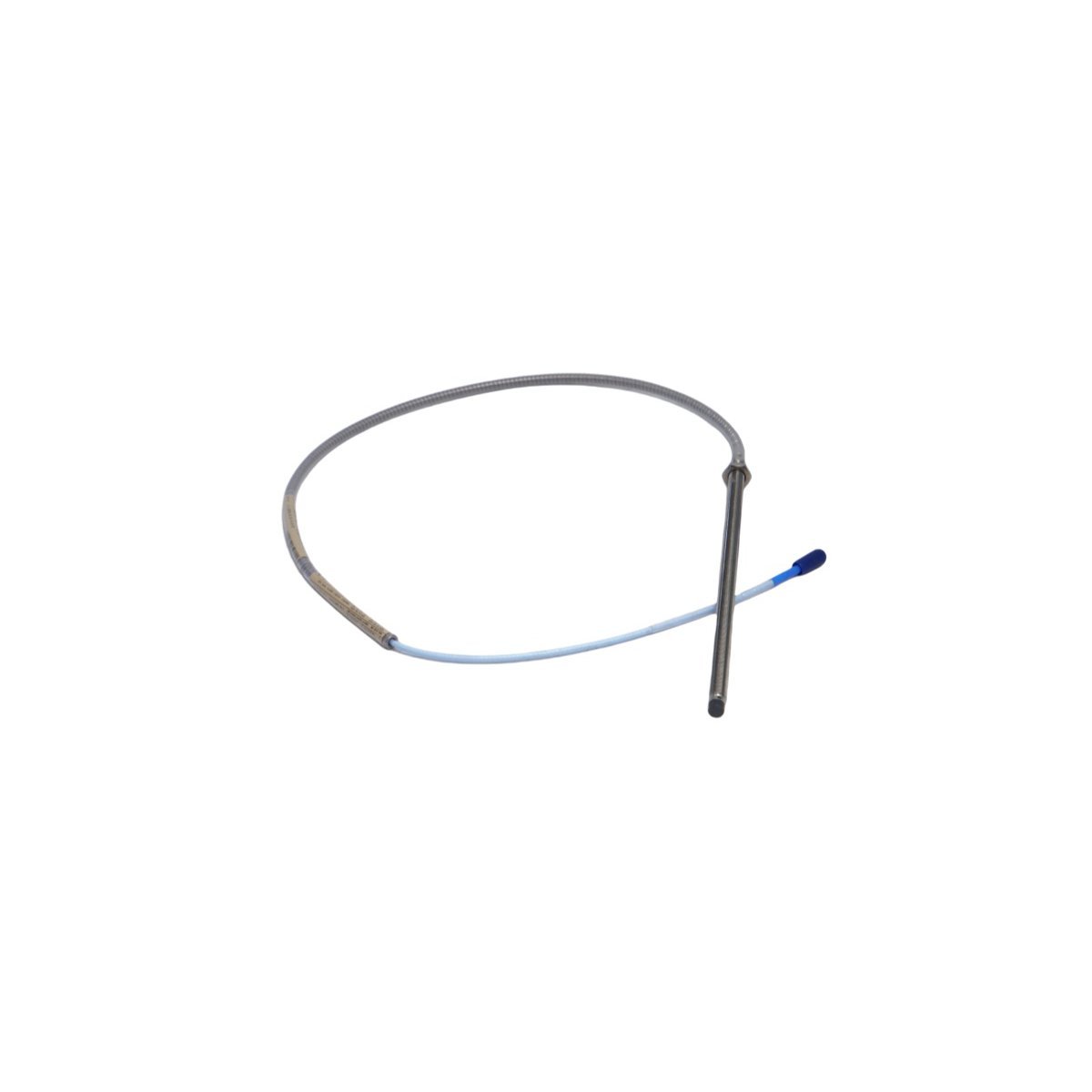

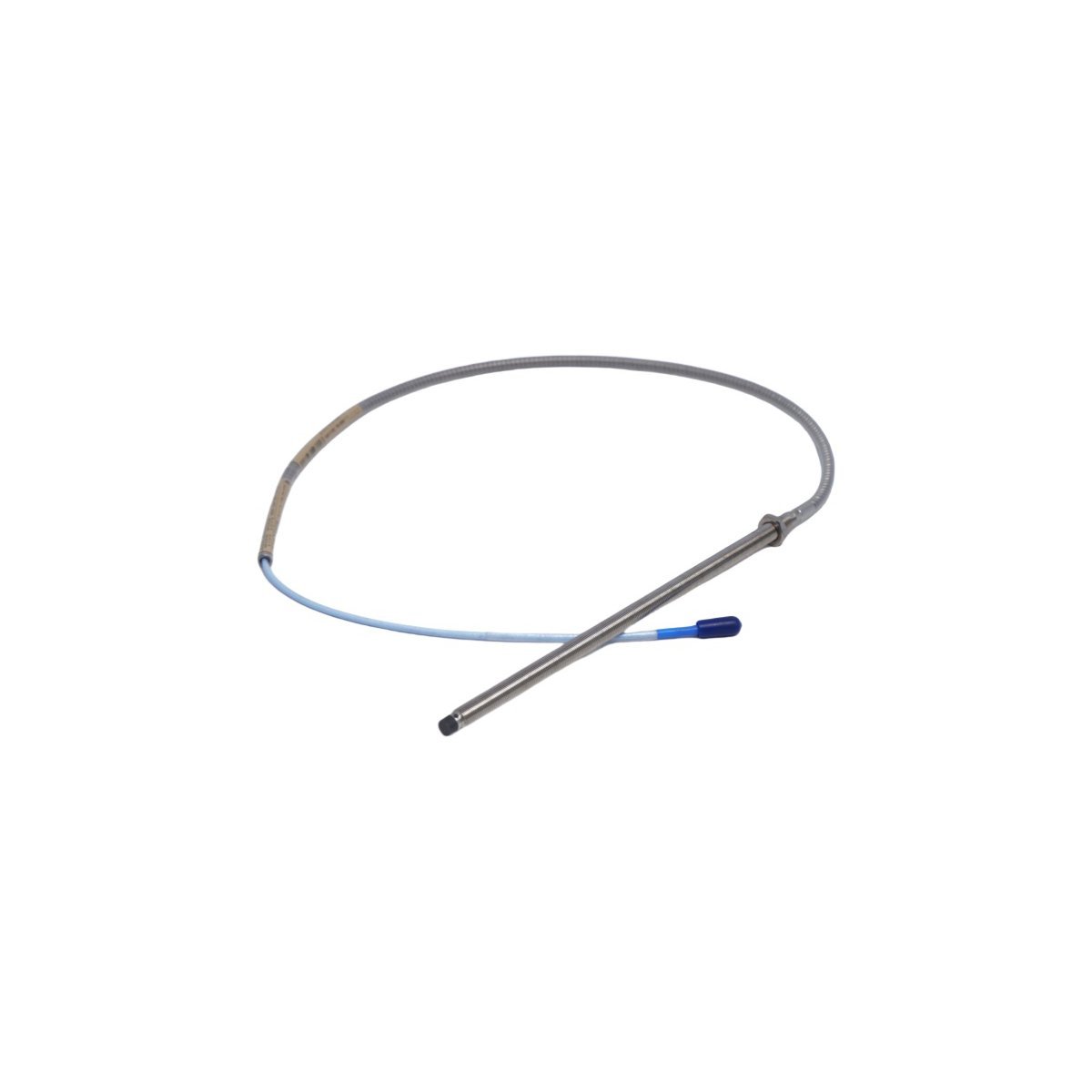

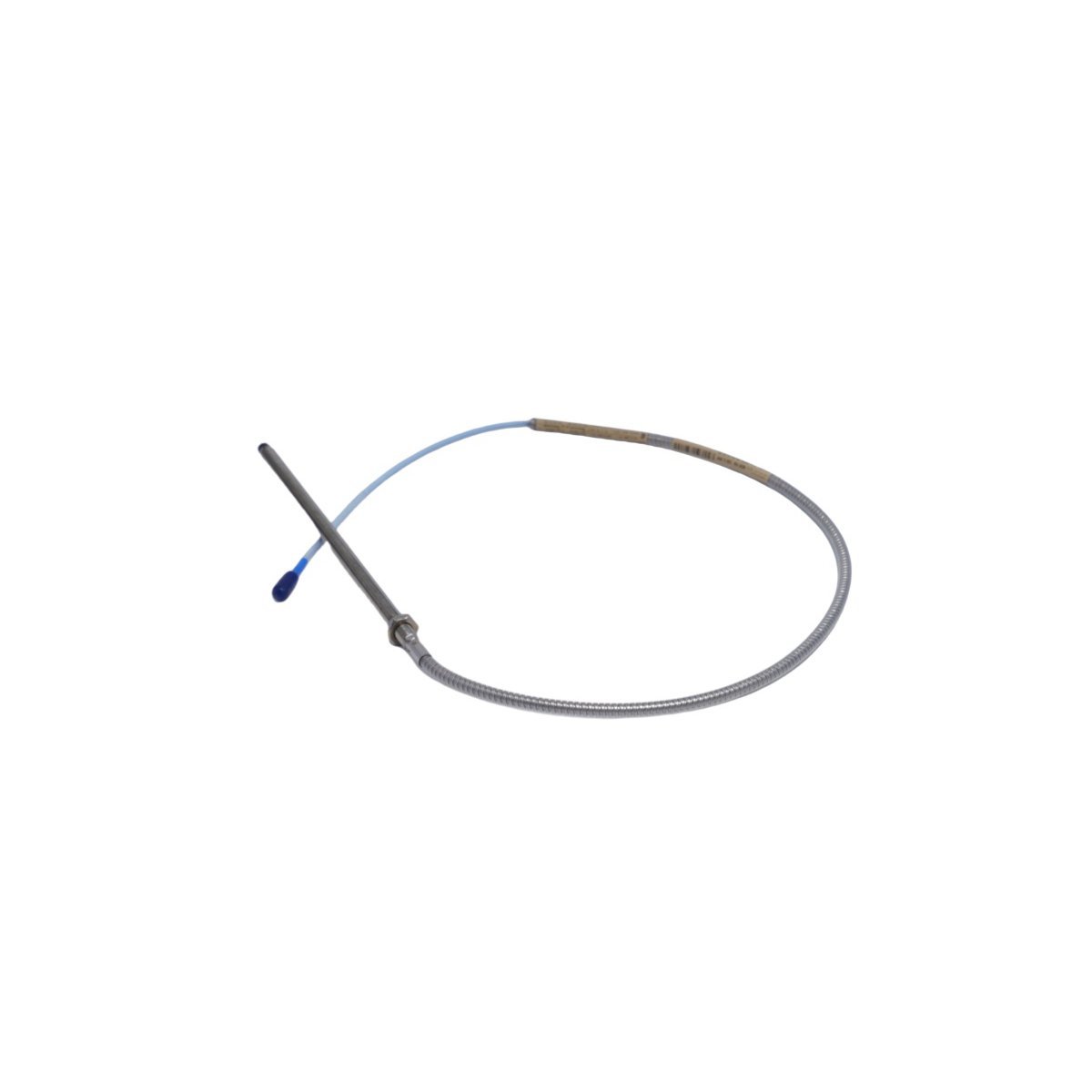

Bently Nevada 330104-00-25-10-02-05 | 3300 XL 8 mm Proximity Transducer Probe

The Bently Nevada 330104-00-25-10-02-05 is a high-precision, non-contact sensor designed for the 3300 XL 8 mm Proximity Transducer System. This probe measures static and dynamic distances between the target and the sensor tip. It plays a critical role in vibration monitoring and position measurement for rotating machinery. By utilizing eddy current technology, the probe captures minute displacements without physical contact. This ensures zero mechanical wear and long-term data consistency. Engineers rely on this probe to monitor shaft vibration, thrust position, and speed in mission-critical industrial assets.

Advanced Engineering for Harsh Industrial Environments

Bently Nevada builds the 330104-00-25-10-02-05 to withstand extreme conditions. The probe operates effectively in environments filled with oil, water, or corrosive chemicals. Its rugged construction features a polyphenylene sulfide (PPS) tip and a stainless steel body, providing superior resistance to mechanical stress. Furthermore, the 3300 XL series offers significant improvements over previous models. These include better temperature stability and a more linear output across a wider range. These enhancements reduce the frequency of recalibration and lower the total cost of ownership for maintenance teams.

Technical Specifications and Configuration

This specific model follows a modular configuration to meet diverse mechanical installation requirements. The part number breaks down as follows:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330104-00-25-10-02-05
• Probe Tip Diameter: 8 mm
• Unthreaded Length (00): 0.0 inches
• Overall Case Length (25): 2.5 inches
• Total Length (10): 1.0 meter (3.3 feet)
• Connector Option (02): Miniature coaxial ClickLoc connector
• Agency Approval (05): Multiple hazardous area approvals (ATEX, IECEx, CSA)
• System Compatibility: 3300 XL 8 mm Proximitor Sensor and Extension Cable
• Operating Temperature Range: -51 °C to +177 °C (-60 °F to +351 °F)

Strategic Integration in Machinery Protection

Proper deployment of the 330104-00-25-10-02-05 enhances the safety of power generation and petrochemical facilities. The probe integrates seamlessly with Bently Nevada 3500 Series monitoring racks. This connection allows for real-time alarms and automated machine trips if vibration levels exceed safe thresholds. Because the probe provides high-fidelity signals, it enables diagnostic software to identify specific faults like misalignment or rotor unbalance. Transitioning to this 3300 XL hardware ensures that plant operators meet modern safety standards while maintaining maximum equipment uptime.

Installation and Calibration Excellence

Achieving peak accuracy requires precise gapping during installation. Technicians typically use the DC voltage output from a Proximitor sensor to set the probe at the linear range midpoint. The 330104-00-25-10-02-05 features a ClickLoc connector, which prevents accidental loosening due to machine vibration. Additionally, the gold-plated contacts ensure low electrical resistance and high signal-to-noise ratios. By following Bently Nevada’s standardized installation procedures, facilities can achieve reliable machinery protection and extended service life for their most valuable rotating assets.
