Description

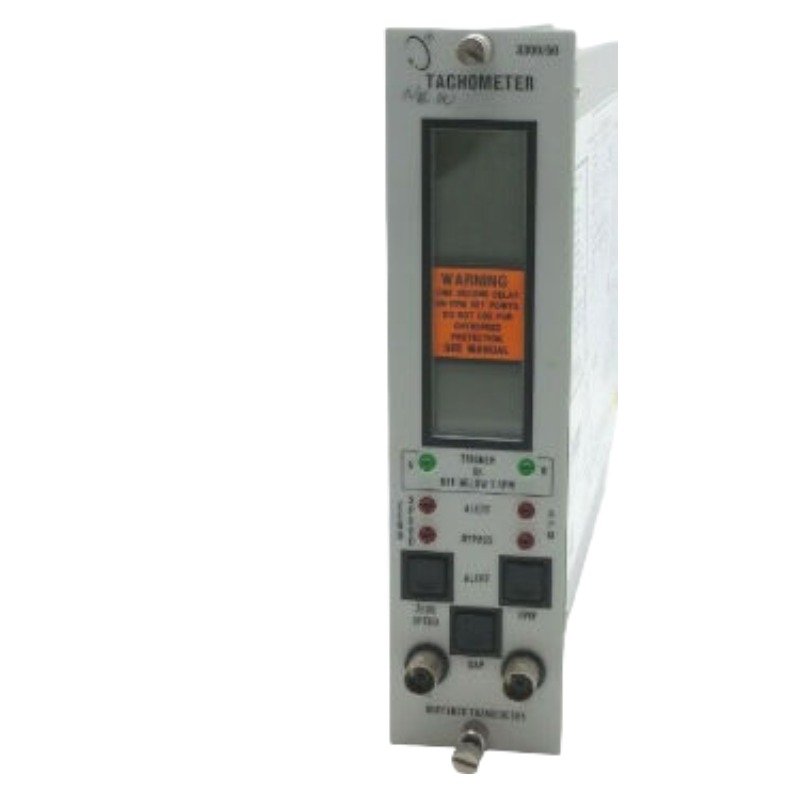

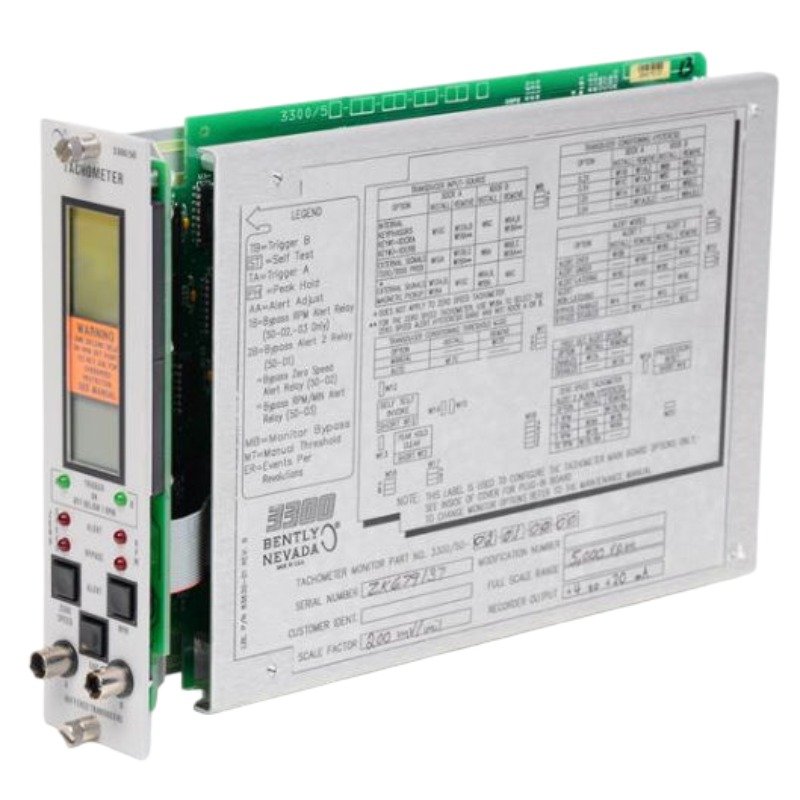

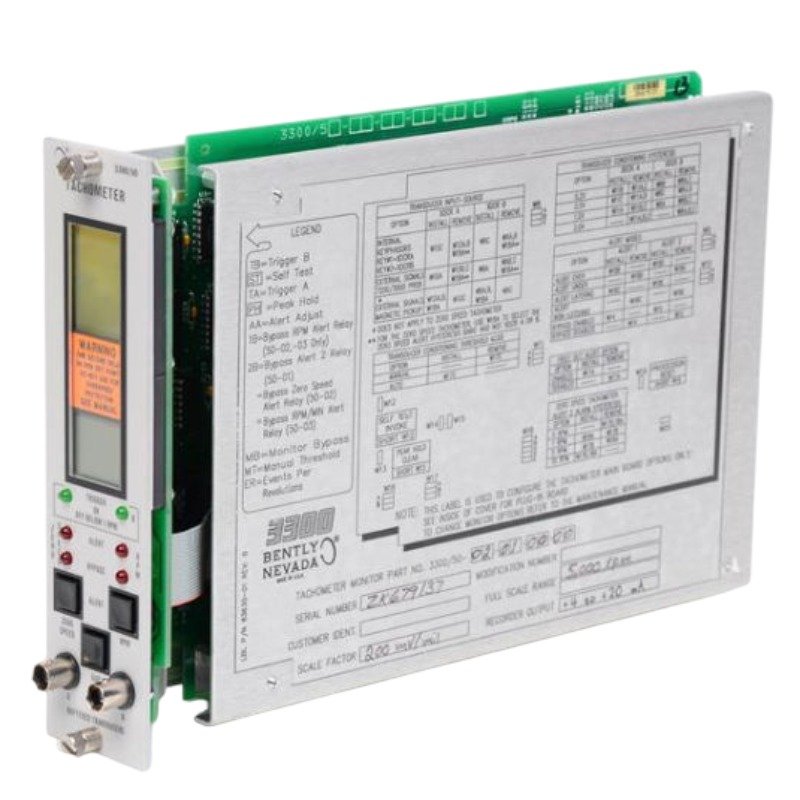

The Bently Nevada 3300/50-02-02-00-00, also cataloged as the 3300/50 Tachometer Monitor, operates as a dedicated hardware component for processing high-frequency speed signals within Bently Nevada 3300 System platforms. The single-channel module accepts pulsed pulse-train voltage signatures from targeted rotational field sensors. It computes real-time shaft rotative velocity, monitors speed thresholds, and delivers zero-speed confirmation parameters. The hardware executes dual-transducer voting operations internally to reduce erroneous machine speed faults, driving local display indicators and backplane alarm loops through physical relay contact behavior.

Suffix Breakdown & Model Matrix

• 3300/50: Base Part Identifier for the standard rack-mounted speed and acceleration tachometer monitor card.
• -02: Configuration Option designating a Zero Speed Tachometer configuration operating beneath 100 rpm thresholds.
• -02: Alarm Relay Option provisioning a 5 A hermetically-sealed dry mechanical contact Alert relay setup.
• -00: Agency Approval Option specifying standard industrial production without specialized zone tags or hazardous area markings.
• -00: Safety Barrier Option certifying a non-barrier terminal input assembly without internal zener hardware components.

Hardware Specifications

Eddy-Current Scaling and TSI Performance

The tachometer module utilizes specialized pulse-edge calculations matching input voltage thresholds derived from standard eddy-current probe scaling or external passive magnetic pickups. When paired with standard 8 mm proximity systems, the tracking core reads passage events over keyways or gear teeth, utilizing a baseline gap voltage validation target of -10 VDC to secure sensor linearity. The internal processing network evaluates incoming pulse frequencies to trace transient rotor dynamics during machine coast-down intervals. High-frequency filtering configurations inside the multi-layer printed circuit board sustain signal cross-talk suppression between parallel sensor paths, verifying precise speed indexing without data jitter or missed trigger boundaries.

Frequently Asked Questions

Q: Can this tachometer module be integrated independently to drive primary machine overspeed trip safety control systems?

A: No. The 3300/50 instrument does not possess the processing response latency profile or protective redundancy paths required for dedicated overspeed safety shutdown tasks. It functions strictly as a data logger, zero-speed monitor, or continuous velocity indicator.

Q: How does the internal transducer voting framework manage a single transducer failure path?

A: The monitor processes signals from two input probes concurrently. Internal logic tracks sensor integrity via individual OK monitoring paths, preventing a single sensor drop or open-circuit fault from creating a false zero-speed indication or an accidental system alarm state.

Field Installation Guidelines

• Disable or bypass external alert annunciator paths prior to inserting the monitor into the live backplane housing to shield the terminal bus from transient logic state switching.
• Set internal circuit jumpers to match the exact physical gear tooth count or keyway quantity of the target shaft before sliding the card frame into place.
• Terminate passive magnetic pickup or proximity probe shield wires exclusively at the designated backplane earthing strip to prevent ground loop noise from corrupting pulse edge detection.
• Avoid routing tachometer sensor cables within the same cable tray as high-current AC motor supply conductors to maintain noise-rejection parameters across low-amplitude pulse profiles.
