Description

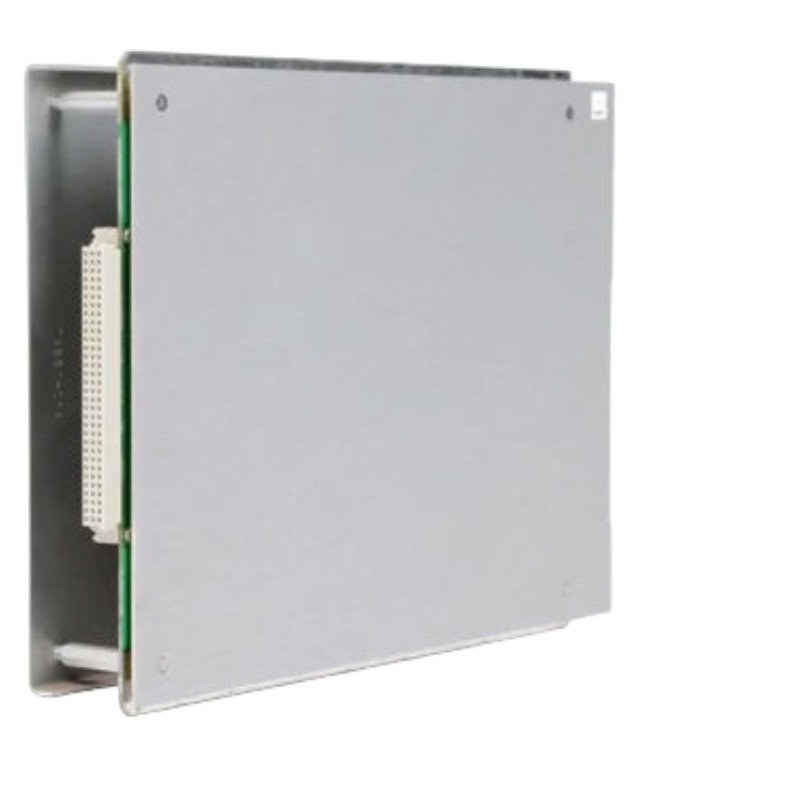

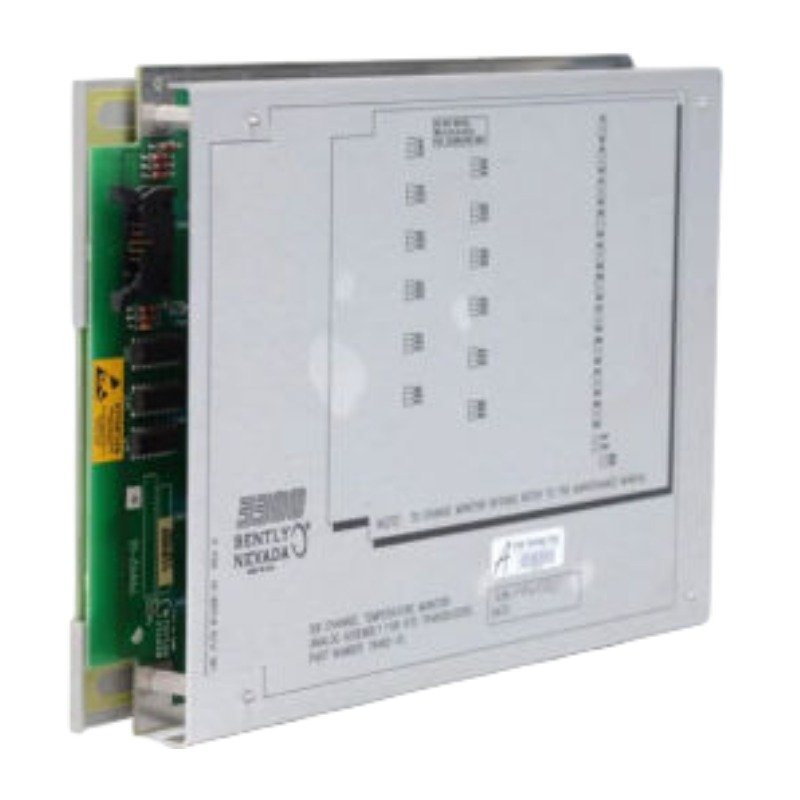

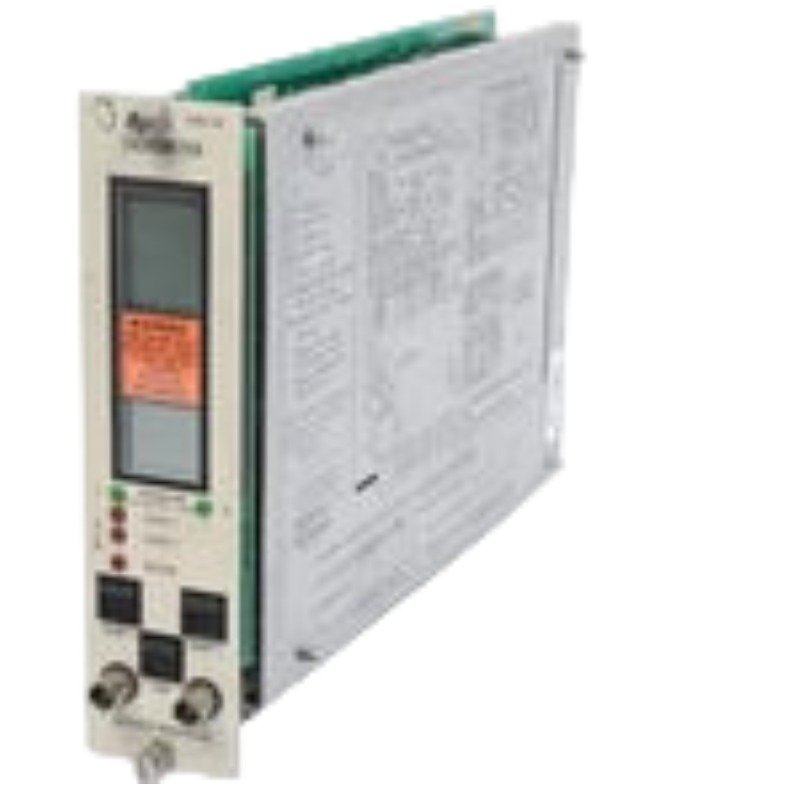

The Bently Nevada 3300/45-01-01-02-00, also cataloged as the 3300/45 Dual Differential Expansion Monitor, operates as a dedicated hardware component for continuous online machine casing and rotor displacement tracking within Bently Nevada 3300 System platforms. The dual-channel instrument processes continuous voltage inputs supplied from proximity transducer configurations to compute relative axial mechanical growth. It identifies thermal growth inequality between rotating components and stationary casings, tracking changes during structural temperature transitions. The internal processing network translates mechanical deviations directly into physical relay actions, avoiding catastrophic machine clearance collapse inside a single specialized rack slot.

Suffix Breakdown & Model Matrix

• 3300/45: Base Series Identifier for the Dual Differential Expansion Monitor.
• -01: Full-scale Range Option selecting 5-0-5 mm (symmetrical metric tracking matrix).
• -01: Transducer Input Option configured explicitly for a 25 mm proximity probe assembly.
• -02: Alarm Relay Option provisioning dual hermetically-sealed dry mechanical contact relays.
• -00: Agency Approval Option dictating standard industrial execution with no specific hazardous zone certification markings.

Hardware Specifications

Eddy-Current Scaling and TSI Performance

The monitoring framework governs data incoming from specialized 25 mm probes, matching an expected eddy-current probe scaling format of 0.787 V/mm (20 mV/mil) or 0.392 V/mm (10 mV/mil) through internal jumper allocation. Field technicians observe specific gap voltage validation limits via physical front-panel coaxial connectors, adjusting mechanical probe brackets to establish precise baseline positions within the linear envelope. The integration framework tracks complex structural expansions and transient rotor dynamics during high-temperature steam turbine startup cycles. By stabilizing power distribution inside the multi-channel housing, the hardware executes cross-talk suppression between channels, validating real-time axial growth profiles without field signal contamination.

Frequently Asked Questions

Q: How does the monitor execute automatic trip safety validation if Channel B is not required by the plant application?

A: Technicians can isolate or turn off Channel B processing loops using internal hardwire jumpers. This configuration suppresses Not OK fault warnings and prevents unassigned hardware from blocking system logic execution.

Q: Can the hermetically-sealed relays specified by the -02 option be configured for AND voting internally?

A: Yes. The dual-relay modules support jumper-selectable OR or AND internal logic options to link Alert and Danger thresholds before driving field machinery interlock loops.

Field Installation Guidelines

• Verify complete module power isolation and disconnect terminal strip connections prior to sliding the assembly frame out of the monitoring chassis to mitigate static shock risk.
• Mount the 25 mm proximity transducer using a minimum of five full thread engagements to ensure mechanical stability under high-vibration conditions.
• Ground the extension line shield blocks only at the designated chassis frame bus. Maintain a single-point floating configuration across field junctions to eliminate common-mode ground noise.
• Route isolated 4-20 mA recorder loops through separate grounded wire conduit pathways, keeping them segregated from adjacent high-voltage motor controls.
