Description

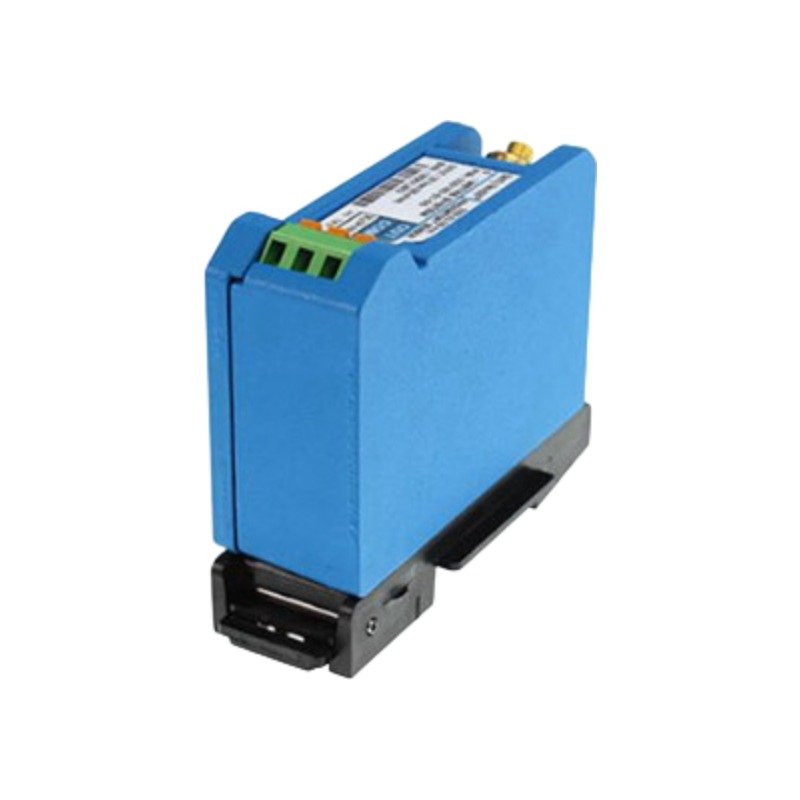

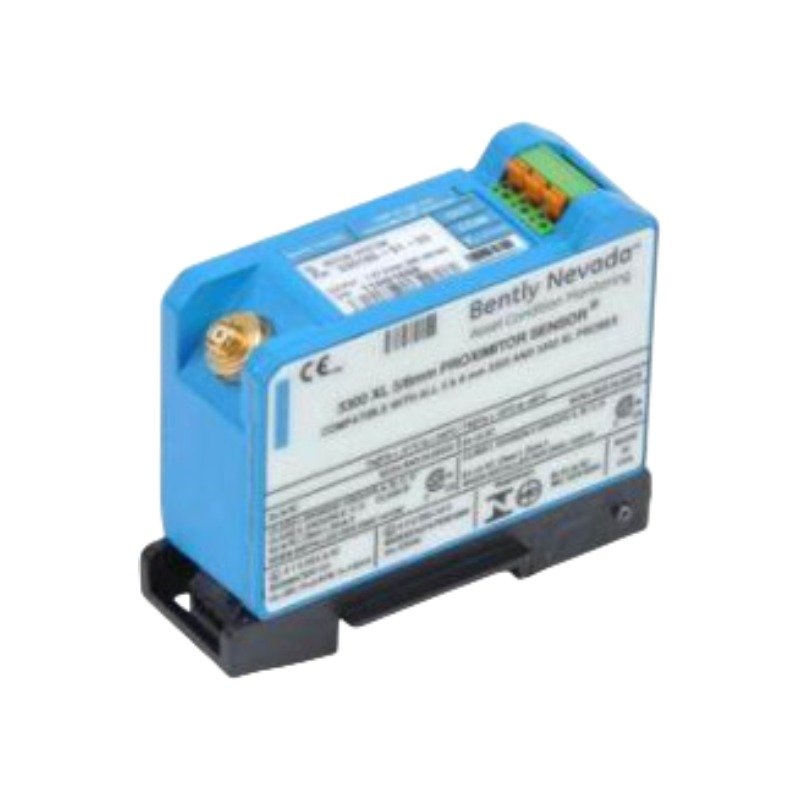

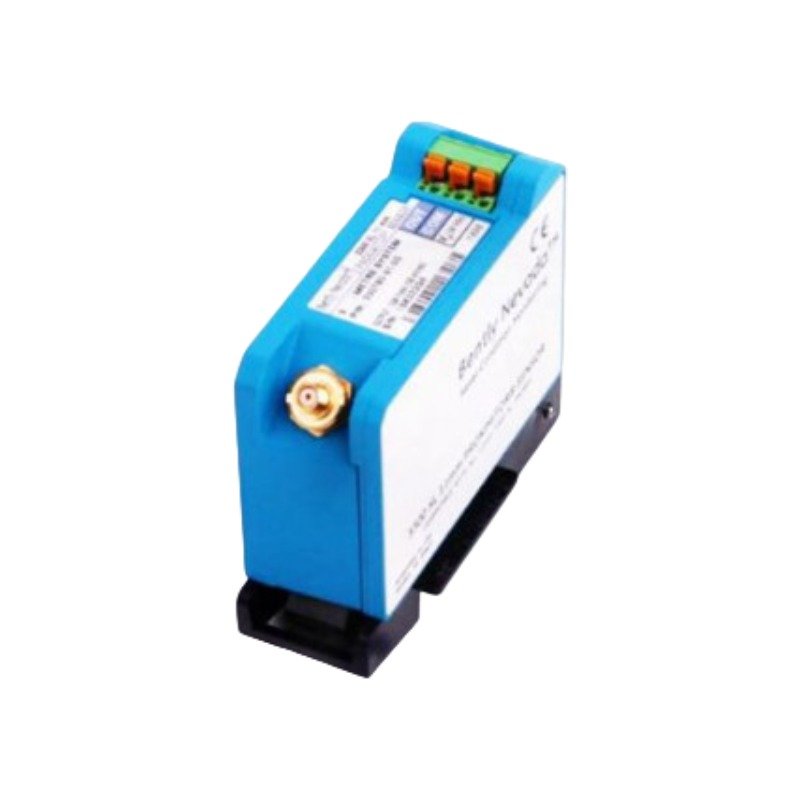

Configured for specific technical task in industrial machinery protection and condition monitoring, the Bently Nevada JNJ5300-08-05-007-030-10-00-00-06 (Bently Nevada JNJ5300 Proximity Transducer System) provides direct physical/electrical execution. The hardware translates mechanical shaft motion and position relative to an eddy-current probe tip into reliable proportional voltage signals. It interfaces directly with continuous monitoring backplanes to evaluate static or dynamic parameters without physical contact.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The hardware system relies on accurate eddy-current probe scaling to convert targeted mechanical displacement into precise voltage deviations. Calibration requires rigorous gap voltage validation to maintain optimal linearity across the measurement range. The nominal calibration targets a -10 VDC gap voltage, which aligns the sensor exactly at the physical center of the linear calibration envelope. System integration necessitates cross-talk suppression through appropriate structural separation of adjacent probe leads and rigorous shield termination at the terminal block layer to prevent mutual induction and rotor dynamics reporting errors.

Frequently Asked Questions

Q: What is the primary purpose of verifying the -10 VDC gap voltage target during installation?

A: The -10 VDC target positions the proximity probe at the exact midpoint of its linear range, ensuring symmetric capability for measuring both positive and negative shaft displacements without signal saturation.

Q: How is cross-talk suppressed when multiple JNJ5300 proximity systems are installed near the same target?

A: Cross-talk suppression is maintained by enforcing standard physical separation distances between probe tips, deploying properly twisted shielded cable pairs, and ensuring that all shields are grounded at a single common reference point within the monitoring cabinet.

Field Installation Guidelines

• Ensure the proximity probe tip is completely clear of any adjacent metallic structures other than the observed target area to avoid calibration errors.
• Maintain a minimum physical bend radius for all coaxial extension cables to prevent alteration of electrical impedance or physical damage to the conductor.
• Achieve complete engagement of all threaded connectors, ensuring a secure lock without over-tightening to maintain calibration integrity.
• Isolate all instrument signal wires from high-voltage AC power routing trays to prevent EMI or inductive noise coupling into the low-voltage analog circuitry.
