Description

Configured for continuous radial vibration monitoring in rotating machinery monitoring networks, the Bently Nevada 3300/16-XX-01-03-00-00-02 (3300/16 Dual Vibration Monitor) provides direct physical/electrical execution. This hardware component interfaces with two independent proximity transducer channels, and it actively converts raw high-frequency displacement signals into proportional DC current loops and discrete relay state transitions.

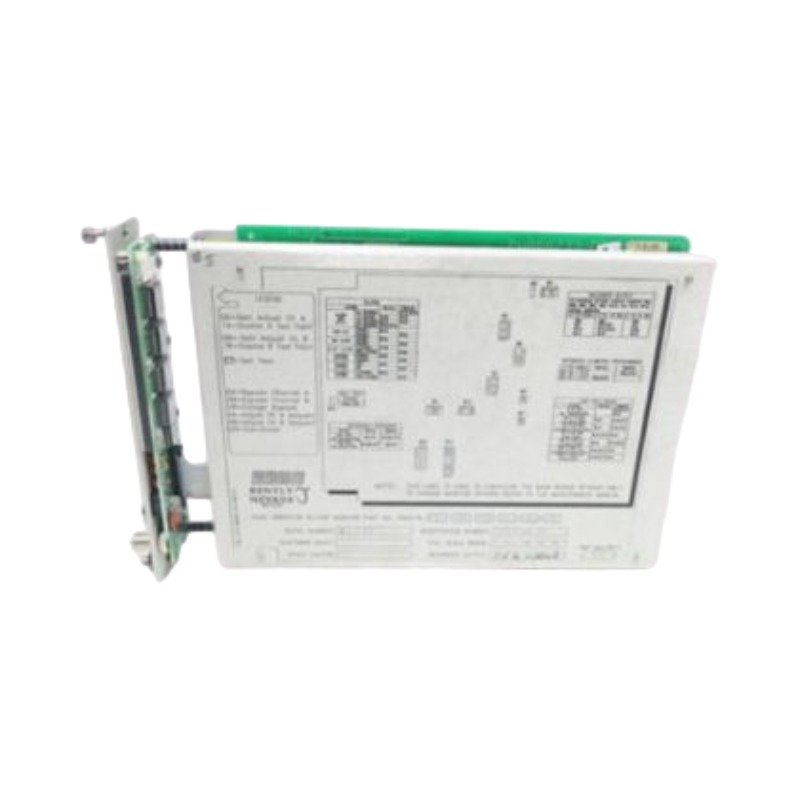

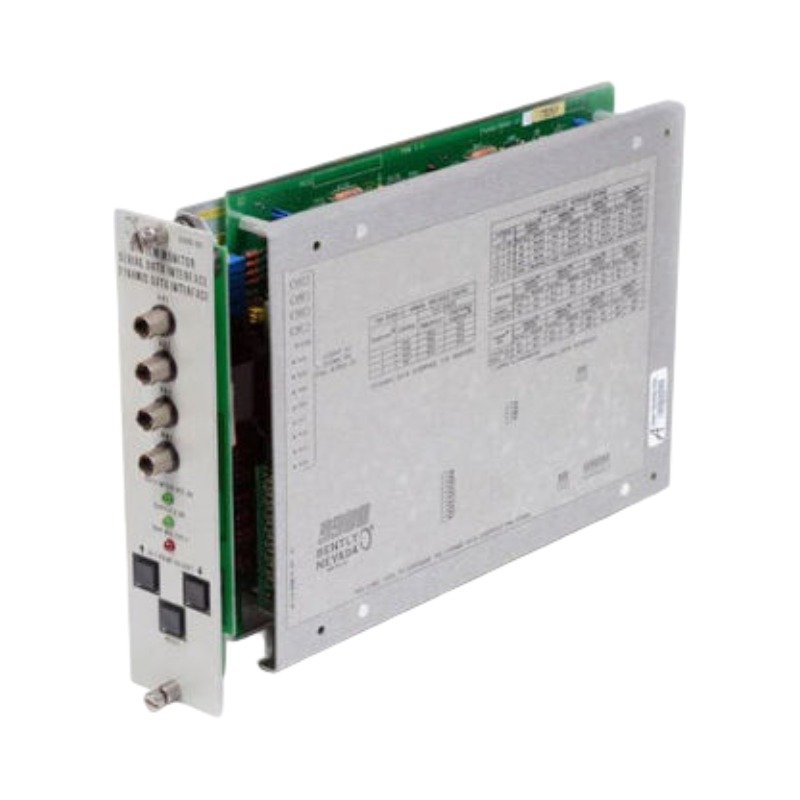

Bently Nevada 3300/16 Dual Vibration Monitor Module. Source: world of controls

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The 3300/16 monitor processes highly dynamic voltage fluctuations that demand exact eddy-current probe scaling to translate electrical signals into true physical micrometer or mil displacement values. Therefore, field commissioning requires precise gap voltage validation, which guides engineers to establish a steady -10 VDC baseline across both probe loops. This precise adjustment ensures that the active analog channels track real-time rotor dynamics without clipping or signal distortion during transient machine events. Furthermore, because adjacent proximity sensors can induce mutual electromagnetic noise, the module employs internal cross-talk suppression circuitry to eliminate parasitic signals, thereby isolating the true vibration profiles of the machine shaft.

Frequently Asked Questions

Q: How can field operators access the raw transducer signals without interrupting the 4-20 mA monitoring loop? A: The front panel of the 3300/16 monitor features two dedicated coaxial BNC connectors. Field technicians connect external data collectors or oscilloscopes directly to these ports, which then provide buffered voltage outputs identical to the raw sensor input without impacting the main current loop or trip logic.

Q: What specific action occurs if a transducer cable breaks or suffers a short circuit? A: The module constantly samples the incoming DC gap voltage against pre-defined limits. Consequently, an out-of-range voltage causes the “Not OK” status indicator to light up, while the module simultaneously bypasses its internal trip logic to prevent a false shutdown and drives a dedicated fault relay.

Field Installation Guidelines

• Chassis Card Securement: Slide the 3300/16 module completely into its assigned slot within the 3300/05 chassis, and then firmly tighten both the front panel and rear retention screws to establish stable backplane power contact.
• Shield Grounding Infrastructure: Land the external field transducer shield wires exclusively on the designated “SHLD” terminals of the rear relay module. Meanwhile, leave the shield floating and isolated at the machine junction box to eliminate ground loops.
• Signal Line Separation: Route all 4-20 mA output loops and raw sensor lines through independent, low-noise conduits well away from heavy industrial power lines or variable frequency drive (VFD) cabling.
• Terminal Block Torque: Tighten all screws on the rear I/O field terminal block to a maximum specification of 0.56 N-m (5 in-lb) to maintain a gas-tight electrical connection and avoid intermittent open circuits.
