Description

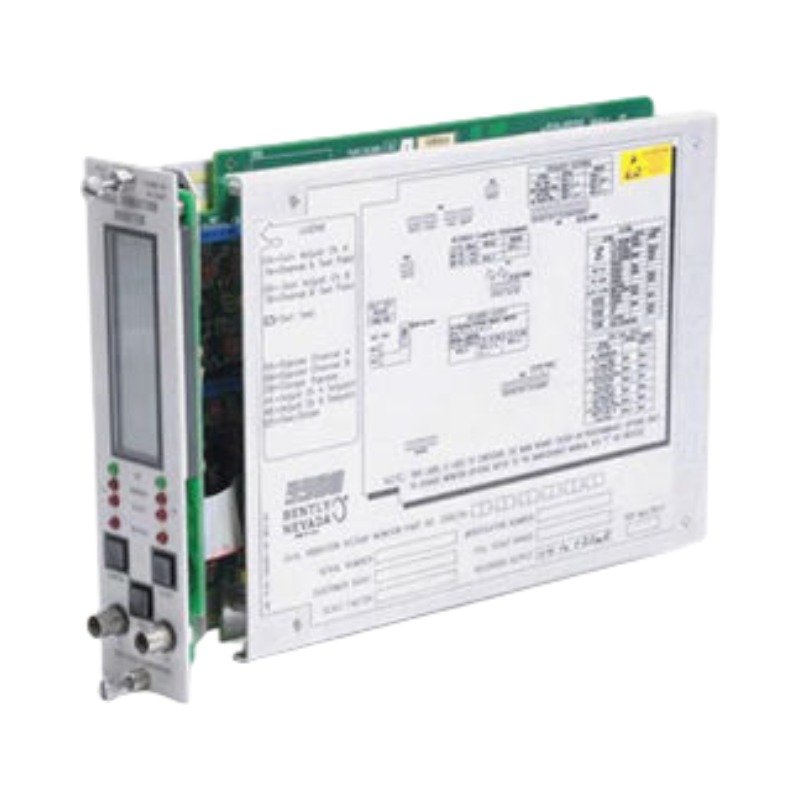

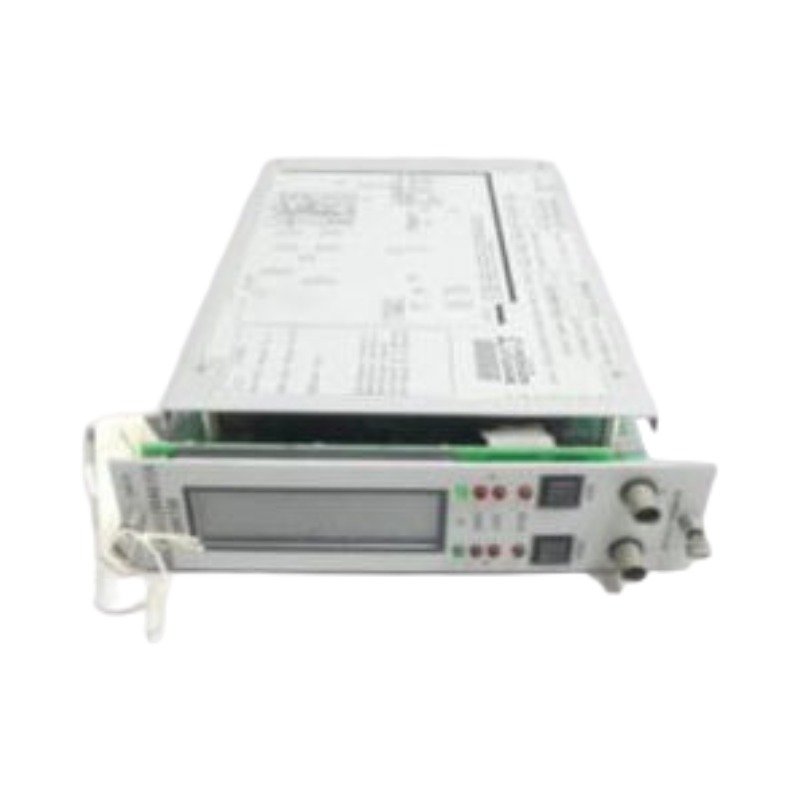

Configured for continuous casing vibration monitoring in rotating machinery monitoring networks, the Bently Nevada 3300/25-XX-15-15-00-00-03-02 (3300/25 Dual Accelerometer Monitor) provides direct physical/electrical execution. This hardware component processes signals from two independent accelerometer transducers, and it actively converts these high-frequency acceleration inputs into proportional analog current loops and discrete dry-contact relay outputs.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The 3300/25 monitor integrates into a complete monitoring network where neighboring slots execute eddy-current probe scaling for proximity systems. Consequently, field commissioning relies on rigorous gap voltage validation of those proximity loops, targeting a stable -10 VDC baseline to track true shaft behavior. Meanwhile, this accelerometer module evaluates high-frequency casing signals, combining casing acceleration data with proximity sensor tracking to map comprehensive rotor dynamics. Because routing high-gain vibration signals alongside sensor lines can introduce noise, the module employs advanced cross-talk suppression circuitry to eliminate mutual inductive interference, thereby preserving signal integrity across all adjacent channels.

Frequently Asked Questions

Q: How can field engineers perform periodic calibration checks on the acceleration channels without removing the field wiring?

A: The front panel of the 3300/25 features two buffered transducer BNC ports. Field technicians connect specialized signal generators directly to these connectors to verify the channel gain and logic response, completely bypassing the need to disturb rear field connections.

Q: What action does the module take if an internal transducer element undergoes an open-circuit fault?

A: The module continuously monitors the bias current of the field accelerometer. Therefore, an open circuit immediately trips the “Not OK” status indicator, driving the channel into a safe bypass state to prevent a false machine shutdown while activating the dedicated system fault relay.

Field Installation Guidelines

• Chassis Alignment: Slide the 3300/25 card smoothly into its designated backplane slot within the 3300/05 rack frame, and then tighten the captive panel screws fully to establish proper power connection.
• Shield Grounding Control: Connect the field transducer braided shields exclusively to the designated “SHLD” terminals on the rear terminal block. Meanwhile, leave the shield completely ungrounded and isolated at the accelerometer sensor head to eliminate ground loop currents.
• Conduit Routing Path: Route all accelerometer signal cables and 4-20 mA current loops inside dedicated, grounded steel conduits to isolate them from high-voltage AC lines or high-frequency motor drive cables.
• Terminal Screw Torque: Tighten all screws on the rear I/O block assembly to a precise specification of 0.56 N-m (5 in-lb) to ensure gas-tight electrical termination and prevent intermittent signal loss.
