Description

The Bently Nevada 3300/16-15-01-03-00-00-02 serves as the primary 3300/16 Dual Vibration Monitor utilized to execute continuous radial vibration monitoring across 3300 Machinery Monitoring System platforms. This hardware component accepts dynamic inputs from two independent proximity transducer channels and converts these inputs into proportional analog signals and discrete alarm transitions.

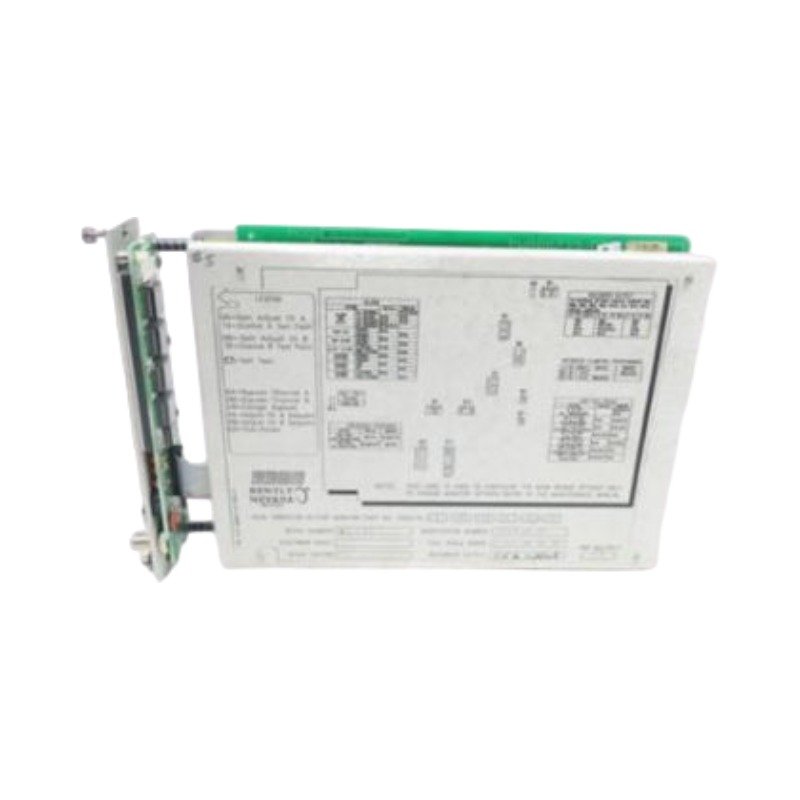

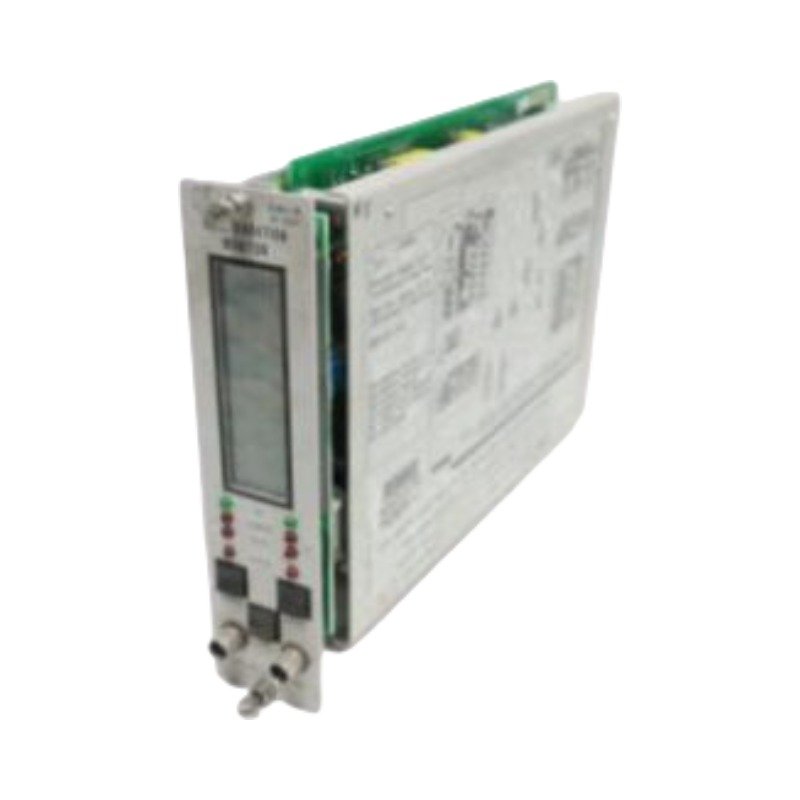

Bently Nevada 3300/16 Module Assembly. Source: PLC DCS Pro Ltd.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The 3300/16 monitor processes dynamic high-frequency signals that demand exact eddy-current probe scaling to convert voltage fluctuations into precise micrometer or mil displacement metrics. Therefore, technicians must conduct field gap voltage validation during loop commissioning, adjusting each channel to reach a steady -10 VDC baseline within the linear range of the transducer. This strict alignment enables the system to track real-time rotor dynamics accurately, including complex orbits and shaft centerline changes. Because high-frequency noise from close physical routing can obscure true vibration peaks, the module relies on internal cross-talk suppression circuitry to filter out magnetic interferences from adjacent sensors.

Frequently Asked Questions

Q: How can field personnel extract the raw vibration signal for analysis without disconnecting the module? A: The front panel of the 3300/16 includes two buffered transducer outputs via standard coaxial BNC connectors. Technicians connect external data collectors or oscilloscopes directly to these ports to analyze raw waveforms without interrupting the primary monitoring loop.

Q: What actions occur if a transducer cable fails or goes short-circuit? A: The module constantly monitors the DC gap voltage of the connected probes. If the voltage falls outside the acceptable range, the “Not OK” status indicator illuminates, the module bypasses its internal trip logic to prevent a false shutdown, and it activates a dedicated fault relay.

Field Installation Guidelines

• Chassis Slot Securement: Slide the 3300/16 card smoothly into its dedicated slot in the 3300/05 rack, and then fully tighten both rear and front panel retaining screws to ensure proper backplane power termination.
• Shield Grounding Infrastructure: Connect the field transducer shields exclusively to the designated terminal points on the rear relay module. Meanwhile, ensure the shield remains completely isolated at the sensor head to eliminate ground loop interference.
• Signal Line Isolation: Route the dual 4-20 mA output loops and buffered sensor paths through isolated, low-noise conduits away from industrial switching inductive loads.
• Terminal Wiring Torque: Tighten the field-wiring terminal blocks located on the companion rear I/O module to a specification of 0.56 N-m (5 in-lb) to prevent intermittent open-circuit faults.
