Description

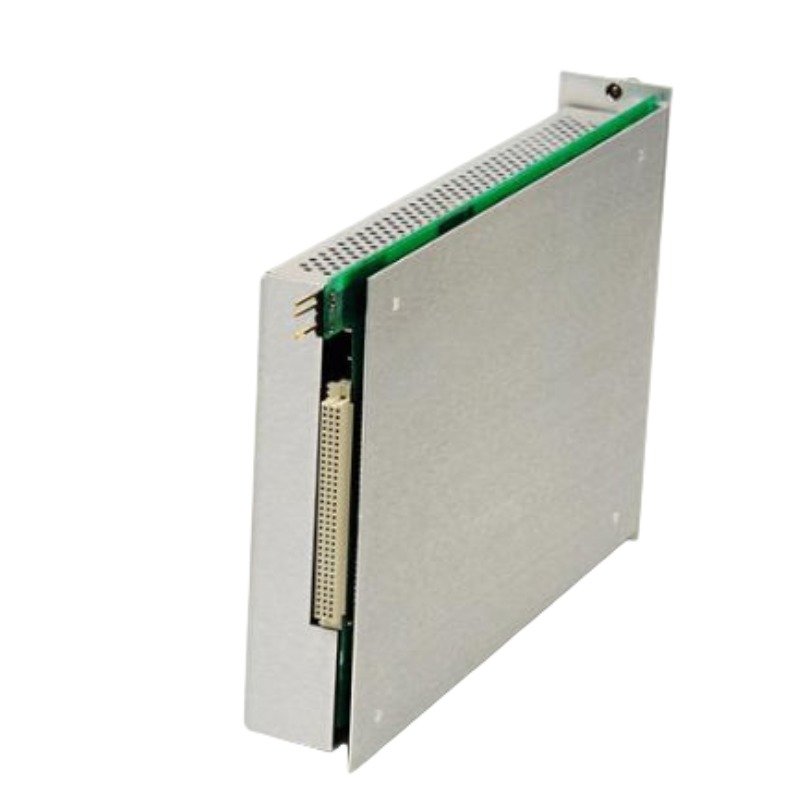

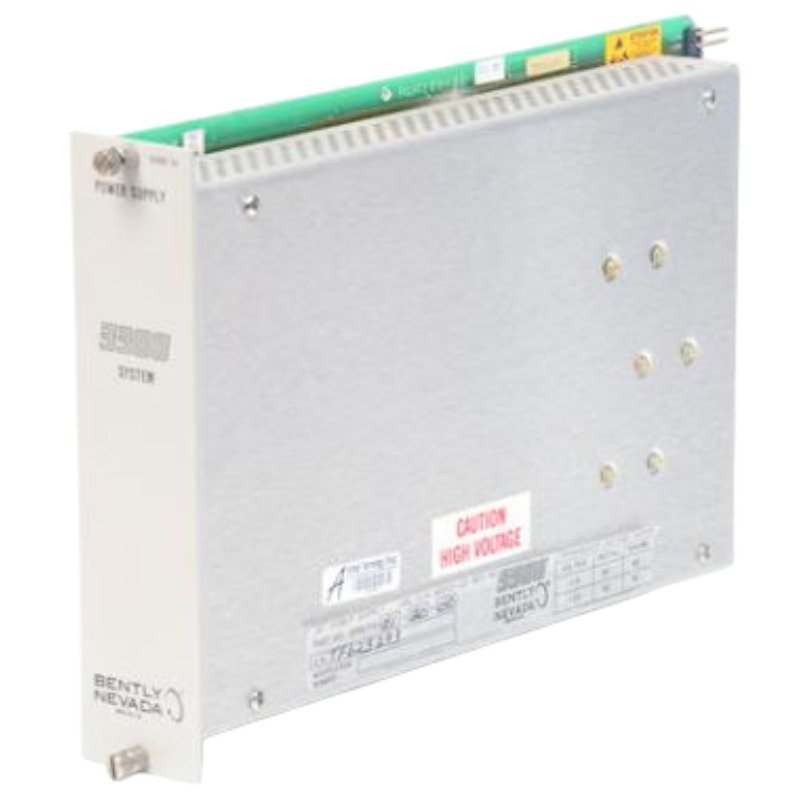

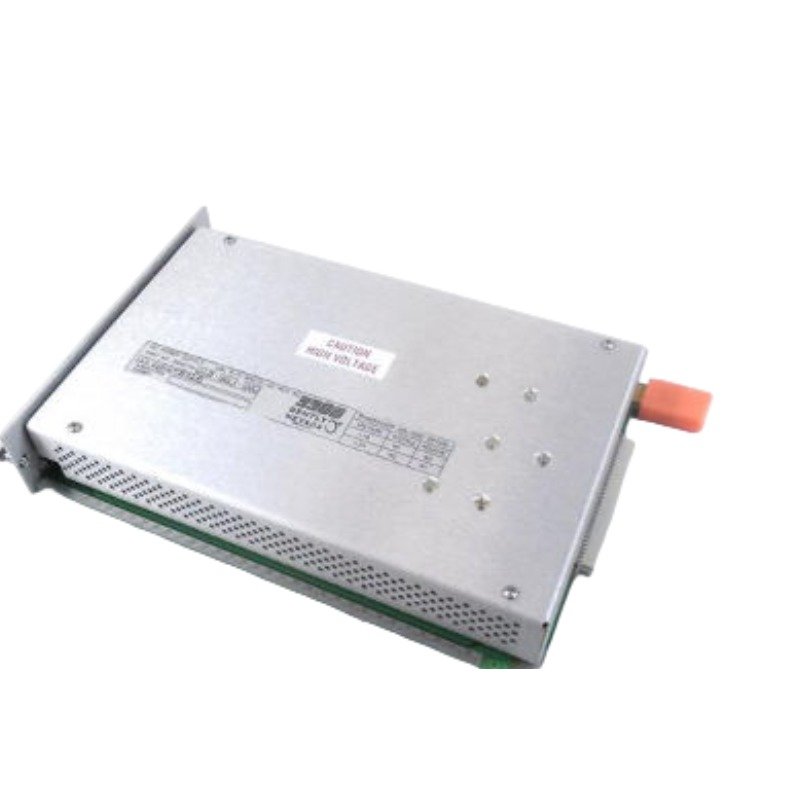

The Bently Nevada 3300/14-02-20-00, also cataloged as the 3300/14 DC Power Supply Module, operates as a dedicated hardware component for transforming, regulating, and distributing internal operating voltage within Bently Nevada 3300 Machinery Protection System racks. The instrument installs into the primary left-most structural slot (position 1) to energize internal processing backplanes, diagnostic circuit paths, and coupled proximity transducer nodes. It establishes a fixed localized power distribution layer, supporting standalone monitor architectures without supplemental external sub-station feeds.

Suffix Breakdown & Model Matrix

• 3300/14: Base Series Identifier for the high-capacity rack-mounted DC-to-DC power converter module.
• -02: Input Voltage Option specifying a +120 VDC nominal system source supply (operational window spanning +90 VDC to +140 VDC).
• -20: Power Input Module Option designating a Standard connection block setup for terminal interface matching.
• -00: Agency Approval Option dictating no specific specialized safety certification branding or hazardous zone marking tags.

Hardware Specifications

Eddy-Current Scaling and TSI Performance

This hardware infrastructure provisions stable, noise-rejected loop currents to sustain eddy-current probe scaling protocols across standard 5 mm, 8 mm, and 11 mm transducer installations. Consistent voltage output profiles maintain precise -10 VDC targets for gap voltage validation during standard static calibration positioning tests. The internal switching network leverages filtering matrices to guarantee optimal signal cross-talk suppression inside high-density multi-channel monitor installations. By limiting high-frequency power ripples, the module secures clean phase and dynamic displacement waves essential for calculating critical rotor dynamics, tracking fluid-film bearing oil whirl, and timing machine tachometer triggers.

Frequently Asked Questions

Q: Does the 3300/14-02-20-00 module support parallel load sharing or hot-swap redundancy arrangements in the same instrument frame?

A: No. The 3300 structural architecture designates slot 1 specifically for a single main supply module. A single 3300/14 converter provides sufficient power capacity to drive the entire 12-slot instrumentation frame without parallel secondary backups.

Q: What action takes place if the incoming plant source loop climbs beyond 140 VDC limits?

A: The module executes over-voltage protection shut-offs and leverages internal circuit fuses to isolate backplane pathways. It drops execution loops during input surges, resetting automatically once source currents fall within nominal parameters.

Field Installation Guidelines

• Verify complete system shutdown before inserting or sliding the module assembly into frame slot position 1 to prevent edge connector arc flash damage.
• Check input source wiring terminal blocks to guarantee correct polarity match. Reverse polarity hookup configurations trigger protective safety fuses immediately.
• Ensure all terminal blocks match standard industrial torque specifications to prevent terminal resistance heating along high-amperage input feeds.
• Route separate high-voltage DC supply lines through dedicated wireways segregated from low-signal transducer coax extensions to optimize noise-rejection parameters.
